Page 1
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 1 of 15
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 2 of 15
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
67680 Pkg - File Depth Gauge (0.025 - 0.030)
67688 Pkg - File Depth Gauge (0.015 - 0.020)
68915A Kit - Piston tool
83323 Shop Manual
84338 Rope - 100 ft. reel
85933 Kit - Spark arrester screen
89685 Screen - Spark arrester
90257 Tuneup Kit
85687 Wrench
88756 Kit - Combination Wrench
91485 Wrench - Socket
91567 Guard - Bar
90550 Bar - 14" Sprocket nose
90643N Chain - 14" Bar, MP 370G
90771 Bar - 14" MAC 6
88034N Chain - 14" Bar, SM 250
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 3 of 15
www.ktoutdoor.com

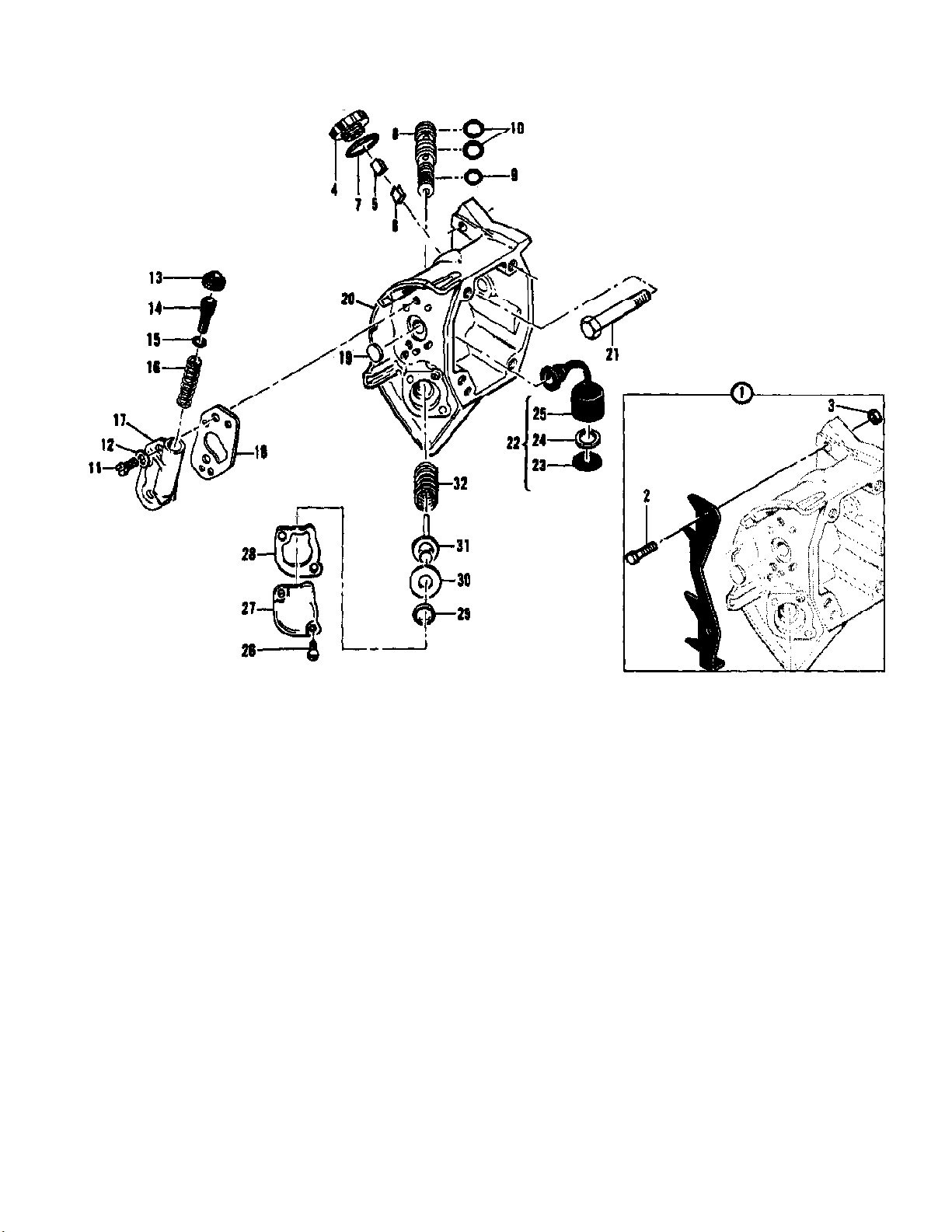

Automatic Oiler Housing Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 4 of 15
www.ktoutdoor.com
Automatic Oiler Housing Assembly
Ref # Part Number DescriptionQty
1 91051 Kit - Spike1
2 104738 Screw - Hx hd 10-24 x 1/22
3 101191 Nut - Hex 10-242
4 68809 Cap - Oil1
5 84953 Plug - Cap1
6 110737 Clip1
7 101148 "O" Ring1
8 83591 Cylinder Assy - Oil Pump1
9 105603 "O" Ring1
10 105614 "O" Ring2
11 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)2
12 100080 Washer - #81
13 62262 Cap - Oil pump1
14 68603 Plunger - Oil pump1
15 105614 "O" Ring1
16 66687 Spring - Plunger1
17 83189 Body - Oil pump1
18 83187 Gasket - Oil pump1
19 62909 Valve - Oiler1
20 91428 Tank Assy - Oil1
21 68687A Bolt - Bar1
22 68140 Pickup Assy - Oil1
23 67552 Screen1
24 67569 Weight1
25 67568 Hose1
26 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)2
27 83186 Cover - Oil pump1
28 83185 Gasket - Cover1
29 105603 "O" Ring1
30 83184 Ring - Oiler piston1
31 83181 Piston Assy - Oiler1
32 83180 Spring - Oiler piston1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 5 of 15
www.ktoutdoor.com

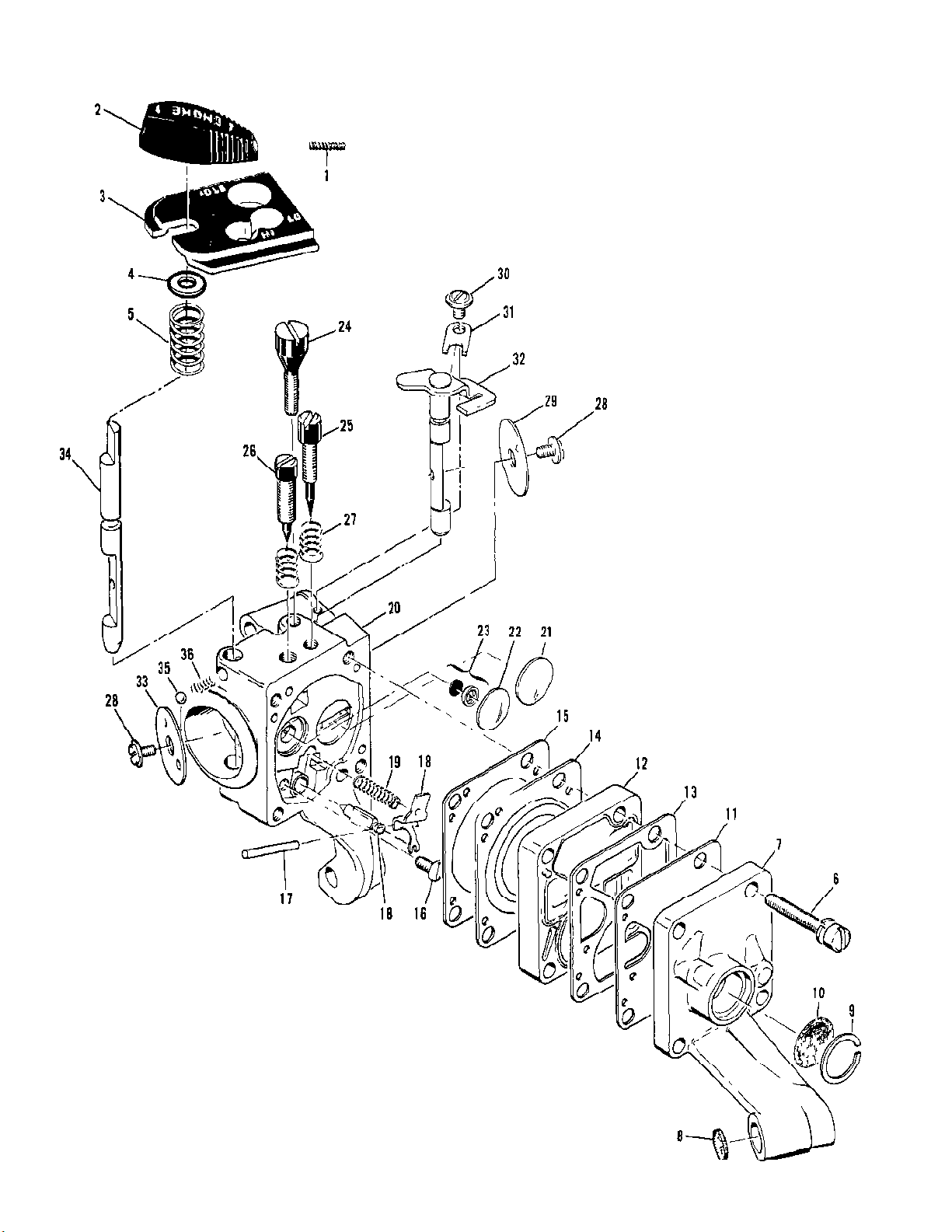

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 6 of 15
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
1 110554 Screw - Set 4-40 x 1/21
2 68659 Knob - Choke1
3 68814 Plate - Adjustment cover1
4 110264 Washer1
5 11086 Spring - Plate1
90447 Carburetor Assembly1
6 68564 Screw Assy - Body1
7 68879 Cover Assy - Pump1
8 68570 Screen - Inlet1
9 68883 Retainer - Vent screen1
10 68571 Screen - Vent1
11 68563 Diaphragm - Pump1
12 90444 Kit - Body & Gasket1
13 85035 Gasket1
14 68562 Diaphragm1
15 68881 Gasket - Diaphragm1
16 67500 Screw - Lever pin1
17 67508 Pin - Lever1
18 85059 Kit - Needle & lever1
19 68567 Spring - Lever1
20 Body Assy - Carburetor1
21 68560 Plug - 1/21
22 68559 Plug - 7/161
23 83758 Kit - Check valve1
24 68566 Screw - Idle speed1
25 86446 Needle - Idle1
26 86447 Needle - High speed1
27 67502 Spring - Needle2
28 83755 Screw - Plate2
29 68553 Plate - Throttle1
30 70798 Screw - Clip1
31 68554 Clip - Throttle shaft1
32 90470 Throttle Shaft Assy1
33 68556 Plate - Choke shaft1
34 84990 Choke Shaft1
35 100302 Ball - Choke friction1
36 67504 Spring - Choke friction1
68882 Gasket Set
90409 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 7 of 15
www.ktoutdoor.com

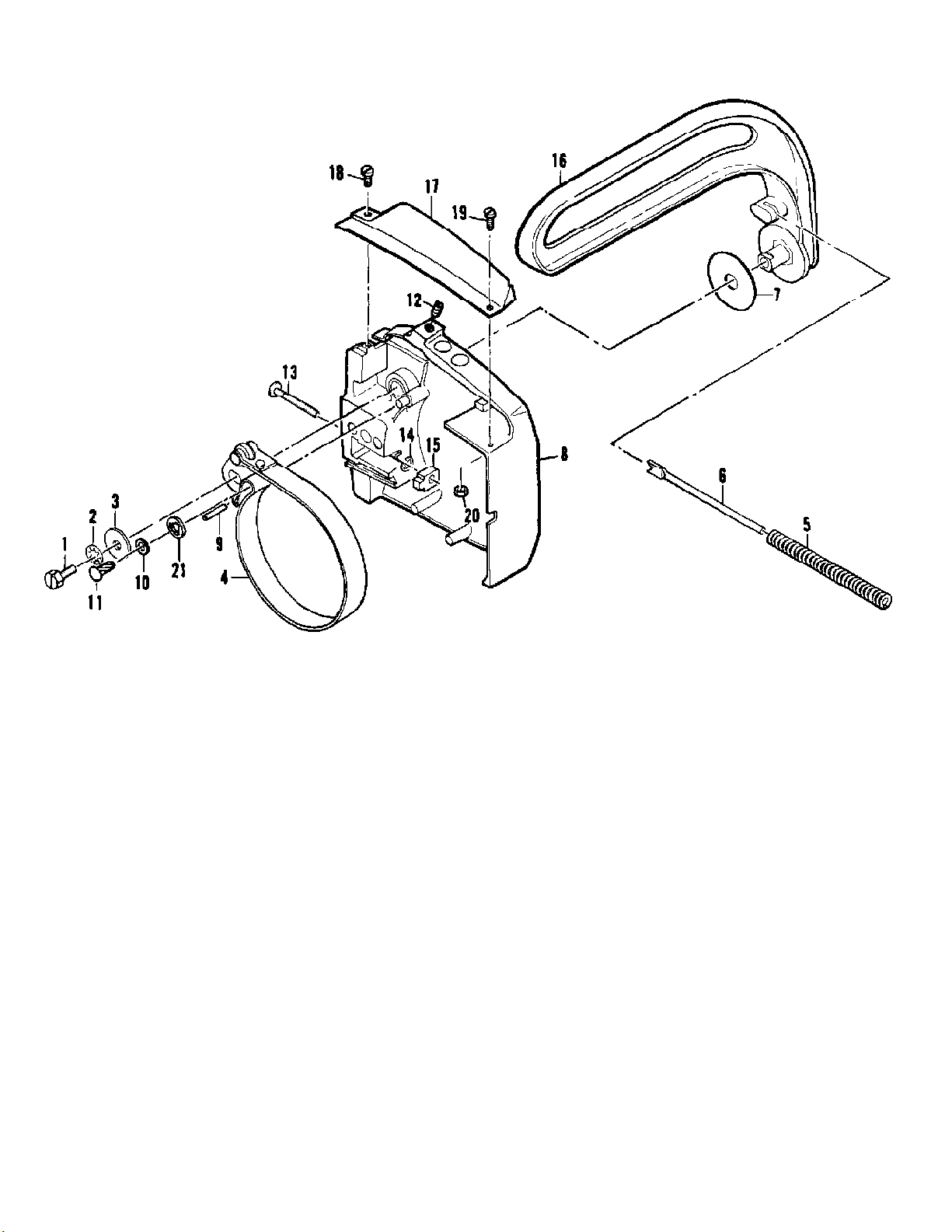

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 8 of 15
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
90570B CHAIN BRAKE Assy
1 102762 Screw - Hex hd 10-24 x 1/21
2 101194 Washer - Lock #101
3 110712 Washer1
4 90580 Band & Lever1
5 90587A Spring - Brake Actuator1
6 90588 Guide - Spring1
7 90967 Washer - Actuating Lever1
8 90571C Kit-Housing/Spring1
9 103047 Pin1
10 100001 Washer1
11 110946 Screw Drive - 6 x 5/161
12 110955 Screw - Set 8-32 x 1/21
13 90658 Screw - Adjusting1
14 110907 Ring - Retaining1
15 84929 Nut - Bar adjusting1
16 90576 Lever - Actuator1
17 91542A Kit - Shield1
18 104164 Screw - Pan hd 4-40 x 1/4, s/t1
19 110663 Screw - Pan hd 4-40 x 5/16, s/t1
20 100530 Nut - Hx 4-401
21 110913 Fastener - Springtip1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 9 of 15
www.ktoutdoor.com

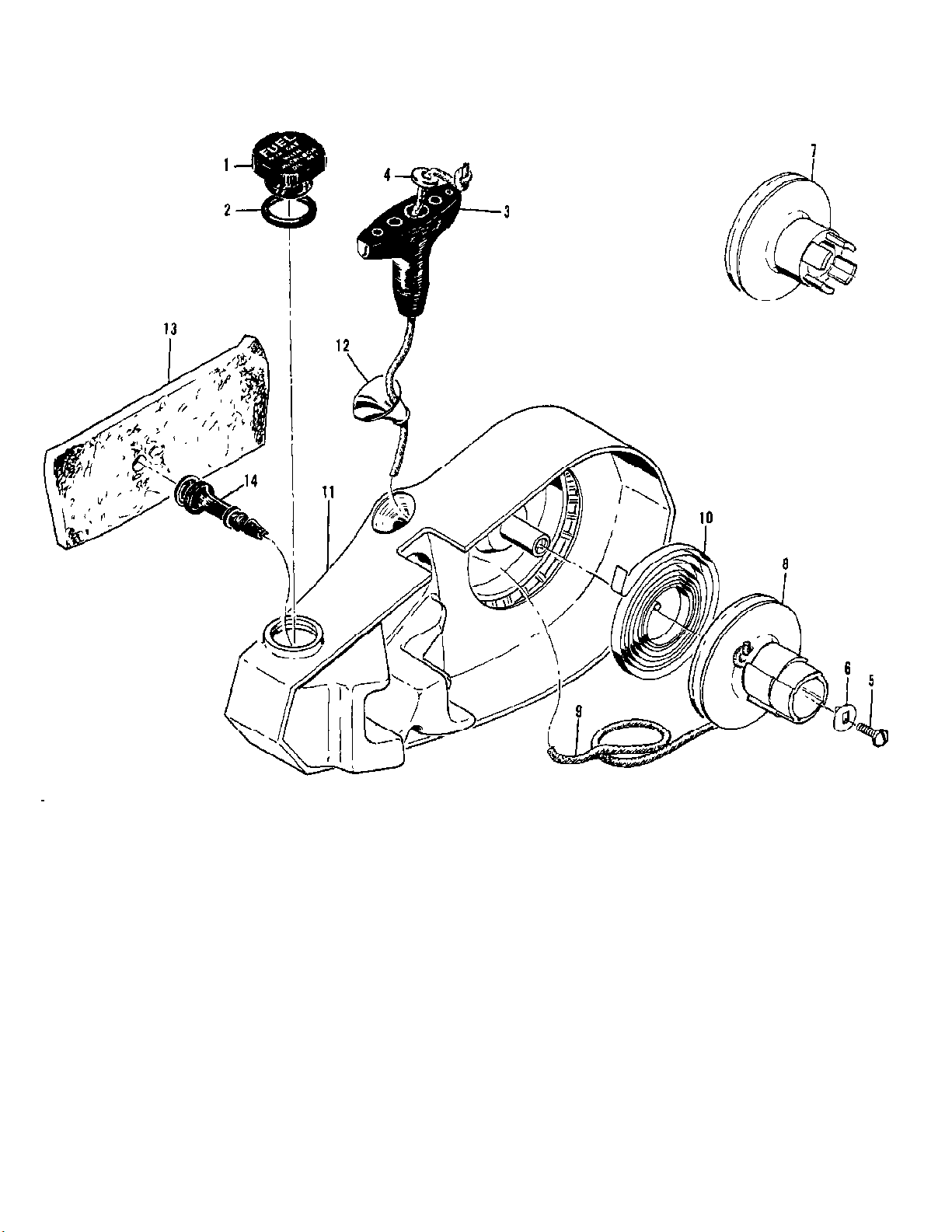

Fan Housing & Starter Assy.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 10 of 15
www.ktoutdoor.com
Fan Housing & Starter Assy.
Ref # Part Number DescriptionQty
1 68813 Cap Asy - Fuel1
2 101148 "O" Ring1
83167 Fan Housing & Starter Asy1
92122 Fan Housing & Starter Asy1
3 91255 Kit - Starter handle1
4 105490 Washer1
5 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)1
6 68497 Washer - Tang1
7 83080 Drum - Starter1
8 92307 Drum/Rope Asy1
9 83203 Rope - Starter1
10 83078 Spring - Rewind1
11 83201 Housing Asy1
12 67571 Guide- Rope1
13 67582 Felt - Fuel1
14 67581 Fitting - Fuel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 11 of 15
www.ktoutdoor.com

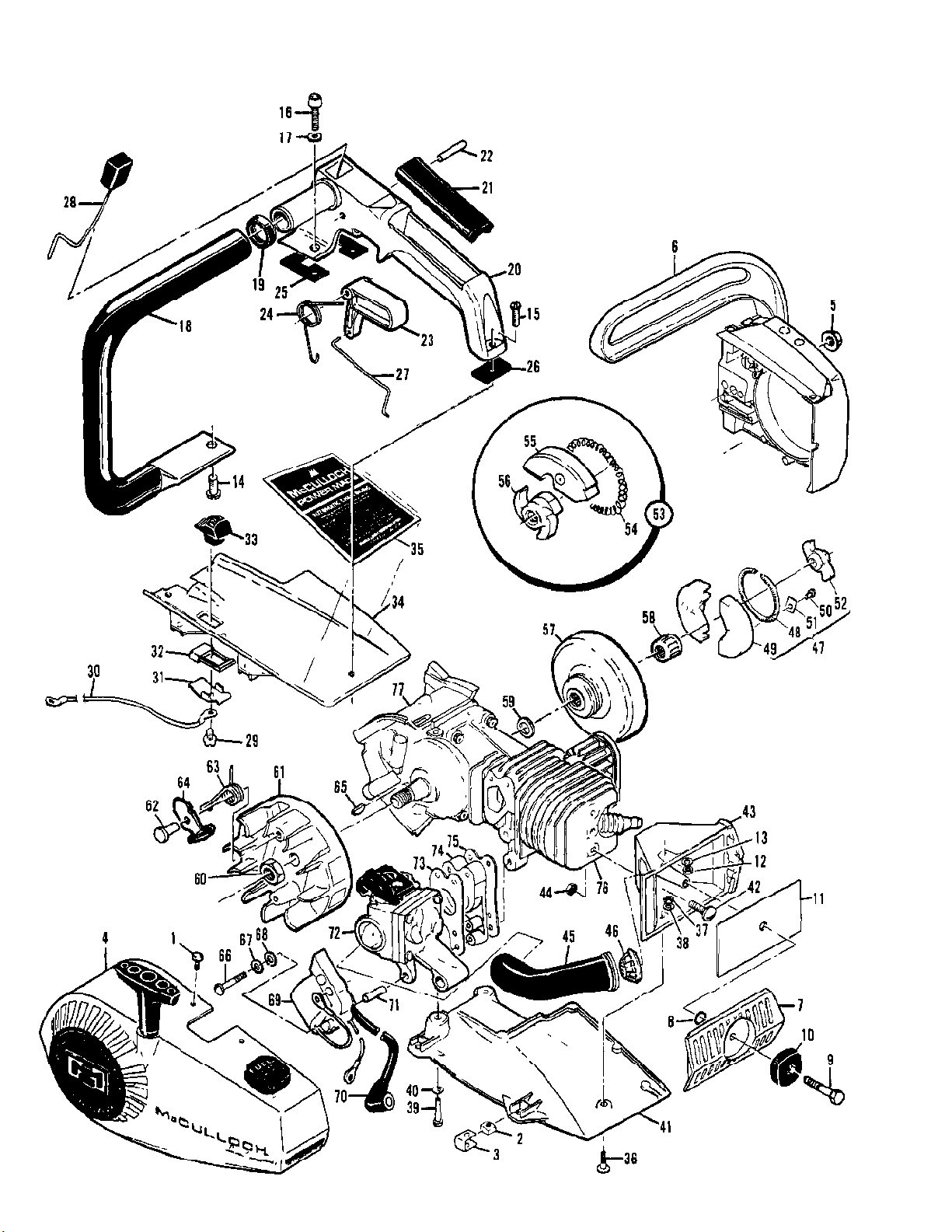

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 12 of 15
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110597 Screw - Pad hd 8-32 x 1/26
2 68963 Nut - Square 8-326
3 68770 Retainer - Nut6
4 Fan Housing & Starter Asy See "Fan Housing &
Starter Assembly" illustration and parts list.
5 110676 Nut - Hx 1/4-281
6 CHAIN BRAKE Asy See "Chain Brake Assembly"
illustration and parts list.
7 69006 Cover - Air cleaner1
8 105603 "O" Ring1
9 69202 Screw - Cover1
10 68616 Knob - Cover1
11 68685 Screen - Air cleaner1
12 100955 Nut - Hx 8-321
13 100080 Washer - #81
14 110670 Screw - Pan hd 8-32 x 5/81
15 110726 Screw - Pan hd 8-32 x 7/81
16 110585 Screw - Skt hd 10-24 x 3/42
17 110264 Washer - #102
18 85465 Frame & Grip Asy1
19 84061 Collar - Frame1
20 85577 Handle Asy1
21 91365 Grip - Handle1
22 105654 Pin - Trigger1
23 84063 Trigger1
24 84255 Spring - Trigger1
25 84239 Insulator - Forward1
26 84240 Insulator - Rear1
27 84256 Rod - Throttle1
28 84228 Button & Rod Asy1
29 110706 Screw - Pan hd 8-18 x 1/21
30 88435 Wire Asy - Stop switch1
31 62451 Contact - Switch1
32 62950A Base - Switch1
33 68846 Button - Switch1
34 69009 Shroud - Top1
35 91595 Plate - Name1
36 110584 Screw - Pan hd 8-32 x 3/41
37 100955 Nut - Hx 8-321
38 100080 Washer - #81
39 110714 Screw - Skt hd 10-24 x 3/42
40 110264 Washer - #102
41 69010 Shroud - Bottom1
42 110584 Screw - Pan hd 8-32 x 3/42
43 87900 Housing - Air cleaner1
44 100955 Nut - Hx 8-322
45 67195 Duct - Air1
46 68623 Shield - Duct1
47 92743 Clutch Asy1
48 69358 Spring - Clutch1
49 92668 Kit - Clutch shoe2
50 110957 Rivet2
51 85064 Plate2
52 92721 Spider1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 13 of 15
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
53 83156 Clutch Asy1
54 69358 Spring - Clutch1
55 83220 Shoe - Clutch3
56 68778 Spider1
57 90150 Drum/Sprocket/Bearing Asy - .375P1
58 91222 Kit - Bearing1
57 85504 Drum & Sprocket Asy - .250P1
58 67650 Bearing - Sprocket1
59 67303 Washer - Sprocket1
60 110970 Nut - Hx 5/16-241
60 110931 Nut - Hx 3/8-241
61 91961 Flywheel & Pawl Asy1
62 68796 Pin - Pawl2
63 67814 Spring - Pawl2
64 91872 Pawl - Starter2
61 69806 Flywheel & Pawl Asy1
62 68796 Pin - Pawl2
63 67814 Spring - Pawl2
64 69103 Pawl - Starter2
65 102164 Key - Woodruff1
65 100106 Key - Woodruff1
66 110586 Screw - Pan hd 8-32 x 1-3/43
67 100080 Washer - #83
68 67177 Washer - Insulating3
69 84957 Coil & Lamination1
70 69966 Wire Asy - Spark plug1
71 68198 Tube - Insulating3
72 Carburetor Asy See "Carburetor Assembly"
illustration and parts list.
73 68197 Gasket - Carburetor1
74 90713 Insulator - Carburetor1
75 90714 Gasket - Insulator1
76 Powerhead Asy See "Powerhead Assembly"
illustration and parts list.
77 Automatic Oiler Housing Asy See "Automatic Oiler
Housing Assembly" illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 14 of 15
www.ktoutdoor.com

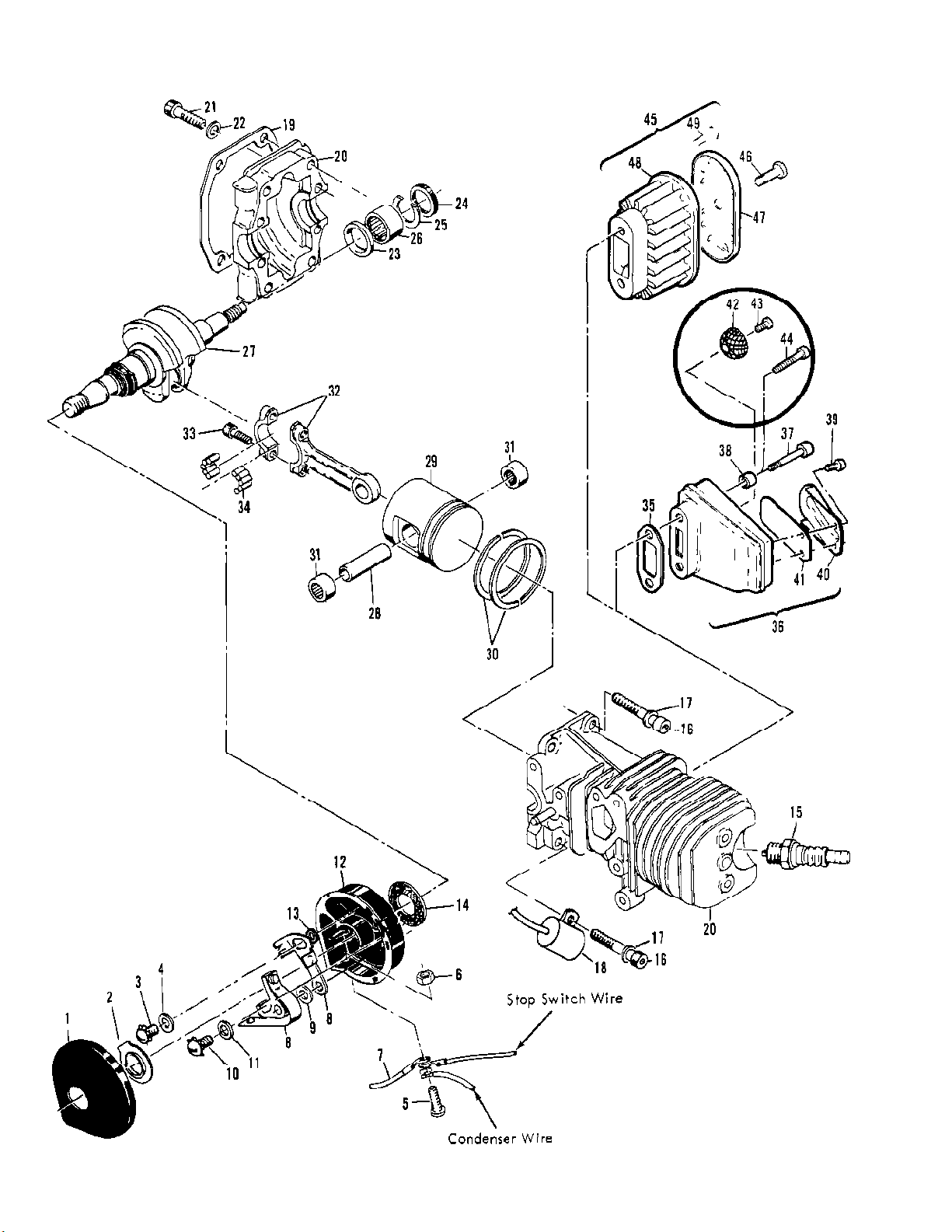

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600088P POWER MAC 6A 08/75 to 03/78 IPL 92308A Page 15 of 15
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 67841 Cover - Breaker box1
2 69323 Seal - Outer1
3 110969 Screw - Hx hd 8-32 x 1/21
4 69322 Washer - #81
5 110364 Screw - Pan hd 6-32 x 5/81
6 110975 Nut - Speed1
7 69344 Wire Assy - Primary1
8 88810 Breaker Assy1
9 68630 Washer - Breaker1
10 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)1
11 100080 Washer - #81
12 67840A Kit - Breaker box1
13 92037 Washer1
14 68525 Seal - Breaker box1
15 63097 Spark Plug1
15 93018 Spark Plug1
16 110523 Screw - Skt hd 8-32 x 1-1/44
17 110613 Washer - #84
18 85358 Condenser1
19 83088 Gasket - Oil tank1
20 83454A Crankcase Assy1
21 110522 Screw - Skt hd 8-32 x 7/84
22 110613 Washer - #84
23 68513 Washer - Thrust2
24 67175 Seal - Oil2
25 110547 Ring - Retaining2
26 66854 Bearing - Crankshaft2
27 91932 Crankshaft1
86439A Crankshaft1
28 66867 Pin - Piston1
29 68098 Piston Assy1
30 87165 Ring Set - Piston1
31 110538 Bearing - Needle (Closed end)2
32 68097 Rod Assy - Connecting1
33 66853 Screw - Skt hd Special2
34 68095 Roller - Needle (Set of 20)1
35 68747 Gasket - Spark arrester1
36 84992 Kit - Reed muffler1
37 110692 Screw - Skt hd 10-24 x 1-3/82
38 84950 Nut - Round 10-242
39 110563 Screw - Skt hd 8-32 x 1/42
40 92353 Stop - Reed1
41 85258 Valve - Spark arrester1
42 85933 Kit - Spark arrester screen1
43 101987 Screw - Bd hd 6-32 x 1/41
44 85926 Screw - Skt hd 10-24 x 1-3/82
45 89683 Kit - Sound Reducing1
46 110674 Screw - Hx hd 10-24 x 1/21
47 89684 Cover - Spark arrester screen1
48 89682 Body - Spark arrester1
49 110928 Screw - Hx hd 10-24 x 1/22
K&T Saw Shop 606-678-9623 or 606-561-4983
