Ref # Part Number DescriptionQty
84992 Muffler - Reed
85933 Kit - Spark arrester screen (Reed muffler)
68768 Kit - Muffler
69162 Screen - Spark arrester (PM 6 muffler)
85062 Kit - Piston tool
83687 Guide - Timing
68648 Scrench
84338 Rope - 100 ft reel
83924 Owner's Manual
85924 Kit - Spark arrestor
85687 Wrench - Screwdriver
84715 Spike
84959 Carrying Case
84904 Kit - Tool
84911 Handle - File
68648 Wrench
83463 Kit - Gas & Go
83234 Wrench
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600081 MINI MAC 6 07/70 to 05/73 IPL 86497 Page 3 of 10
www.ktoutdoor.com

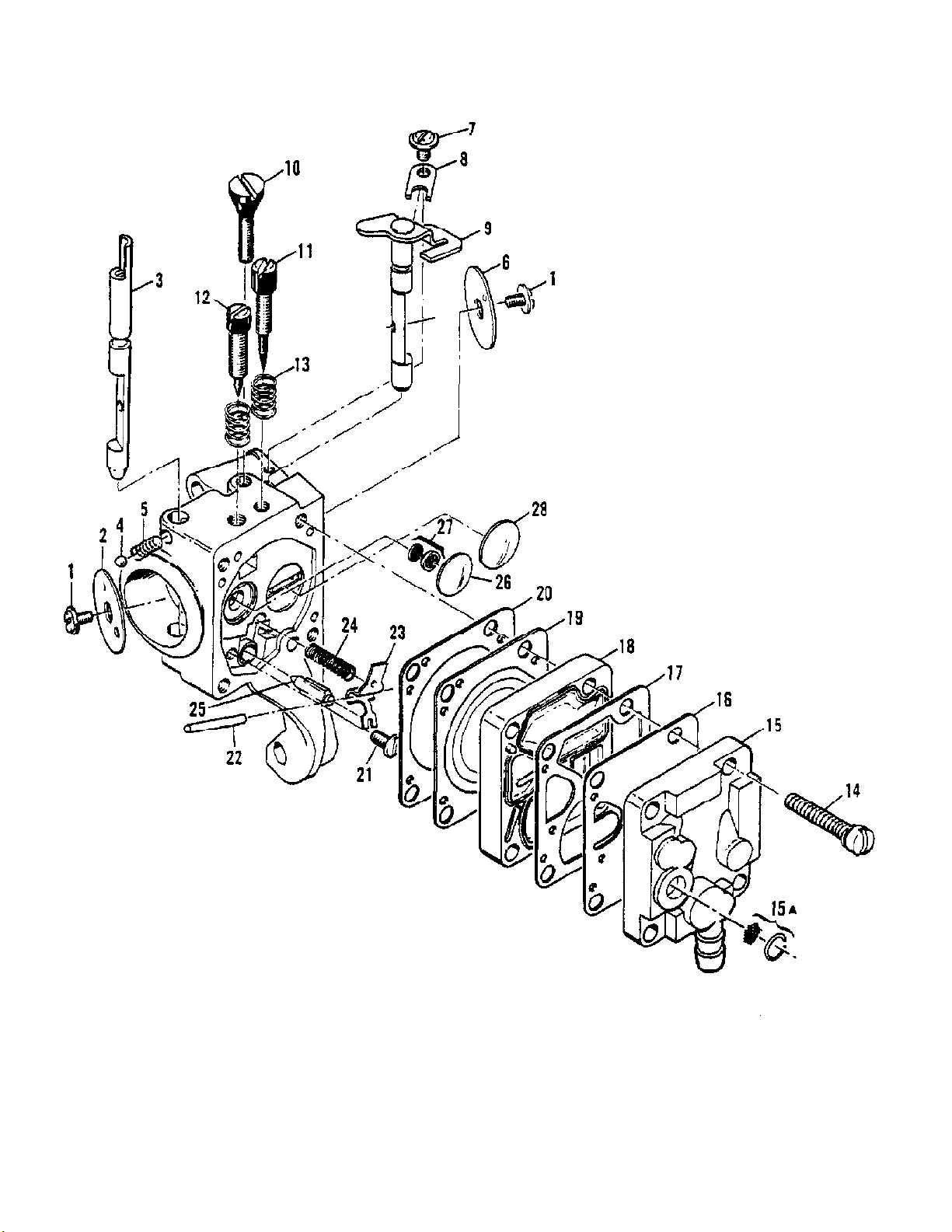

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600081 MINI MAC 6 07/70 to 05/73 IPL 86497 Page 4 of 10
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
83869 Carburetor Assy1
1 83755 Screw - Plate2
2 68556 Plate - Choke1
3 85033 Shaft - Choke1
4 100302 Ball - Choke friction1
5 67504 Spring - Choke friction1
6 68553 Plate - Throttle1
7 70798 Screw - Clip1
8 68554 Clip - Throttle shaft1
9 85032 Shaft Assy - Throttle1
10 68566 Screw - Idle speed1
11 68568 Needle - Idle1
12 68569 Needle - High speed1
13 67502 Spring - Needle2
14 68564 Screw Assy - Body4
15 85031 Cover Assy - Pump1
15A 85629 Kit - Vent screen1
16 68563 Diaphragm - Fuel pump1
17 85035 Gasket - Pump diaphragm1
18 85030 Body - Fuel pump1
19 85036 Diaphragm - Metering1
20 85034 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 83756 Lever - Inlet1
24 68567 Spring - Lever1
25 83753 Needle - Inlet1
26 68559 Plug - Welsh 7/161
27 83758 Kit - Check valve1
28 68560 Plug - Welsh 1/21
85041 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600081 MINI MAC 6 07/70 to 05/73 IPL 86497 Page 5 of 10
www.ktoutdoor.com

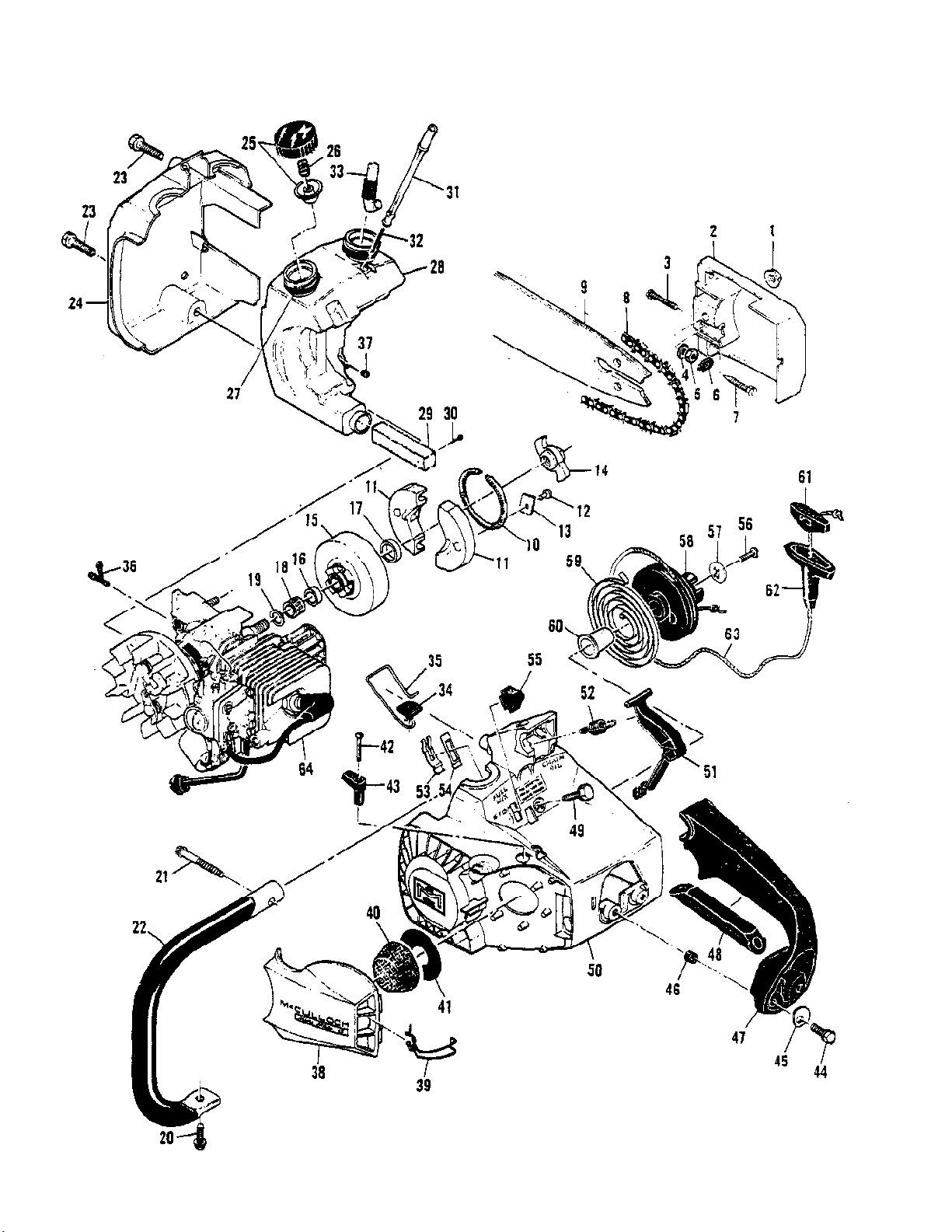

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600081 MINI MAC 6 07/70 to 05/73 IPL 86497 Page 6 of 10
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110676 Nut - Hex 1/4-281
2 85456 Guard Assy - Clutch
3 110660 Screw - Pan hd 8-32 x 1-1/81
4 110525 Washer - Wavey1
5 100955 Nut - Hex 8-321
6 84929 Nut - Bar adjusting1
7 84715 Spike2
8 67747N Chain Assy - 14 in. bar1
67746N Chain Assy - 12 in. bar1
9 68301 Bar - 14 in.1
66924 Bar - 12 in.1
83906 Clutch Assy1
85450 Clutch Assy1
10 69358 Spring - Clutch1
11 85202 Shoe Assy - Clutch2
12 110709 Rivet2
13 85064 Plate2
14 83907 Spider1
85449 Spider1
15 85504 Kit - Sprocket & Drum1
16 85144 Spacer - Bearing1
17 85319 Spacer - Drum1
18 67650 Bearing - Sprocket1
19 67303 Washer - Sprocket1
20 110640 Screw - Hex hd 12-24 x 5/8 s/t1
21 110686 Screw - Hex hd 13-16 x 21
22 84791 Frame & Grip Assy1
23 110639 Screw - Hex hd 12-24 x 12
24 84792 Cover - Fuel tank1
25 83905 Cap - Fuel & Oil2
26 85079 Spring - Cap2
27 110732 "O" Ring2
28 86441 Tank Assy - Fuel & Oil1
29 84956 Pickup - Fuel1
30 85057 Pin - Pickup1
31 83900 Piston - Manual oiler1
32 83946 Spring - Piston1
33 85557 Body - Oiler1
34 84794 Button - Oiler rod1
35 84611 Rod - Manual oiler1
36 84653 Connector - Oil pump1
37 86438 Valve - Pump check1
38 84709 Cover Assy - Air cleaner1
39 83882 Retainer - Cover1
40 85127 Filter - Air1
41 84918 Washer - Air seal1
42 110672 Screw - Oval hd 4-40 x 11
43 83870 Knob - Choke1
44 110640 Screw - Hex hd 12-24 x 5/8 s/t2
45 84520 Washer - Handle2
46 84519 Sleeve - Handle2
47 83852 Handle1
48 64872 Grip - Handle1
49 110640 Screw - Hex hd 12-24 x 5/8 s/t3
50 83872 Fan Housing1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600081 MINI MAC 6 07/70 to 05/73 IPL 86497 Page 7 of 10
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
51 83878 Trigger1
52 83940 Spring - Trigger1
53 83935 Contact - Switch1
54 83936 Protector - Switch1
55 83934 Button - Switch1
56 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)1
57 84467 Washer - Special1
58 83876 Drum - Starter1
59 83078 Spring - Rewind1
60 83874 Bushing - Starter1
61 68810 Insert - Handle1
62 67158 Handle - Starter1
63 83203 Rope - Starter1
64 Powerhead Assy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600081 MINI MAC 6 07/70 to 05/73 IPL 86497 Page 8 of 10
www.ktoutdoor.com

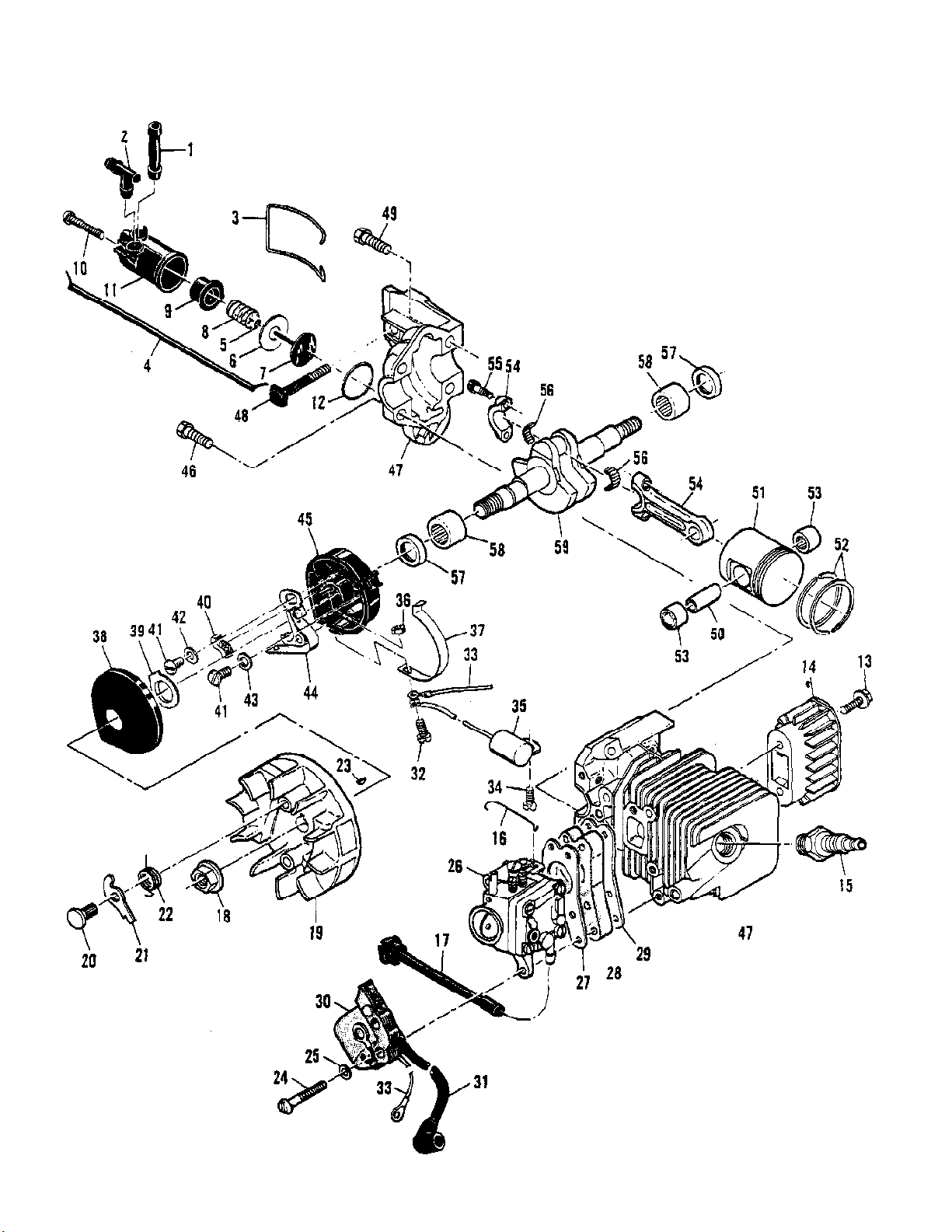

Powerhead Assembly
