11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 1 of 19
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 2 of 19
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
64797 Wrench - Spark plug
61040 Wrench - Combination
85584 Socket - Extension
85583 Key - Splined socket
65712 Guide - Timing
84688 Kit - Spark arrester baffle
85108 Retainer - Baffle
85463 Kit - Preheater
86351 Kit - Fuel cap cover
83463 Kit - Gas & Go
65778 Spark Plug - AC CS 41T
86115 Manual - Owner's
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 3 of 19
www.ktoutdoor.com
Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 4 of 19
www.ktoutdoor.com

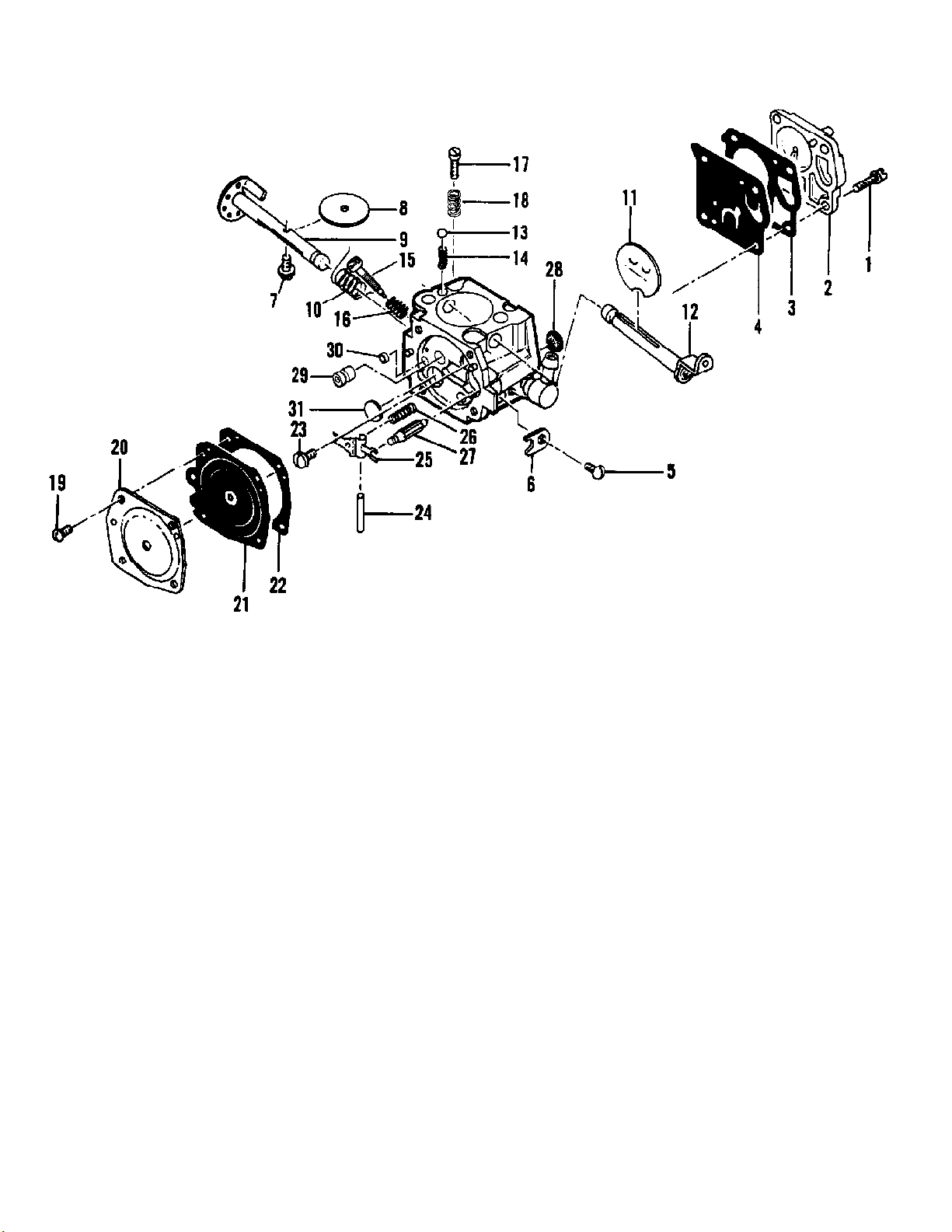

Carburetor Assembly
Ref # Part Number DescriptionQty
87288 Carburetor Assy1
1 52933 Screw - Pump cover4
2 83731 Cover - Pump1
3 66629 Gasket - Pump cover1
4 66630 Diaphragm - Fuel pump1
5 48780 Screw - Throttle shaft clip1
6 66646 Clip - Throttle shaft1
7 48780 Screw - Throttle plate1
8 51720 Plate - Throttle1
9 88773 Shaft Assy - Throttle1
10 67136 Spring - Throttle shaft1
11 66639 Plate - Choke1
12 83717 Shaft Assy - Choke1
13 100071 Ball - Choke friction1
14 48759 Spring - Choke friction1
15 88768 Needle - Idle mixture1
16 66626 Spring - Idle mixture needle1
17 66625 Screw - Idle speed1
18 66626 Spring - Idle speed screw1
19 51721 Screw - Diaphragm cover4
20 66631 Cover - Diaphragm1
21 66632 Diaphragm - Metering1
22 66633 Gasket - Diaphragm1
23 66644 Screw - Inlet lever pin1
24 66636 Pin - Inlet lever1
25 66638 Lever - Inlet1
26 66404 Spring - Inlet lever1
27 66637 Needle - Inlet1
28 66623 Screen - Fuel inlet1
29 88771 Jet - High speed fuel (029)1
88772 Jet - H/S fuel (028) Alt.
88781 Jet - H/S fuel (027) Alt.
88780 Jet - H/S fuel (026) Alt.
30 52928 Plug - Cup1
31 66622 Plug - Welch1
88774 Gasket Set
88775 Repair Kit
88776 Gasket & Diaphragm Set
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 5 of 19
www.ktoutdoor.com
Clutch Guard And Clutch Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 6 of 19
www.ktoutdoor.com

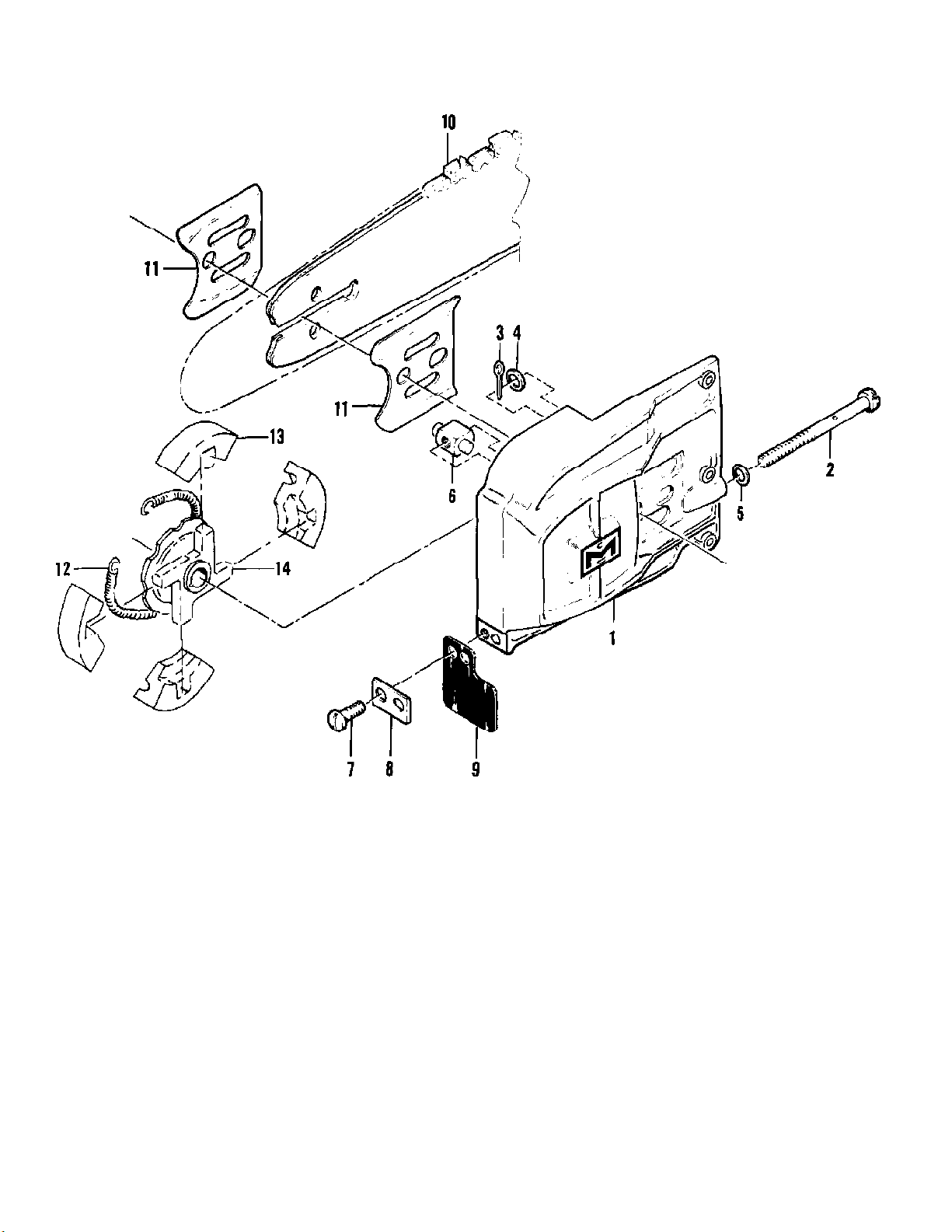

Clutch Guard And Clutch Assemblies
Ref # Part Number DescriptionQty
1 85547 Clutch Guard Assy1
2 62057 Screw - Adjustment1
3 105686 Pin - Cotter1
4 100004 Washer - 1/41
5 100005 Washer - 1/41
6 52207C Nut - Bar adjustment1
7 110041 Screw - Pan hd 8-32 x 1/22
8 69492 Retainer - Deflector1
9 69477 Deflector - Saw dust1
10 Bar & Chain Assys1
11 64935 Plate - Bar2
89227 Clutch Assy1
12 85042 Spring - Clutch1
13 51464A Shoe - Clutch4
14 89226 Rotor Assy1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 7 of 19
www.ktoutdoor.com
Crankcase Cover And Ignition Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 8 of 19
www.ktoutdoor.com

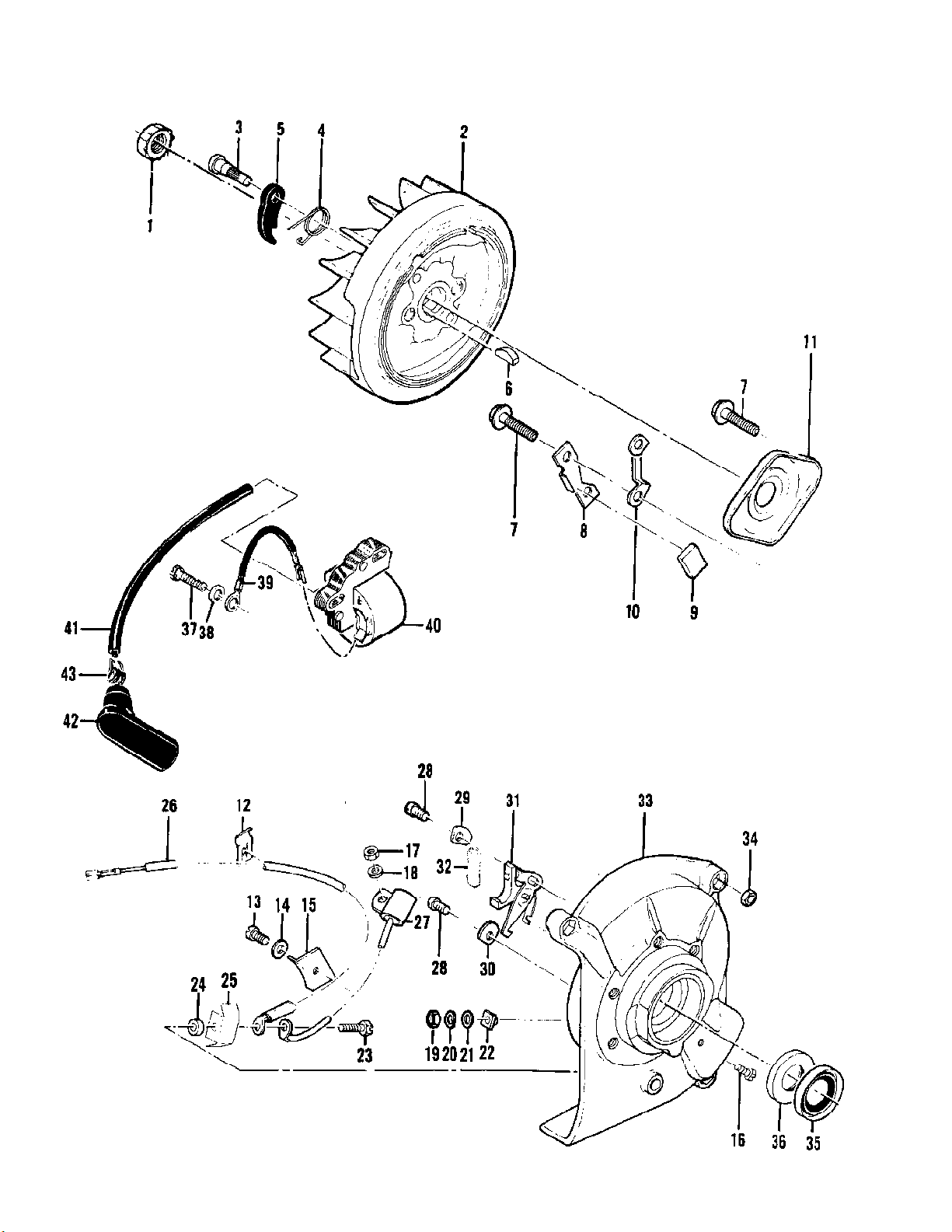

Crankcase Cover And Ignition Assemblies
Ref # Part Number DescriptionQty
1 110655 Nut - Hex 7/16-301
2 68282 Flywheel & Pawl Assy1
3 36144B Pin - Pawl2
4 66351 Spring - Pawl2
5 24093 Pawl - Starter2
6 103879 Key - Woodruff1
7 110866 Screw - Hex hd 10-24 x 3/4 (SEMS)6
8 57815 Strap - Seal1
9 50664 Seal - Breaker box1
10 55977 Clip - Cover2
11 55766B Cover - Breaker box1
12 104230 Nut - Speed1
13 110055 Screw - Fil hd 8-32 x 3/8 (SEMS)1
14 100080 Washer - #81
15 57829 Clamp - Ignition wire1
16 103748 Screw - Hex hd 8-32 x 1/21
17 100251 Nut - Hex 8-321
18 100057 Lockwasher - #81
19 104551 Nut - Hex 8-321
20 104553 Lockwasher - #81
21 100080 Washer - #81
22 57770A Insulator - Breaker spring1
23 110338 Screw - Hex hd 8-32 x 9/161
24 57769 Insulator - Ignition screw1
25 55782A Insulator - Breaker terminal1
26 63628 Wire Assy - Primary1
27 85358 Condenser1
28 104733 Screw - Fil hd 8-32 x 1/2 (SEMS)2
29 57767A Lockplate1
30 55778E Washer - Breaker retainer1
31 88807 Breaker Assy1
32 54184 Wiper - Oil1
33 84193 Cover Assy - Crankcase1
34 101326 Nut - Hex 10-243
35 57898 Seal - Oil1
36 57897 Seal - Oil1
37 110713 Screw - Skt hd 10-24 x 7/82
38 83745 Washer - Special2
39 63639 Wire Assy - Ground1
40 85243 Coil & Lamination Assy1
41 50120 Wire Assy - Spark plug1
42 55060 Boot - Spark plug1
43 55061 Connector - Spark plug1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 9 of 19
www.ktoutdoor.com
Fan Housing And Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 10 of 19
www.ktoutdoor.com

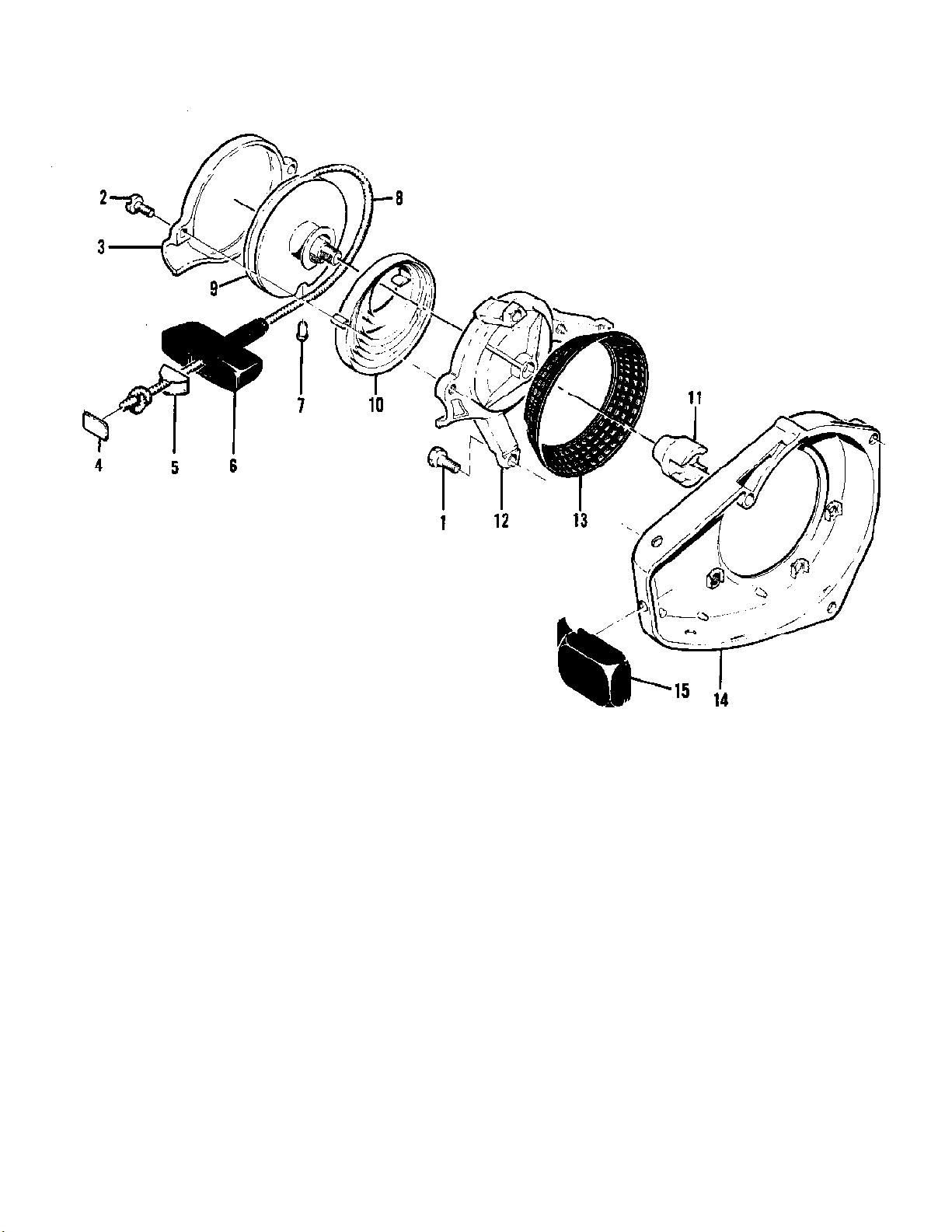

Fan Housing And Starter Assembly
Ref # Part Number DescriptionQty
1 104815 Screw - Hex hd 10-24 x 7/8 (SEMS)3
84211 Starter Assy1
2 104396 Screw - Pan hd 10-24 x 3/42
3 60647 Cover - Starter1
4 57232 Plate - Starter handle1
5 57231 Cup - Handle1
6 57230 Handle - Starter1
7 101136 Rivet - Rope1
8 28716 Rope - Starter1
9 57792 Drum - Starter1
10 51665 Spring - Rewind1
11 57790 Ratchet - Starter1
12 84212 Base - Starter1
13 84629 Guard - Sawdust1
14 89242 Housing - Fan1
15 85376 Cover - Spark plug1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 11 of 19
www.ktoutdoor.com
Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 12 of 19
www.ktoutdoor.com

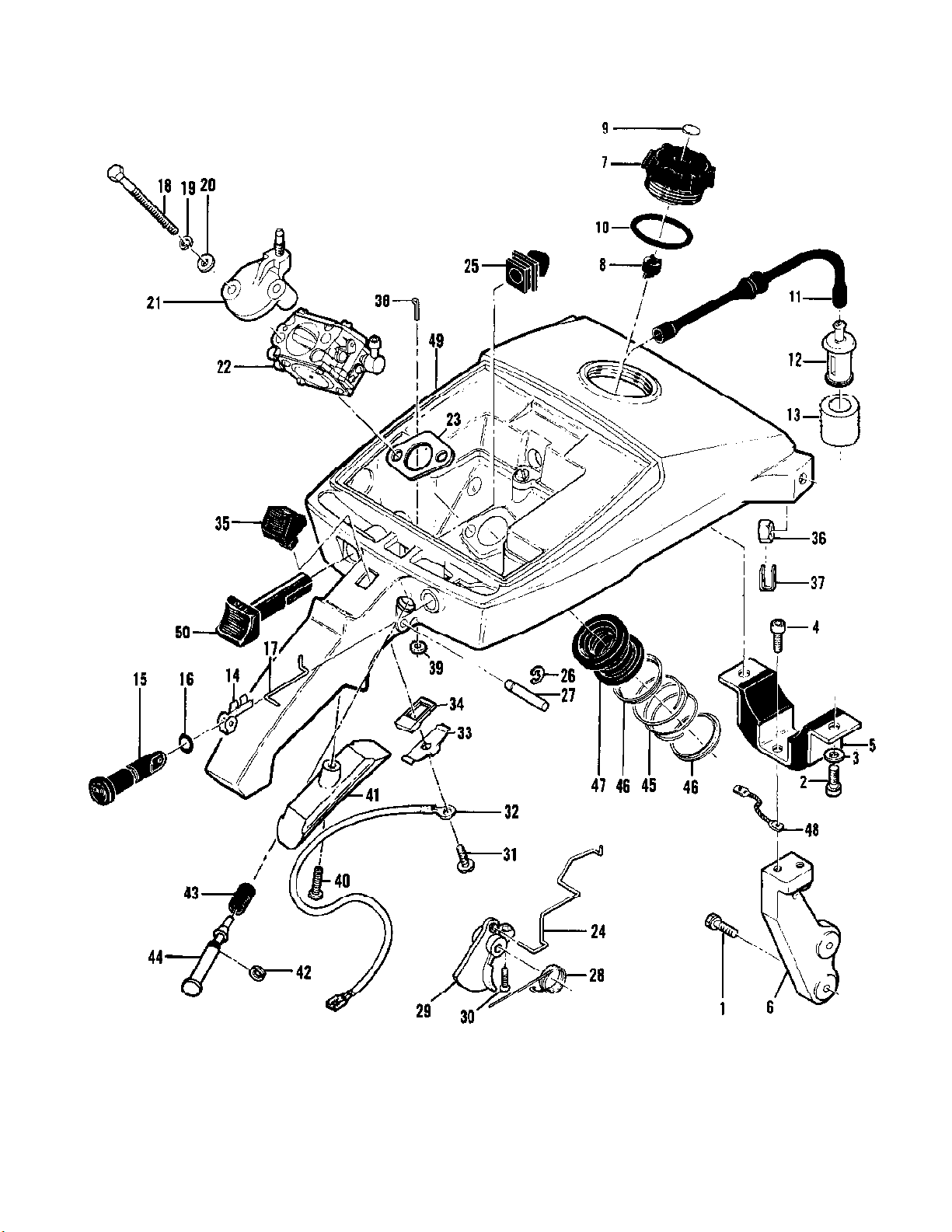

Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 110621 Screw - Hex hd 10-24 x 3/4 (SEMS)2
2 104895 Screw - Skt hd 10-24 x 5/82
3 83745 Washer - Special2
4 104895 Screw - Skt hd 10-24 x 5/82
5 85897 Mount - Front1
6 69422 Bracket - Mount1
7 55934B Cap Assy - Fuel1
8 53766A Valve Assy - Check1
9 55063 Seal - Capillary1
10 101348 "O" Ring1
11 69312 Hose - Fuel1
12 53679B Pickup Assy - Fuel1
13 61159 Filter - Fuel1
14 69442 Retainer - Choke rod1
15 69471 Button - Choke1
16 101056 "O" Ring1
17 69443 Rod - Choke1
18 110614 Screw - Hex hd 10-24 x 2-3/82
19 103174 Lockwasher - #102
20 24236 Washer - Special2
21 69152 Anchor Assy - Air cleaner1
22 Carburetor Assy See "Carburetor Assembly"
illustration and parts list.
23 86189 Gasket - Carburetor1
24 86149 Rod - Throttle1
25 69525 Grommet - Throttle rod1
26 104501 Retainer - Trigger pin1
27 69465 Pin - Trigger1
28 69466 Spring - Trigger1
29 86150 Trigger1
30 110537 Screw - Fil hd 8-36 x 1/2
31 110597 Screw - Pan hd 8-32 x 1/2 (SEMS)1
32 83661 Wire Assy - Stop switch1
33 62451 Contact - Switch1
34 62950A Base - Switch1
35 68846 Button - Switch1
36 101326 Nut - Hex 10-242
37 28053 Retainer - Nut2
38 104310 Pin - Cotter1
39 69352 Washer - Felt1
40 110724 Screw - Fil hd 10-24 x 11
41 85660 Insert - Handle1
42 101289 Ring - Retaining1
43 84214 Spring - Throttle latch1
44 86151 Button - Throttle latch1
45 69565 Spring - Air cleaner1
46 69371 Ferrule - Connector2
47 69889 Connector1
48 86365 Strap - Ground1
49 87879 Tank Assy1
50 87285 Button - Oiler1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 13 of 19
www.ktoutdoor.com

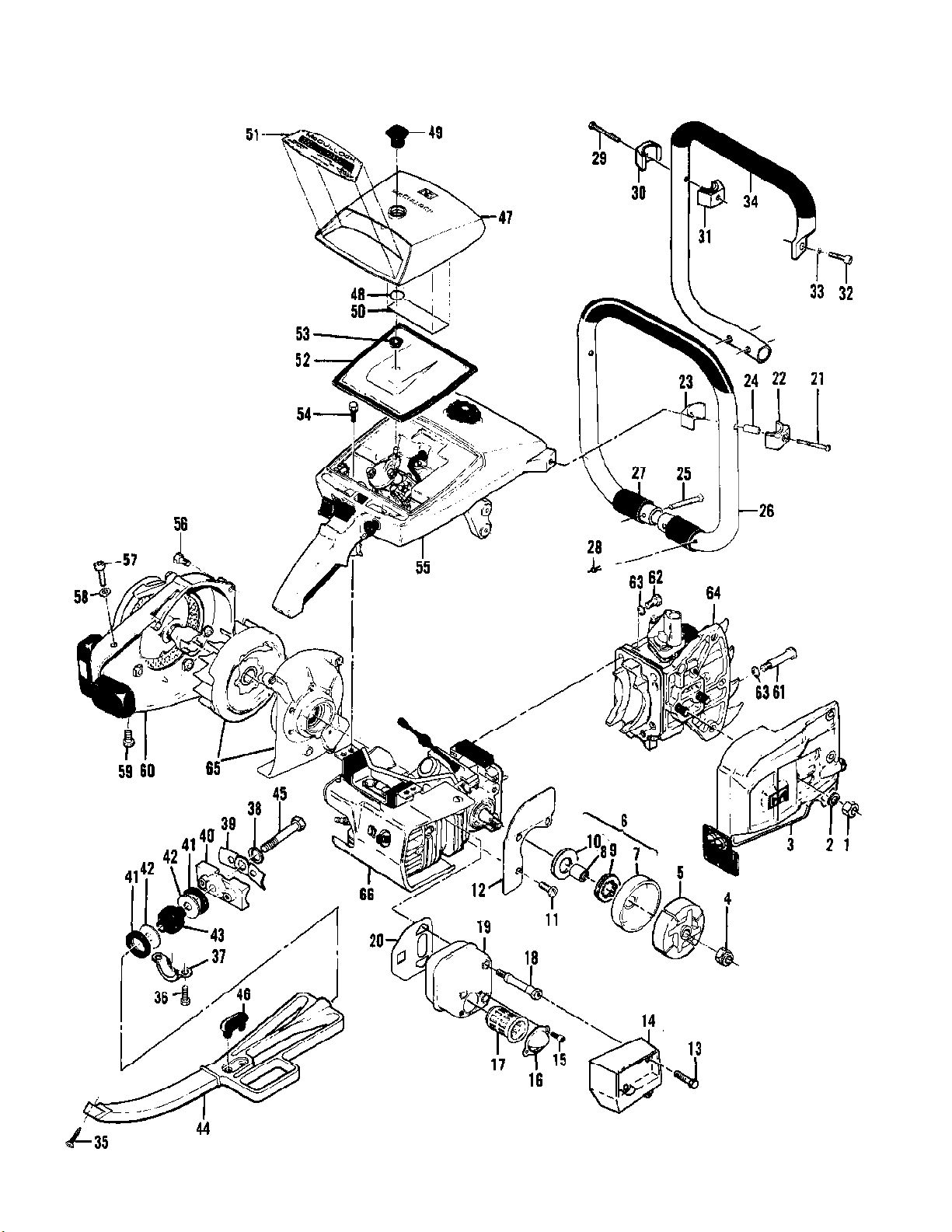

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 14 of 19
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110625 Nut - Hex 3/8-242
2 84623 Washer - Special2
3 Clutch Guard Assy See "Clutch Guard And Clutch
4 86113 Nut - Hex 3/8-24 (L. H.)
5 Clutch Assy See "Clutch Guard And Clutch
6 86350 Kit - Drum, Sprocket, Bearing1
86340 Kit - Drum, Sprocket, Bearing1
7 86343 Drum & Bearing Assy1
8 87111 Bearing - Sprocket1
9 86342 Sprocket - 7-T .4041
86341 Sprocket - 8-T .4041
10 86366 Washer - Sprocket1
11 104133 Screw - Pan hd 1/4-20 x 5/8 (SEMS)3
12 69464 Jacket - Cylinder1
13 110717 Screw - Hex hd 10-32 x 3/43
14 85459 Guard - Muffler1
85388 Kit - Muffler1
15 110664 Screw - Skt hd 10-24 x 3/82
16 84203 Deflector - Exhaust1
17 84690 Baffle - Muffler1
18 85121 Screw - Shoulder3
19 85117 Muffler Assy1
20 89224 Gasket - Muffler1
21 110605 Screw - Oval hd 10-24 x 22
22 69994 Collar - Frame2
23 69995 Collar - Frame2
24 69524 Bushing - Frame2
25 110606 Screw - Oval hd 10-24 x 1-1/42
26 69468 Frame & Grip Assy1
27 69885 Protector - Frame2
28 84795 Rivet - Stop2
29 110605 Screw - Oval hd 10-24 x 21
30 69994 Collar - Frame1
31 69995 Collar - Frame1
32 110714 Screw - Skt hd 10-24 x 3/41
33 24236 Washer - Special1
34 86106 Frame & Grip Assy1
35 101986 Screw - Oval hd 10-24 x 11
36 104950 Screw - Hex hd 10-24 x 5/82
37 83819 Clamp - Lower mount1
38 102115 Washer - 1/41
39 85581 Lockplate1
40 85220 Bracket - Lower mount1
41 84661 Grommet2
42 110845 Washer - Grommet2
43 85898 Mount - Lower1
44 86302 Kit - Handle brace1
45 86301 Bolt - Handle brace1
46 69883 Bumper - Brace1
47 85092 Cover Assy - Air cleaner1
48 110565 Ring - Retaining1
49 68529 Knob - Cover1
1
Assemblies" illustration and parts list.
1
Assemblies" illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 15 of 19
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
50 86198 Plate - Instruction1
51 89269 Nameplate1
52 69100 Filter - Air1
53 68528 Grommet - Filter1
54 104950 Screw - Hex hd 10-24 x 5/8 (SEMS)4
55 Fuel Tank Assy See "Fuel Tank Assemblies"
illustration and parts list.
56 104816 Screw - Hex hd 10-24 x 1-1/4 (SEMS)3
57 104849 Screw - Skt hd 10-24 x 1/21
58 110264 Washer - #101
59 102500 Screw - Pan hd 10-24 x 1/21
60 Fan Housing & Starter Assy See "Fan Housing &
Starter Assembly" illustration and parts list.
61 102127 Screw - Hex hd 1/4-20 x 3-1/42
62 103258 Screw - Hex hd 1/4-20 x 1-1/82
63 100005 Washer - 1/44
64 Oiler Housing Assy See "Oiler Housing Assembly"
illustration and parts list.
65 Crankcase Cover & Ignition Assys See "Crankcase
Cover & Ignition Assemblies" illustration and parts list.
66 Powerhead & Shroud Assys See "Powerhead &
Shroud Assemblies" illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 16 of 19
www.ktoutdoor.com

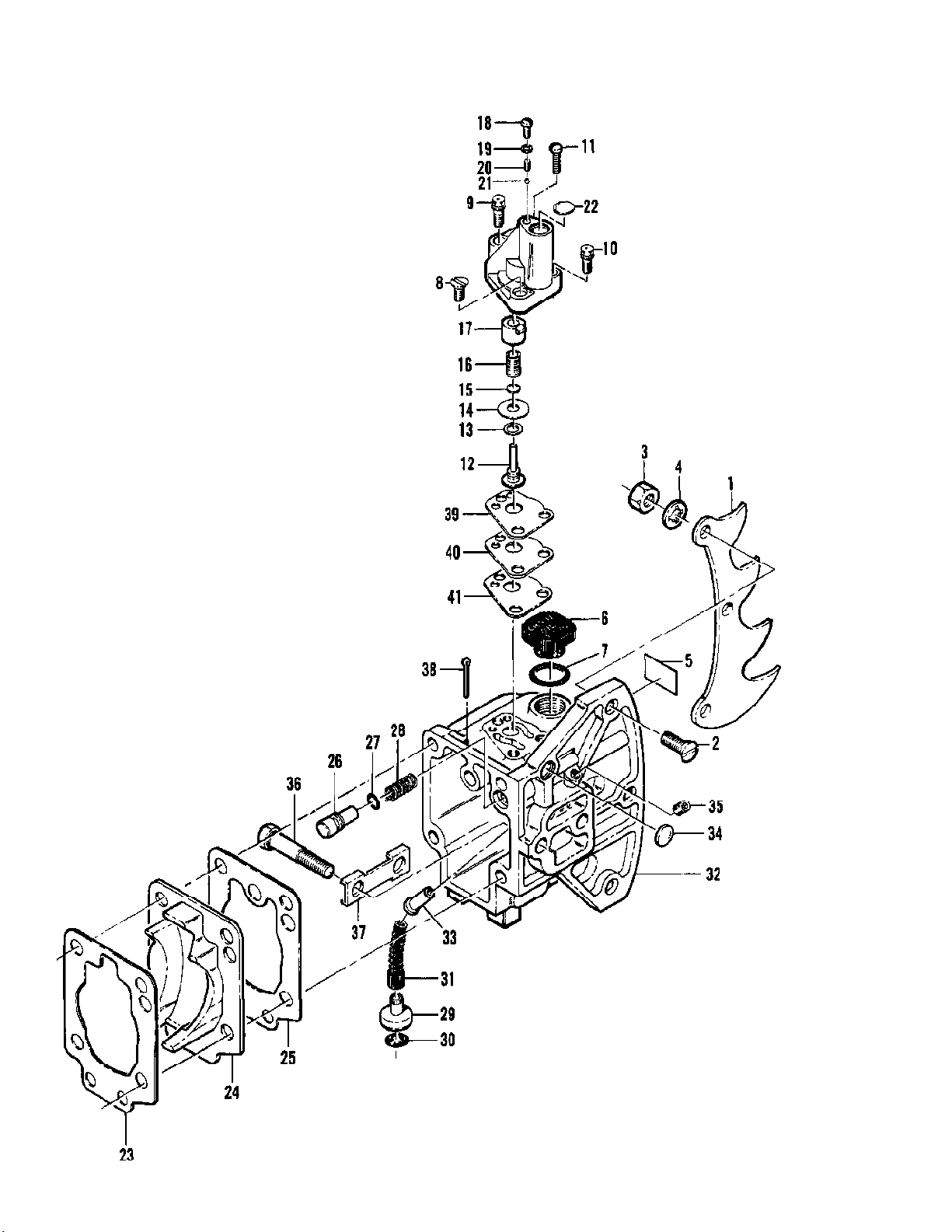

Oiler Tank And Pump Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 17 of 19
www.ktoutdoor.com
Oiler Tank And Pump Assemblies
Ref # Part Number DescriptionQty
1 61331 Kit - Spike1
2 102088 Screw - Fl hd 1/4-20 x 3/43
3 100152 Nut - Hex 1/4-203
4 100153 Lockwasher3
5 59445 Decal - Oiler1
6 57129A Cap - Oil1
7 101148 "O" Ring1
8 110245 Screw - Fl hd 10-24 x 3/41
9 110257 Screw - Hex hd 10-24 x 1-3/41
10 110127 Screw - Hex hd 10-24 x 7/8 (SEMS)1
83135 Pump Assy - Pulse1
11 110890 Screw - Fil hd 10-24 x 7/81
12 60260A Piston Assy1
13 60937 Washer - Piston1
14 86182 Ring - Piston1
15 104001 "O" Ring1
16 86183 Spring - Piston1
17 67918 Sleeve - Adjustment1
18 60397A Screw - Special1
19 60398B Washer - Special1
20 60396B Spring - Ball check1
21 102809 Ball - Check1
22 110157 Plug - Expansion1
23 65654 Gasket - Crankcase bottom cover1
24 60251A Cover - Crankcase bottom1
25 86125 Gasket - Oiler housing1
26 63643 Piston - Oiler1
27 103198 "O" Ring1
28 51946 Spring - Piston1
29 51505 Weight Assy - Oil line1
30 51506 Screen - Oil1
31 28007 Hose - Oil pickup1
32 85392 Housing Assy - Oil1
33 51982A Valve Assy - Check1
34 105677 Plug - Expansion1
35 104869 Plug - Pipe1
36 51423B Bolt - Bar2
37 51439 Lockplate1
38 104062 Pin - Cotter1
39 86186 Gasket - Pump1
40 67471 Spacer - Pump1
41 68794 Gasket - Spacer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 18 of 19
www.ktoutdoor.com

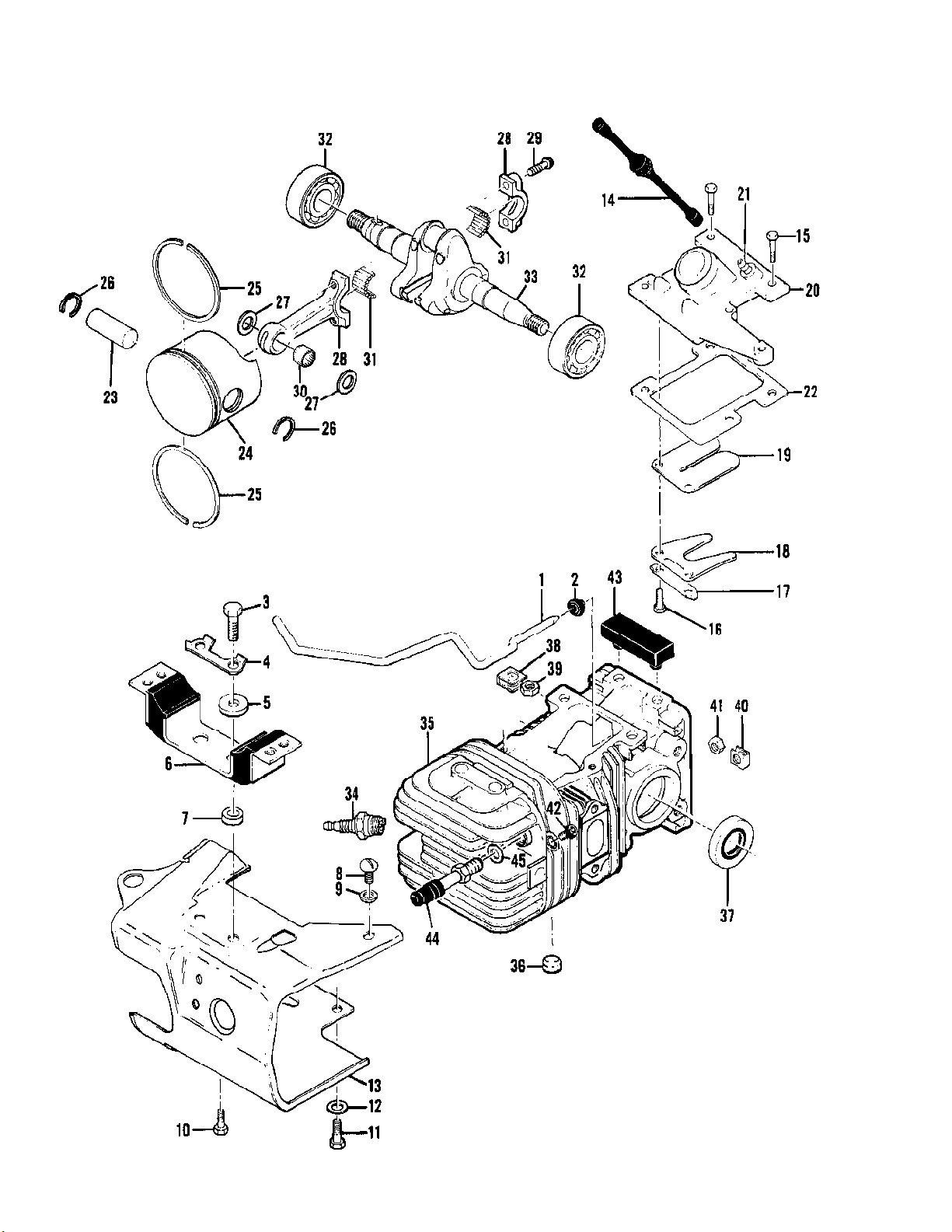

Powerhead & Shroud Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600077B SP 105 08/73 to 09/75 IPL 89270 Page 19 of 19
www.ktoutdoor.com
Powerhead & Shroud Assemblies
Ref # Part Number DescriptionQty
1 69460 Pushrod - Oiler1
2 57736 Seal - Pushrod1
3 102761 Screw - Hex hd 10-24 x 7/82
4 69654 Lockplate1
5 69417 Washer - Insulator2
6 85896 Mount - Rear1
7 85261 Spacer - Insulator2
8 104393 Screw - Pan hd 10-24 x 3/81
9 100003 Washer - #101
10 104950 Screw - Hex hd 10-24 x 5/81
11 102861 Screw - Hex hd 1/4-20 x 5/82
12 100005 Washer - 1/42
13 89230 Shroud1
14 88759 Hose - Pulse line1
15 110621 Screw - Hex hd 10-24 x 3/4 (SEMS)4
85156 Manifold & Reed Assy1
16 103748 Screw - Hex hd 8-32 x 1/22
17 69501 Lockplate1
18 85513 Stop - Reed1
19 85154 Valve - Reed1
20 85235 Manifold & Pulse Fitting1
21 69600 Fitting - Pulse1
22 69526 Gasket - Manifold1
23 89204 Pin - Piston1
24 89251 Piston Assy1
25 89248 Ring Set1
26 85273 Ring - Retaining2
27 85266 Washer - Thrust2
28 88623 Connecting Rod Assy1
29 110720 Screw - Spline hd Special2
30 85607 Roller - Needle (Set of 22)1
31 69891 Roller - Needle24
32 110883 Bearing - Ball2
33 89222 Crankshaft1
34 63432 Spark Plug1
35 89265 Crankcase Assy1
36 110685 Plug - Cup3
37 104432 Seal - Oil1
38 28053 Retainer - Nut2
39 101326 Nut - Hex 10-242
40 18556A Retainer - Nut6
41 105394 Nut - Hex 1/4-206
42 110681 Screw - Skt hd 10-24 x 1/41
43 69872 Snubber - Fuel tank1
44 85148 Valve - Comp. rel.1
45 85505 Washer - Valve1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
