Page 1
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 1 of 16
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 2 of 16
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
94962 Scrench
84453 Kit - Pressure test adaptor
63097 Spark Plug (standard)
63432 Spark Plug (cooler)
62827 Wrench/Screw Driver
93886 Kit - Mount
68090 Metal Lubri - Gun
94938 Plastic Lube Gun
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 3 of 16
www.ktoutdoor.com

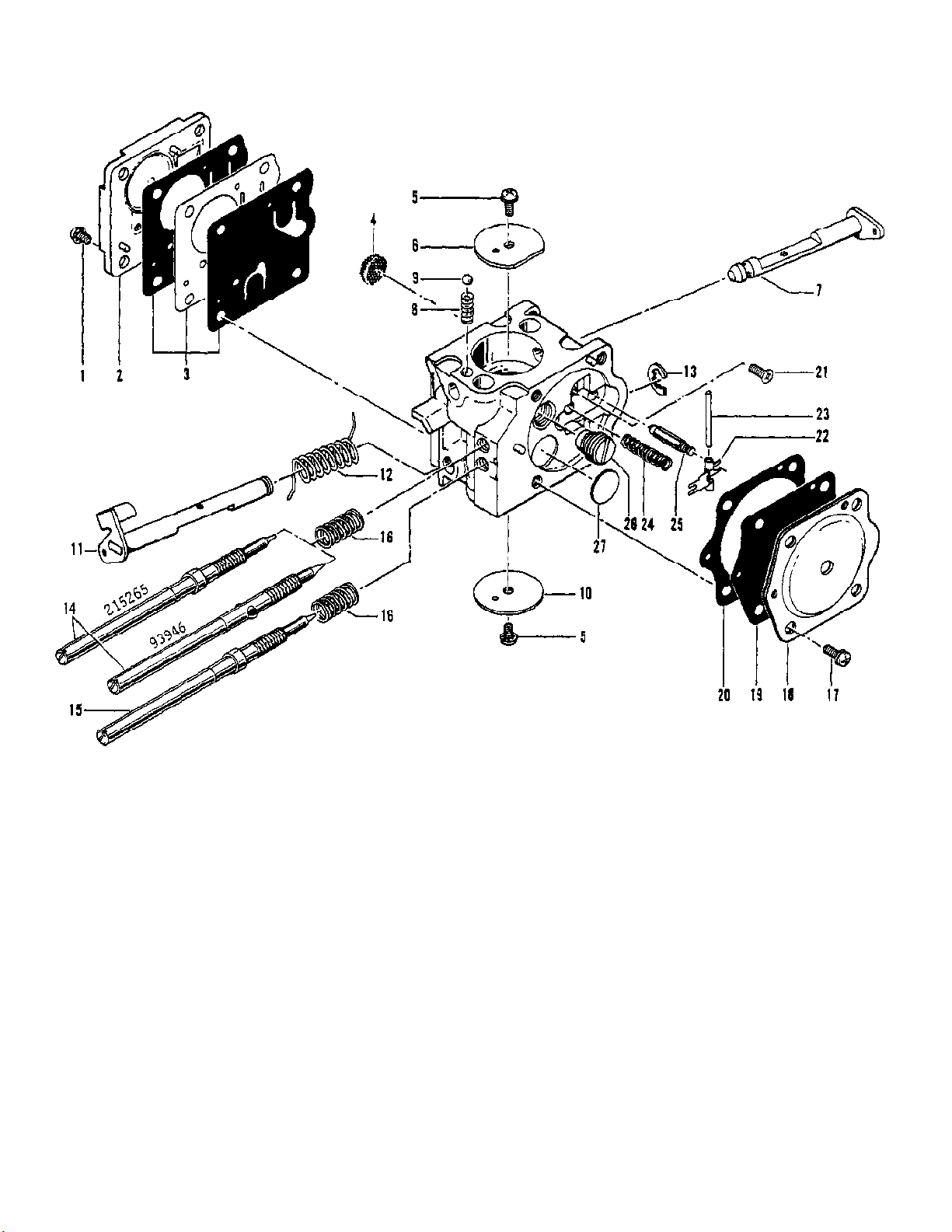

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 4 of 16
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
214763 Carburetor Assembly (Zama C-2)1
213823 Carburetor Assembly (Zama C-3)1
1 91809 Screw - Pump cover (M4)4
2 93939 Cover - Fuel pump1
3 93952 Kit - Pump diaphragm1
4 91820 Screen - Filter1
5 91804 Screw - Plate2
6 93953 Valve - Choke1
7 93954 Shaft Assembly - Choke1
8 93955 Spring - Choke shaft1
9 93956 Hall - Choke friction1
10 93937 Valve - Throttle1
11 93935 Shaft Assembly - Throttle1
12 93936 Spring - Throttle return1
13 93938 "E" Ring1
14 93946 Needle - High speed1
14 215265 Needle - High speed1
15 93947 Needle - Idle1
16 93948 Spring - Needle2
17 93945 Screw - Diaphragm cover4
18 93944 Cover - Diaphragm1
19 93943 Diaphragm Assembly - Main1
20 93949 Gasket - Main1
21 91814 Screw - Lever pin (M3)1
22 93941 Lever - Inlet1
23 93942 Pin - Lever1
24 93940 Spring - Lever1
25 91810 Valve - Needle1
26 93950 Valve Assembly - Main jet1
27 93951 Plug - Welsh1
215359 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 5 of 16
www.ktoutdoor.com

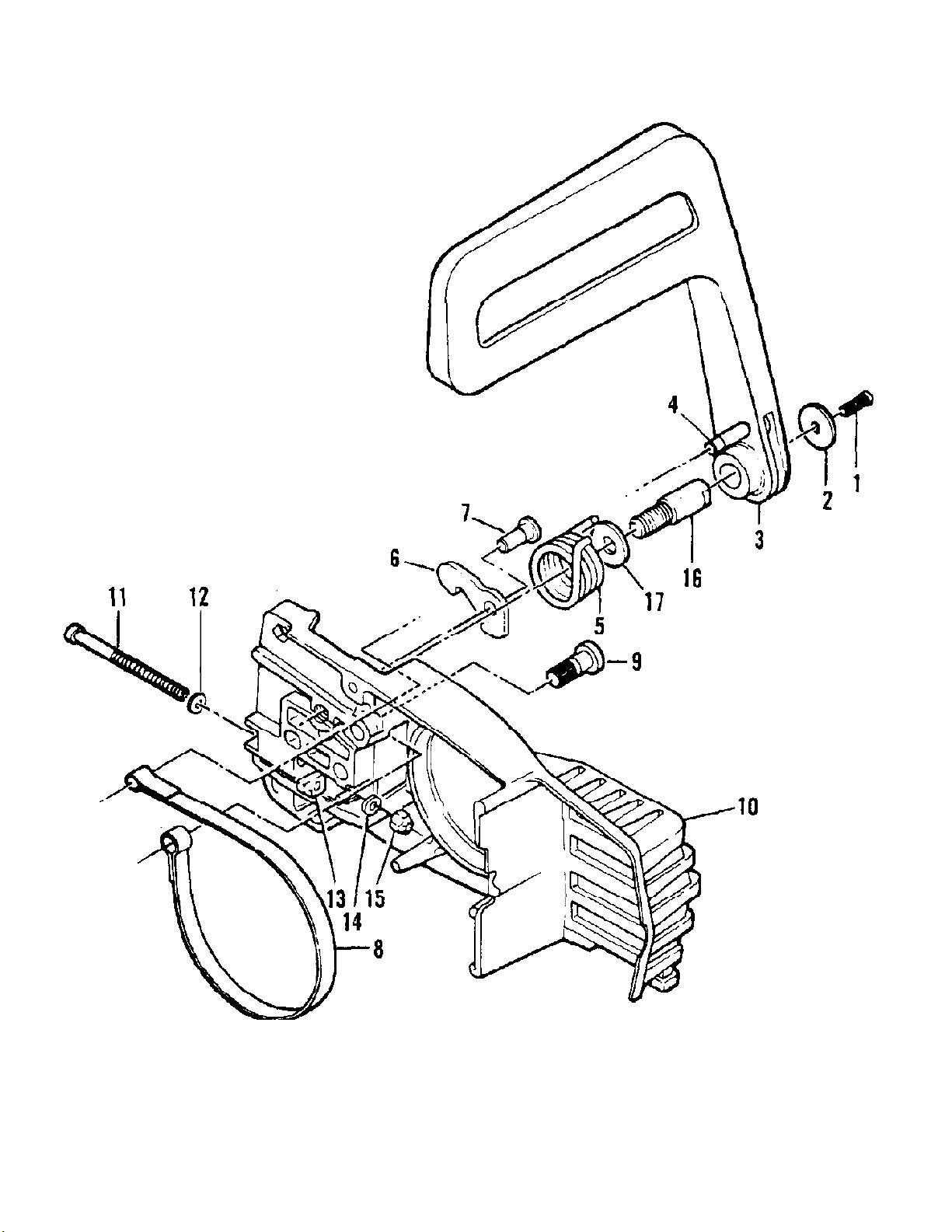

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 6 of 16
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
214372 CHAIN BRAKE Assembly
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 214365 Lever Assembly1
4 214366 Pin Assembly - Roller1
5 93085 Spring - Brake1
6 93083 Latch1
7 93669 Pivot - Latch1
8 93081 Band - Brake1
9 93082 Pin - Band Anchor1
10 214749 Housing Assembly - Brake1
11 110527 Screw - Fil hd 10-24 x 2-3/41
12 110264 Washer - #101
13 61705 Nut - Bar adjusting1
14 100002 Washer - #101
15 102067 Nut - Hx 10-241
16 91246 Pin - Lever pivot1
17 91245 Washer - Thrust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 7 of 16
www.ktoutdoor.com

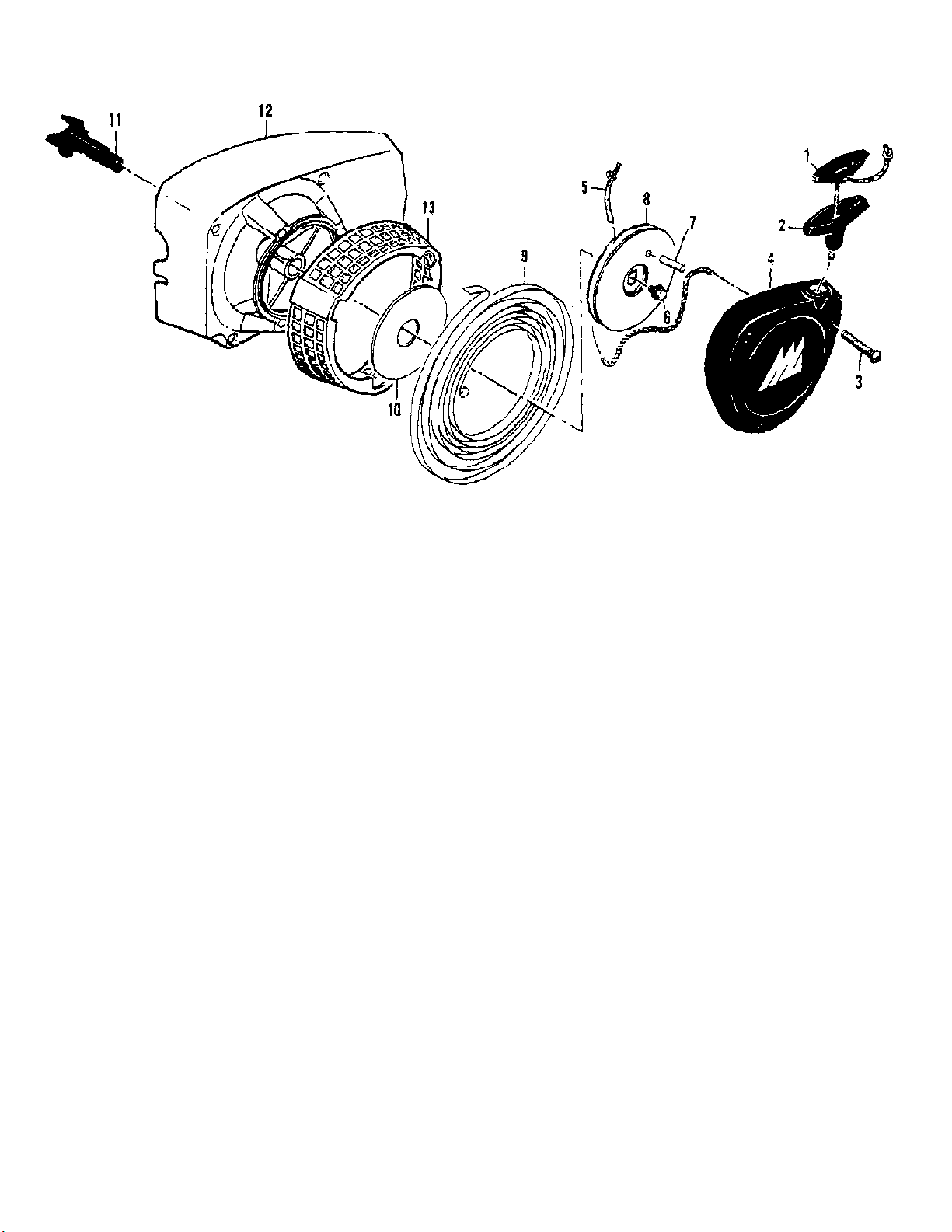

Fan Housing & Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 8 of 16
www.ktoutdoor.com
Fan Housing & Starter Assembly
Ref # Part Number DescriptionQty
214707 Fan Housing & Starter Assembly1
1 214699 Insert - Starter1
2 93137 Handle - Starter1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 91084 Cover Assembly - Starter1
5 87670 Rope - Starter1
6 110341 Screw - Hex hd 10-24 x 1/21
7 105841 Pin - Roll1
8 87689 Drum - Starter1
9 87680 Spring - Rewind1
10 86053 Shield - Spring1
11 95412 Shaft - Starter1
12 214706 Kit - Fan housing1
13 214192 Guard - Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 9 of 16
www.ktoutdoor.com

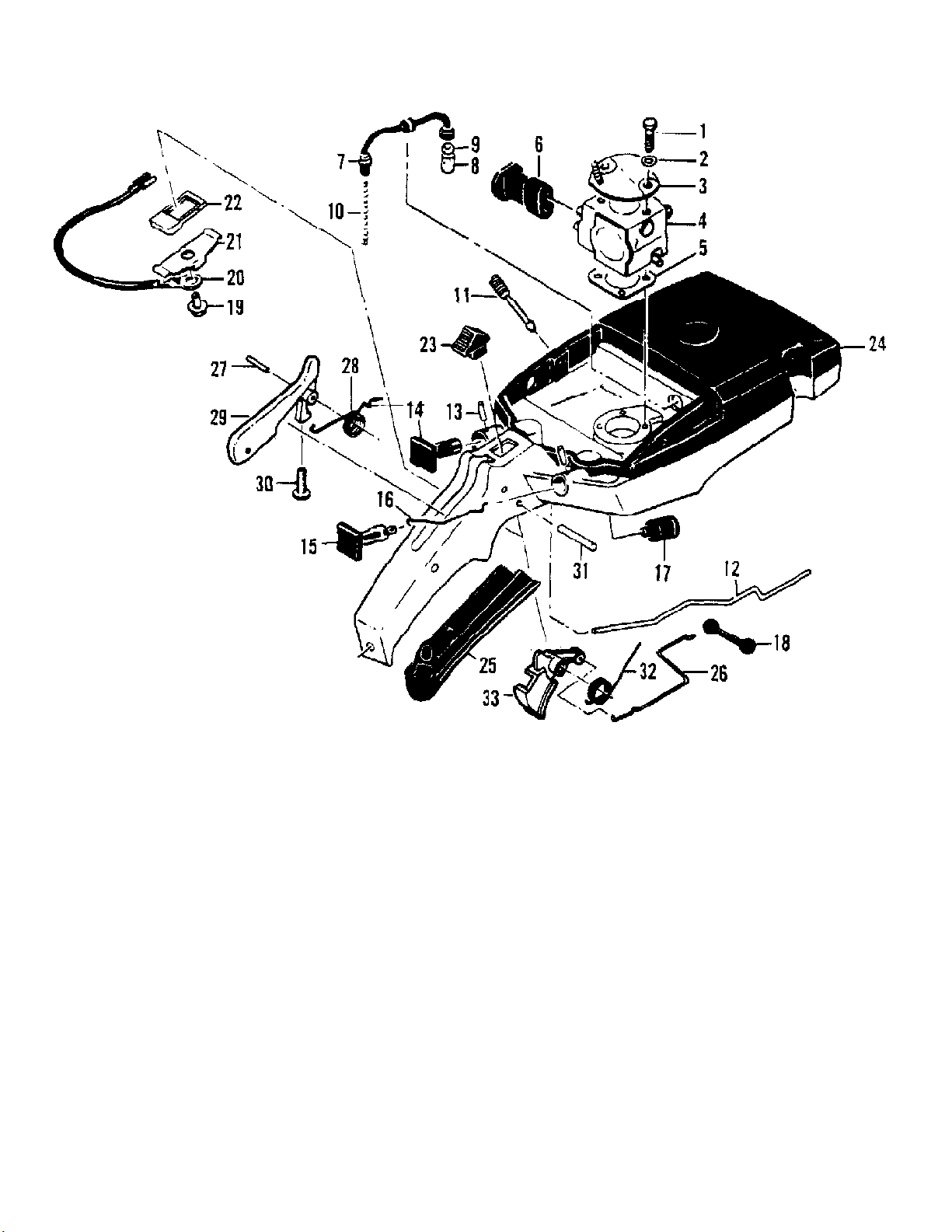

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 10 of 16
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 103357 Screw - Hx hd 10-24 x 2-1/82
2 110964 Washer2
3 95414 Bracket - Air cleaner1
4 Carburetor Assembly See "Carburetor Assembly"
illustration and parts list.
5 86189 Gasket - Carburetor1
6 214762 Boot - Carburetor controls1
7 64848 Hose Assembly - Fuel1
8 63932 Filter - Fuel1
9 100440 Washer1
10 67944 Spring - Hose1
11 86273 Screw - Idle speed1
12 92903 Rod - Oiler1
13 105673 Pin - Roll 3/32 x 9/162
14 95480 Button - Oiler1
15 95614 Button - Choke1
16 69631 Rod - Choke1
17 69597 Boot - Control rod2
18 69043 Snubber - Rod1
19 110706 Screw - Fil hd 8-18 x 1/21
20 83661 Wire Assembly - Stop switch1
21 62451 Contact - Switch1
22 214691 Base - Switch1
23 68846 Button - Switch1
24 94025 Tank/Control Assembly1
25 89320 Insert - Handle grip1
26 92155 Rod - Throttle1
27 105654 Pin - Roll 1/8 x 7/81
28 92154 Spring - Trigger release1
29 94275 Release Assembly - Trigger1
30 111012 Screw - Pan hd 4-40 x 5/161
31 110378 Pin - Roll 3/16 x 15/161
32 92152 Spring - Trigger1
33 214679 Trigger - Throttle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 11 of 16
www.ktoutdoor.com

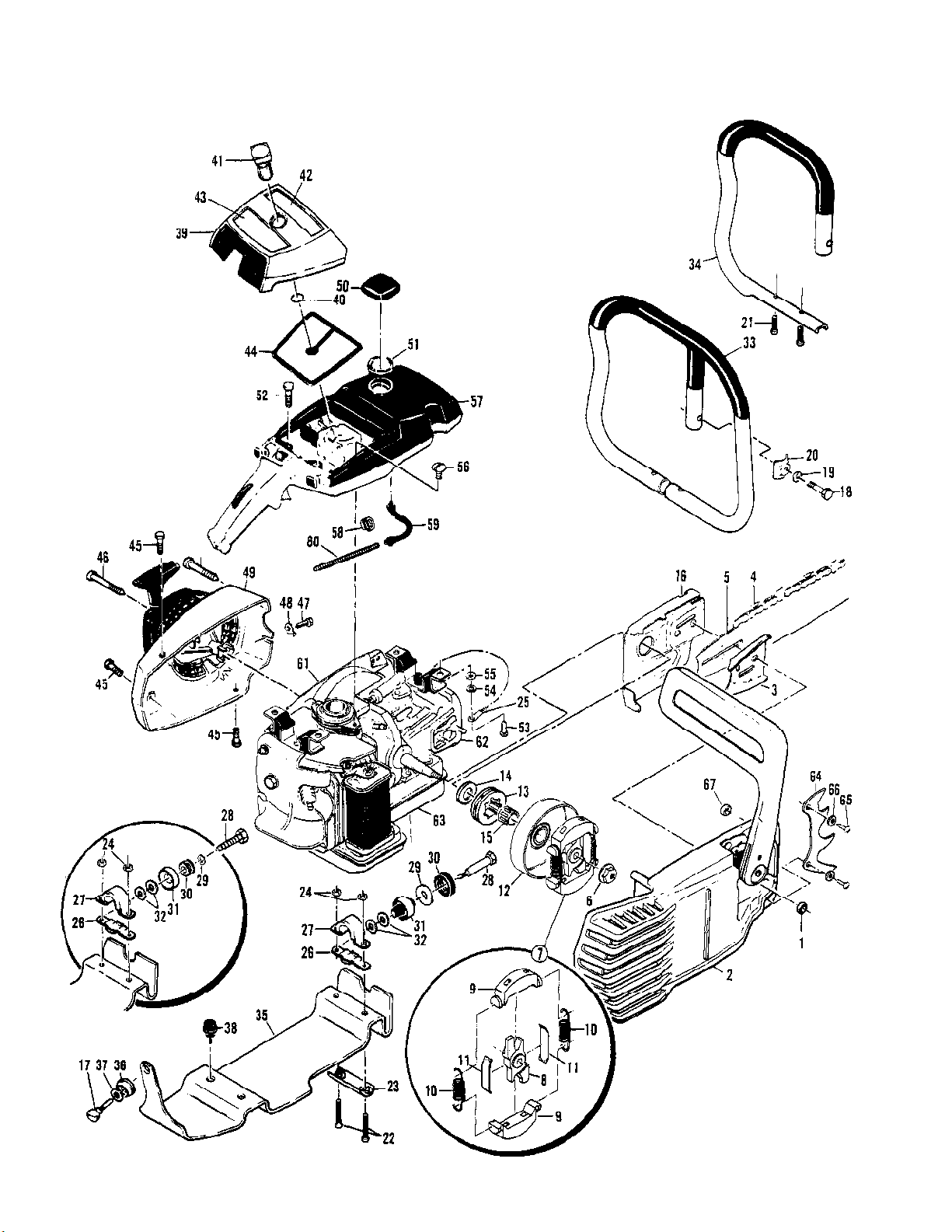

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 12 of 16
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 120030 Nut - Hx flange2
2 CHAIN BRAKE See "Chain Brake Assembly"
illustration and parts list.
3 64325 Plate - Bar protector1
4 Chain Assembly1
5 Bar Assembly1
6 86113 Nut - Hx 3/8-24 (L.H.)1
7 214301 Clutch Assembly1
8 214300 Rotor - Clutch1
9 67233 Kit - Clutch shoe1
10 83223 Spring - Clutch2
11 64583 Retainer - Clutch spring2
12 95166 Kit - Drum & Sprocket 7T .375P1
13 86145 Sprocket1
14 86958 Washer - Sprocket1
15 110971 Bearing - Sprocket1
16 84978A Shield - Sawdust1
17 93037 Screw - Frame brace1
18 102130 Screw - Hx 1/4-20 x 1-1/21
19 100153 Lockwasher - 1/41
20 63484 Clamp - Frame1
21 104395 Screw - Pan hd 10-24 x 5/82
22 103353 Screw - Hx hd 10-24 x 1-1/22
23 95679 Clamp - Frame1
24 101191 Nut - Hx Lock 10-24 x 5/82
25 83828A Wire Assembly - Ground1
26 92701 Clamp - Bottom1
27 92700 Clamp - Top1
27 93932 Clamp - Top1
28 93096 Screw - Shoulder1
28 110679 Screw - Hx hd 1/4-20 x 21
29 110845 Washer - Plain1
30 92703 Hub - Mount1
30 84661 Grommet1
31 92704 Mount1
31 85898 Mount1
32 95636 Washer - 1/42
33 95514 Frame & Grip Assembly1
34 214103 Frame & Grip Assembly1
35 95483 Brace - Frame1
36 93032 Grommet - Frame brace1
37 214764 Washer1
38 89403 Bumper - Lower2
39 95418 Cover Assembly - Air cleaner1
40 110565 Ring - Retaining1
41 95420 Knob - Cover1
42 95485 Nameplate1
43 95486 Instruction Plate1
44 214087 Filter - Air1
45 110741 Screw - Pan hd 10-24 x 1/23
46 87871 Screw - Special3
47 102762 Screw - Hx hd 10-24 x 1/21
48 69890 Lockplate1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 13 of 16
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
49 Fan Housing & Starter Assemblies See "Fan Housing
& Starter Assembly" illustration and parts list.
50 95299 Cap Assembly - Fuel1
51 69767 Gasket1
52 110746 Screw - Hx hd 10-24 x 1/22
53 102861 Screw - Hx hd 1/4-20 x 5/82
54 100153 Lockwasher - 1/42
55 100005 Washer - 1/42
56 110807 Screw - Pan hd 8-32 x 5/162
57 Fuel Tank Assembly See "Fuel Tank Assembly"
illustration and parts list.
58 87826 Clamp - Hose2
59 69598 Line - Pulse1
60 67944 Spring - Hose1
61 Flywheel & Ignition System See "Powerhead & Oiler
Assembly" illustration and parts list.
62 Powerhead & Oiler Assemblies See "Powerhead &
Oiler Assembly" illustration and parts list.
63 Muffler Assembly See "Powerhead & Oiler Assembly"
illustration and parts list.
64 93668 Spike1
65 102388 Screw - Hx 10-24 x .6252
66 24236 Washer - Special 102
67 101191 Nut - Hx Lock 10-242
95514 Frame and Grip Assembly
214103 Frame and Grip Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 14 of 16
www.ktoutdoor.com

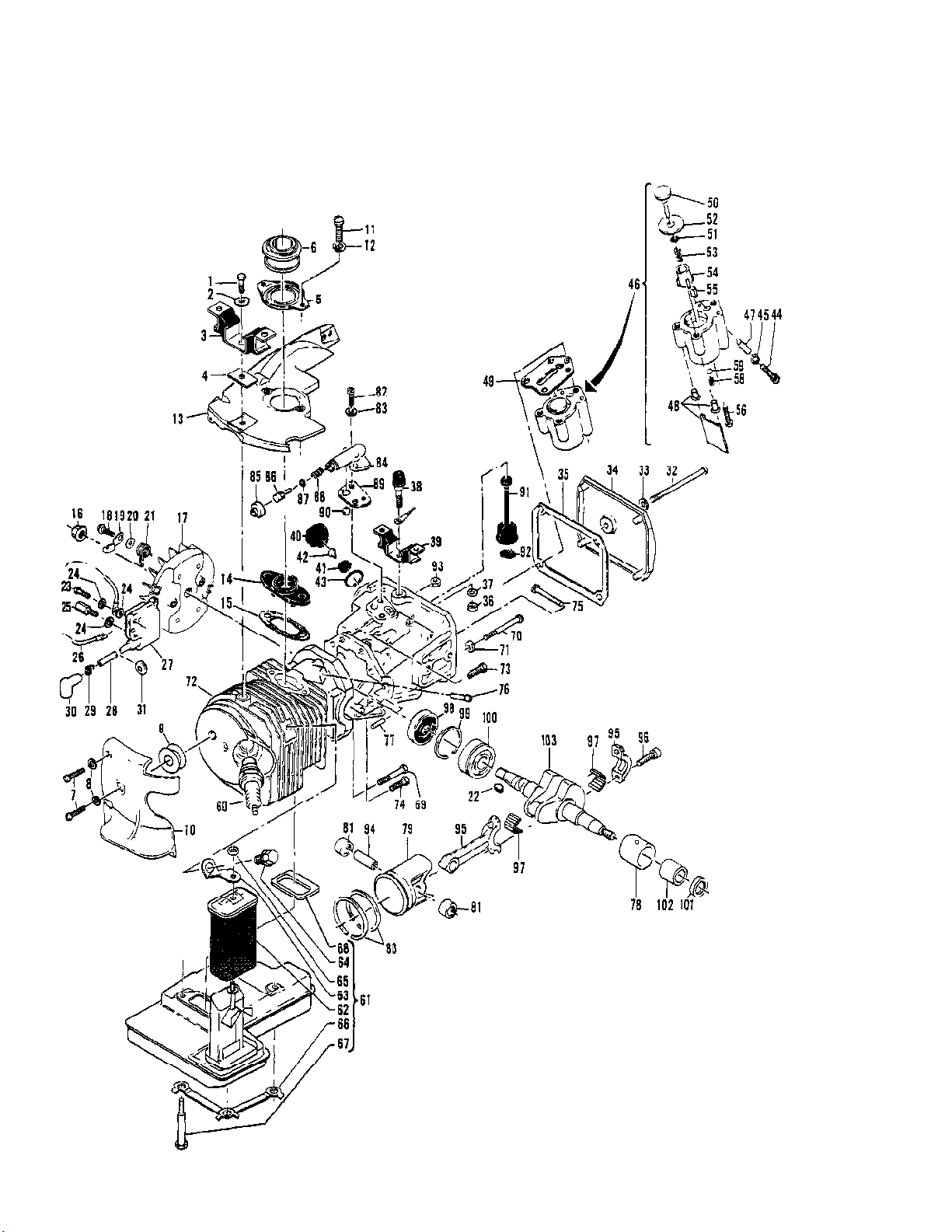

Powerhead & Oiler Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 15 of 16
www.ktoutdoor.com
Powerhead & Oiler Assemblies
Ref # Part Number DescriptionQty
1 83811 Screw - Special1
2 69924 Lockplate1
3 91578A Mount - Rear1
3 93925 Mount - Rear1
4 84619 Insulator1
5 213381 Clamp Assembly - Boot1
6 215247 Boot - Port1
7 102500 Screw - Pan hd 10-24 x 1/22
8 100002 Washer - #102
9 93460 Washer - Insulator1
10 95479 Shroud - Rear1
11 104396 Screw - Pan hd 10-24 x 3/42
12 101194 Lockwasher - #102
13 95477 Shroud - Upper1
14 87844 Insulator - Inlet1
15 88740 Gasket - Insulator1
16 110703 Nut - Hex 3/8-241
17 95481 Flywheel Assembly1
18 93464 Screw - Pawl2
19 93198 Pawl - Starter2
20 93469 Washer - Pawl2
21 214102 Spring - Pawl2
22 100106 Key - Woodruff1
23 110127 Screw - Hx hd 10-24 x 7/8 (SEMS)1
24 100002 Washer - #103
25 95603 Stud - Special1
26 85798 Wire Assembly - Ground1
27 95553 Electronic Ignition Assembly1
28 95269 Wire Assembly - Spark plug1
29 102556 Connector1
30 95266 Boot1
31 110995 Grommet1
32 110291 Screw - Pan hd 10-24 x 2-5/81
33 110921 Washer - Sealing1
34 86304 Cover - Oil tank1
35 86306 Gasket - Cover1
36 101143 Nut - Hx 1/4-201
37 102523 Washer - 1/41
38 69832 Bumper - Front1
39 91582A Mount - Front1
39 93926 Mount - Front1
40 95484 Cap - Oil tank1
41 87269 Retainer - Valve1
42 86402 Valve1
43 101148 "O" Ring1
44 110890 Screw-Fil. 10-24 x .881
45 100003 Washer - #101
46 215295 Pump Assembly - Pulse1
47 91774 Sleeve1
48 215246 Kit - Oil pump clip1
49 92818 Seal - Pulse pump1
50 214278 Piston Assembly - Pump1
51 105603 "O" Ring1
52 86182 Ring - Piston1
53 60259 Spring - Piston1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600072J PRO MAC 800 08/80 to 09/81 IPL 213799-R1 Page 16 of 16
www.ktoutdoor.com
Powerhead & Oiler Assemblies
Ref # Part Number DescriptionQty
54 62227 Sleeve - Adjustment1
55 91259 Pad - Oil pump1
56 110386 Screw - Hx hd 8-32 x 11
58 92844 Spring - Outlet valve1
59 102809 Ball - Outlet valve1
60 63432 Spark Plug1
60 93017 Spark Plug1
61 215301 Kit - Muffler1
62 214283 Spark Screen & Cap Asy1
63 214631 Strap - Muffler1
64 214100 Screw - Muffler strap1
65 101191 Nut - Hex1
66 215203 Plate - Lock1
67 95392 Screw - Muffler3
68 95387 Gasket - Muffler1
69 110644 Screw - Hx hd 8-32 x 1-1/21
70 62106 Screw - Special4
71 111025 Washer - Sealing4
72 214740 Kit - Cylinder, c'case, piston1
73 110288 Screw - Hx hd 8-32 x 3/42
74 110963 Screw - Hx hd 8-32 x 11
75 92459 Bolt - Bar2
76 69600 Nipple - Pulse line1
77 110851 Pin - Dowel1
78 87152 Insert - Bearing1
79 92518 Piston Assembly "A"1
79 92519 Piston Assembly "B"1
79 92520 Piston Assembly "C"1
80 87854 Ring Set - Piston1
81 111021 Searing - Needle2
82 110338 Screw - Pan hd 8-32 x 1/22
83 110613 Washer - #82
84 84156 Housing - Pump1
85 62262 Cap - Housing1
86 92902 Plunger - Pump1
87 105614 "O" Ring1
88 66687 Spring - Pump1
89 91669 Gasket - Pump1
90 91668 Valve - Pump1
91 91672 Hose - Oil1
92 51506 Screen - Hose1
93 100955 Nut - Hex 8-321
94 69020 Pin - Piston1
95 215245 Connecting Rod Assembly1
96 61627A Screw - Special2
97 215150 Roller (set of 22)1
98 61618 Seal - Oil1
99 63464 Ring - Snap1
100 63429B Bearing - Ball1
101 110260 Seal - Oil1
102 104357 Bearing - Needle1
103 95386 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
