11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 1 of 17
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 2 of 17
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
84453 Kit - Piston tool
69191 Kit - Pressure test adaptor
63097 Spark Plug (standard)
63432 Spark Plug (cooler)
62827 Wrench/Screwdriver
83235 Scrench
91226 Wrench - Clutch retaining
86419 Guide - Timing
91967 Kit - Spike
102388 Screw - Hx hd 10-24 x 5/8
24236 Washer - Special
101191 Nut - Hx 10-24
92993 Baffle - Spark arrester
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 3 of 17
www.ktoutdoor.com

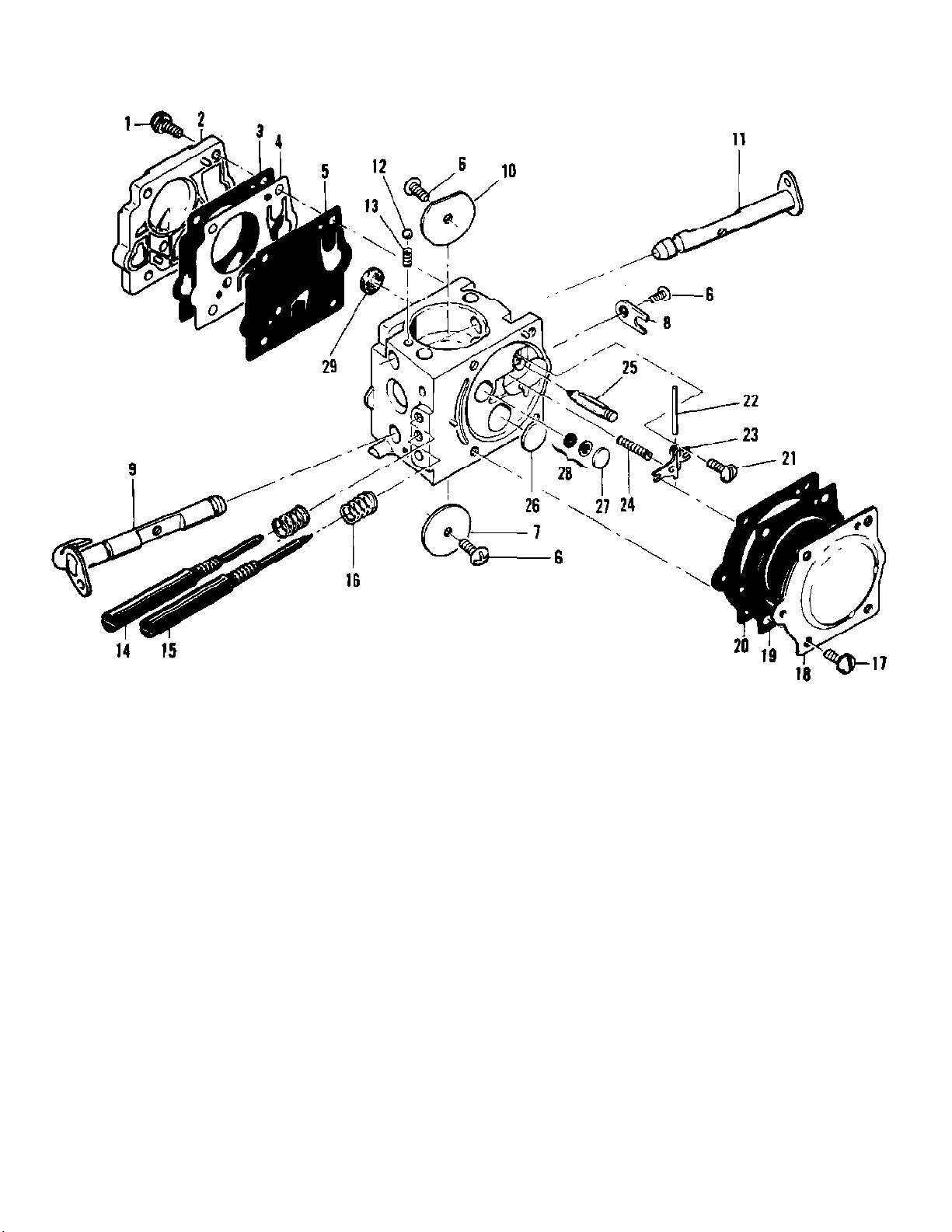

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 4 of 17
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
87666 Carburetor Asy (Walbro)1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Asy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Asy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 87915 Needle - High speed1
15 87916 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Metering1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 83758 Kit - Valve & Seat Asy1
29 67507 Screen - Fuel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 5 of 17
www.ktoutdoor.com

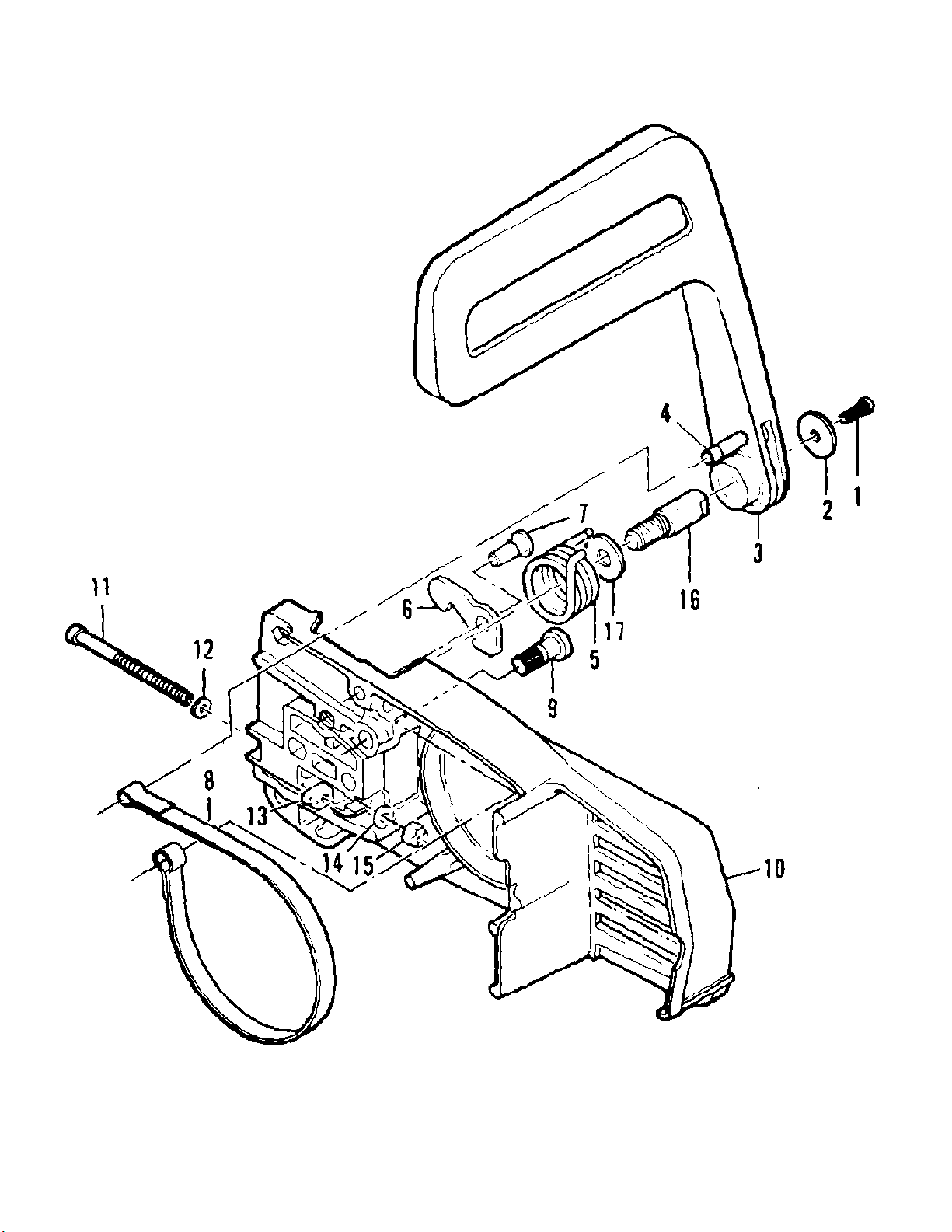

Chain Brake
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 6 of 17
www.ktoutdoor.com
Chain Brake
Ref # Part Number DescriptionQty
214676 CHAIN BRAKE Asy
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 214365 Lever Asy1
4 214366 Pin Asy - Roller1
5 93085 Spring - Brake1
6 93083 Latch1
7 93669 Pivot - Latch1
8 93081 Band - Brake1
9 93082 Pin - Band Anchor1
10 214669 Housing Asy - Brake1
11 110527 Screw - Fil hd 10-24 x 2-3/41
12 110264 Washer - #101
13 61705 Nut - Bar adjusting1
14 100002 Washer - #101
15 102067 Nut - Hx 10-241
16 91246 Pin - Lever pivot1
17 91245 Washer - Thrust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 7 of 17
www.ktoutdoor.com

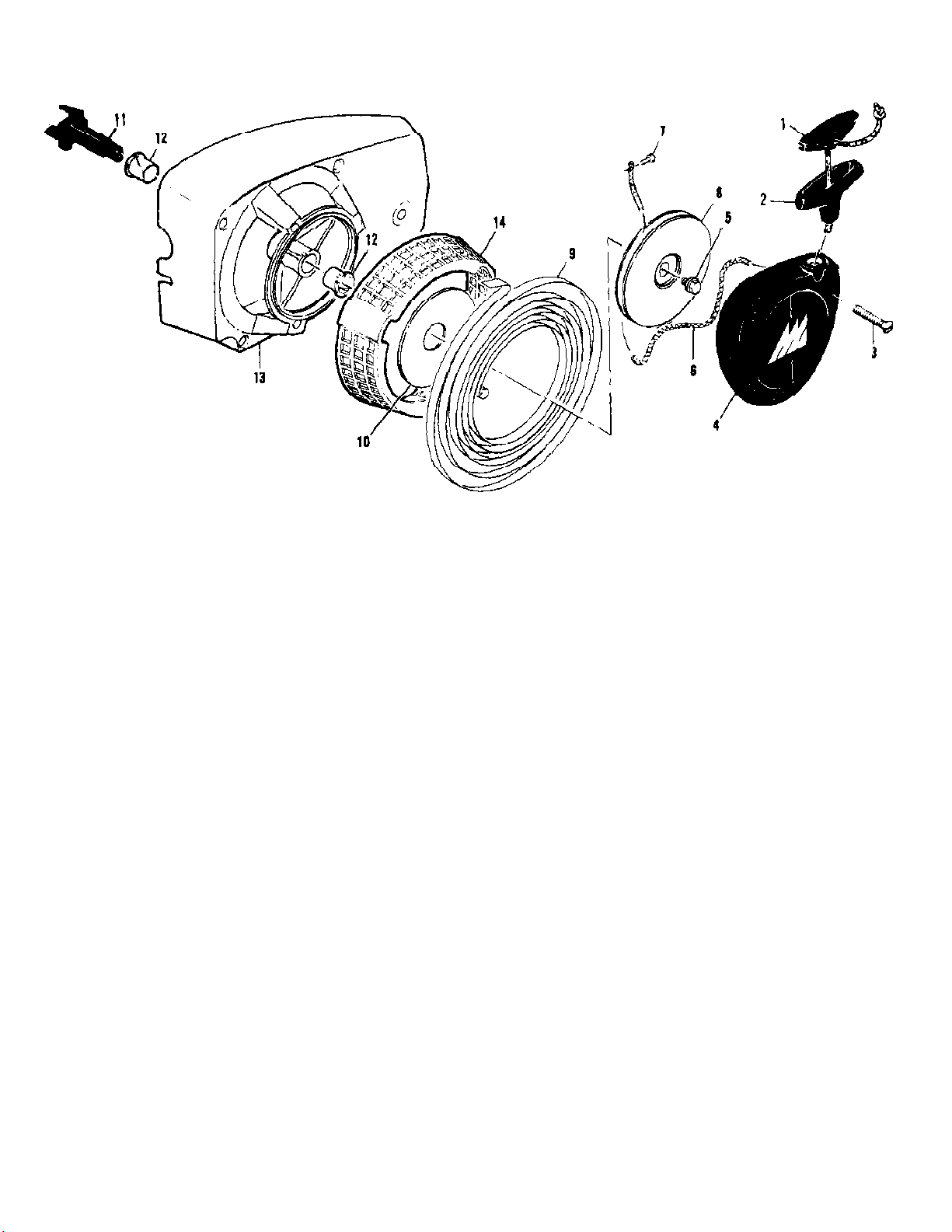

Fan Housing & Starter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 8 of 17
www.ktoutdoor.com
Fan Housing & Starter Assemblies
Ref # Part Number DescriptionQty
87667 Fan Housing & Starter Asy1
1 214699 Insert - Handle1
2 93137 Handle - Starter1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 87672 Cover - Starter1
5 110341 Screw - Hx hd 10-24 x 1/21
6 68162 Rope - Starter1
7 110470 Rivet - Rope1
8 85122 Drum - Starter1
9 87680 Spring - Rewind1
10 86053 Shield - Spring1
11 83748 Shaft - Starter1
12 57535 Bushing - Starter2
13 87693 Kit - Fan Housing1
14 87674 Guard - Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 9 of 17
www.ktoutdoor.com

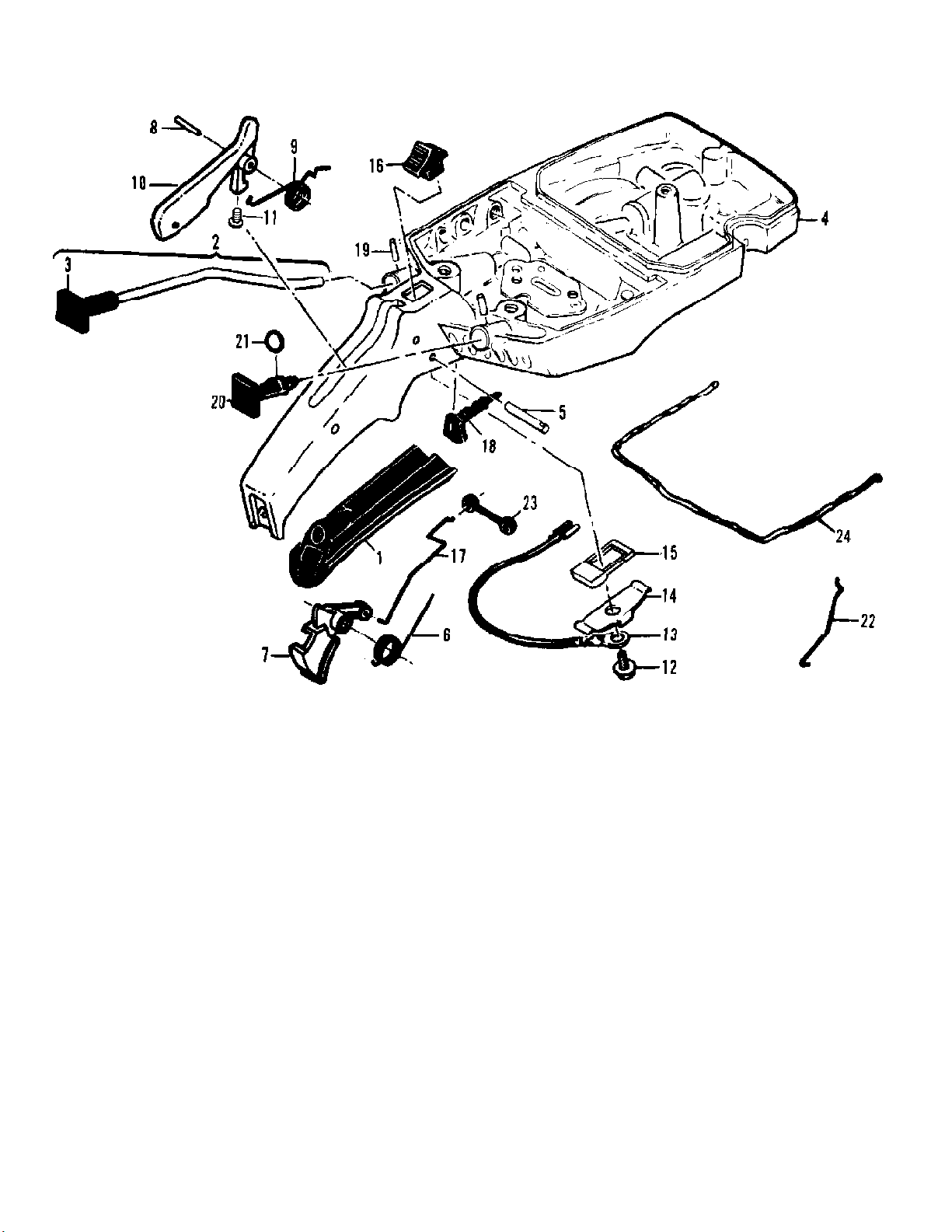

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 10 of 17
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 89320 Insert - Handle grip1
2 64871 Button & Rod Assembly1
3 63044 Button - Oiler1
4 214705 Kit - Fuel tank/control1
5 110378 Pin - Roll 3/16 x 15/161
6 92152 Spring - Trigger1
7 214679 Trigger - Throttle1
8 105654 Pin - Roll 1/8 x 7/81
9 92154 Spring - Trigger release1
10 94275 Release Asy - Trigger1
11 111012 Screw - Pan hd 4-40 x 5/161
12 110706 Screw - Fil hd 8-18 x 1/21
13 214692 Wire Asy - Stop switch1
14 62451 Control - Switch1
15 214691 Base - Switch1
16 68846 Button - Switch1
17 85107 Rod - Throttle1
18 214701 Seal - Throttle rod1
19 105673 Pin - Roll 3/32 x 9/162
20 69041 Button - Choke1
21 105614 "O" Ring1
22 69042 Rod - Choke1
23 69043 Snubber - Rod1
24 69564 Seal - Air box1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 11 of 17
www.ktoutdoor.com

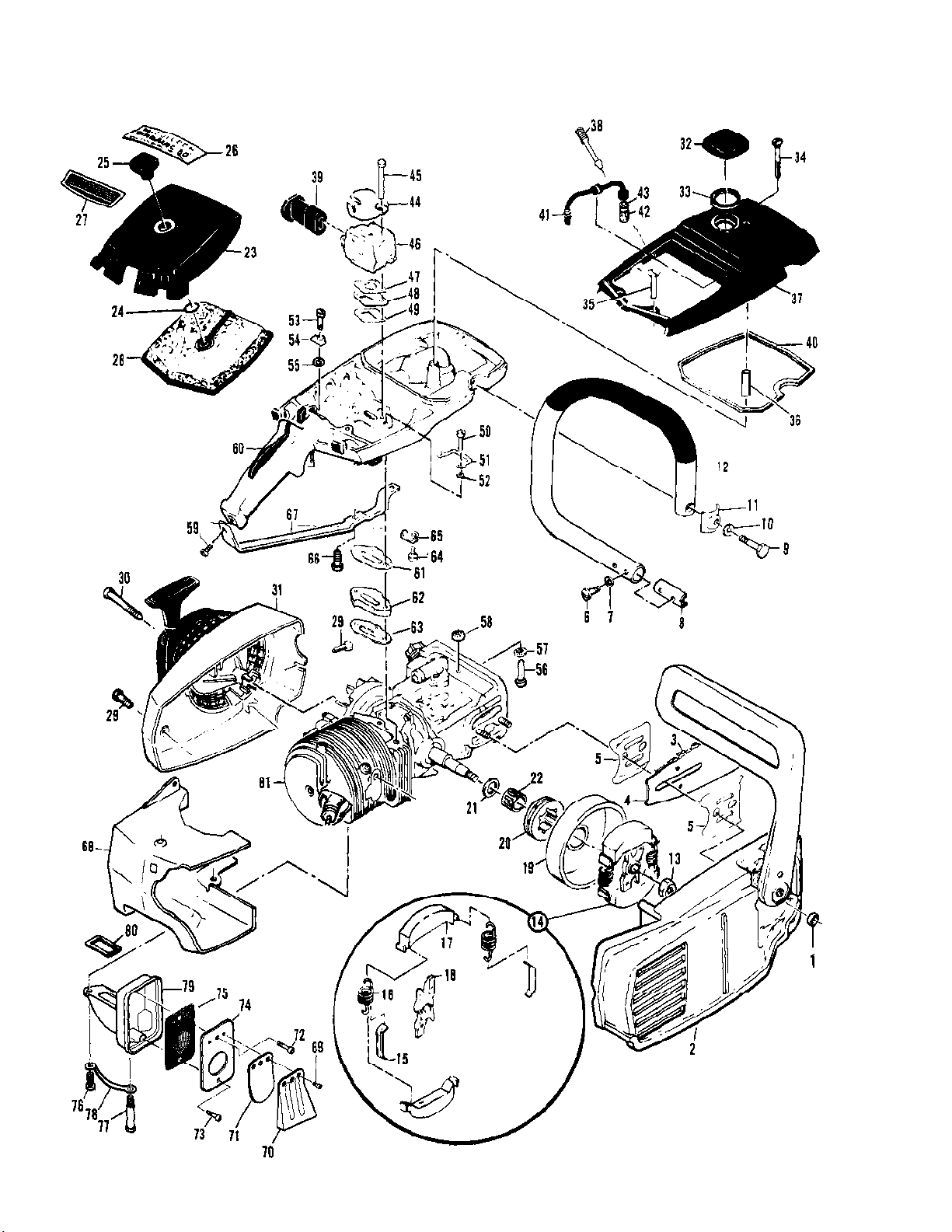

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 12 of 17
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110961 Nut - Hx 5/16-242
2 CHAIN BRAKE See "Chain Brake Assembly"
illustration and parts list.
3 Chain Asy1
4 Bar Asy1
5 64330 Set - Bar plates1
6 110865 Screw - Hx hd 10-24 x 7/82
7 100352 Washer #102
8 89727 Retainer - Frame1
9 102130 Screw - Hx hd 1/4-20 x 1-1/21
10 100153 Washer - Lock 1/41
11 63484 Clamp - Frame1
12 214549 Frame & Grip Asy1
13 86113 Nut - Hx 3/8-24 (L.H.)1
14 214301 Clutch Asy1
15 64583 Retainer - Spring2
16 83223 Spring - Clutch2
17 67233 Kit - Clutch shoe1
18 89438 Rotor - Clutch1
19 95165 Drum & Sprocket Asy 7T .375P1
20 86961 Sprocket - 7T.375P1
21 86958 Washer - Sprocket1
19 95166 Drum & Sprocket Asy 7T .375P1
20 86145 Sprocket - 7T .375P1
21 86958 Washer - Sprocket1
22 110971 Bearing - Sprocket1
23 68530A Cover Asy - Air cleaner1
24 110565 Ring - Retainer1
25 68529 Knob - Cover1
26 93629 Plate - Name1
27 91548 Plate - Instruction1
27 91881 Plate - Instruction1
28 92420 Filter - Air1
29 110741 Screw - Pan hd 10-24 x 1/22
30 87871 Screw - Special3
31 Fan Housing & Starter Asy See "Fan Housing &
Starter Assembly" illustration and parts list.
32 95299 Cap Asy - Fuel1
33 69767 Gasket1
34 110402 Screw - Oval hd 12-24 x 2-3/81
35 101986 Screw - Oval hd 10-24 x 12
36 87840 Spacer1
37 88650 Cover - Fuel tank1
38 87932 Screw - Idle adjust1
39 87665 Boot - Carburetor adjust1
40 69345 Gasket - Cover1
41 64848 Hose Asy - Fuel1
42 63932 Filter - Fuel1
43 100440 Washer1
44 69952 Bracket - Air cleaner1
45 103357 Bolt - Hx hd 10-24 x 2-1/42
46 Carburetor Asy See "Carburetor" illustration and parts
list.
47 86189 Gasket - Carburetor1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 13 of 17
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
48 84078 Spacer - Carburetor1
49 84081 Gasket - Spacer1
50 110567 Screw - Hx hd 12-24 x 1-1/42
51 68582 Plate - Lock1
52 102115 Washer - #122
53 110568 Screw - Hx hd 12-24 x 1-1/81
54 69516 Plate - Lock1
55 64856 Washer - Special1
56 110713 Screw - Skt hd 10-24 x 1/81
57 100003 Washer - #101
58 69772 Spacer - Fuel tank1
59 110910 Screw - Hx hd 10-24 x 1-3/81
60 Fuel Tank Asy See "Fuel Tank" illustration and parts
list.
61 84082 Gasket - Fuel tank1
62 84080 Insulator - Fuel tank1
63 68594 Gasket - Insulator1
64 110566 Screw - Hx hd 10-24 x 5/81
65 68508 Plate - Lock1
66 110682 Screw - Hx hd 10-24 x 5/81
67 85007 Brace - Handle1
68 214702 Shroud1
69 110563 Screw - Skt hd 8-32 x 1/42
70 92996A Stop - Reed1
71 85585A Valve - Reed1
72 101563 Screw - Skt hd 10-24 x 1-1/41
73 110439 Screw - Skt hd 10-24 x 11
74 92995 Cover - Spark Arrester1
75 92993 Baffle - Spark Arrester1
76 110529 Screw - Hx hd 10-24 x 1/21
77 68187 Screw - Special1
78 67922 Plate - Lock1
79 92989 Body & Duct Asy1
80 84007 Gasket - Spark Arrester1
81 Powerhead Asy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 14 of 17
www.ktoutdoor.com

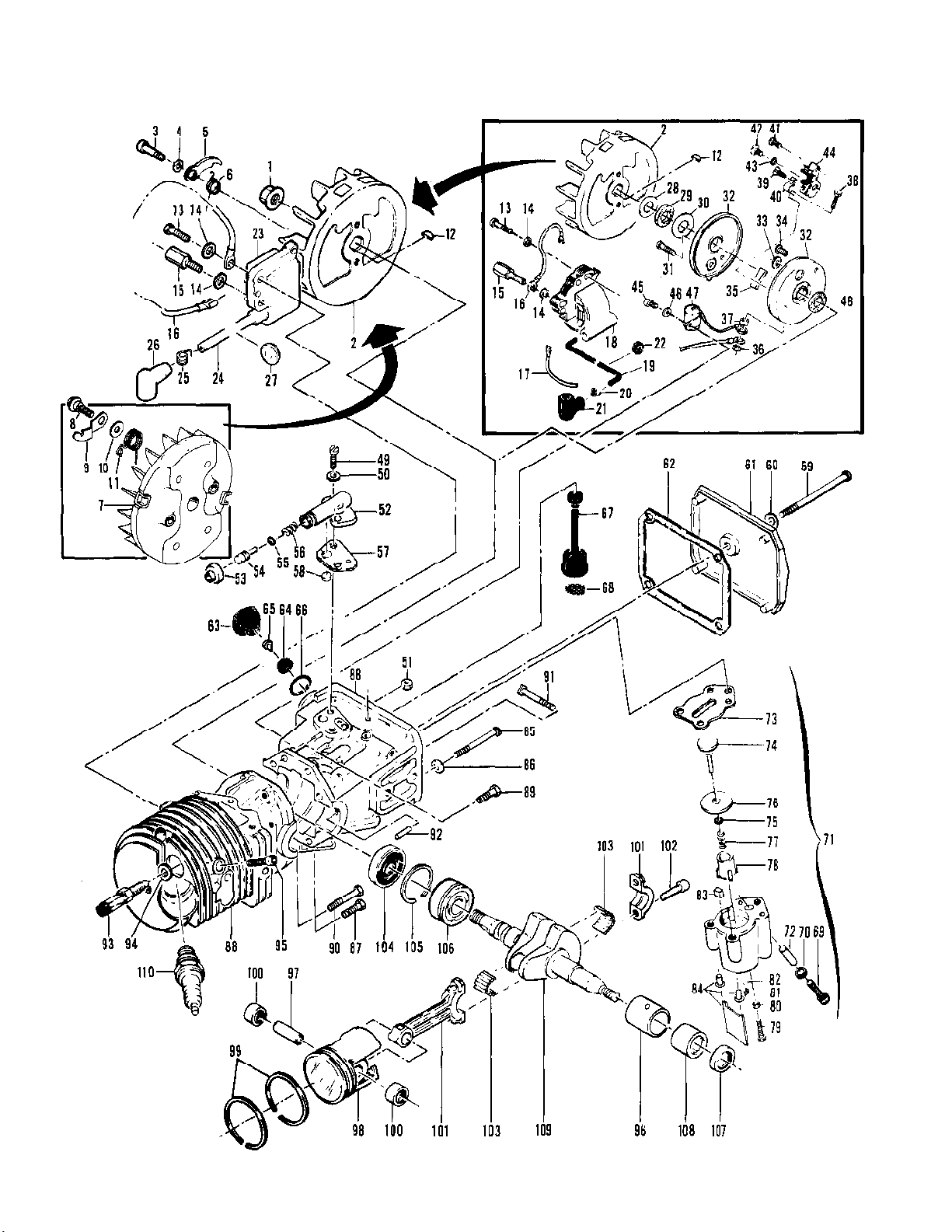

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 15 of 17
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hx 3/8-241
2 86068 Flywheel1
3 88804 Screw - Pawl pivot2
4 83241 Washer - Special2
5 67546 Pawl - Starter2
6 67545 Spring - Pawl2
7 86068A Flywheel Assembly1
8 93464 Screw - Pawl2
9 93198 Pawl - Starter2
10 93469 Washer - Pawl2
11 93197 Spring - Pawl2
12 100106 Key - Woodruff1
13 110127 Screw - Hx hd 10-24 x 7/8 (SEMS)1
14 100002 Washer - #102
15 83512 Stud - Special1
16 84686 Wire Assembly - Ground1
17 69344 Wire Assembly - Primary1
18 214535 Coil & Lamination1
19 50120 Wire Assembly - Spark plug1
20 55061 Connector1
21 95266 Boot1
22 100268 Grommet1
23 92785 Electronic Ignition1
24 95269 Wire Assembly - Spark plug1
25 102556 Connector1
26 95266 Boot1
27 110995 Grommet1
28 67057 Washer - Thrust1
29 67056 Seal - Breaker box cover1
30 67054 Washer - Thrust1
31 110584 Screw - Pan hd 8-32 x 3/41
32 91852 Kit - Breaker box cover1
33 91838 Washer1
34 110489 Screw - Pan hd 6-32 x 7/161
35 54184 Wiper - Cam1
36 100298 Nut - Hx 6-321
37 62365 Spacer - Breaker1
38 110346 Screw - Hx hd 6-32 x 3/41
39 110706 Screw - Pan hd 8-18 x 1/21
40 83126 Strap - Conduction1
41 110811 Screw - Pan hd 8-32 x 3/81
42 110969 Screw - Hx hd 8-32 x -/21
43 105976 Washer - #81
44 88808 Breaker Assembly1
45 110338 Screw - Pan hd 8-32 x -/21
46 100080 Washer - #81
47 85358 Condenser1
48 67051 Seal - Breaker box1
49 110338 Screw - Pan hd 8-32 x 1/22
50 110613 Washer - #82
51 100955 Nut - Hx 8-321
52 84156 Housing - Pump1
53 62262 Cap - Housing1
54 62266 Plunger - Pump1
55 105614 "O" Ring1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 16 of 17
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 66687 Spring - Pump1
57 91669 Gasket - Pump1
58 91668 Valve - Pump1
59 110291 Screw - Pan hd 10-24 x 2-5/81
60 110921 Washer - Sealing1
61 86304 Cover - Oil tank1
62 86306 Gasket - Cover1
63 87270 Cap - Oil tank1
64 87269 Retainer - Valve1
65 86402 Valve - Check1
66 101148 "O" Ring1
67 91672 Hose Assembly - Oil1
68 51506 Screen - Hose1
69 110865 Screw - Hx hd 10-24 x 7/81
70 100003 Washer - #101
71 215339 Kit - Pulse pump1
72 91774 Sleeve1
73 92818 Seal - Pulse pump1
74 214278 Piston Assembly - Pump1
75 105603 "O" Ring1
76 86182 Ring - Piston1
77 60259 Spring - Piston1
78 62227 Sleeve - Adjustment1
79 110386 Screw - Hx hd 8-32 x 11
80 100251 Nut - Hex 8-321
81 92844 Spring - Outlet valve1
82 102809 Ball1
83 91259 Pad - Pump1
84 215246 Kit - Oil pump clip1
85 62106 Screw - Sealing4
86 111025 Washer - Sealing4
87 110288 Screw - Hx hd 8-32 x 3/41
88 214671 Crankcase Assembly1
89 110288 Screw Asy - Hx hd 8-32 x 3/42
90 110618 Screw Asy - Hx hd 8-32 x 1-3/81
91 62065 Bolt - Bar mounting2
92 110851 Pin - Dowel1
93 94273 Valve - DSP1
94 214765 Washer - Valve1
95 110681 Screw - Skt hd 10-24 x 1/41
96 87152 Insert - Bearing1
97 69020 Pin - Piston1
98 85239 Piston Assembly1
99 89732 Ring Set - Piston (thin)1
100 110590 Bearing - Needle2
101 85352 Connecting Rod Assembly1
102 61627A Screw - Skt hd special2
103 63225 Roller - Needle (set of 20)1
104 61618 Seal - Oil1
105 63464 Ring - Snap1
106 63429B Bearing - Ball1
107 110260 Seal - Oil1
108 104357 Bearing - Needle1
109 87699 Crankshaft1
110 214223 Spark Plug1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600061D PRO MAC 700 04/77 to 01/88 IPL 93714-R7 Page 17 of 17
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
110 93017 Spark Plug1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
