Page 1
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 1 of 21
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 2 of 21
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
85726 Manual - Owner's
62827 Wrench - Screwdriver
63746 Scrench
86330 Kit - Spike
86334 Kit - Frame & Grip
84922 Kit - Baffle
83970 Kit - Preheater
86419 Guide - Timing
63097 Spark Plug - AC CS 45 T
65778 Spark Plug - AC CS 41 T
65370 Kit - Sprocket 7T .354
65408 Spark Plug - CJ8
83235 Wrench
64935 Bar Plate
64330 Set - Bar plate
69191 Kit - Pressure adaptor
84453 Kit - Piston tool
69031 Piston Assy (0. 020 in. oversize)
63291 Ring Set (0. 020 in. oversize)
103085 Bearing - Needle (2)
69032 Piston Assy (0. 030 in. oversize)
63292 Ring Set (0. 030 in. oversize)
103085 Bearing - Needle (2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 3 of 21
www.ktoutdoor.com
Carburetor Assembly (Part 1)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 4 of 21
www.ktoutdoor.com

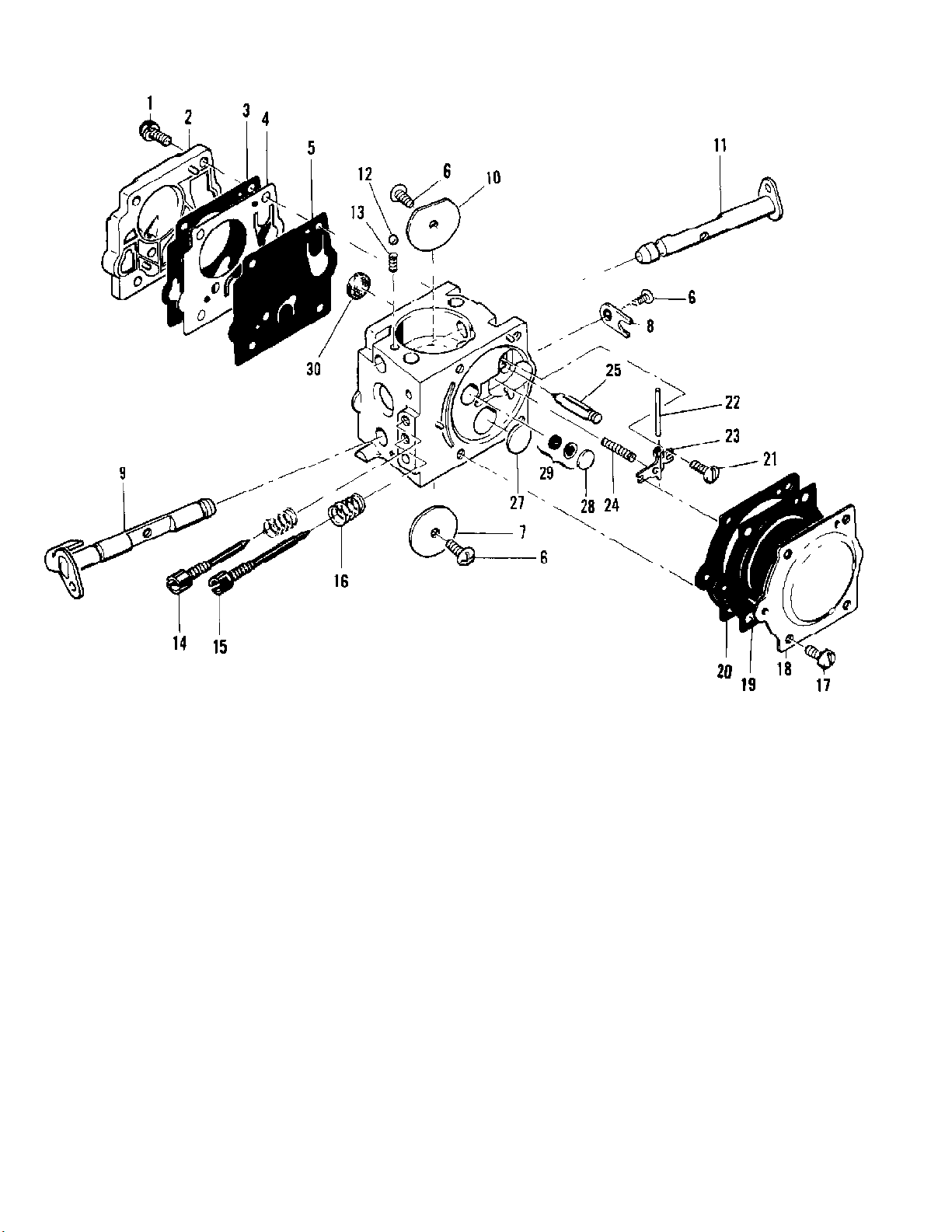

Carburetor Assembly (Part 1)
Ref # Part Number DescriptionQty
84015 Carburetor Assy1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 67506 Needle - High speed1
15 67505 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Metering1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
27 71690 Plug - 3/81
28 69506 Plug - 5/161
29 83758 Kit - Valve & Seat Assy1
30 67507 Screen - Fuel1
67482 Gasket Set
67481 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 5 of 21
www.ktoutdoor.com
Carburetor Assembly (Part 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 6 of 21
www.ktoutdoor.com

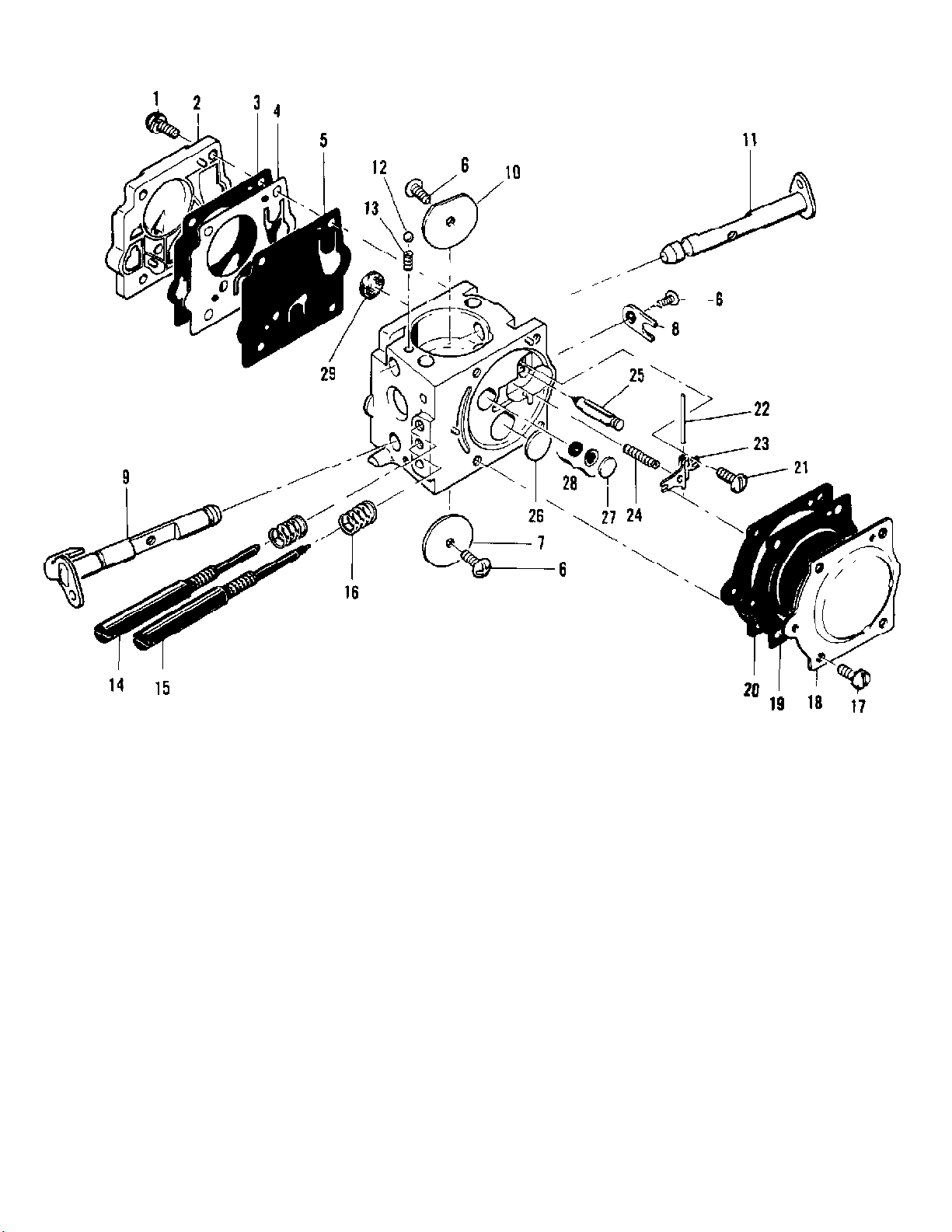

Carburetor Assembly (Part 2)
Ref # Part Number DescriptionQty
87666 Carburetor Assy1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 87915 Needle - High speed1
15 87916 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Metering1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 83758 Kit - Valve & Seat Assy1
29 67507 Screen - Fuel1
89216 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 7 of 21
www.ktoutdoor.com
Carburetor Assembly (Part 3)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 8 of 21
www.ktoutdoor.com

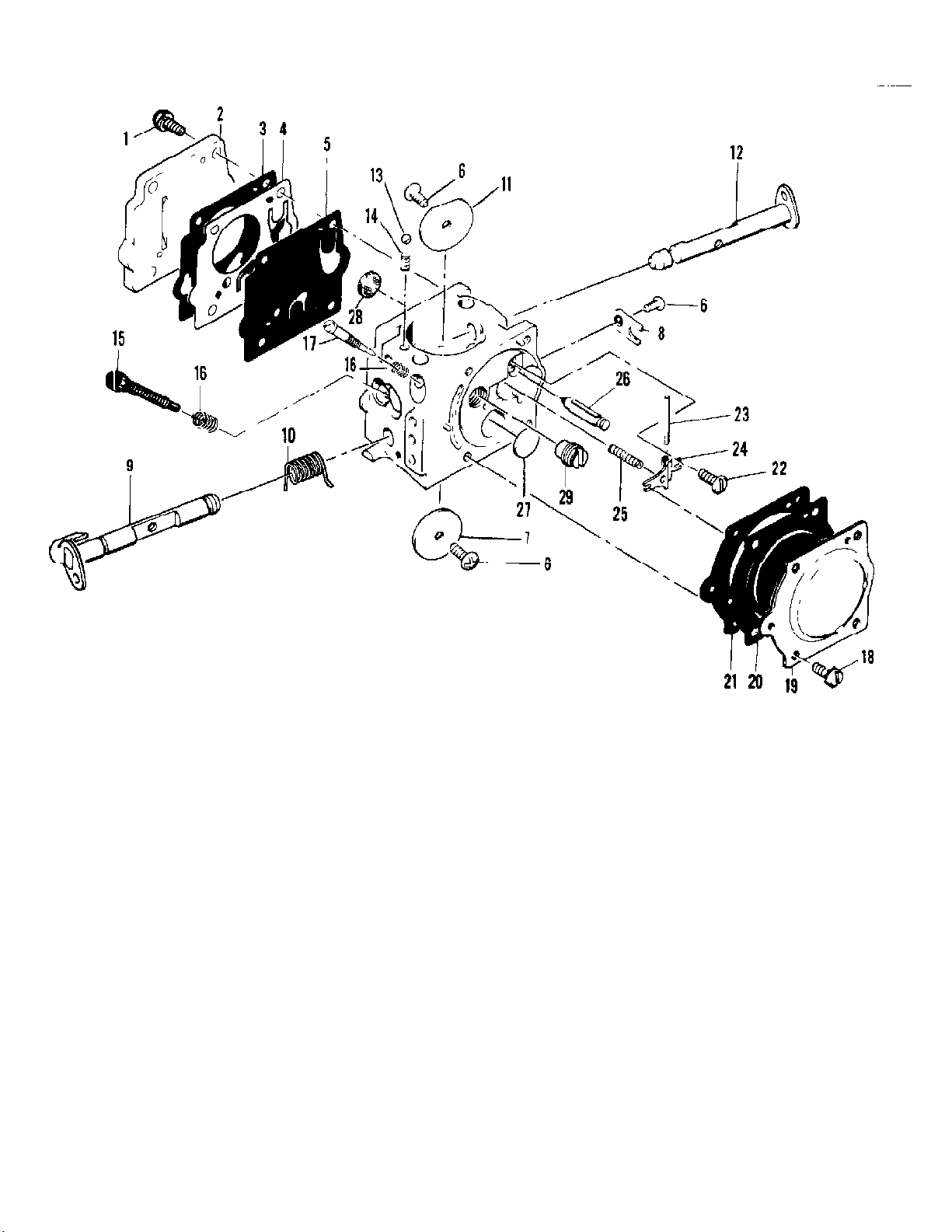

Carburetor Assembly (Part 3)
Ref # Part Number DescriptionQty
91121 Carburetor Assy1
87809 Carburetor Assy1
1 52933 Screw - Pump cover4
2 66628 Cover - Pump1
3 66629 Gasket - Pump cover1
4 66630 Diaphragm - Fuel pump1
5 48780 Screw - Throttle shaft clip1
6 66646 Clip - Throttle shaft1
7 48780 Screw - Throttle plate1
8 51720 Plate - Throttle1
9 87922 Shaft Assy - Throttle1
10 67136 Spring - Throttle shaft1
11 65856 Plate - Choke1
12 83725 Shaft Assy - Choke1
13 100071 Ball- Choke friction1
14 48759 Spring - Choke friction1
15 88768 Needle - Idle mixture1
16 66626 Spring - Idle1
16A 66626 Spring - Idle1
16B 66625 Screw - Idle speed adjustment1
17 51721 Screw - Diaphragm cover4
18 83724 Cover - Diaphragm1
19 66632 Diaphragm - Metering1
20 66633 Gasket - Diaphragm1
21 66644 Screw - Inlet lever pin1
22 66636 Pin - Inlet lever1
23 66638 Lever - Inlet1
24 66404 Spring - Inlet lever1
25 66637 Needle - Inlet1
26 66623 Screen - Fuel inlet1
27 88771 Jet - H/S fuel (029)1
88772 Jet - H/S fuel (028)Alt.
88781 Jet - H/S fuel (027)Alt.
28 52928 Plug - Cup1
29 66622 Plug - Welch1
88774 Gasket Set
88775 Repair Kit
88776 Gasket & Diaphragm Set
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 9 of 21
www.ktoutdoor.com

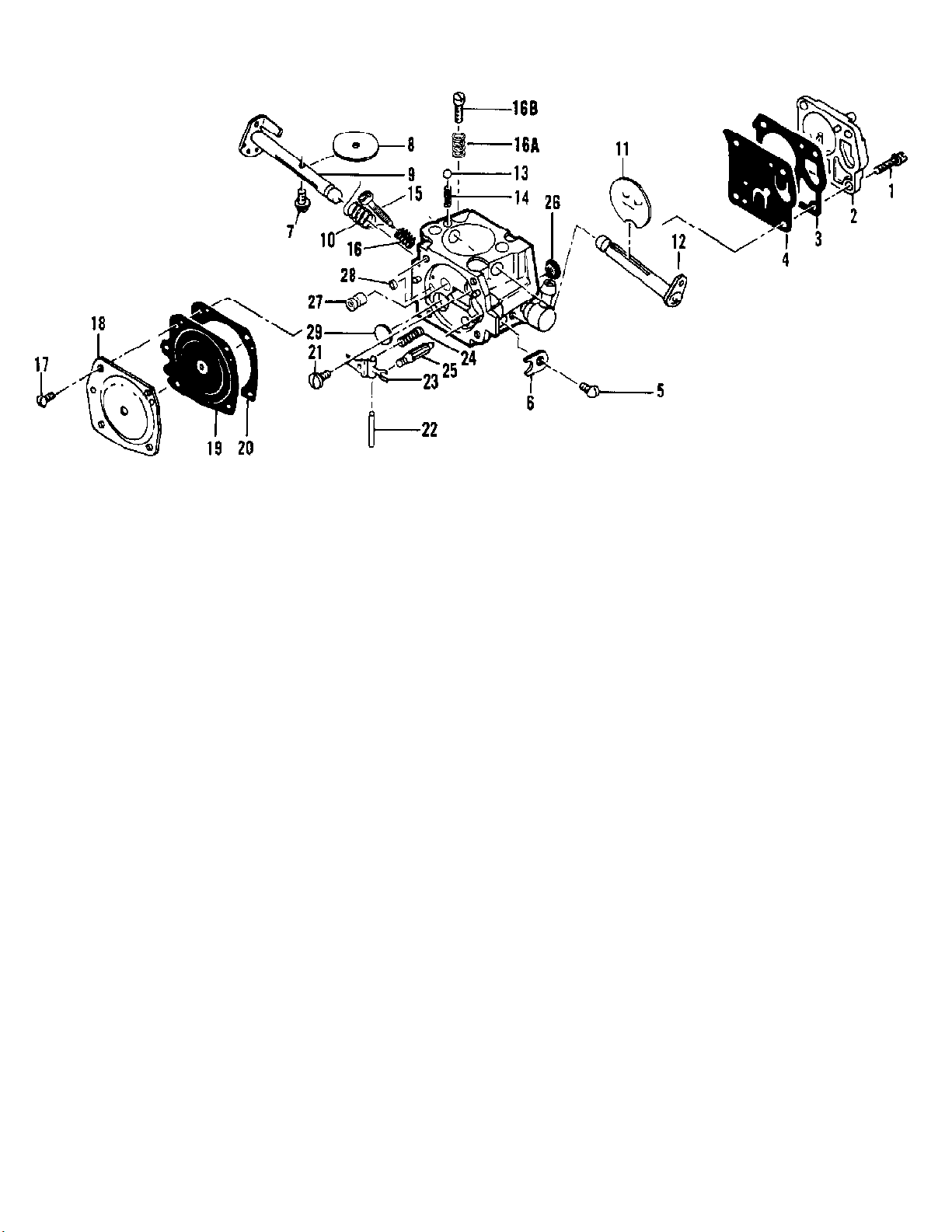

Carburetor Assembly (Part 4)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 10 of 21
www.ktoutdoor.com
Carburetor Assembly (Part 4)
Ref # Part Number DescriptionQty
91275 Carburetor Assy1
1 67501 Screw - Pump cover4
2 88731 Kit - Pump cover1
3 88617 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 85981 Spring - Throttle return1
11 67490 Plate - Choke1
12 67488 Shaft Assy - Choke1
13 100302 Ball - Choke friction1
14 67504 Spring - Choke friction1
15 68106 Screw - Idle speed1
16 67502 Spring - Idle2
17 90345 Needle - Idle mixture1
18 70798 Screw - Diaphragm cover4
19 83761 Cover - Diaphragm1
20 67499 Diaphragm - Metering1
21 67496 Gasket - Diaphragm1
22 67500 Screw - Lever pin1
23 67508 Pin - Lever1
24 67509 Lever - Inlet1
25 67503 Spring - Lever1
26 67491 Valve - Needle1
27 71690 Plug - 3/81
28 67507 Screen - Fuel1
29 90350 Jet - H/S fuel (28)1
90351 Jet - H/S fuel (26) Alt
90349 Jet - H/S fuel (29) Alt
88619 Kit - Gasket
88620 Kit - Repair
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 11 of 21
www.ktoutdoor.com
Fan Housing & Starter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 12 of 21
www.ktoutdoor.com

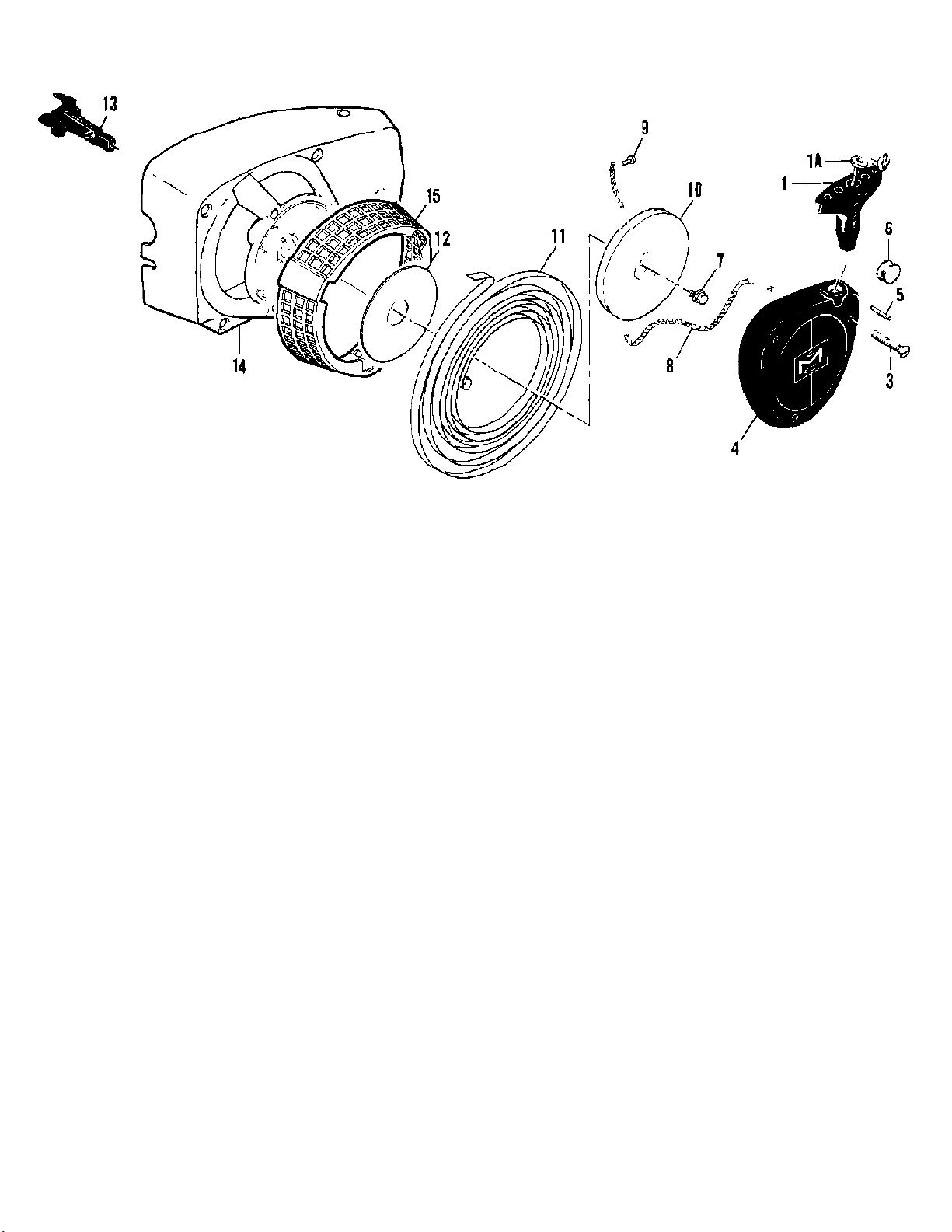

Fan Housing & Starter Assemblies
Ref # Part Number DescriptionQty
1 91255 Kit - Starter handle1
1A Washer1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 87672 Cover - Starter1
5 110657 Pin - Roll (S/Ns prefixed 11-)1
6 84051 Pulley - Rope (S/Ns prefixed 11-)1
7 110341 Screw - Hex hd 10-24 x 1/21
8 68162 Rope - Starter1
9 110470 Rivet - Rope1
10 85122 Drum - Starter1
11 87680 Spring - Rewind1
12 86053 Shield - Spring1
13 83748 Shaft - Starter1
14 87693 Kit - Housing1
15 87674 Guard - Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 13 of 21
www.ktoutdoor.com

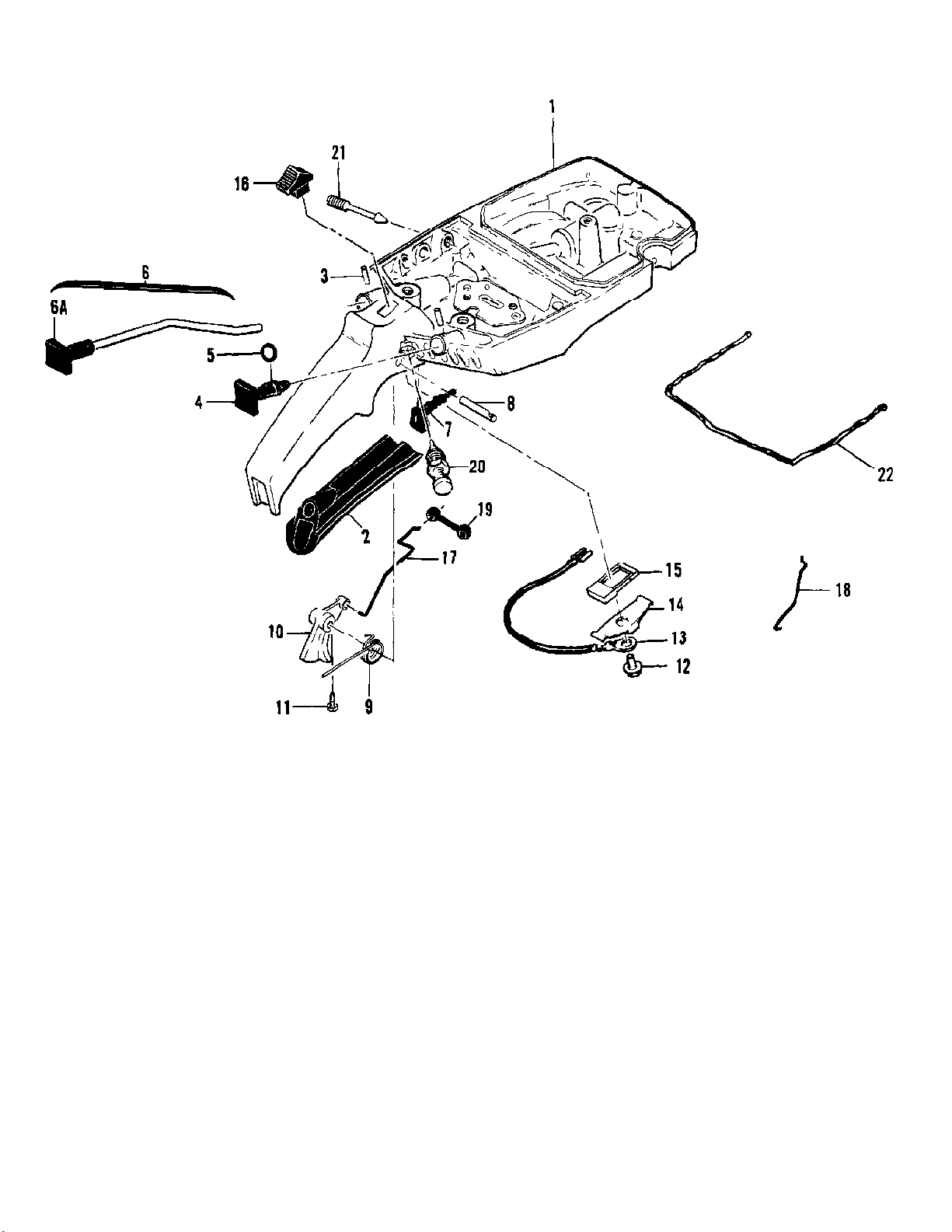

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 14 of 21
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 84183 Fuel Tank1
2 64872 Grip - Handle1
89320 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 69041 Button - Choke1
5 105614 "O" Ring1
6 64871 Button & Rod Assy1
6A 63044 Button - Oiler1
7 68522 Seal - Throttle rod1
8 110378 Pin - Roll 3/16 x 15/161
9 87178 Spring - Throttle return1
10 88796 Trigger1
11 110668 Screw - Fil hd 8-36 x 5/81
12 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
13 62973A Wire Assy - Stop-switch1
14 62451 Contact - Switch1
15 62950A Base - Switch1
16 68846 Button - Switch1
17 85107 Rod - Throttle1
18 69042 Rod - Choke1
19 69043 Snubber - Rod1
20 85451 Latch Assy - Throttle1
21 67271 Screw - Idle adjustment (S/Ns prefixed 11-)1
86273 Screw - Idle adjustment (S/Ns prefixed 12-)1
87932 Screw - Idle adjustment (S/Ns prefixed 13-, 14-)1
22 69564 Seal - AirboxAR
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 15 of 21
www.ktoutdoor.com
General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 16 of 21
www.ktoutdoor.com

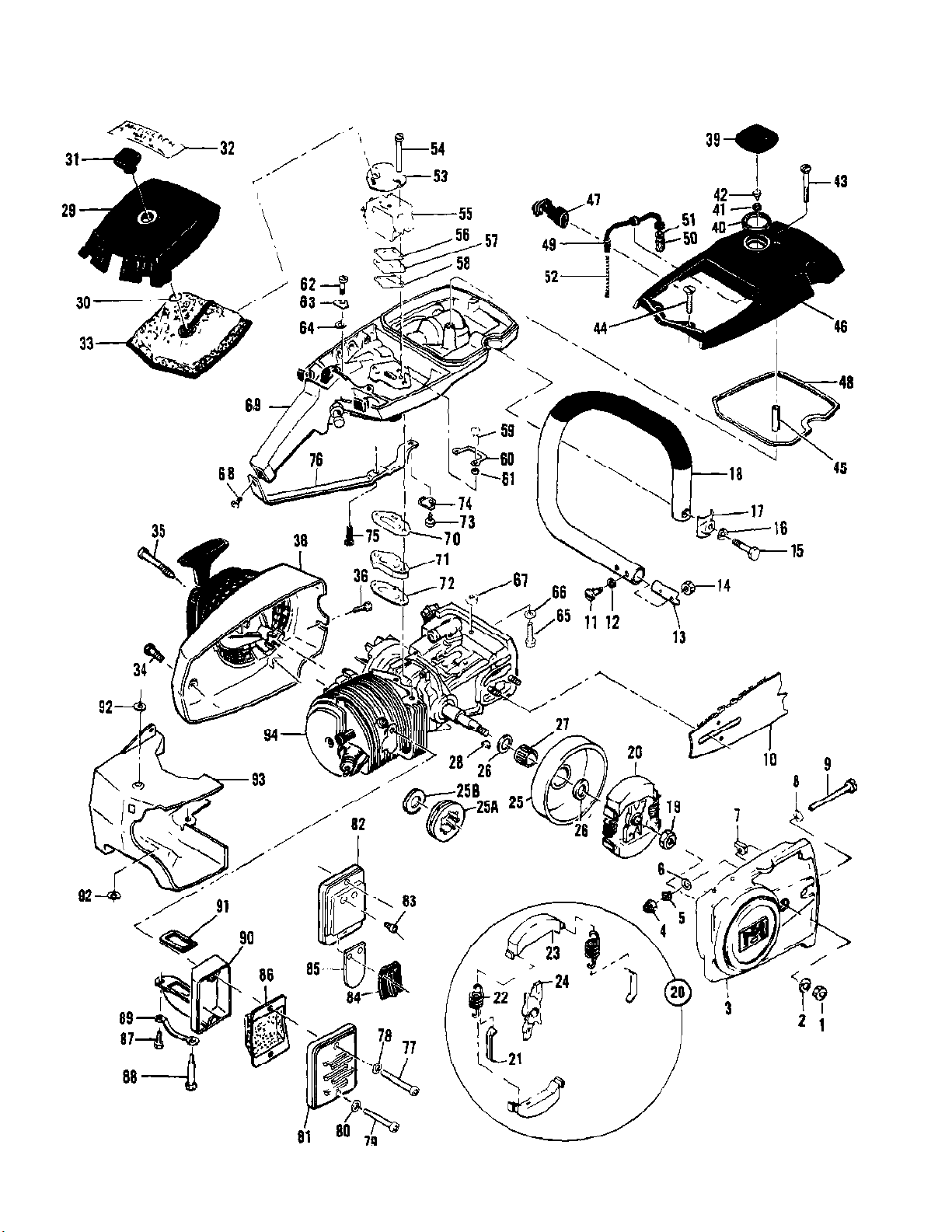

General
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 88586 Clutch Guard Assy1
4 102067 Nut - Hex 10-241
5 110387 Washer - Wavey1
6 100002 Washer - #101
7 61705 Nut - Bar adjustment1
8 110264 Washer - #101
9 102144 Screw - Bar adjustment1
10 Bar & Chain Assy1
11 110865 Screw - Hex hd 10-24 x 7/82
12 100352 Washer - #102
13 89727 Plug - Retainer1
14 101326 Nut - Hex 10-242
15 102130 Screw - Hex hd 1/4-20 x 1-1/21
16 100153 Lockwasher - 1/41
17 63484 Clamp - Frame1
18 87686 Frame & Grip Assy1
19 110594 Nut - Hex 3/8-241
86113 Nut - Hex 3/8-241
20 84682 Clutch Assy1
87675 Clutch Assy1
21 64583 Retainer - Spring2
22 83223 Spring - Clutch2
23 67233 Shoe - Clutch2
24 62204C Rotor Assy1
89438 Rotor Assy1
25 86948 Drum1
25A 86951 Sprocket - .3751
25B 86958 Washer - Sprocket1
25 66979 Kit - Sprocket & Drum - .4041
26 61692 Shim2
27 110330 Bearing1
28 103879 Key - Woodruff1
29 68530 Cover Assy - Air cleaner1
30 110565 Ring - Retainer1
31 68529 Knob - Cover1
32 87176 Nameplate1
33 69922 Filter - Air1
34 110741 Screw - Pan hd 10-24 x 1/21
35 62978 Screw - Special3
36 110741 Screw - Pan hd 10-24 x 1/21

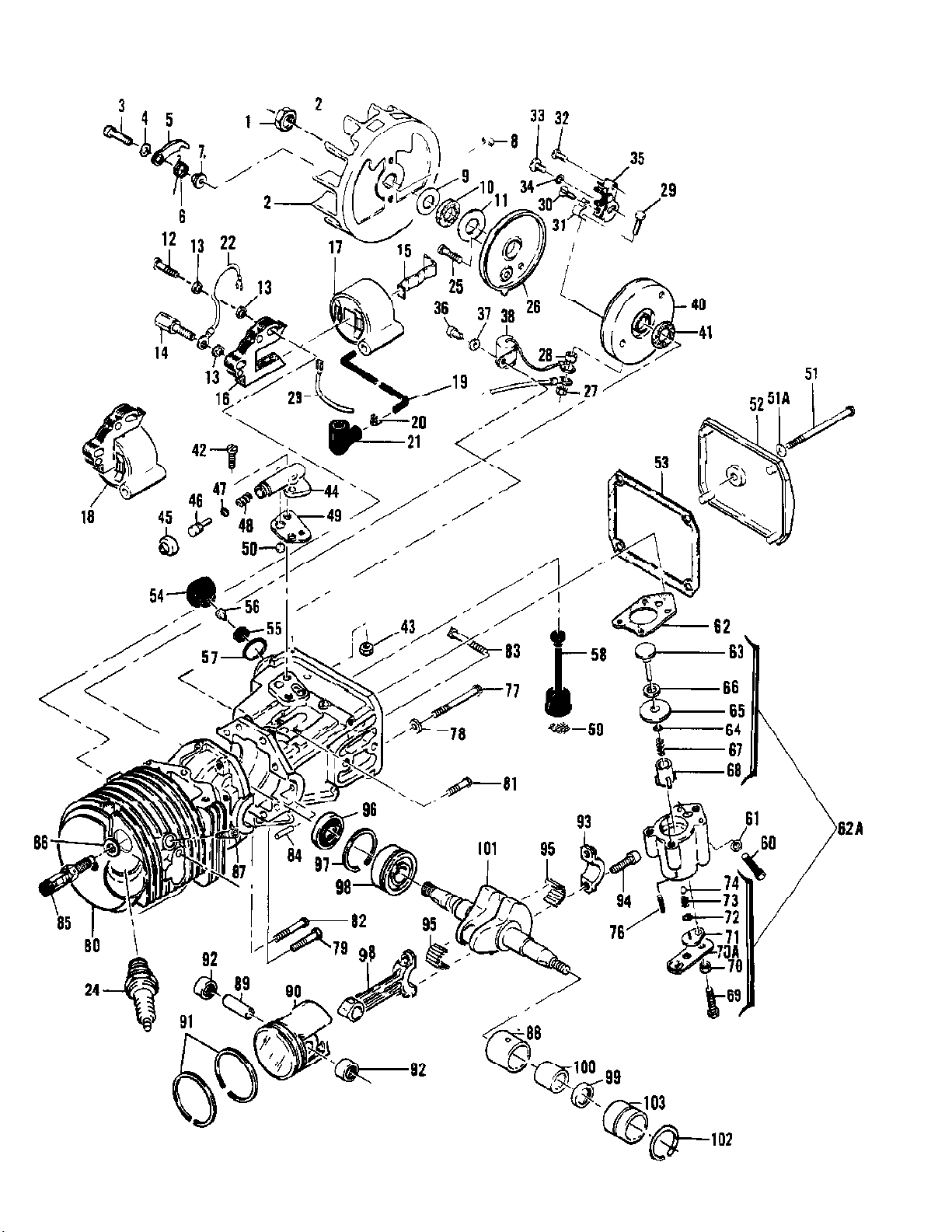

38 Fan Housing & Starter See "Fan Housing & Starter
Assemblies" illustration and parts list.
39 89322 Cap Assy - Fuel1
40 69767 Gasket1
41 86453 Plug1
42 53766A Valve1
43 110402 Screw - Oval hd 12-24 x 2-3/81
44 103579 Screw - Fl hd 10-24 x 12
45 87840 Spacer1
46 84252 Cover - Fuel tank1
88650 Cover - Fuel tank1
87815 Cover - Fuel tank1
89425 Cover - Fuel tank1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 17 of 21
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
47 84253 Boot - Carburetor1
87665 Boot - Carburetor1
48 69345 Gasket - Cover1
49 64848 Hose Assy - Fuel1
50 63932 Filter - Fuel1
51 100440 Washer1
52 67944 Spring - Hose1
53 83204 Bracket Assy1
54 103357 Screw - Hex hd 10-24 x 2-1/42
55 Carburetor Assy See "Carburetor Assembly (Part 1),
(Part 2), (Part 3) and (Part 4)" illustrations and parts
lists.
56 86189 Gasket - Carburetor1
57 84078 Spacer - Carburetor1
58 84081 Gasket - Spacer1
59 110567 Screw - Hex hd 12-24 x 1-1/42
60 68582 Lockplate1
61 102115 Washer - #122
62 110568 Screw - Hex hd 12-24 x 1-1/81
63 69516 Lockplate1
64 64856 Washer - Special1
65 110713 Screw - Skt hd 10-24 x 7/81
66 100003 Washer - #101
67 69772 Spacer1
68 106078 Screw - Pan hd 10-24 x 7/161
104816 Screw - Pan hd 10-24 x 1-1/41
69 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list.
70 84082 Gasket - Fuel tank1
71 84080 Insulator - Fuel tank1
72 68594 Gasket - Insulator1
73 110566 Screw - Hex hd 12-24 x 5/81
74 68508 Lockplate1
75 110682 Screw - Hex hd 10-24 x 5/81
76 85007 Brace - Handle1
77 104534 Screw - Skt hd 10-24 x 1-7/161
78 24236 Washer - Special2
79 101563 Screw - Skt hd 10-24 x 1-1/41
80 110264 Washer - #101
81 88779 Cover - Muffler1
82 87683 Cover & Valve Assy - Muffler1
83 110472 Screw - Skt hd 8-32 x 5/162
84 87286 Stop - Reed1
85 87682 Valve - Reed1
86 85152 Baffle - Muffler1
87 110529 Screw - Hex hd 10-24 x 1/21
88 68187 Screw - Special1
89 67922 Lockplate1
90 83106 Body & Duct Assy1
87663 Body & Duct Assy1
91 84007 Gasket - Spark arrestor1
92 Deleted
93 85731 Shroud
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 18 of 21
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
94 Powerhead Assy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 19 of 21
www.ktoutdoor.com
Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 20 of 21
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hex 3/8-241
2 86068 Flywheel1
3 110713 Screw - Skt hd 10-24 x 7/82
4 83241 Washer - Special2
5 67546 Pawl - Starter2
6 67545 Spring - Pawl2
7 67547 Pivot - Pawl2
8 103879 Key - Woodruff1
9 67057 Washer - Thrust1
10 67056 Seal - Breaker box cover1
11 67054 Washer - Thrust1
12 110127 Screw - Hex hd 10-24 x 7/8 (SEMS)1
13 100002 Washer - #103
14 83512 Stud - Special1
15 51253 Retainer - Coil1
16 85138 Lamination1
17 84972 Kit - Coil1
18 87246 Coil & Lamination Assy1
19 50120 Wire Assy - Spark plug1
20 55061 Connector1
21 85758 Boot1
22 84686 Wire Assy - Ground1
23 69344 Wire Assy - Primary1
24 63432 Spark Plug - AC CS 42 T1
25 110584 Screw - Pan hd 8/32 x 3/41
26 62362 Cover - Breaker box1
27 100298 Nut - Hex 6-321
28 62365 Spacer - Breaker1
29 110346 Screw - Hex hd 6-32 x 3/41
30 110706 Screw - Pan hd 8-18 x 1/21
31 83126 Strap - Conduction1
32 110811 Screw - Pan hd 8-32 x 3/81
33 110445 Screw - Truss hd 8-32 x 3/81
34 105976 Washer - #81
35 88808 Breaker Assy1
36 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
37 100080 Washer - #81
38 85358 Condenser1
40 84329 Box - Breaker1
41 67051 Seal - Breaker box1
42 103672 Screw - Fil hd 8-32 x 1/22
43 100955 Nut - Hex 8-321
44 84156 Housing - Pump1
45 62262 Cap - Housing1
46 62266 Plunger - Pump1
47 105614 "O" Ring1
48 66687 Spring - Pump1
49 62230 Gasket - Pump1
50 62909 Valve - Pump1
51 110291 Screw - Pan hd 10-24 x 2-5/81
51A 110921 Washer1
52 86304 Cover - Oil tank1
53 86306 Gasket - Cover1
54 87270 Cap - Oil tank1
55 87269 Retainer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
11-600052 7-10A 10/71 to 12/75 IPL 91123 Page 21 of 21
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 86402 Valve1
57 101148 "O" Ring1
58 62123B Hose Assy - Oil1
59 51506 Screen - Hose1
60 110865 Screw - Hex hd 10-24 x 7/81
61 100003 Washer - Special1
62 89642 Gasket - Pulse pump1
62A 89115 Pump Assy - Pulse1
63 60260A Piston Assy - Pump1
64 105603 "O" Ring1
65 86182 Ring - Piston1
66 60937 Washer - Teflon1
67 60259 Spring - Piston1
68 62227 Sleeve - Adjustment1
69 110386 Screw - Hex hd 8-32 x 11
70 100251 Nut - Hex 8-321
70A 89114 Clamp - Pump1
71 62407 Cover - Outlet valve1
72 106104 "O" Ring1
73 62885A Spring - Outlet valve1
74 102809 Ball1
76 88645 Screw - Set1
77 62105 Screw Assy - Sealing4
78 62842 Washer - Sealing4
79 110288 Screw Assy - Hex 8-32 x 3/41
80 87681 Crankcase Assy1
89711 Crankcase Assy1
81 110288 Screw Assy - Hex 8-32 x 1-3/82
82 110618 Screw Assy - Hex 8-32 x 1-3/81
83 62065 Bolt - Bar mounting2
84 110851 Pin - Dowel1
85 87866 Valve - DSP1
86 85505 Washer - Valve1
87 110681 Screw - Skt hd 10-24 x 1/41
88 87152 Insert - Bearing1
89 69020 Pin - Piston1
90 85239 Piston Assy1
91 87166 Ring Set - Piston (Wide)1
89732 Ring Set - Piston (Thin)1
92 110590 Bearing - Needle1
93 85352 Connecting Rod Assy1
94 61627A Screw - Skt hd special2
95 63225 Roller - Needle (Set of 20)1
96 61618 Seal - Oil1
97 63464 Ring - Snap1
98 63429B Bearing - Ball1
99 110260 Seal - Oil1
100 104357 Bearing - Needle1
101 87699 Crankshaft1
102 63699 Ring - Bearing insert1
103 63701 Insert - Bearing1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
