11-600041-02 PRO MAC 610 07/90 to Current IPL 218689-02 Page 1 of 9
www.ktoutdoor.com
Tools & Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600041-02 PRO MAC 610 07/90 to Current IPL 218689-02 Page 2 of 9
www.ktoutdoor.com
Tools & Accessories
Ref # Part Number DescriptionQty
215432 Pressure Test Tool
63137 Adaptor - Exhaust
94415 Adaptor - Intake
84223 Kit - Piston Tools
95218 Air Filter - Felt
214221 Scrench
214195 Gun-Lube (Disposable)
214194 Gun-Lube (Deluxe)
85707 Case - Custom Lubricant 40:1 Case contains 24
cans 16 ounces
93770 Case - Custom Lubricant 40:1 Case Contains 48
cans 6 ounces
95159 Allen Wrench - 5mm
69794 Locquic
110083 R.T.V. Sealant
94121 Kit - Carrying Case 20 Inches
214203 Scabbard 20 Inches
214208 Kit - Spike
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600041-02 PRO MAC 610 07/90 to Current IPL 218689-02 Page 3 of 9
www.ktoutdoor.com
Bar/Chain/Chain Sharpening Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600041-02 PRO MAC 610 07/90 to Current IPL 218689-02 Page 4 of 9
www.ktoutdoor.com
Bar/Chain/Chain Sharpening Tools
Ref # Part Number DescriptionQty
214237 Bar Sprocket Tip 16"
218839-12 Chain PMR370 GLX-60CL
219132 File Plate
219161 Round File 7/32" Round File Twin Pack
56698-23 Round File 7/32" Round File 12-Pack
217025 Bar Sprocket Tip 18"
218062-12 Chain PMR370 GLX-66CL
219132 File Plate
219161 Round File 7/32" Round File Twin Pack
56698-23 Round File 7/32" Round File 12-Pack
214238 Bar Sprocket Tip 20"
218069-12 Chain PMR370 GLX-70CL
219132 File Plate
219161 Round File 7/32" Round File Twin Pack
56698-23 Round File 7/32" Round File 12-Pack
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600041-02 PRO MAC 610 07/90 to Current IPL 218689-02 Page 5 of 9
www.ktoutdoor.com
Fan Housing & Fuel Tank Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600041-02 PRO MAC 610 07/90 to Current IPL 218689-02 Page 6 of 9
www.ktoutdoor.com

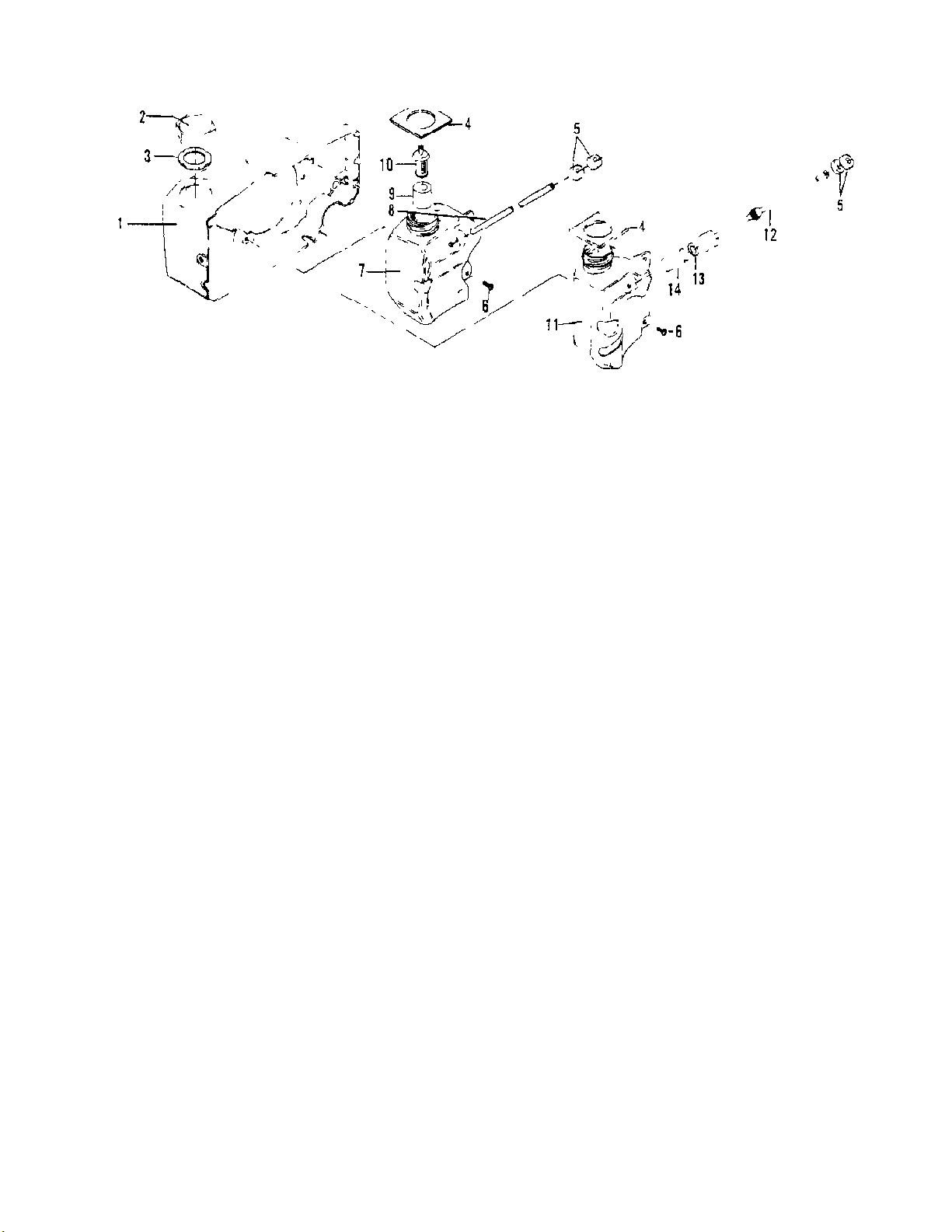

Fan Housing & Fuel Tank Assemblies
Ref # Part Number DescriptionQty
1 216154 Housing - Fan1
2 216157 Cap - Fuel (vented)1
3 94707 Gasket - Fuel Cap1
4 93251 Seal - Fuel Vent1
5 92161 Seal - Air Box1
6 120068 Screw - Pan Hd M4 x 12 (Sems)2
7 Tank Asy - Fuel Not available separately.1
8 91994 Hose - Fuel1
9 61159 Filter - Fuel Pickup1
10 215714 Pickup Asy - Fuel1
11 94901 Tank Asy - Fuel1
12 94899 Hose Asy - Fuel1
13 100440 Washer - 5/161
14 63932 Filter - Fuel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600041-02 PRO MAC 610 07/90 to Current IPL 218689-02 Page 7 of 9
www.ktoutdoor.com
Powerhead & Oiler Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600041-02 PRO MAC 610 07/90 to Current IPL 218689-02 Page 8 of 9
www.ktoutdoor.com
Powerhead & Oiler Assemblies
Ref # Part Number DescriptionQty
1 120036 Screw - M4 x 16 (Sems)4
2 67177 Washer - Insulating4
3 219380 Pump Asy-Oiler (Pulse)1
4 215151 Cap1
5 93933 Plunger1
6 105614 "O" Ring1
7 66687 Spring - Plunger1
8 110706 Screw - 8-18 x 1/23
9 216354 Gasket - Washer1
10 217218 Cover - Diaphragm1
11 216992 Diaphragm1
12 Valve Not available separately.1
13 91945 Piston Assembly1
14 94322 Spring - Return1
15 91944 Sleeve1
16 218530 Screw - 6-40 x .8751
17 219336 Body Assembly1
18 91950 Gasket - Oil Pump1
19 216052 Cap/Retainer Asy - Oil1
20 101148 "O" Ring1
21 120006 Screw - M6.3 x 244
22 100004 Washer - Plain 1/4"4
23 218583 Tank Asy-Oil1
24 110950 Nut - Lock1
25 102115 Washer - Plain1
26 91982 Nut - Bar Adjustment1
27 94362 Screw - Bar Adjustment1
28 92459 Bolt - Bar2
29 92616 Hose - Oil Pickup1
30 92465 Pickup - Oil1
31 120037 Screw - M5 x 25 (Sems) 55-60 In. Lb. Torque2
32 84686-01 Wire Asy - Ground1
33 95553 Ignition Asy - Electronic1
34 95270 Wire Asy - Spark1
35 102556 Connector - Spark Plug1
36 95266 Boot - Spark Plug1
37 110995 Grommet - Spark Plug Wire1
38 94500 Nut - Flange M10 265-325 In. Lb. Torque1
39 95324 Flywheel/Pawl Asy1
40 95362 Screw - Pawl2
41 95361 Pawl - Starter (Plastic)2
42 213253 Washer - Spring2
43 93144 Spring - Pawl2
44 215739 Kit - Flywheel/Pawl1
45 93464 Screw - Pawl2
46 93198 Pawl - Starter (Metal)2
47 93469 Washer - Spring2
48 214102 Spring - Pawl2
49 93146 Pin - Pawl2
50 93145 Pawl - Starter (Plastic)2
51 93469 Washer - Spring2
52 93144 Spring - Pawl2
53 100106 Key - Woodruff1
54 62106 Screw - 12-24 x 1 3/4 70-75 In. Lb. Torque4
55 111025 Washer - Sealing4
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600041-02 PRO MAC 610 07/90 to Current IPL 218689-02 Page 9 of 9
www.ktoutdoor.com

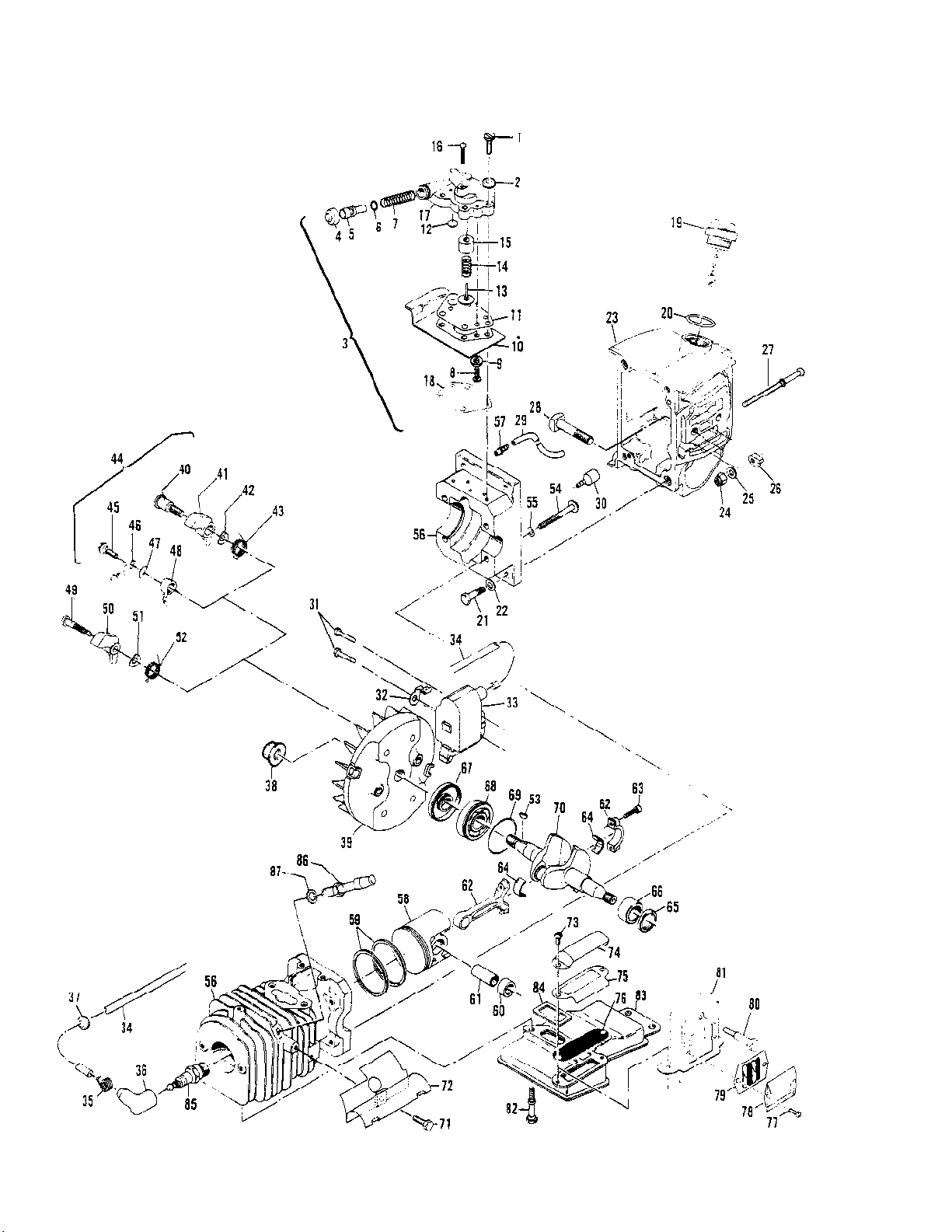

Powerhead & Oiler Assemblies
Ref # Part Number DescriptionQty
56 94536 Cyl/C'Case Asy1
218814 Cyl/C'Case Asy1
57 92096 Nipple - Oil Line1
58 94130 Piston Asy1
219269 Piston Asy1
59 94132 Ring Set - Piston1
92517 Ring Set - Piston1
60 111021 Bearing - Needle2
61 87710 Pin - Piston1
62 85352 Rod Asy - Connecting1
63 61627-01 Screw - Con Rod2
64 63225 Bearing - Roller (Set of 20)1
65 110260 Seal - Oil1
66 104357 Bearing - Needle1
67 67906 Seal - Oil1
68 67905 Bearing - Ball1
69 63464 Ring - Snap1
70 217041 Crankshaft1
71 102762 Screw - 10-24 x 1/2 55-60 In. Lb. Torque1
72 217607 Deflector - Exhaust1
73 120038 Screw - M4 x 8 34-45 in. Lb. Torque2
74 93604 Outlet - Muffler1
75 93481 Plate - Deflector1
76 214205 Screen - Muffler1
77 120087 Screw - M3.5 x 7.5 30-35 In. Lb. Torque2
78 93482 Cover - Chamber1
79 93605 Screen - Muffler1
80 95445 Screw - Muffler 55-60 In. Lb. Torque1
81 216254 Chamber Asy - Muffler1
82 95444 Screw - Muffler 65-75 in. Lb. Torque2
83 93603 Muffler Asy1
84 84007 Gasket - Muffler1
85 62345 Spark, Plug - AC CS45T1
93017 Spark Plug - CH RDJ6 120 In. Lb. Torque1
86 214304 Valve - DSP1
87 214765 Washer - DSP Valve1
