Page 1
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 1 of 22
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 2 of 22
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
84922 Kit - Spark arrester baffle
86355 Kit - Preheater
85488 Guard - Crankshaft seal
63746 Wrench
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 3 of 22
www.ktoutdoor.com

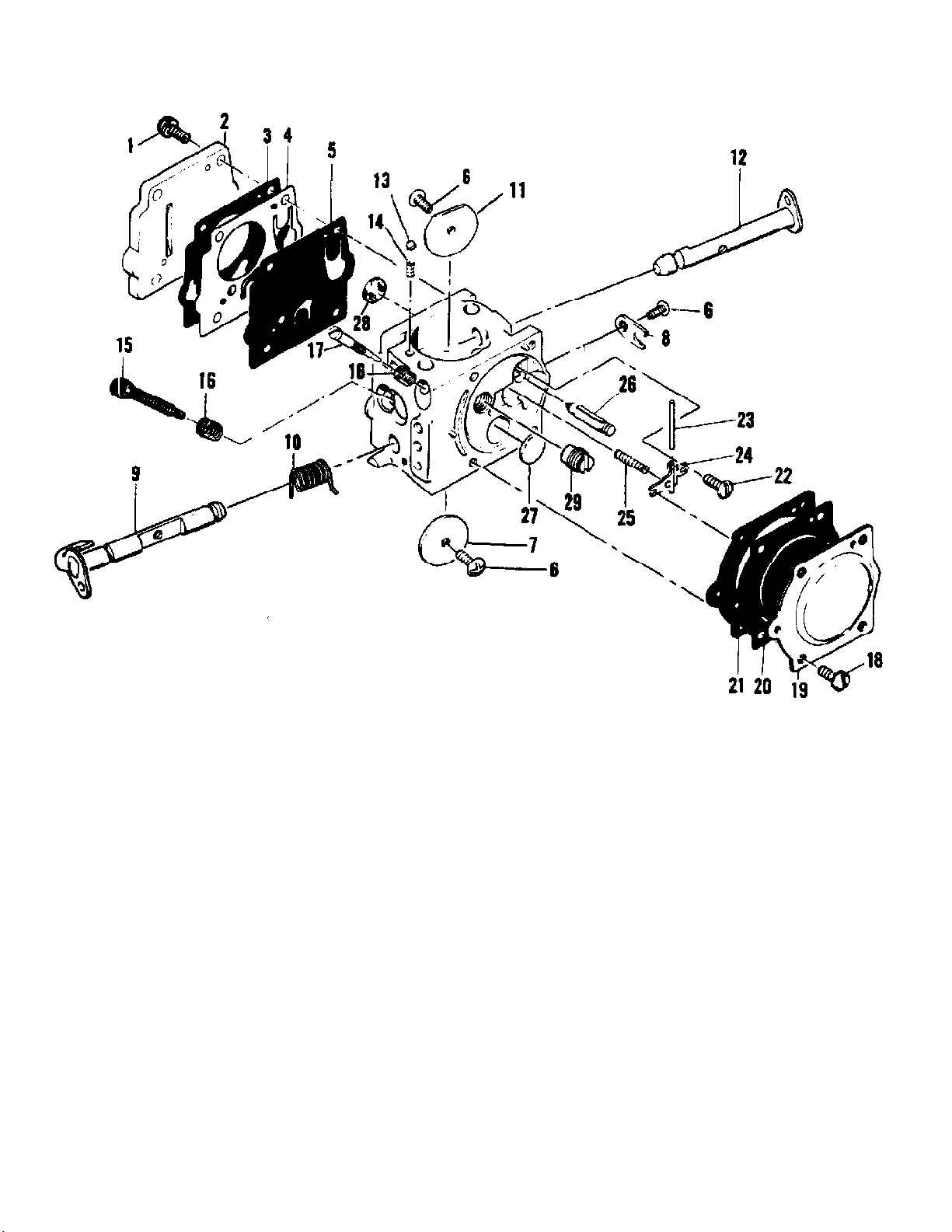

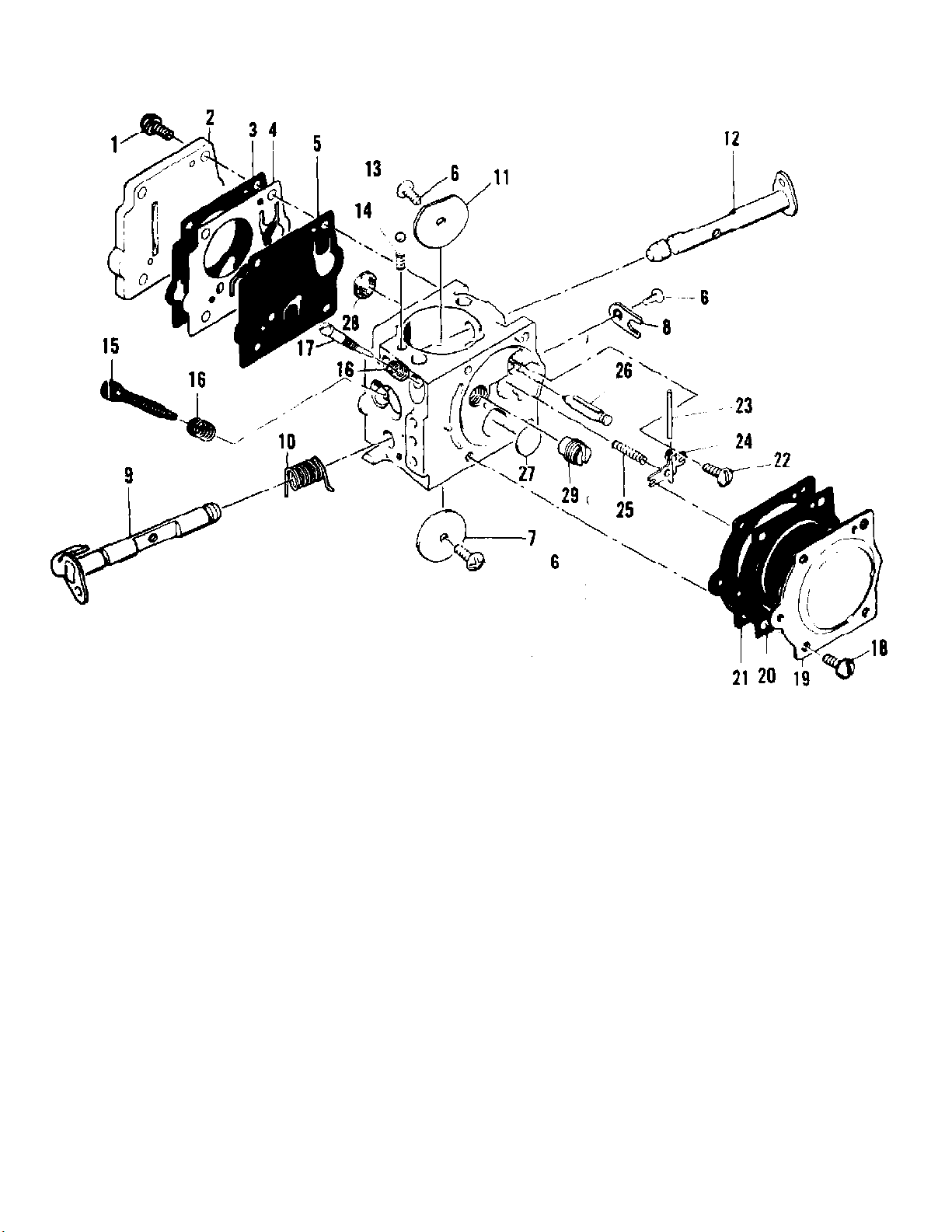

Carburetor Assembly S/N Prefix 11-, 13-, 14- Part 1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 4 of 22
www.ktoutdoor.com
Carburetor Assembly S/N Prefix 11-, 13-, 14- Part 1
Ref # Part Number DescriptionQty
89869 Carburetor Assy1
1 67501 Screw - Pump cover4
2 88731 Kit - Pump cover1
3 88617 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 85981 Spring - Throttle return1
11 67490 Plate - Choke1
12 67488 Shaft Assy - Choke1
13 100302 Ball - Choke friction1
14 67504 Spring - Choke friction1
15 68106 Screw - Idle speed1
16 67502 Spring - Idle2
17 90345 Needle - Idle mixture1
18 70798 Screw - Diaphragm cover4
19 83761 Cover - Diaphragm1
20 67499 Diaphragm - Metering1
21 67496 Gasket - Diaphragm1
22 67500 Screw - Lever pin1
23 67508 Pin - Lever1
24 67509 Lever - Inlet1
25 67503 Spring - Lever1
26 67491 Valve - Needle1
27 71690 Plug - 3/81
28 67507 Screen - Fuel1
29 90348 Jet - H/S (31)1
90349 Jet - H/S (28)1
90350 Jet - H/S (26) Alt.
90351 Jet - H/S (29) Alt.
88619 Kit - Gasket
88620 Kit - Repair
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 5 of 22
www.ktoutdoor.com

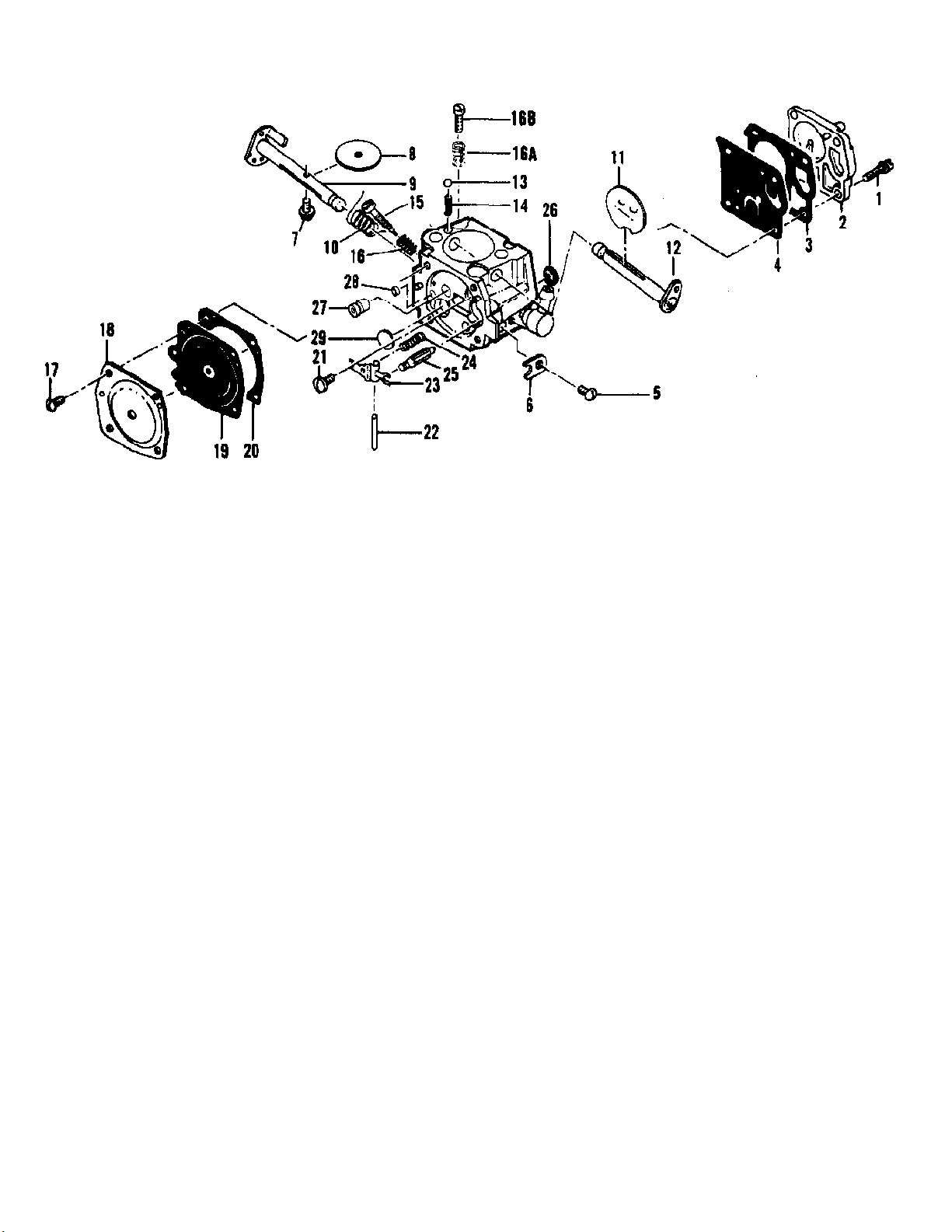

Carburetor Assembly S/N Prefix 11-, 13-, 14- Part 2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 6 of 22
www.ktoutdoor.com
Carburetor Assembly S/N Prefix 11-, 13-, 14- Part 2
Ref # Part Number DescriptionQty
91121 Carburetor Assy1
1 52933 Screw - Pump cover4
2 66628 Cover - pump1
3 66629 Gasket - Pump cover1
4 66630 Diaphragm - Fuel pump1
5 48780 Screw - Throttle shaft clip1
6 66646 Clip - Throttle shaft1
7 48780 Screw - Throttle plate1
8 51720 Plate - Throttle1
9 87922 Shaft Assy - Throttle1
10 67136 Spring - Throttle shaft1
11 65856 Plate - Choke1
12 83725 Shaft Assy - Choke1
13 100071 Ball - Choke friction1
14 48759 Spring - Choke friction1
15 88768 Needle - Idle mixture1
16 66626 Spring - Idle1
16A 66626 Spring - Idle1
16B 66625 Screw - Idle speed adjustment1
17 51721 Screw - Diaphragm cover4
18 83724 Cover - Diaphragm1
19 66632 Diaphragm - Metering1
20 66633 Gasket - Diaphragm1
21 66644 Screw - Inlet lever pin1
22 66636 Pin - Inlet lever1
23 66638 Lever - Inlet1
24 66404 Spring - Inlet lever1
25 66637 Needle - Inlet1
26 66623 Screen - Fuel inlet1
27 88771 Jet - H/S fuel (029)1
88772 Jet - H/S fuel (028) Alt.
88781 Jet - H/S fuel (027) Alt.
28 52928 Plug - Cup1
29 66622 Plug - Welch1
88774 Gasket Set
88775 Repair Kit
88776 Gasket & Diaphragm Set
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 7 of 22
www.ktoutdoor.com
Carburetor Assembly S/N Prefix 11-, 13-, 14- Part 3
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 8 of 22
www.ktoutdoor.com
Carburetor Assembly S/N Prefix 11-, 13-, 14- Part 3
Ref # Part Number DescriptionQty
91275 Carburetor Assy1
1 67501 Screw - Pump cover4
2 88731 Kit - Pump cover1
3 88617 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 85981 Spring - Throttle return1
11 67490 Plate - Choke1
12 67488 Shaft Assy - Choke1
13 100302 Ball - Choke friction1
14 67504 Spring - Choke friction1
15 68106 Screw - Idle speed1
16 67502 Spring - Idle2
17 90345 Needle - Idle mixture1
18 70798 Screw - Diaphragm cover4
19 83761 Cover - Diaphragm1
20 67499 Diaphragm - Metering1
21 67496 Gasket - Diaphragm1
22 67500 Screw - Lever1
23 67508 Pin - Lever1
24 67509 Lever - Inlet1
25 67503 Spring - Lever1
26 67491 Valve - Needle1
27 71690 Plug - 3/81
28 67507 Screen - Fuel1
29 90350 Jet - H/S fuel (28)1
90351 Jet - H/S fuel (26) Alt
90349 Jet - H/S fuel (29) Alt
88619 Kit - Gasket
88620 Kit - Repair
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 9 of 22
www.ktoutdoor.com

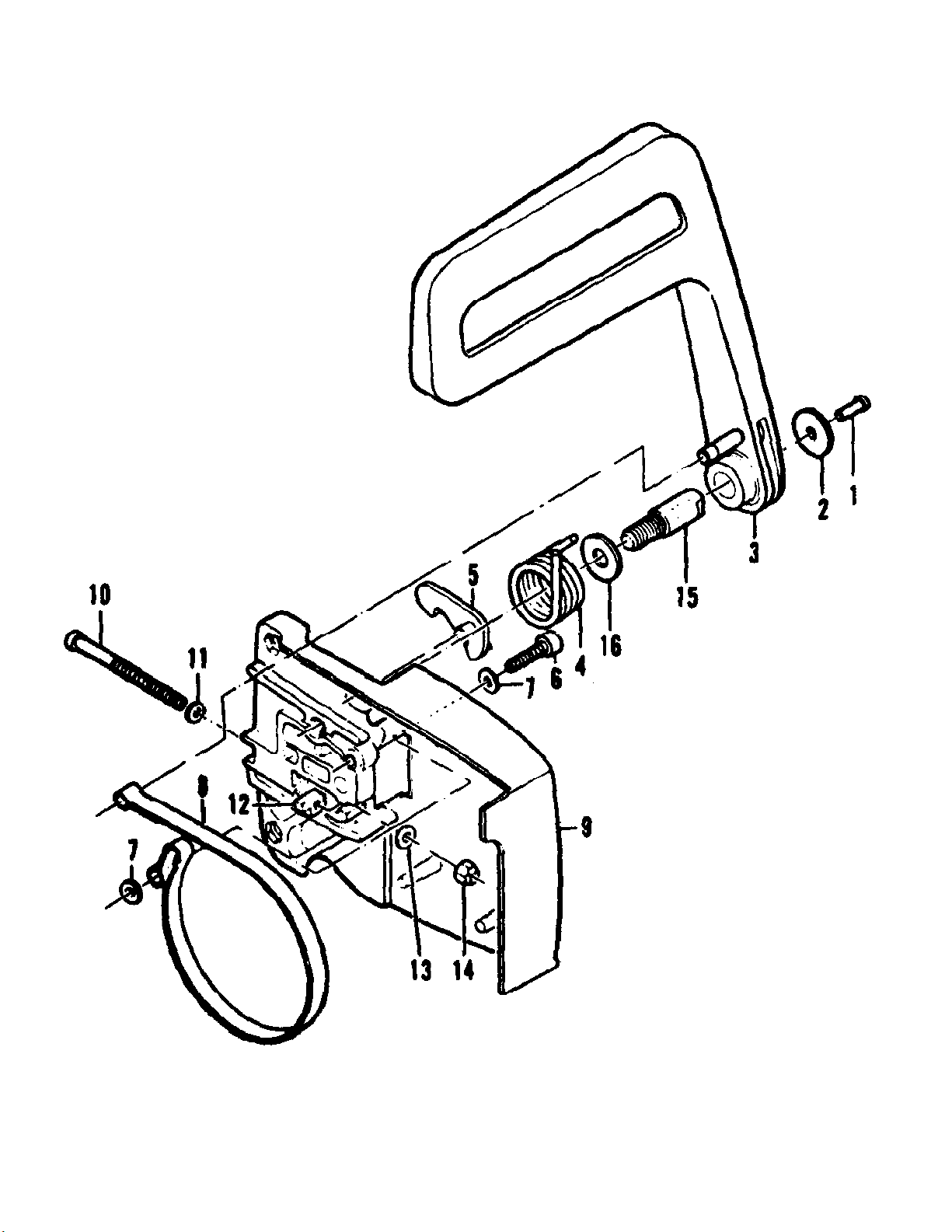

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 10 of 22
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
91278 Chain Brake Assy1
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 91251A Lever Assy1
4 91239 Spring1
5 91235A Latch Assy1
6 105738 Screw - Skt hd 1/4-20 x 7/81
7 91274 Washer - Special2
8 91238 Band1
9 91249 Housing Assy1
10 110527 Screw - Fil hd 10-24 X 2-3/41
11 110264 Washer - #101
12 61705 Nut - Bar adjusting1
13 100002 Washer - #101
14 102067 Nut - Hex 10-241
15 91246 Pin - Lever pivot1
16 91245 Washer - Thrust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 11 of 22
www.ktoutdoor.com

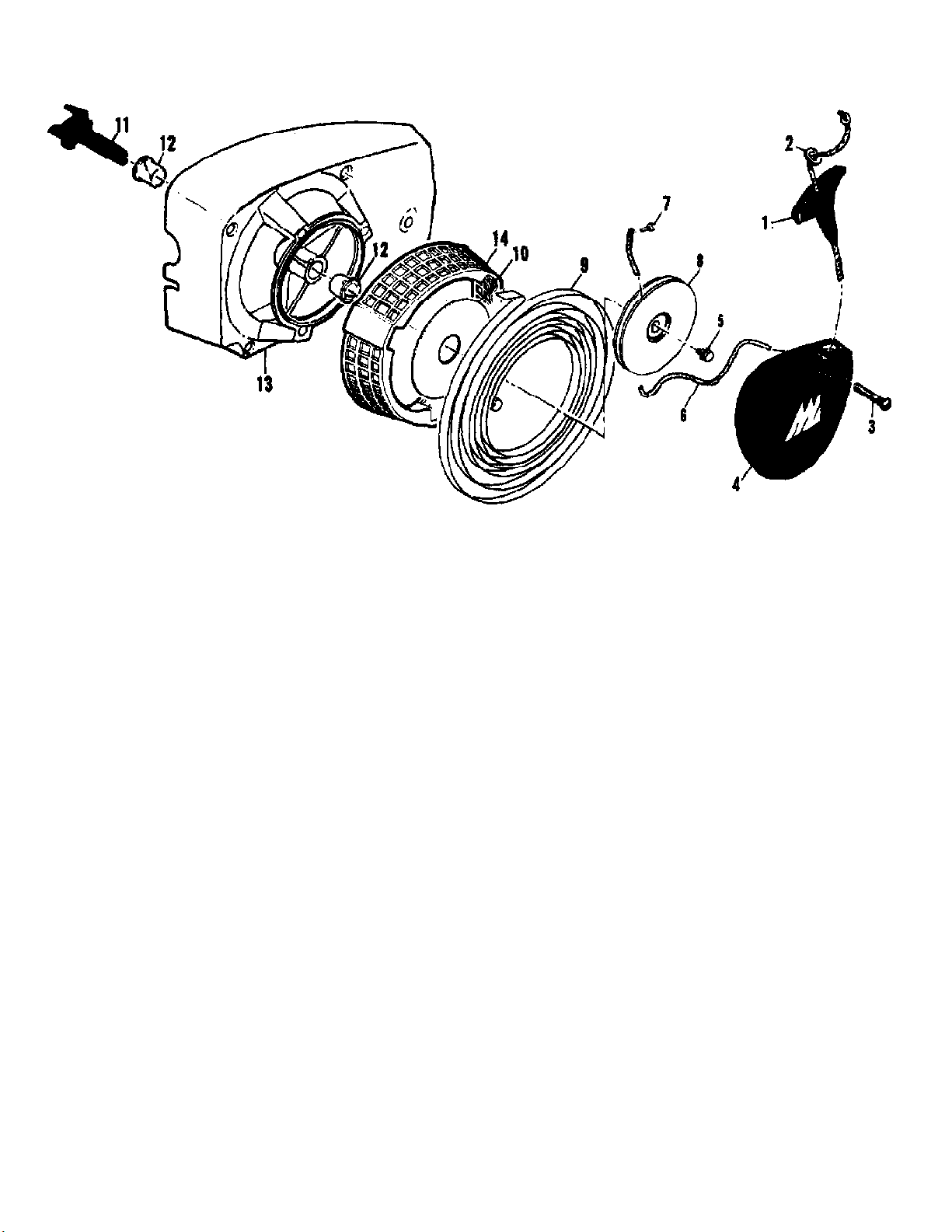

Fan Housing & Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 12 of 22
www.ktoutdoor.com
Fan Housing & Starter Assembly
Ref # Part Number DescriptionQty
1 91255 Kit - Starter handle1
2 105490 Washer - Starter handle1
87667 Fan Housing & Starter Asy1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 87672 Cover - Starter1
5 110341 Screw - Hx hd 10-24 x 1/21
6 68162 Rope - Starter1
7 110470 Rivet - Rope1
8 85122 Drum - Starter1
9 87680 Spring - Rewind1
10 86053 Shield - Spring1
11 83748 Shaft - Starter1
12 57535 Bushing - Starter2
13 87693 Kit - Fan housing1
14 87674 Guard - Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 13 of 22
www.ktoutdoor.com

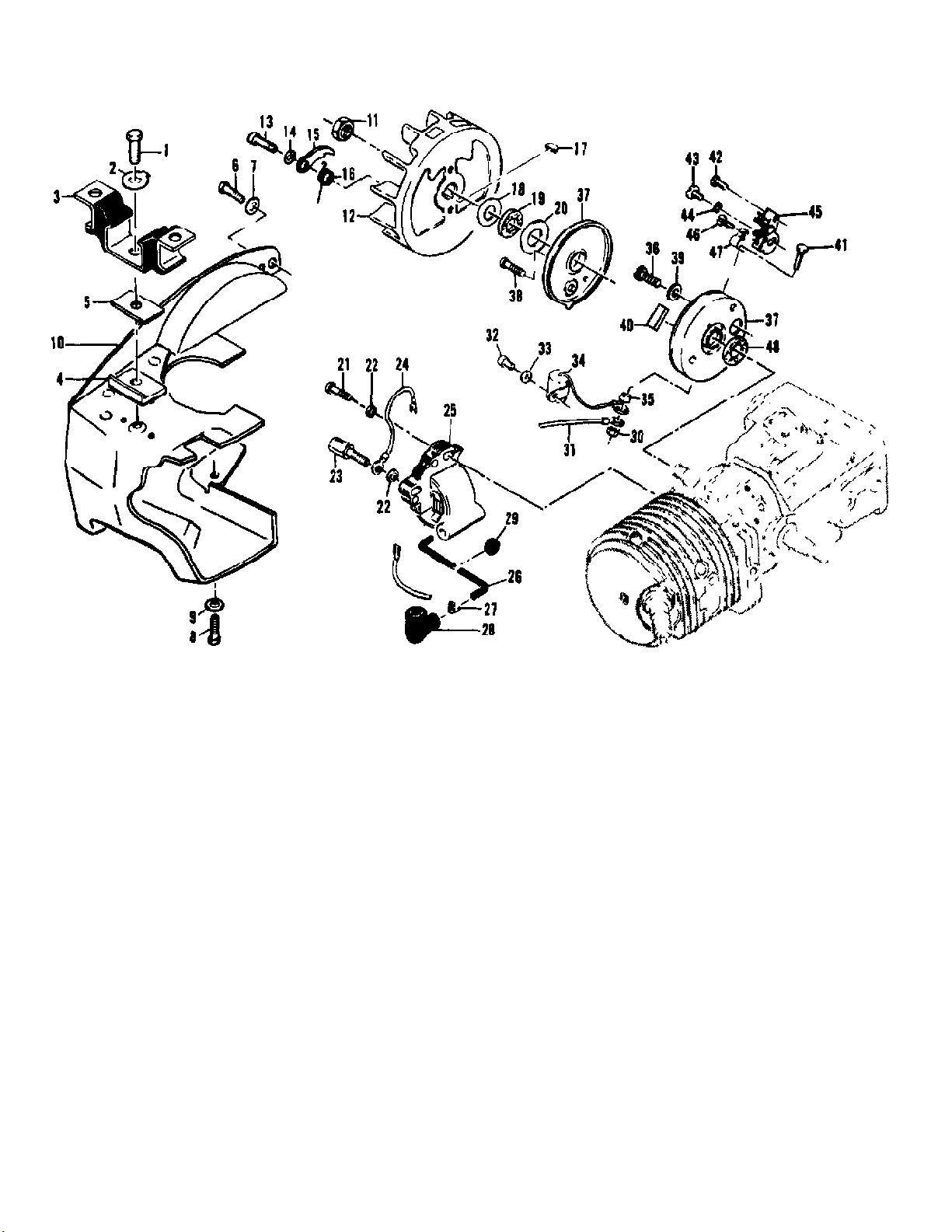

Flywheel & Ignition System
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 14 of 22
www.ktoutdoor.com
Flywheel & Ignition System
Ref # Part Number DescriptionQty
1 83811 Screw-Special1
2 69924 Plate-Lock1
3 91578 Mount-Rear1
4 83693 Kit-Rear mount adaptor1
5 84619 Insulator-Rear mount1
6 110776 Screw- Fil hd 8-32 x 3/81
7 100057 Washer-Lock #81
8 110640 Screw-Hx hd 12-24 x 5/81
9 110106 Washer #121
10 85747A Shroud Asy1
11 110703 Nut-Hx 3/8-241
12 86068 Flywheel Asy1
13 88804 Screw-Pawl pivot2
14 83241 Washer-Special2
15 67546 Pawl-Starter2
16 67545 Spring-Pawl2
17 100106 Key-Woodruff1
18 67057 Washer-Thrust1
19 67056 Seal-Breaker box cover1
20 67054 Washer-Thrust1
21 110127 Screw-Hx hd 10-24 x 7/8 (SEMS)1
22 100002 Washer #102
23 83512 Stud-Special1
24 85798 Wire Asy-Ground1
25 87246A Coil & Lamination Asy1
26 50120 Wire Asy-Spark plug1
27 55061 Connector1
28 85758 Boot1
29 100268 Grommet1
30 100298 Nut-Hx 6-321
31 85796 Wire Asy-Primary1
32 110338 Screw-Fil hd 8-32 x 1/21
33 100080 Washer-#81
34 85358 Condenser1
35 62365 Spacer-Breaker box1
36 110584 Screw-Pan hd 8-32 x 3/41
37 91852 Kit-Breaker Box & Cover1
38 110489 Screw-Pan hd 6-32 x 7/161
39 91838 Washer1
40 54184 Wiper-Cam1
41 110346 Screw-Hx hd 6-32 x 3/41
42 110811 Screw-Pan hd 8-32 x 3/81
43 110969 Screw-Hx hd 8-32 x 1/21
44 105976 Washer #81
45 88808 Breaker Asy1
46 110706 Screw-Pan hd 6-32 x 7/16 s/t1
47 83126 Strap-Conduction1
48 67051 Seal-Breaker box1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 15 of 22
www.ktoutdoor.com

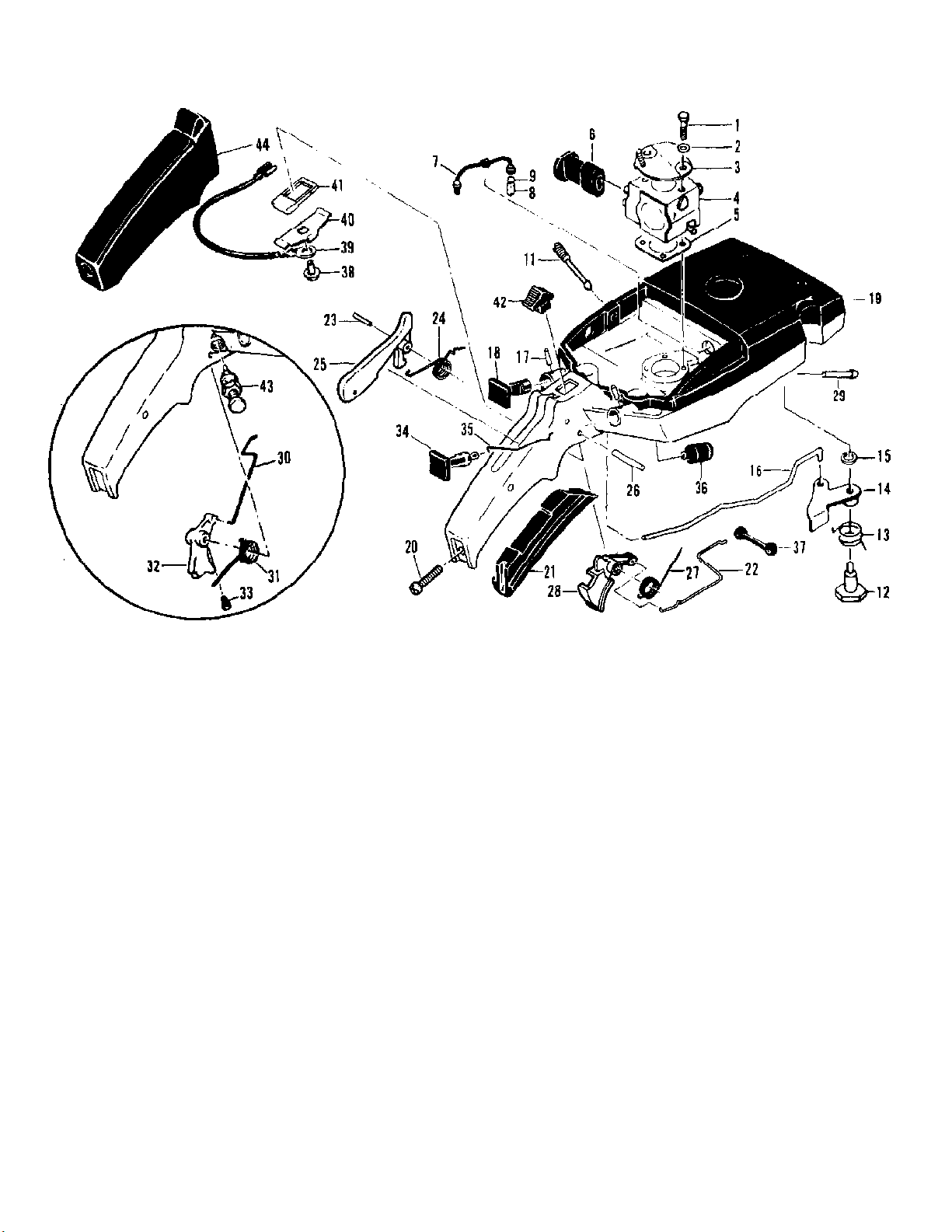

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 16 of 22
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 110894 Screw-Hx hd 10-24 x 2-1/82
2 110964 Washer2
3 83204 Bracket Assembly1
4 Carburetor Asy See "Carburetor Assemblies (Part 2
and Part 3)" illustrations and parts lists.
5 86189 Gasket - Carburetor1
6 69629 Boot - Carburetor controls1
6 85901 Boot - Carburetor controls1
7 64848 Hose Assembly - Fuel1
8 63932 Filter - Fuel1
9 100440 Washer1
11 86273 Screw - Idle speed1
12 69594 Pivot - Oiler lever1
13 69781 Spring - Oiler lever1
14 69825 Lever Assembly - Oiler1
15 105048 Washer - 3/161
16 69802 Rod - Oiler1
17 105673 Pin - Roll 3/32 x 9/162
18 63044 Button - Oiler1
19 87888A Tank/Control Assy1
19 87893A Tank Assy - Fuel1
20 105722 Screw - Fil hd 3/4-20 x 1 3/8
21 89400 Insert - Handle grip1
22 92155 Rod - Throttle1
23 105654 Pin - Roll 1/8 x 7/81
24 92154 Spring - Trigger release1
25 92153 Release - Trigger1
26 110378 Pin-Roll 3/16 x 15/161
27 92152 Spring - Trigger1
28 92151 Trigger - Throttle1
29 69600 Nipple - Pulse line1
30 69632 Rod - Throttle
31 87178 Spring - Trigger1
32 88796 Trigger - Throttle1
33 110668 Screw - Fil hd 8-36 x 5/81
34 69630 Button - Choke1
35 69631 Rod - Choke1
36 69597 Boot - Control rod2
37 69043 Snubber - Rod1
38 110706 Screw - Fil hd 8-18 x 1/2 (SEMS)1
39 83661 Wire Asy - Stop switch1
40 62451 Contact - Switch
41 62950A Base - Switch1
42 68846 Button - Switch1
43 85451 Latch Asy - Throttle1
44 91583 Grip - Handle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 17 of 22
www.ktoutdoor.com

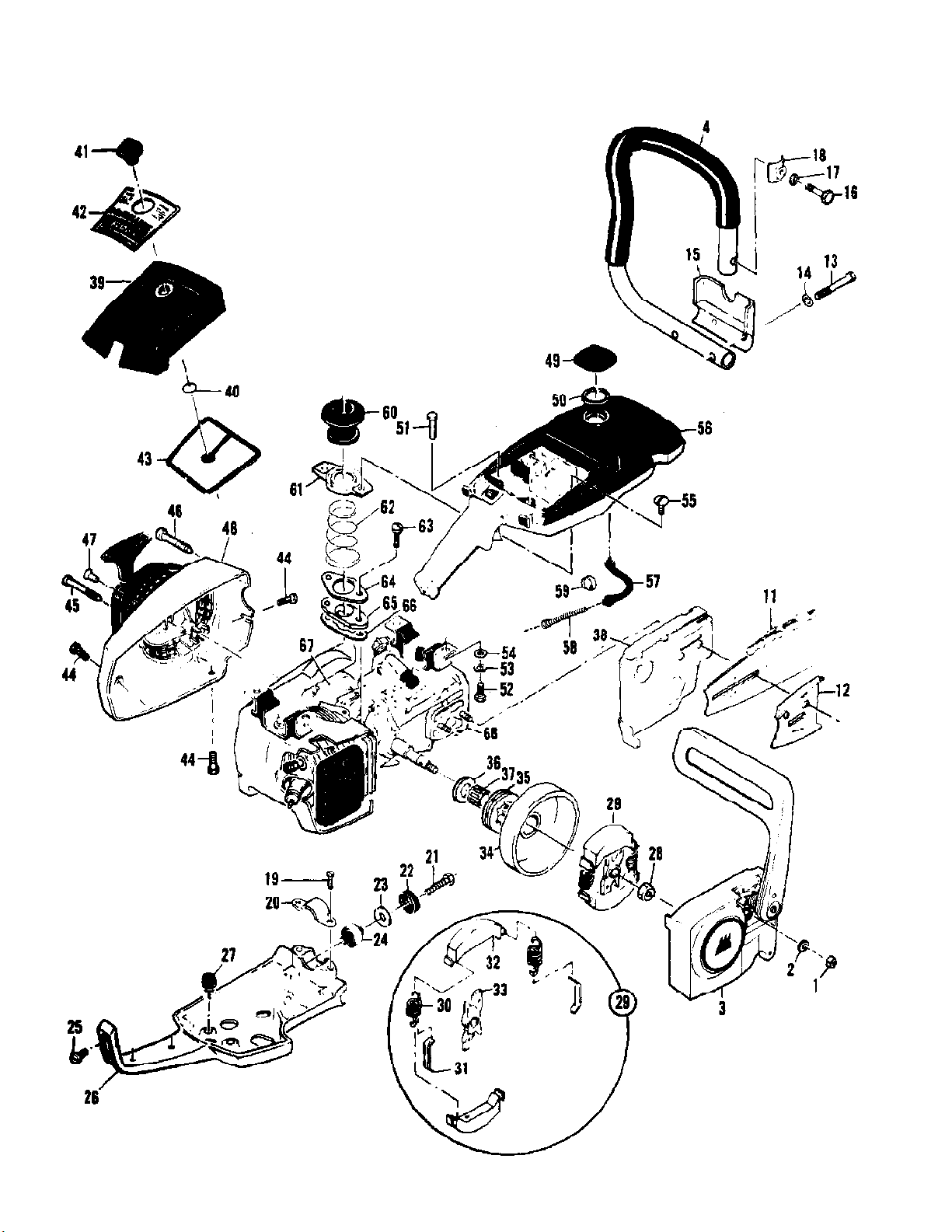

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 18 of 22
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110961 Nut - Hx 5/16-242
2 100440 Washer - 5/162
3 CHAIN BRAKE Asy See "Chain Brake Assembly"
illustration and parts list.
4 91586 Frame & Grip1
11 Bar & Chain Asy
12 64325 Plate - Bar protector
13 102433 Screw - Hx hd 10-24 x 1-5/82
14 101194 Lockwasher - #102
15 84798 Clamp - Frame1
16 102130 Screw - Hx hd 1/4-20 x 1-1/21
17 100153 Lockwasher - 1/4"1
18 63484 Clamp - Frame1
19 104950 Screw - Hx hd 10-24 x 5/8 (SEMS)2
20 83819 Clamp - Lower mount1
21 110679 Screw - Hx hd 1/4-20 x 21
22 84661 Grommet1
23 110845 Washer - 1/41
24 85898 Mount - Lower1
25 105722 Screw - Fil hd 1/4-20 x 1-3/81
26 90986 Brace - Frame1
27 89403 Bumper2
28 86113 Nut - Hx 3/8-24 L.H.1
29 87675 Clutch Asy1
30 83223 Spring - Clutch2
31 64583 Retainer - Spring2
32 67233 Shoe - Clutch2
33 89438 Rotor - Clutch1
34 86948 Drum - Clutch1
35 86943 Sprocket - 8T .3751
36 86958 Washer - Sprocket1
37 110330 Bearing - Sprocket1
38 84978 Guard - Sawdust
39 84700 Cover Asy - Air cleaner1
40 110565 Ring - Retaining1
41 68529 Knob - Cover1
42 91587 Nameplate1
43 85387 Filter Asy - Air1
44 110741 Screw - Pan hd 10-24 x 1/23
45 87871 Screw - Special1
46 85242 Screw - Special1
46 87871 Screw - Special1
47 110667 Rivet1
48 Fan Housing & Starter See "Fan Housing & Starter
Assembly" illustration and parts list.
49 89322 Cap - Fuel1
50 69767 Gasket - Fuel cap1
51 110746 Screw - Hx hd 10-24 x 1/22
52 102861 Screw - Hx hd 1/4-20 x 5/82
53 100153 Lockwasher - 1/42
54 100005 Washer - 1/42
55 110807 Screw - Pan hd 8-32 x 5/162
56 Fuel Tank Asy See "Fuel Tank Assembly" illustration
and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 19 of 22
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
57 69598 Line - Pulse1
58 61944 Spring1
59 87826 Clamp - Pulse line1
60 87841 Boot - Port1
60 88834A Boot - Port1
61 83122 Clamp Asy - Boot1
61 86175 Clamp Asy - Boot1
62 86190 Spring - Ground1
63 104396 Screw - Pan hd 10-24 x 3/42
64 69759A Clamp - Boot1
65 87844 Insulator - Inlet1
66 88740 Gasket - Insulator1
67 Flywheel & Ignition System See "Flywheel & Ignition
System Assembly" illustration and parts list.
68 Powerhead & Oiler Asys See "Powerhead & Oiler
Assembly" illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 20 of 22
www.ktoutdoor.com

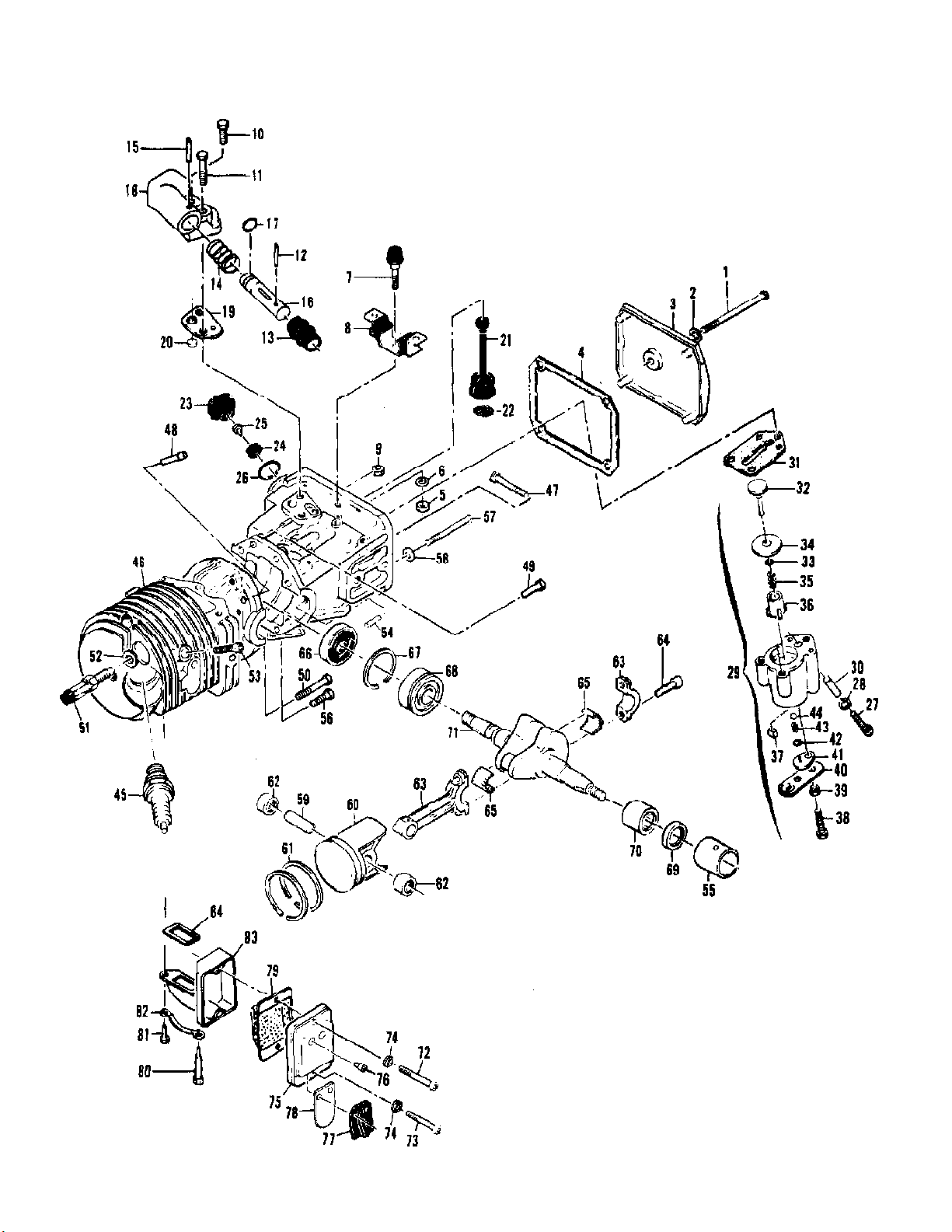

Powerhead & Oiler Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 21 of 22
www.ktoutdoor.com
Powerhead & Oiler Assemblies
Ref # Part Number DescriptionQty
1 110291 Screw - Pan hd 10-24 x 2-5/81
2 110921 Washer - Sealing1
3 86304 Cover - Oil tank1
4 86306 Gasket - Cover1
5 101143 Nut - Hx 1/4-201
6 102523 Washer - 1/41
7 69832 Bumper - Front1
8 91582 Mount - Front1
9 100955 Nut - Hx 8-321
10 110670 Screw - Pan hd 8-32 x 5/81
11 105245 Screw - Fil hd 8-32 x 1 (SEMS)1
91507 Kit - Manual Oiler1
12 105673 Pin - Roll 8/32 x 9/161
13 69586 Boot - Plunger1
14 69585 Spring - Plunger1
15 101556 Pin - Roll 1/8 x 5/81
16 91219 Plunger - Pump1
17 105614 "O" Ring
18 91218 Body - Oil pump1
19 91669 Gasket - Oil pump1
20 91668 Valve - Oiler1
21 91672 Hose Asy - Oil1
22 51506 Screen - Hose1
23 87270 Cap Asy - Oil1
24 87269 Retainer1
25 86402 Valve - Check1
26 101148 "O" Ring
27 110865 Screw - Hx hd 10-24 x 7/81
28 100003 Washer - #101
29 89115A Pump Asy - Pulse1
30 91774 Sleeve - Pulse Pump1
31 92818 Seal - Pulse Pump1
32 60260A Piston Asy - Pump1
33 105603 "O" Ring1
34 86182 Ring - Piston1
35 60259 Spring - Piston1
36 62227 Sleeve - Adjustment1
37 91259 Pad - Oil Pump1
38 110386 Screw - Hx hd 8-32 x 11
39 100251 Nut - Hx 8-321
40 89114 Clamp - Pump1
41 62407 Cover - Outlet valve1
42 106104 "O" Ring1
43 92844 Spring - Outlet valve1
44 102809 Ball - Valve1
45 63432 Spark Plug1
46 87737A Cyl/Crankcase Asy1
47 62065 Bolt - Bar mounting2
48 69600 Nipple - Pulse line1
49 110288 Screw - Hx hd 8-32 x 3/42
50 110618 Screw - Hx hd 8-32 x 1-3/81
51 87866 Valve - DSP1
52 85505 Washer - Valve1
53 110681 Screw - Skt hd 10-24 x 1/41
54 110851 pin - Dowel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
11-600037S SP 60 11/76 to 04/77 IPL 92349 Page 22 of 22
www.ktoutdoor.com
Powerhead & Oiler Assemblies
Ref # Part Number DescriptionQty
55 87152 Insert - Bearing1
56 110288 Screw - Hx hd 8-32 x 3/41
57 62105 Screw Asy - Sealing4
58 62842 Washer - Sealing4
59 87710 Pin - Piston1
60 87713 Piston Asy1
61 87716 Ring Set - Piston1
62 110590 Bearing - Needle2
63 85352 Connecting Rod Asy1
64 61627A Screw - Special2
65 63225 Roller (Set of 20)1
66 61618 Seal - Oil1
67 63464 Ring - Snap1
68 63429B Bearing - Ball1
69 110260 Seal - Oil1
70 104357 Bearing - Needle1
71 87699 Crankshaft1
72 101563 Screw - Skt hd 10-24 x 1-1/21
73 104534 Screw - Skt hd 10-24 x 1-13/321
74 24236 Washer - Special2
75 87683 Cover - Valve Asy1
76 110472 Screw - Skt hd 8-32 x 5/162
77 87286 Stop - Reed1
78 87682 Valve - Reed1
79 85152 Baffle - Muffler1
80 68187 Screw - Special1
81 110529 Screw - Hx hd 10-24 x 1/21
82 67922 Lockplate1
83 87663 Body & Duct Asy1
84 84007 Gasket - Muffler1
87151 Needle Insert Bearing Asy
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
