11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 1 of 19
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 2 of 19
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
84453 Kit - Piston tool
69191 Kit - Pressure test adaptor
63341A Kit - Spike
84922 Kit - Baffle
86419 Guide - Timing
63097 Spark Plug - AC CS 45T
65778 Spark Plug - AC CS 41T
65409 Spark Plug - Ch CJ6
65551 Spark Plug - Ch CJ4
62827 Wrench
83235 Wrench
85726 Manual - Owners
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 3 of 19
www.ktoutdoor.com

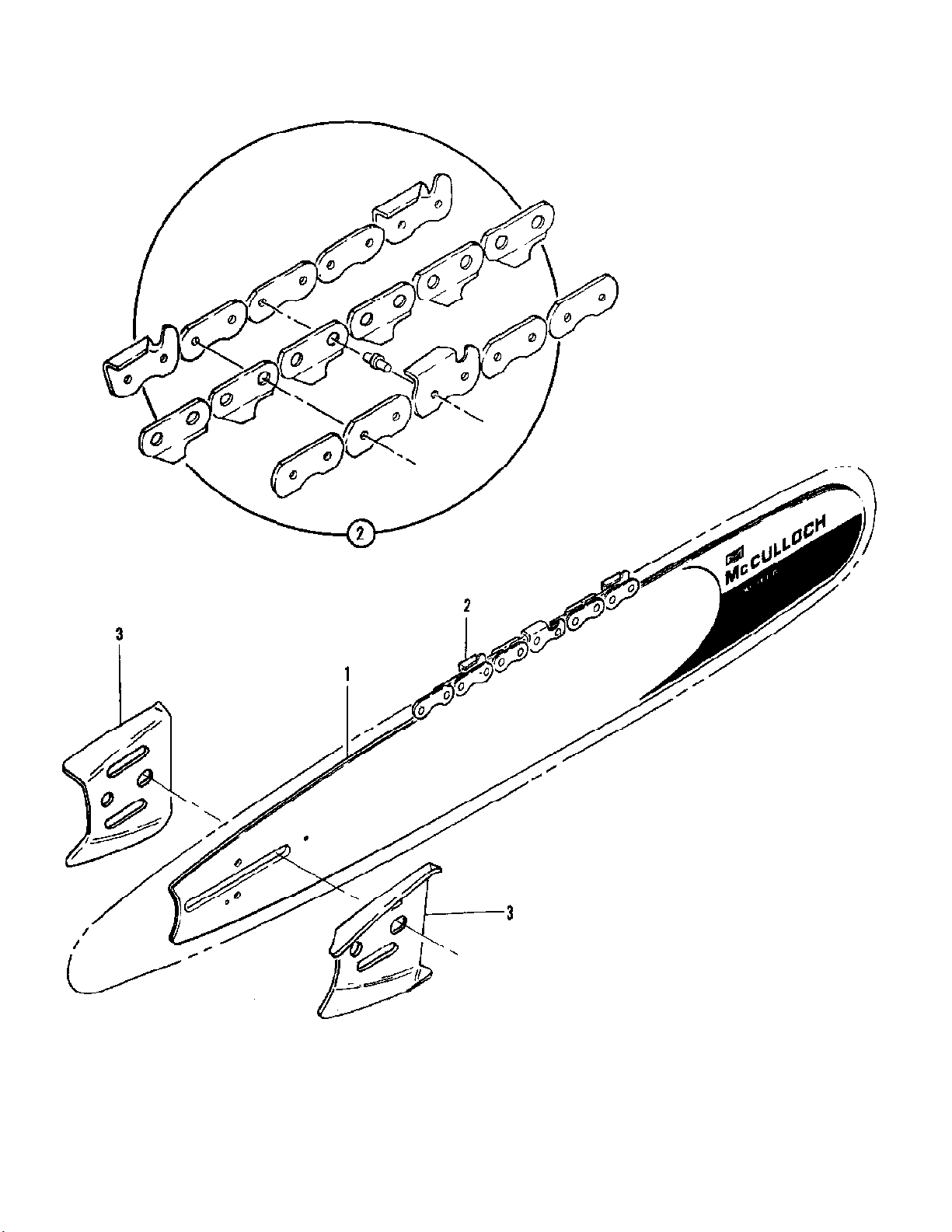

Bar & Chain Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 4 of 19
www.ktoutdoor.com
Bar & Chain Assembly
Ref # Part Number DescriptionQty
1 Bar1
2 Chain Assy1
3 64325 Plate - Bar2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 5 of 19
www.ktoutdoor.com

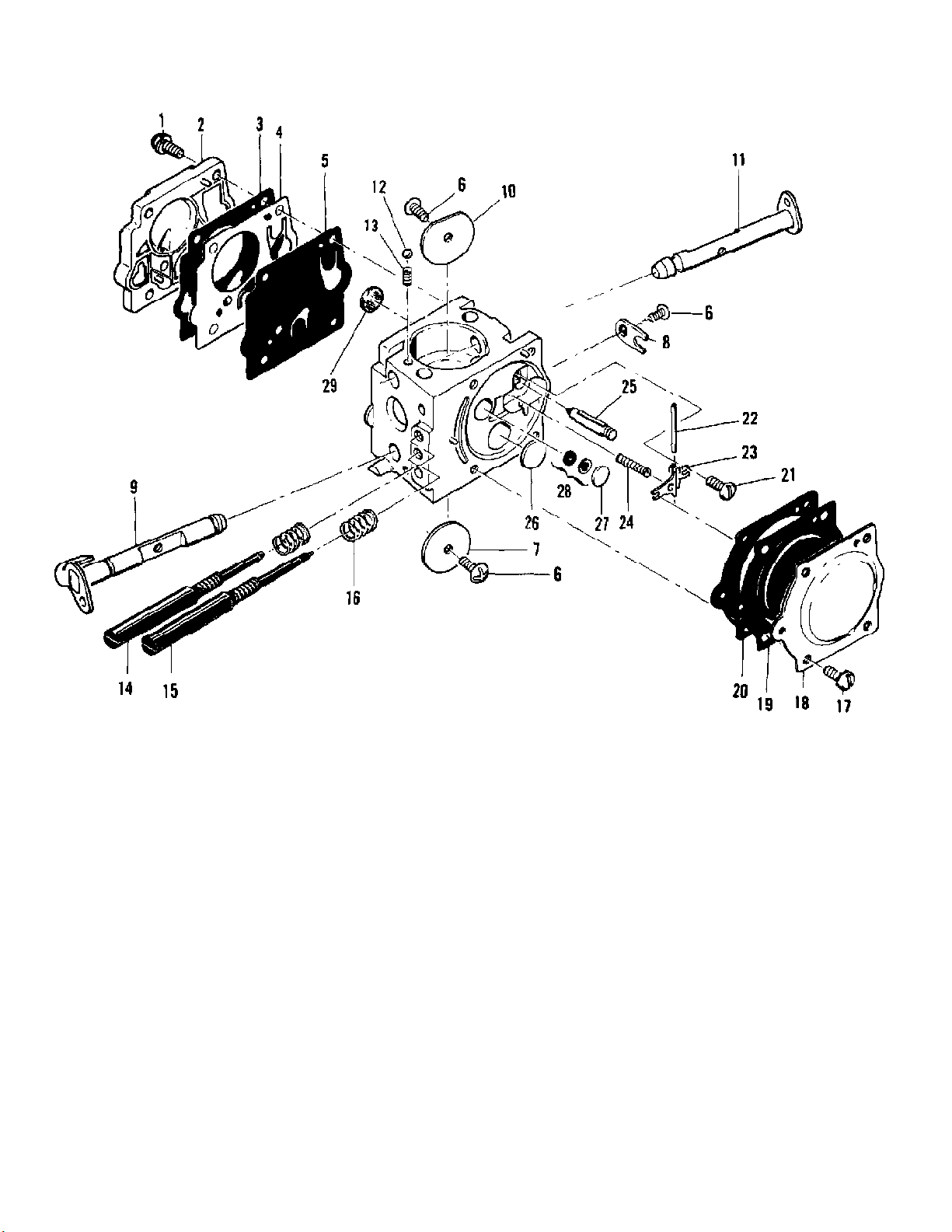

Carburetor Assembly (Part 1)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 6 of 19
www.ktoutdoor.com
Carburetor Assembly (Part 1)
Ref # Part Number DescriptionQty
87666 Carburetor Assy1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 87915 Needle - High speed1
15 87916 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Metering1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 83758 Kit - Valve & Seat Assy1
29 67507 Screen - Fuel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 7 of 19
www.ktoutdoor.com

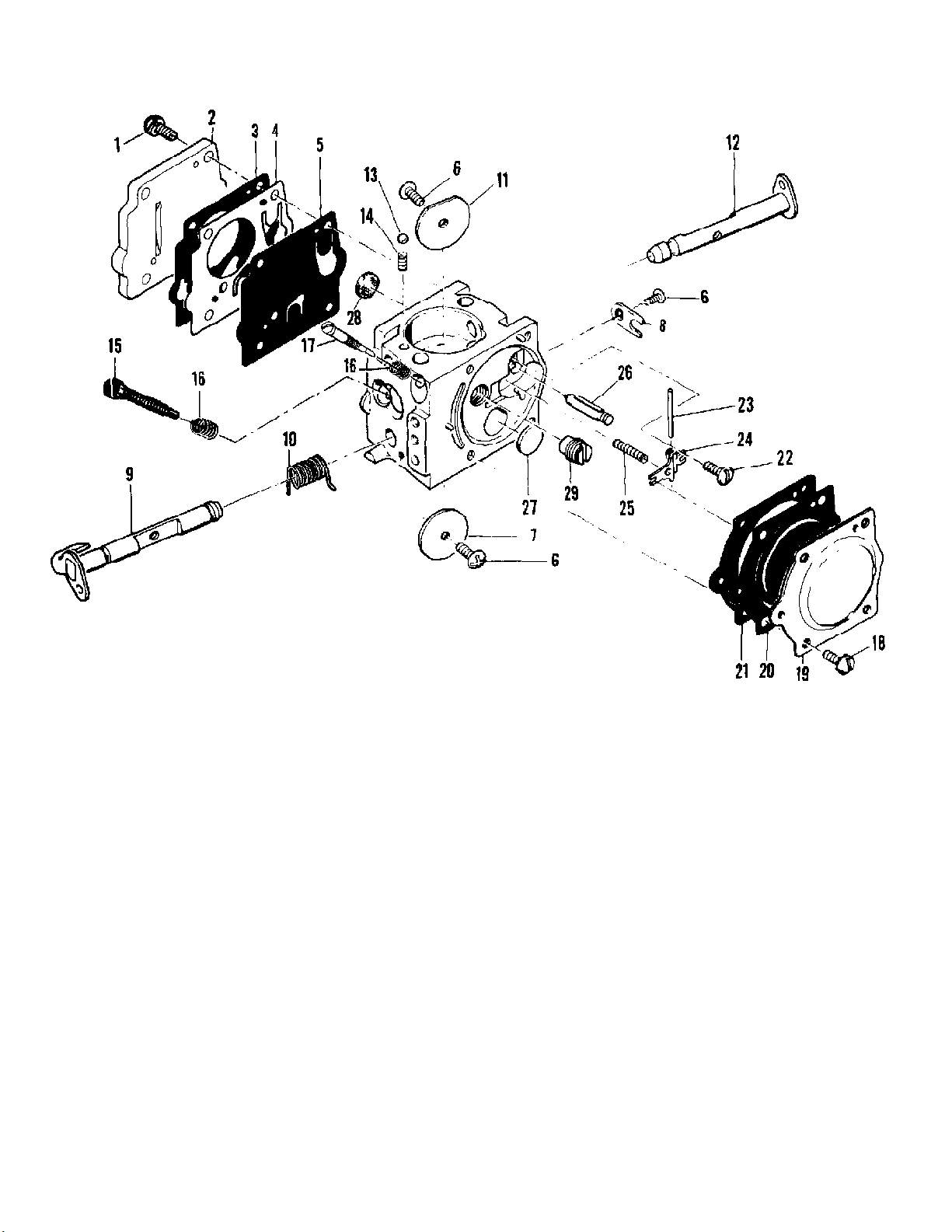

Carburetor Assembly (Part 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 8 of 19
www.ktoutdoor.com
Carburetor Assembly (Part 2)
Ref # Part Number DescriptionQty
89324 Carburetor Assy1
1 67501 Screw - Pump cover4
2 88731 Kit - Pump cover1
3 88617 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 85981 Spring - Throttle return1
11 67490 Plate - Choke1
12 67488 Shaft Assy - Choke1
13 100302 Ball - Choke friction1
14 67504 Spring - Choke friction1
15 68106 Screw - Idle speed1
16 67502 Spring - Idle2
17 90345 Needle - Idle mixture1
18 70798 Screw - Diaphragm cover4
19 83761 Cover - Diaphragm1
20 67499 Diaphragm - Metering1
21 67496 Gasket - Diaphragm1
22 67500 Screw - Lever pin1
23 67508 Pin - Lever1
24 67509 Lever - Inlet1
25 67503 Spring - Lever1
26 67491 Valve - Needle1
27 71690 Plug - 3/81
28 67507 Screen - Fuel1
29 90346 Jet - High speed (.032")1
90347 Jet - High speed (.033") Alt.
90348 Jet - High speed (.031") Alt.
90349 Jet - High speed (.0292") Alt.
90350 Jet - High speed (.028") Alt.
90351 Jet - High speed (.026") Alt.
88619 Kit - Gasket
88620 Kit - Repair
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 9 of 19
www.ktoutdoor.com

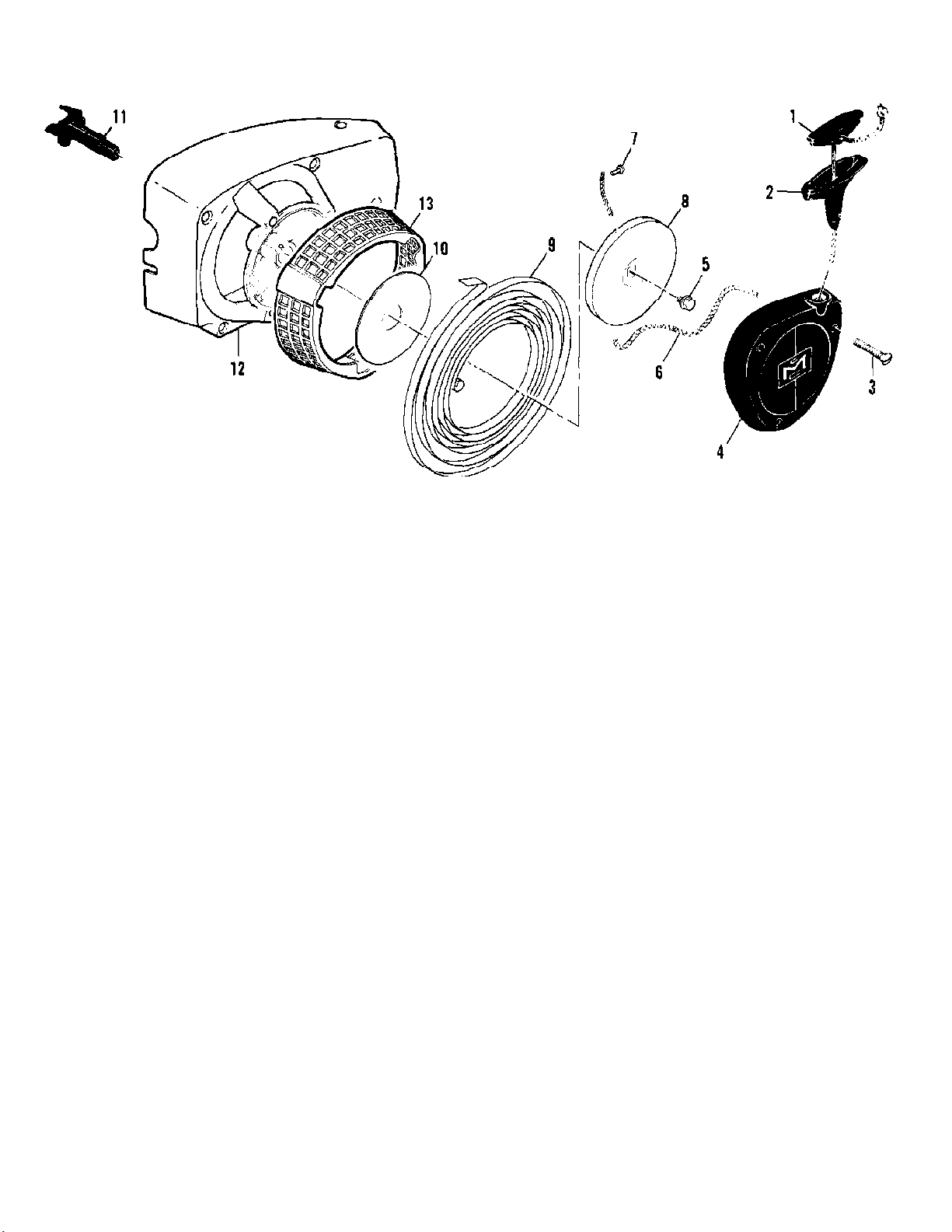

Fan Housing & Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 10 of 19
www.ktoutdoor.com
Fan Housing & Starter Assembly
Ref # Part Number DescriptionQty
1 62191A Insert - Starter handle1
2 62190A Handle - Starter1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 87672 Cover - Starter1
5 110341 Screw - Hex hd 10-24 x 1/21
6 68162 Rope - Starter1
7 110470 Rivet1
8 85122 Drum - Starter1
9 87680 Spring - Rewind1
10 86053 Shield - Spring1
11 83748 Shaft - Starter1
12 87693 Kit - Fan housing1
13 87674 Guard - Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 11 of 19
www.ktoutdoor.com
Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 12 of 19
www.ktoutdoor.com

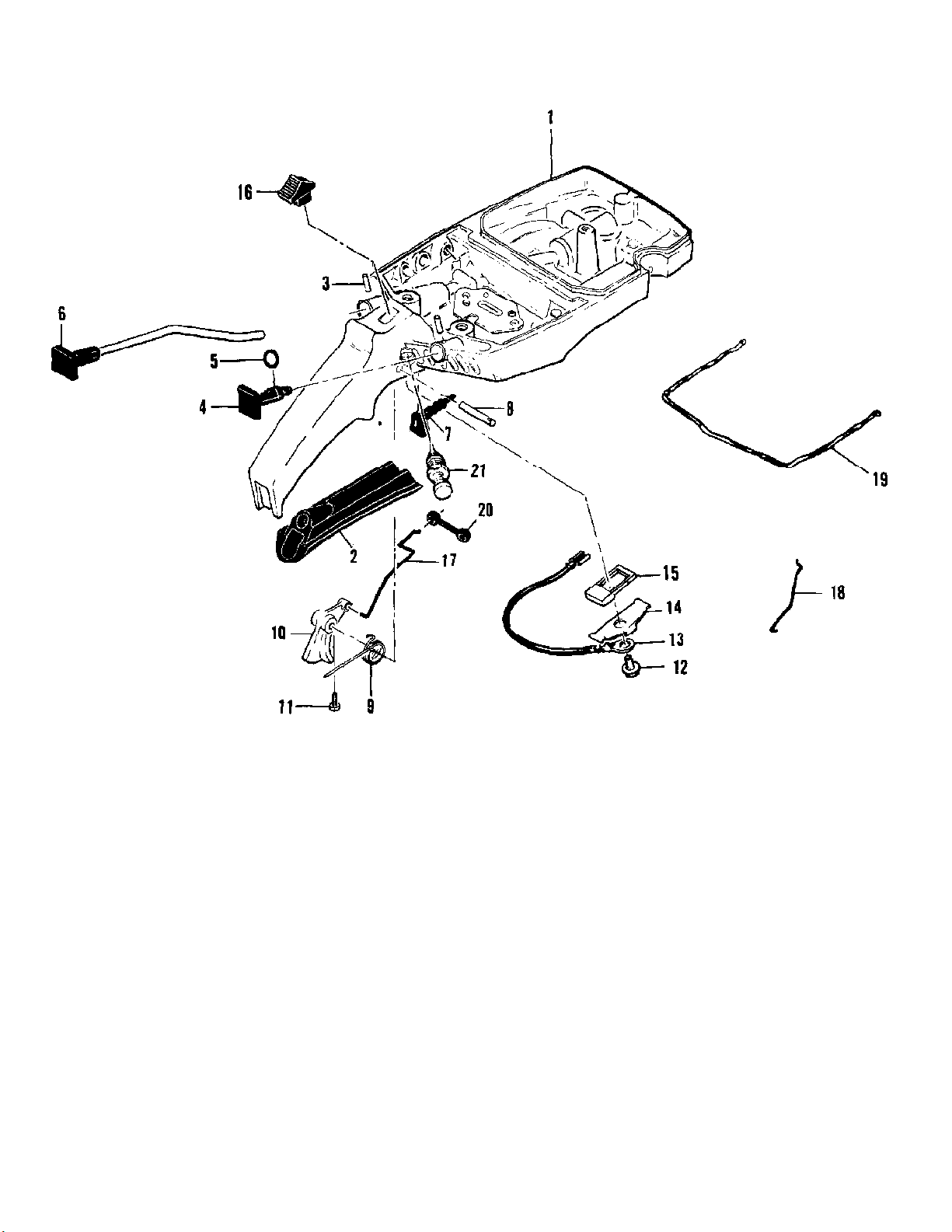

Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 87685 Fuel Tank1
2 87883 Grip - Handle1
89400 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 69041 Button - Choke1
5 101056 "O" Ring1
6 64871 Button & Rod Assy1
7 68522 Seal - Throttle rod1
8 110378 Pin - Roll 3/16 x 15/161
9 87178 Spring - Throttle return1
10 86450 Trigger1
11 110668 Screw - Fil hd 8-36 x 5/81
12 103672 Screw - Fil hd 8-32 x 1/21
13 62973A Wire Assy - Stop switch1
14 62451 Contact - Switch1
15 62950A Base - Switch1
16 68846 Button - Switch1
17 85107 Rod - Throttle1
18 69042 Rod - Choke1
19 69564 Seal - Airbox1
20 69043 Snubber - Rod1
21 85451 Latch Assy - Throttle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 13 of 19
www.ktoutdoor.com

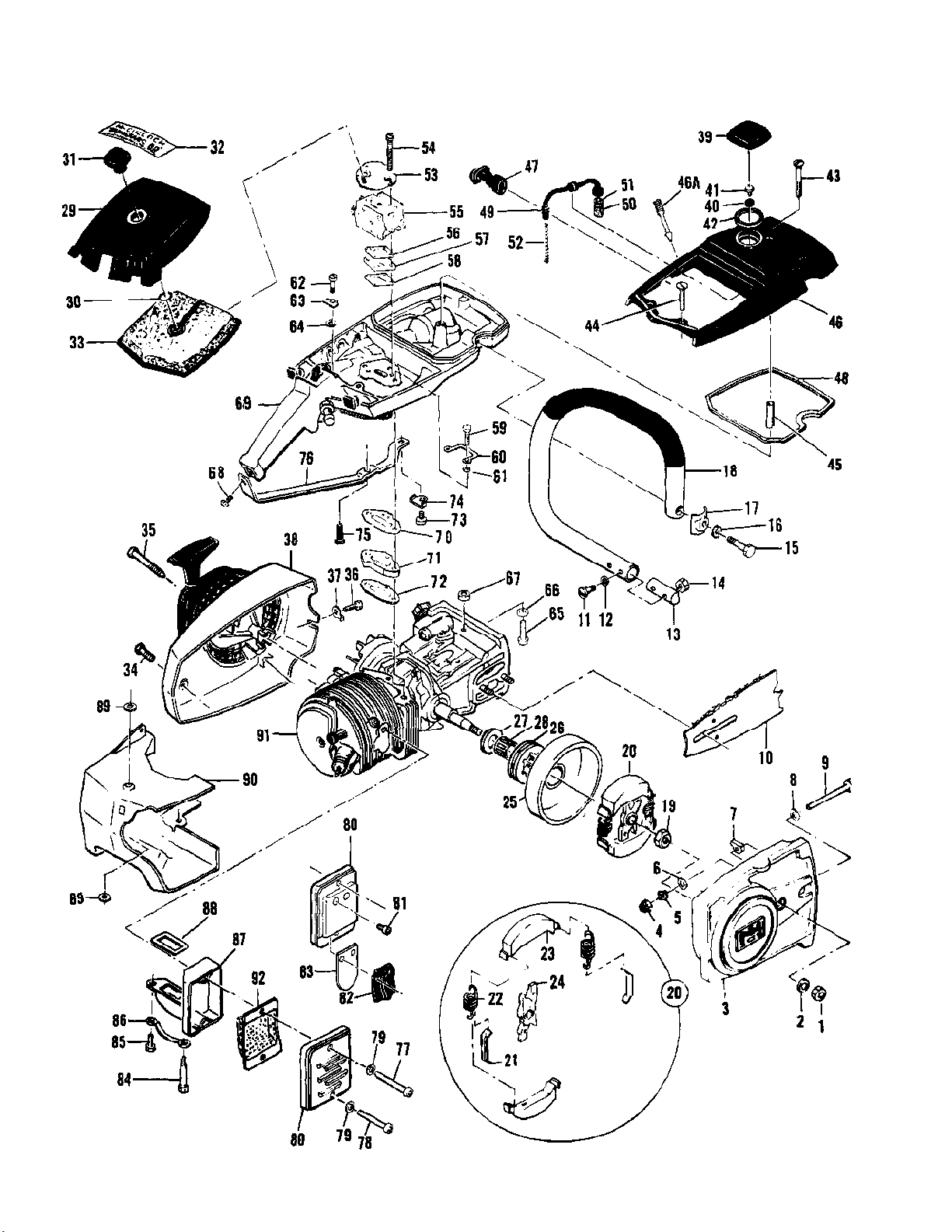

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 14 of 19
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 84530 Clutch Guard Assy1
4 102067 Nut - Hex 10-241
5 110387 Washer - Wavey1
6 100002 Washer - #101
7 61705 Nut - Bar adjustment1
8 110264 Washer - #101
9 102144 Screw - Bar adjustment1
10 Bar & Chain Assy See "Bar & Chain Assembly"
illustration and parts list.
11 102761 Screw - Hex hd 10-24 x 7/82
12 100352 Washer - #102
13 61678 Plug - Nut retainer1
14 101326 Nut - Hex 10-242
15 102130 Screw - Hex hd 1/4-20 x 1-1/21
16 100153 Lockwasher - 1/41
17 63484 Clamp - Frame1
18 87686 Frame & Grip Assy1
19 86113 Nut - Hex 3/8-24 (L. H.)1
20 87675 Clutch Assy1
21 64583 Retainer - Spring2
22 83223 Spring - Clutch2
23 67233 Shoe - Clutch2
24 87676 Rotor Assy1
86946 Kit - Sprocket & Drum1
86942 Kit - Sprocket Cr, Drum1
25 86948 Drum - Clutch1
86947 Drum - Clutch1
26 86951 Sprocket - 7T .3751
86344 Sprocket - 7T .3751
27 86958 Washer1
28 110330 Bearing - Sprocket1
29 68530 Cover Assy - Air cleaner1
30 110565 Ring - Retainer1
31 68529 Knob - Cover1
32 87718 Nameplate1
33 69922 Filter - Air1
34 110741 Screw - Pan hd 10-24 x 1/21
35 62978 Screw - Special3
36 102762 Screw - Hex hd 10-24 x 1/21
37 69890 Lockplate1
38 Fan Housing & Starter See "Fan Housing & Starter
Assembly" illustration and parts list.
39 86451 Cap Assy - Fuel1
40 86453 Plug1
41 53766A Valve1
42 69767 Gasket1
43 110402 Screw - Oval hd 12-24 x 2-3/81
44 103579 Screw - Fl hd 10-24 x 12
45 87840 Spacer1
46 88650 Cover - Fuel tank1
89323 Cover - Fuel tank1
46A 87932 Screw - Idle adjustment1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 15 of 19
with serial number prefix 11-, 12.
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
47 87665 Boot - Carburetor1
48 69345 Gasket - Cover1
49 64848 Hose Assy - Fuel1
50 63932 Filter - Fuel1
51 100440 Washer1
52 67944 Spring - Hose1
53 83204 Bracket Assy1
54 103357 Screw - Hex hd 10-24 x 2-1/42
55 Carburetor Assy See "Carburetor Assembly"
illustration and parts list.
56 86189 Gasket - Carburetor1
57 84078 Spacer - Carburetor1
58 84081 Gasket - Spacer1
59 110567 Screw - Hex hd 12-24 x 1-1/42
60 68582 Lockplate1
61 102115 Washer - #22
62 110568 Screw - Hex hd 12-24 x 1-1/81
63 69516 Lockplate1
64 64856 Washer - Special1
65 110713 Screw - Skt hd 10-24 x 7/81
66 100003 Washer - #101
67 69772 Spacer - Fuel tank1
68 106078 Screw - Pan hd 10-24 x 7/161
104816 Screw - Pan hd 10-24 x 1-1/41
69 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list.
70 84082 Gasket - Fuel tank1
71 84080 Insulator - Fuel tank1
72 68594 Gasket - Insulator1
73 110566 Screw - Hex hd 12-24 x 5/81
74 68508 Lockplate1
75 110682 Screw - Hex hd 10-24 x 5/81
76 85007 Brace - Handle1
77 104534 Screw - Skt hd 10-24 x 1-7/161
78 101563 Screw - Skt hd 10-24 x 1-1/41
79 24236 Washer - Special2
80 83966 Cover - Muffler Used on models 600036A, 600036C,
88779 Cover - Muffler Used on models 600036B, 600036C,
87683 Cover - Valve Assy Used on models 600036A,
81 110472 Screw - Skt hd 8-32 x 5/16 Used on models 600036B,
82 87286 Stop - Reed Used on models 600036B, 600036J, with
83 87682 Valve - Reed Used on models 600036B, 600036J,
1
600036D, with serial number prefix 11-, 12.
1
600036D, 600036J, with serial number prefix 11-, 12.
1
600036B, 600036J, with serial number prefix 11-, 12.
2
600036J, with serial number prefix 11-, 12.
1
serial number prefix 11-, 12.
1
84 68187 Screw - Special1
85 110529 Screw - Hex hd 10-24 x 1/21
86 67922 Lockplate1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 16 of 19
with serial number prefix 11-, 12.
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
87 87663 Body & Duct Assy1
88 84007 Gasket - Muffler1
89 68581 Insulator - Shroud2
90 85731 Shroud1
91 Powerhead Assy See "Powerhead Assembly"
illustration and parts list.
92 85152 Baffle Used on models 600036A, 600036B, 600036J,
1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 17 of 19
www.ktoutdoor.com

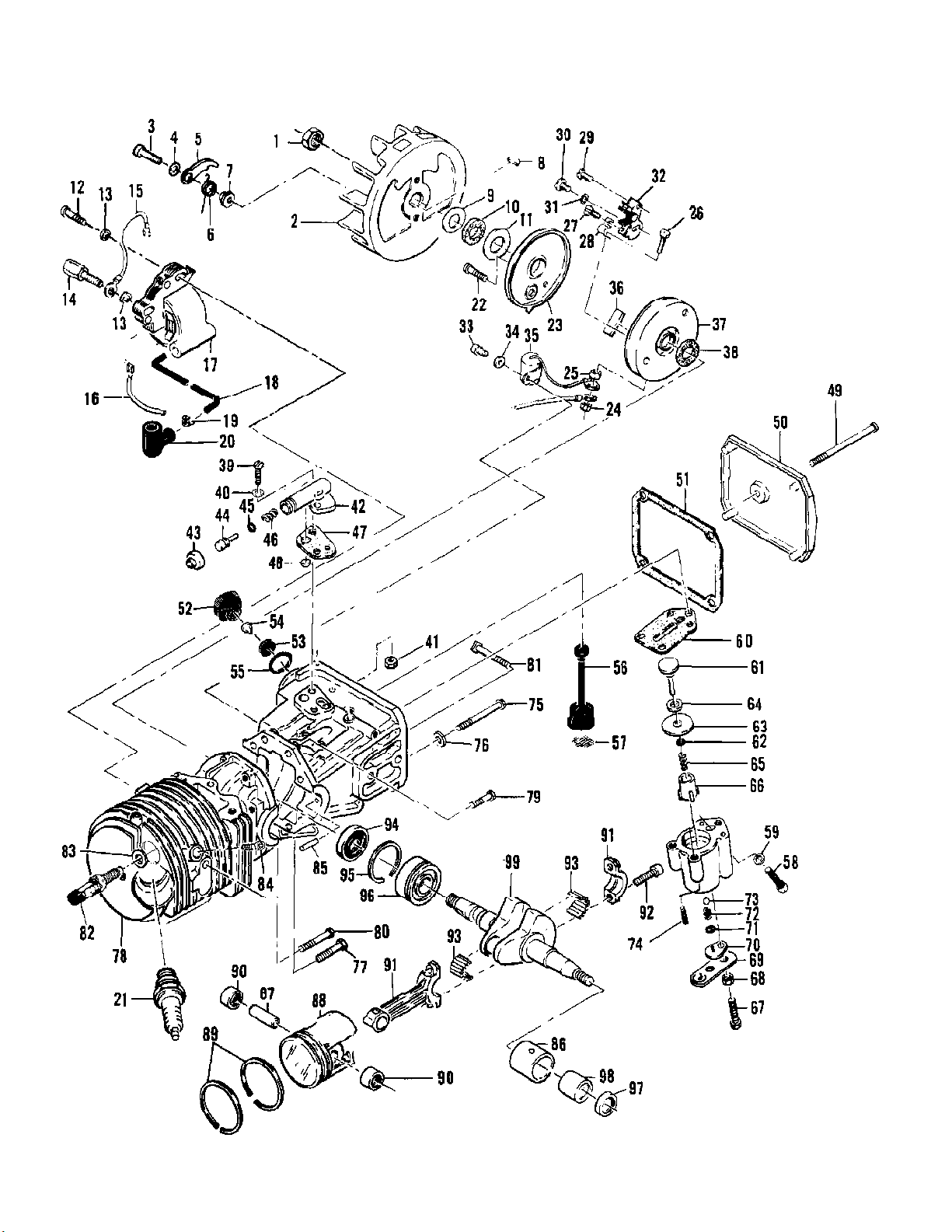

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 18 of 19
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hex 3/8-241
2 86068 Flywheel1
3 110713 Screw - Skt hd 10-24 x 7/82
4 83241 Washer - Special2
5 67546 Pawl - Starter2
6 67545 Spring - Pawl2
7 67547 Pivot - Pawl2
8 103879 Key - Woodruff1
9 67057 Washer - Thrust1
10 67056 Seal - Breaker box cover1
11 67054 Washer - Thrust1
12 110127 Screw - Hex hd 10-24 x 7/8 (SEMS)1
13 100002 Washer - #102
14 83512 Stud - Special1
15 84686 Wire Assy - Ground1
16 69344 Wire Assy - Primary1
17 87246 Coil & Lamination Assy1
18 50120 Wire Assy - Spark plug1
19 55061 Connector1
20 85758 Boot1
21 63432 Spark Plug - AC CS 42T1
65408 Spark Plug - Ch CJ81
22 110584 Screw - Pan hd 8-32 x 3/41
23 62362 Cover - Breaker box1
24 100298 Nut - Hex 6-321
25 62365 Spacer - Breaker1
26 110346 Screw - Hex hd 6-32 x 3/41
27 110706 Screw - Pan hd 8-18 x 1/21
28 83126 Strap - Conduction1
29 110811 Screw - Pan hd 8-32 x 3/81
30 110445 Screw - Truss hd 8-32 x 3/81
31 105976 Washer - #81
32 66231 Breaker Assy1
33 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
34 100080 Washer - #81
35 85358 Condenser1
36 54184 Wiper - Cam1
37 84329 Box - Breaker1
38 67051 Seal - Breaker box1
39 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)2
40 105976 Washer - #82
41 100955 Nut - Hex 8-321
42 84156 Housing - Pump1
43 62262 Cap - Housing1
44 62266 Plunger - Pump1
45 101056 "O" Ring1
46 66687 Spring - Pump1
47 62230 Gasket - Pump1
48 62909 Valve - Pump1
49 110291 Screw - Pan hd 10-24 x 2-5/81
50 86304 Cover - Oil tank1
51 86306 Gasket - Cover1
52 87270 Cap - Oil tank1
53 87269 Retainer - Valve1
54 86402 Valve - Check1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600036J PRO MAC 60 07/72 to 12/76 IPL 89321 Page 19 of 19
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 101148 "O" Ring1
56 62123B Hose Assy - Oil
57 51506 Screen - Hose1
58 110713 Screw - Skt hd 10-24 x 7/81
59 24236 Washer - Special1
60 86188 Gasket - Pulse pump1
89115 Pump Assy - Pulse1
61 60260A Piston Assy - Pump1
62 104001 "O" Ring1
63 86182 Ring - Piston1
64 60937 Washer - Teflon1
65 60259 Spring - Piston1
66 62227 Sleeve - Adjustment1
67 110386 Screw - Hex hd 8-32 x 11
68 100251 Nut - Hex 8-321
69 89114 Clamp - Pump1
70 62407 Cover - Outlet valve1
71 106104 "O" Ring1
72 62885A Spring - Outlet valve1
73 102809 Ball1
74 110643 Screw - Set1
75 62105 Screw Assy - Sealing4
76 62842 Washer - Sealing4
77 110288 Screw Assy - Hex 8-32 x 3/41
78 87715 Crankcase Assy1
79 110288 Screw Assy - Hex 8-32 x 1- 3/82
80 110618 Screw Assy - Hex 8-32 x 1-3/81
81 62065 Bolt - Bar mounting2
82 84785 Valve - Comp rel.1
83 85505 Washer - Valve1
84 110681 Screw - Skt hd 10-24 x 1/41
85 110851 Pin - Dowel1
86 87152 Insert - Bearing1
87 87710 Pin - Piston1
88 87713 Piston Assy1
89 87716 Ring Set - Piston1
90 110590 Bearing - Needle2
91 85352 Connecting Rod Assy1
92 61627A Screw - Skt hd special2
93 63225 Roller - Needle (Set of 20)1
94 61618 Seal - Oil1
95 63464 Ring - Snap1
96 63429B Bearing - Ball1
97 110260 Seal - Oil1
98 104357 Bearing - Needle1
99 87728 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
