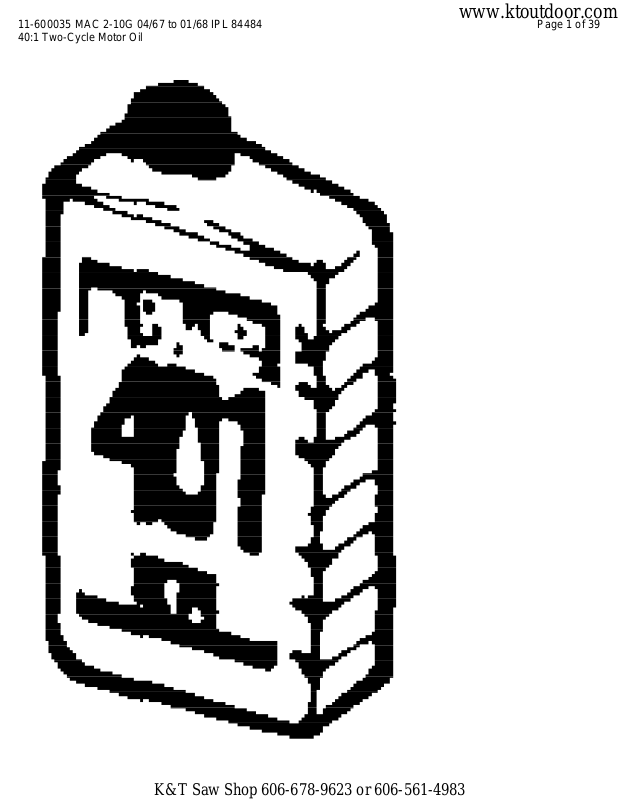

Page 1
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 1 of 39
www.ktoutdoor.com

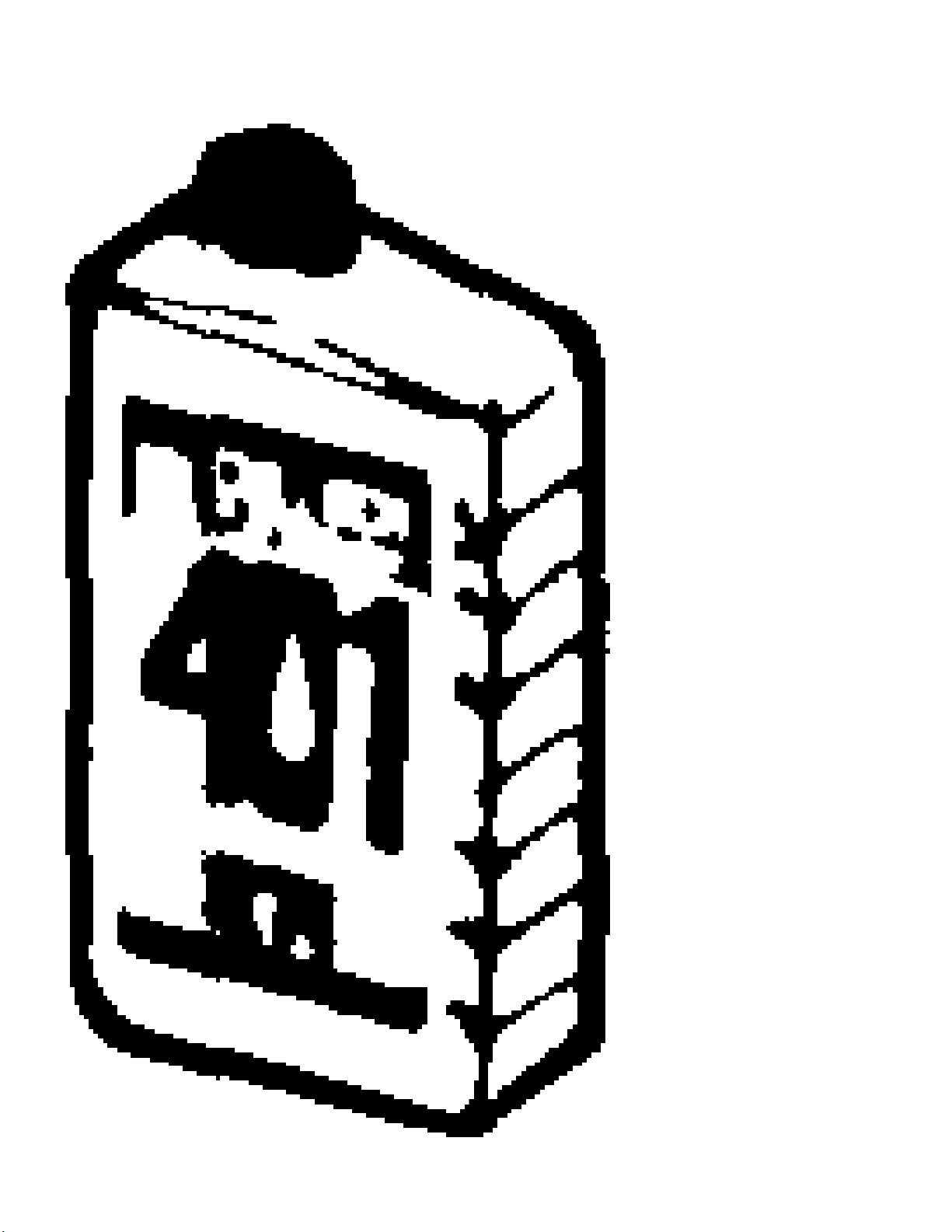

40:1 Two-Cycle Motor Oil
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 2 of 39
www.ktoutdoor.com
40:1 Two-Cycle Motor Oil
Ref # Part Number DescriptionQty
78960 40:1 Two-Cycle Motor Oil - 6 oz. can
78961 40:1 Two-Cycle Motor Oil - 6-pack (6 oz. can)
78963 40:1 Two-Cycle Motor Oil - 16 oz. can
78964 40:1 Two-Cycle Motor Oil - 6-pack (16 oz. can)
110626 40:1 Two-Cycle Motor Oil - 1 qt. bottle
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 3 of 39
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 4 of 39
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
61040 Wrench - Screwdriver
65712 Guide - Timing
67067 Kit - Gearcase brace
68052 Plate - Wear
65325 Baffle - Spark arrester
63432 Spark Plug - AC CS 42T
65778 Spark Plug - AC CS 41T
69210 Piston Assy - 0.020 in. oversize
62813 Ring Set - Piston 0.020 in. oversize
103512 Bearing - Needle2
69211 Piston Assy - 0.030 in. oversize
62812 Ring Set - Piston 0.030 in. oversize
103512 Bearing - Needle2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 5 of 39
www.ktoutdoor.com
Chain, Bar, & Sprocket Oil
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 6 of 39
www.ktoutdoor.com

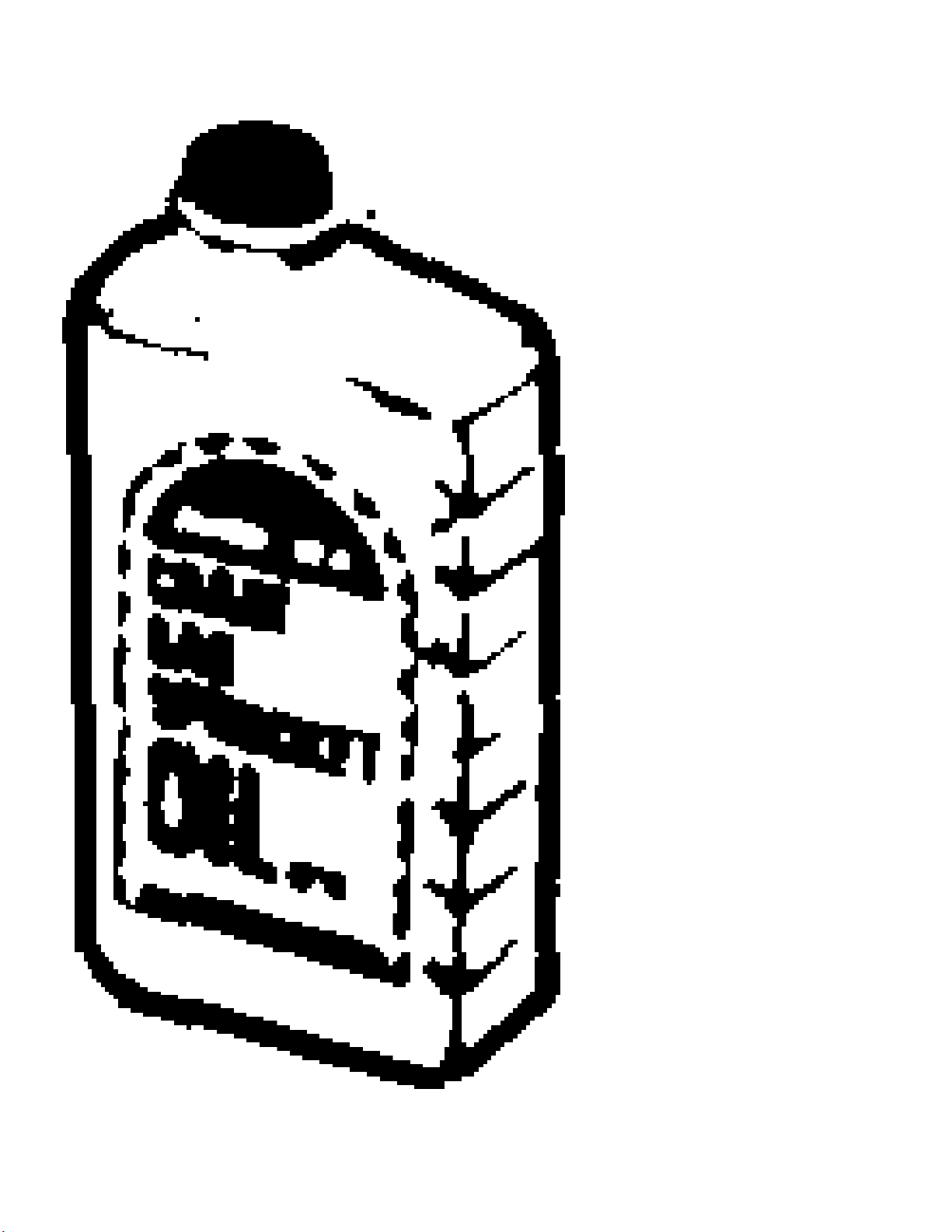

Chain, Bar, & Sprocket Oil
Ref # Part Number DescriptionQty
110631 Chain, Bar, and Sprocket Oil - 1 qt. Bottle
110632 Chain, Bar, and Sprocket Oil - Case of 24 (1 qt.
Bottles)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 7 of 39
www.ktoutdoor.com
Bar Guards
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 8 of 39
www.ktoutdoor.com

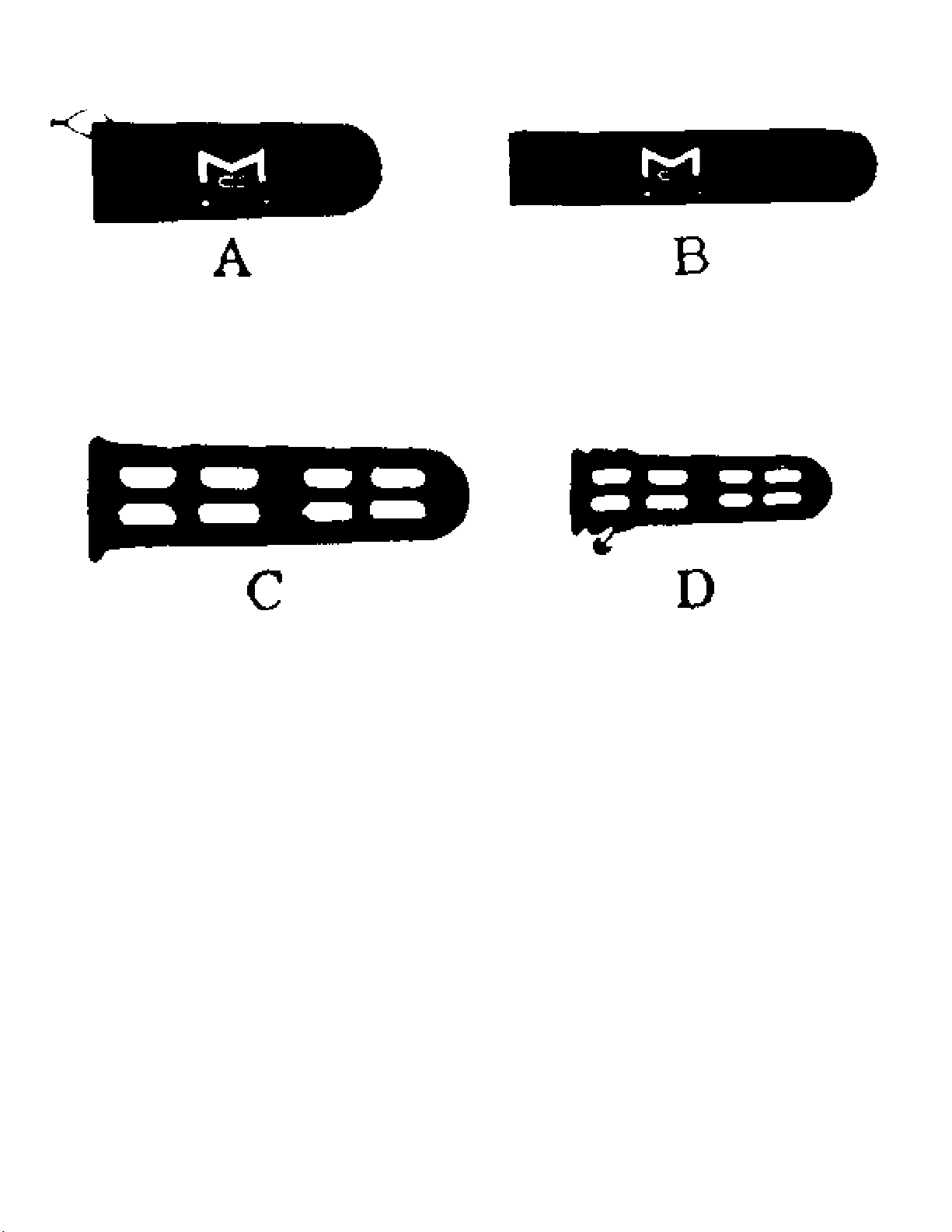

Bar Guards
Ref # Part Number DescriptionQty
A 56927 Bar Guard - For wide bars Black Polyvinylchloride
B 64930 Bar Guard - Narrow bars Black Polyvinylchloride
C 66544 Bar Guard - MAC 10 - 16, 20" Rigid Yellow Plastic
D 83124 Bar Guard - PM 6 - 12, 16" Rigid Yellow Plastic
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 9 of 39
www.ktoutdoor.com

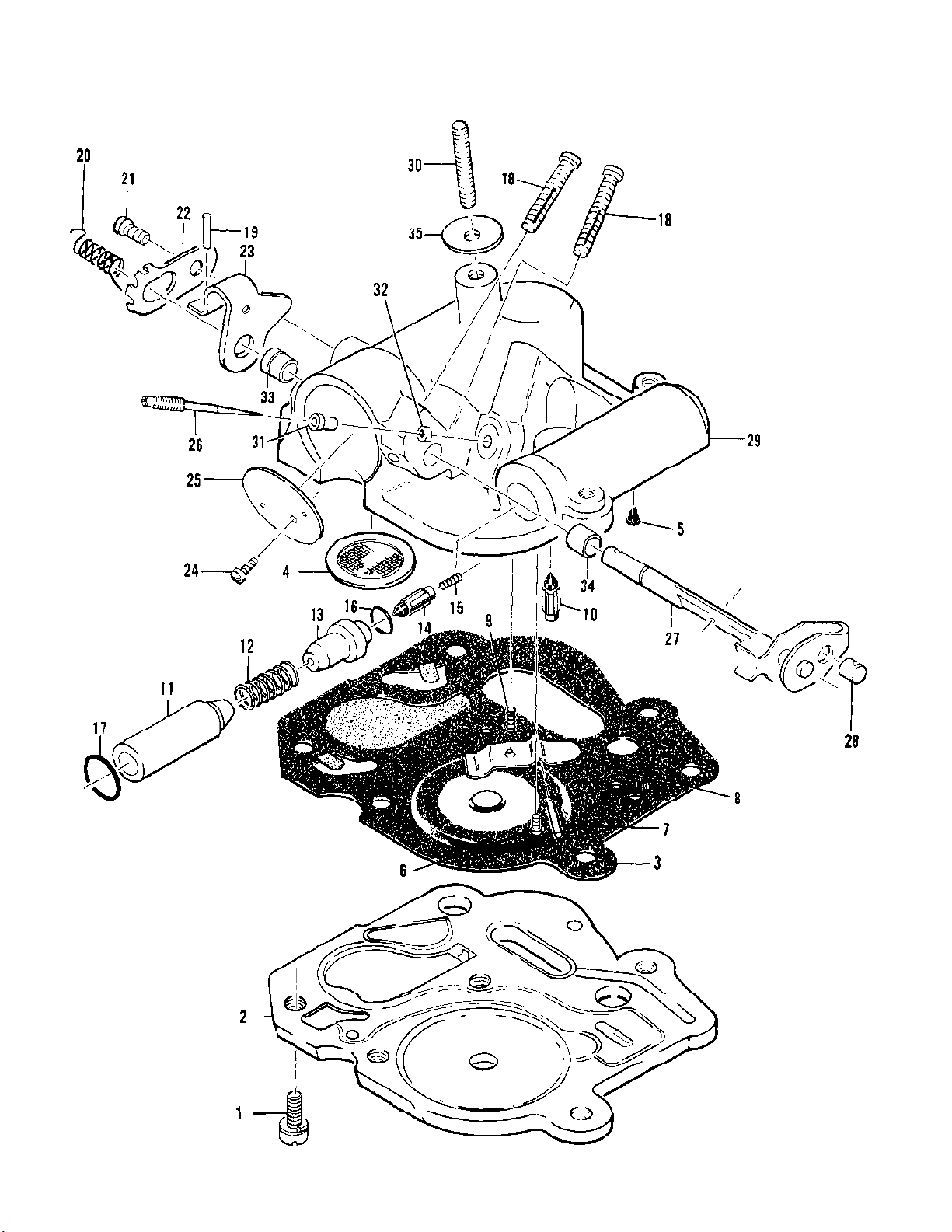

Carburetor Assembly (Part 1)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 10 of 39
www.ktoutdoor.com
Carburetor Assembly (Part 1)
Ref # Part Number DescriptionQty
66564 Carburetor Assy (McCulloch Single Needle)1
1 110397 Screw - Pan hd 8-32 x 7/16 (SEMS)5
2 65597 Plate - Carburetor base1
3 67357 Diaphragm Assy - Pump1
4 55690B Seal - Capillary1
5 63041 Valve - Primer1
6 104728 Screw - 6-32 x 1/41
7 110337 Pin - Inlet lever1
8 62310 Lever - Inlet1
9 62923A Spring - Inlet needle1
10 63038 Valve - Inlet needle1
11 62308A Plunger - Primer1
12 11086 Spring - Plunger1
13 63037 Seat - Primer valve1
14 63038 Valve - Primer needle1
15 63039 Spring - Needle valve1
16 101056 "O" Ring1
17 105606 "O" Ring1
18 62971 Screw - Long locking adjusting2
19 104245 Pin - Roll 1/16 x 1/21
20 62939A Spring - Idle governor1
21 103934 Screw - Pan hd 6-32 x 1/4 (SEMS)1
22 62938 Clip - Throttle shaft1
23 62343A Lever - Throttle1
24 104814 Screw - Pan hd 4-40 x 1/4 (SEMS)1
25 62290A Plate - Throttle1
26 62976A Needle - Metering1
27 62291A Shaft Assy - Throttle1
28 62975 Swivel - Needle1
29 63019B Body Assy - Carburetor1
30 62433B Stud - Carburetor1
31 62295D Orifice - Air1
32 66569 Orifice - Fuel1
33 62288A Bushing - Throttle shaft1
34 62368 Bushing - Throttle shaft1
35 67062 Seal - Air cleaner stud1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 11 of 39
www.ktoutdoor.com
Carburetor Assembly (Part 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 12 of 39
www.ktoutdoor.com

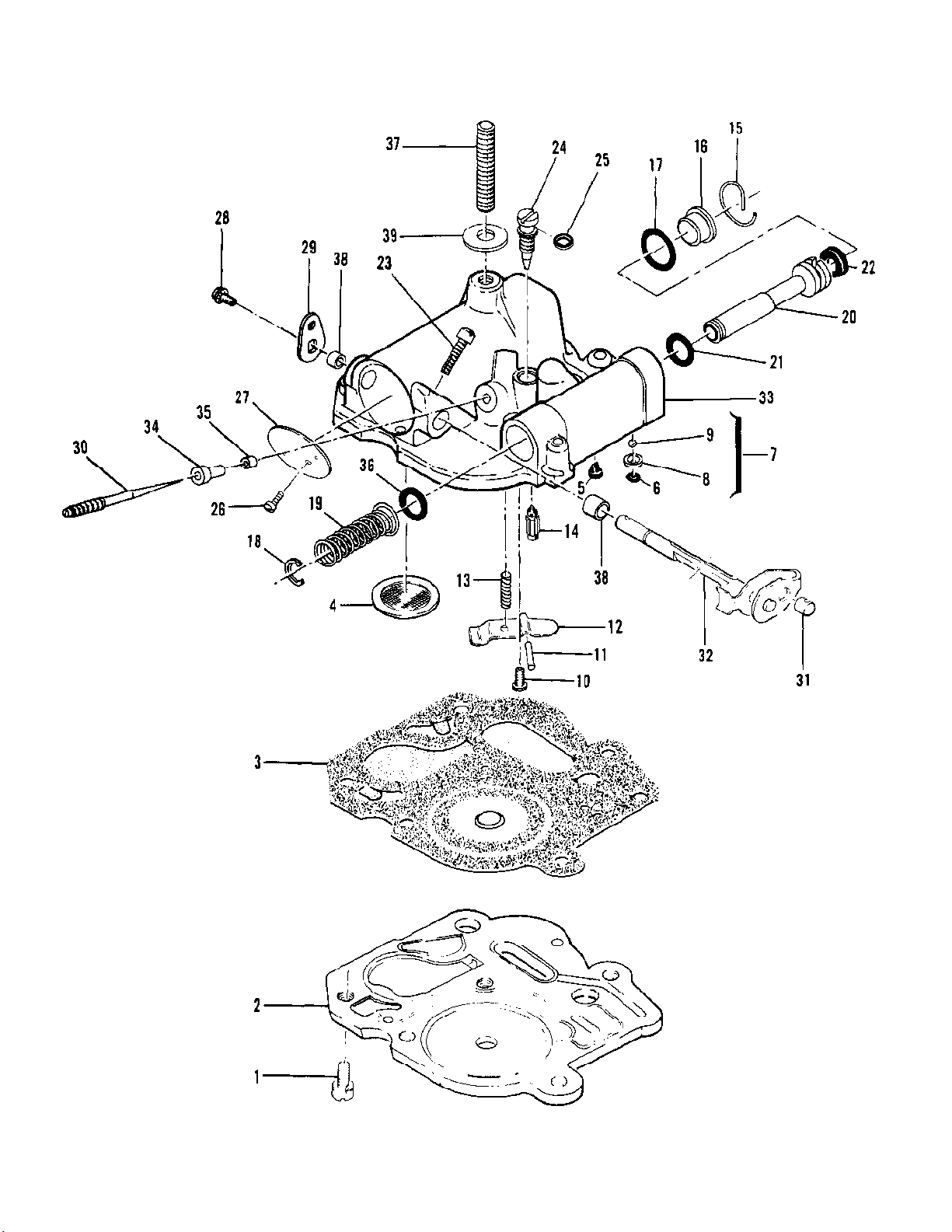

Carburetor Assembly (Part 2)
Ref # Part Number DescriptionQty
66503 Carburetor Assy (McCulloch Double Needle)1
1 110397 Screw - Pan hd 8-32 x 7/16 (SEMS)5
2 65597 Plate - Carburetor base1
3 67357 Diaphragm Assy - Pump1
4 66796 Seal - Capillary1
5 63041 Valve - Primer1
6 106136 "O" Ring1
7 65868 Set - Ball and seat1
8 66153 Seat1
9 61151 Ball1
10 104728 Screw - 6-32 x 1/41
11 110337 Pin - Inlet lever1
12 62310 Lever - Inlet1
13 62923A Spring - Inlet needle1
14 63038 Valve - Inlet needle1
15 65677 Retainer - Primer plug1
16 65617 Plug - Primer1
17 105617 "O" Ring1
18 101289 Ring - Retaining1
19 65859 Spring - Plunger1
20 66552 Plunger - Primer1
21 66551 "O" Ring1
22 67116 Seal - "V" packing1
23 110483 Screw - Adjusting1
24 65445 Needle - Main fuel1
25 104001 "O" Ring1
26 104814 Screw - Pan hd 4-40 x 1/4 (SEMS)1
27 62290A Plate - Throttle1
28 104814 Screw - Pan hd 4-40 x 1/4 (SEMS)1
29 65430 Lever - Throttle1
30 65431 Needle - Metering1
31 62975 Swivel - Needle1
32 65428 Shaft Assy - Carburetor1
33 66504 Body Assy - Carburetor1
34 65432 Orifice - Air1
35 66569 Orifice - Fuel1
36 59796 "O" Ring1
37 65724 Stud - Carburetor1
38 62368 Bushing2
39 67062 Seal - Air cleaner stud1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 13 of 39
www.ktoutdoor.com

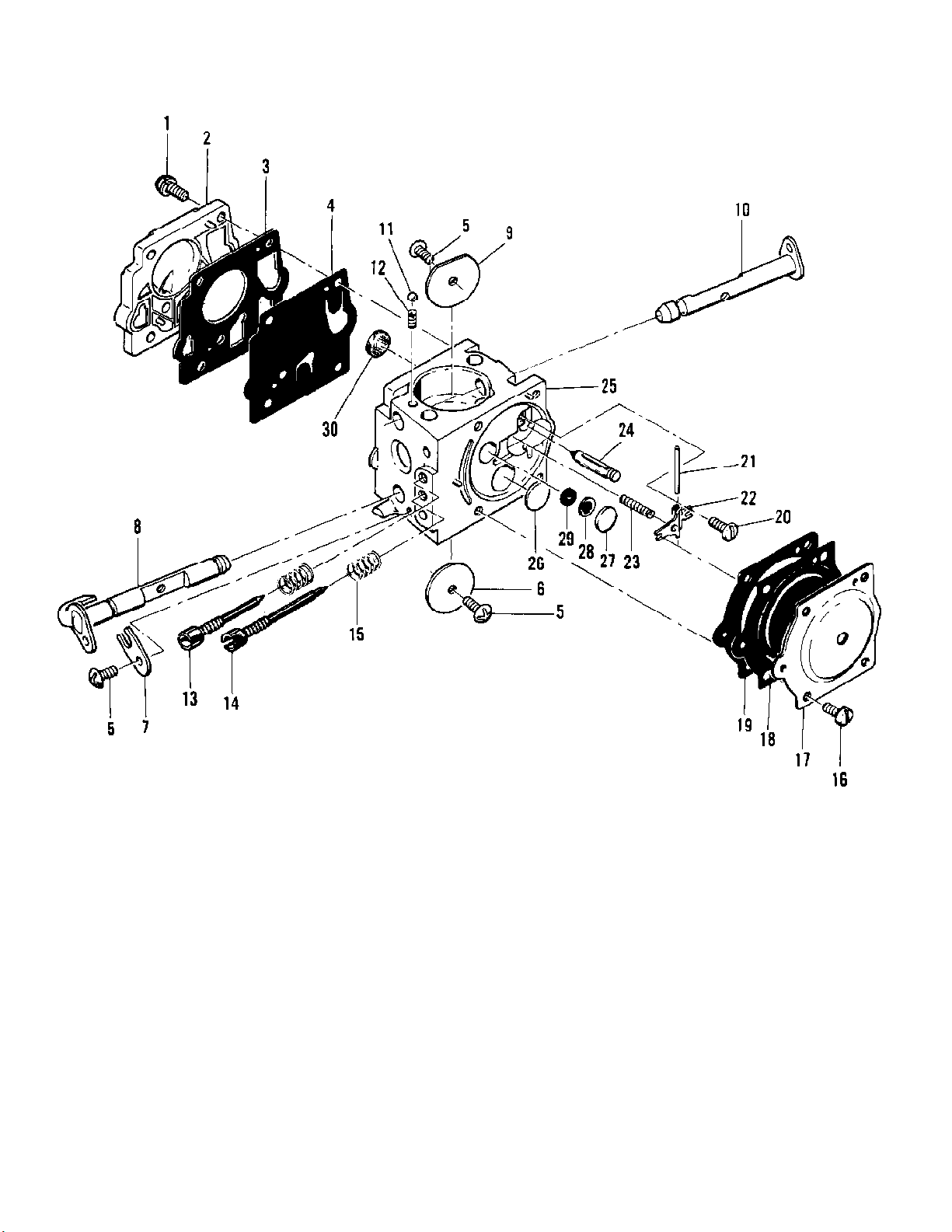

Carburetor Assembly (Part 3)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 14 of 39
www.ktoutdoor.com
Carburetor Assembly (Part 3)
Ref # Part Number DescriptionQty
67379 Carburetor Assy (McCulloch SDC-2)1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 83114 Diaphragm - Fuel pump3
5 47690 Screw - Plate1
6 67487 Plate - Throttle1
7 67489 Clip - Shaft1
8 67486 Shaft Assy - Throttle1
9 67490 Plate - Choke1
10 67488 Shaft Assy - Choke1
11 100302 Ball - Choke friction1
12 67504 Spring - Choke1
13 67506 Needle - High speed1
14 67505 Needle - Idle1
15 67502 Spring - Needle2
16 70798 Screw - Diaphragm cover4
17 83761 Cover - Diaphragm1
18 67499 Diaphragm - Metering1
19 67496 Gasket - Diaphragm1
20 67500 Screw - Lever pin1
21 67508 Pin - Lever1
22 67509 Lever - Metering1
23 67503 Spring - Lever1
24 67491 Valve - Needle1
25 67483 Body Assy - Carburetor1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 69203 Seat Assy1
29 69204 Valve1
30 67507 Screen - Fuel1
67482 Gasket Set
67481 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 15 of 39
www.ktoutdoor.com
Chain Sharpening Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 16 of 39
www.ktoutdoor.com

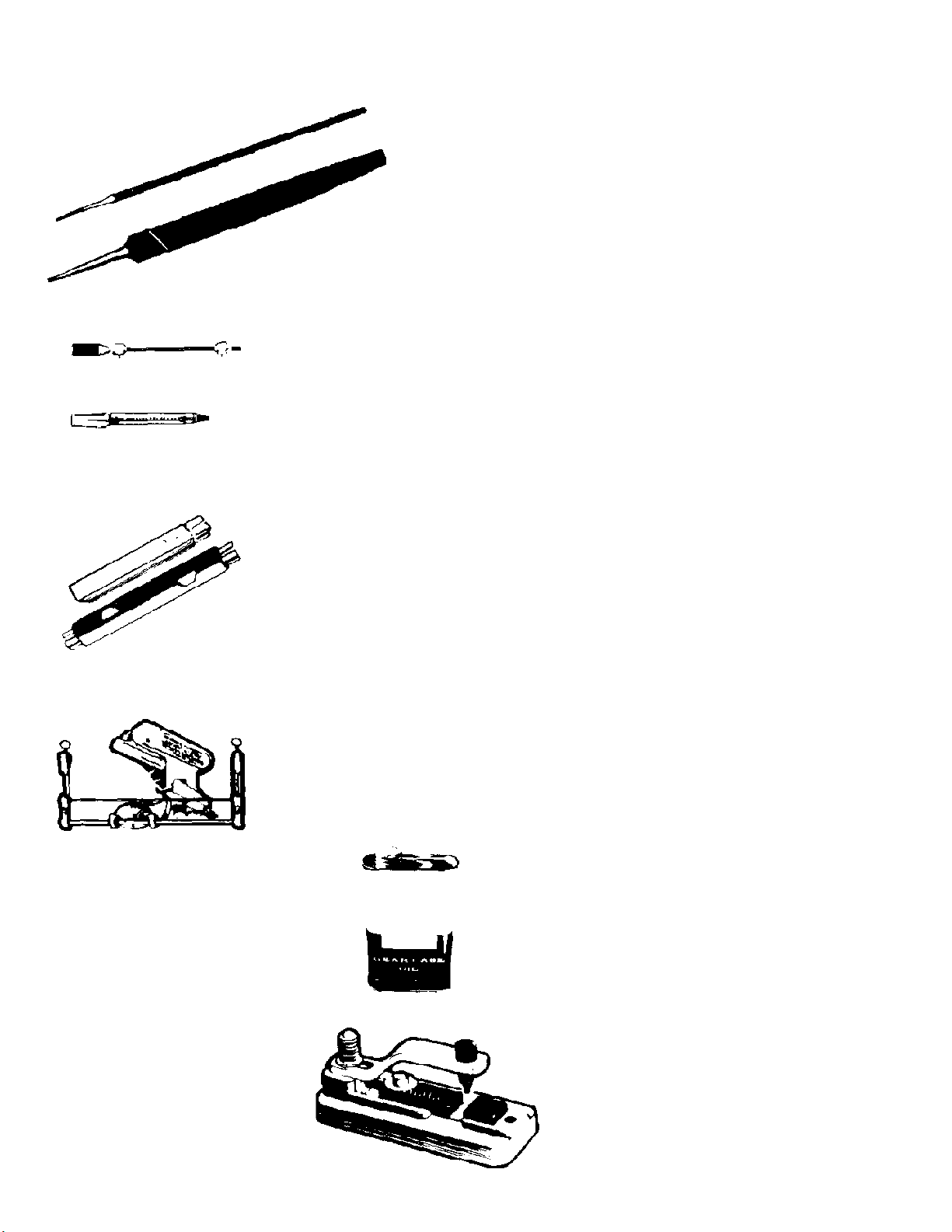

Chain Sharpening Tools
Ref # Part Number DescriptionQty
File 1/8" round Used on model S-25
File 5/32" round Used on models S-25 & SM-57
File 3/16" round Used on model SM-57
File 7/32" round Used on model S-40
File 1/4" round Used on model S-80
File 9/32" round Used on model S-90
File 8" flat Used on all models
File 6" flat safety Used on all models
67750 File Guide & File - 1/8" round Used on model S-25
60950 File Guide & File - 7/32" round Also holds 3/16 and
1/4" round; Used on model S-40 (7/32" round); Models
SM-57 & S-80 (3/16" and 1/4" round).
56241 Depth Gauge Tool - .045-.060" Used on models S-40,
S-80, & S-90
64198 Depth Gauge Tool - .035-.060" Used on model
SM-57, S-40, S-80, & S-90
64359 Depth Gauge Tool - .045-.050" Used on model SM-57
67688 Depth Gauge Tool - .015-.020" Used on model S-25
67680 Depth Gauge Tool - .025-.030" Used on all models
61034 File-N-Joint Assures correct filing angle, height; Used
on all models.
19342 GEAR OIL (SAE 140) 16 oz. can For transmissions
of gear drive saws.
104347 GEAR OIL (SAE 140) Case of 24 For transmissions
of gear drive saws.
61753 "Break All" Chain Breaker Required when repairing
chain; Instructions included.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 17 of 39
www.ktoutdoor.com

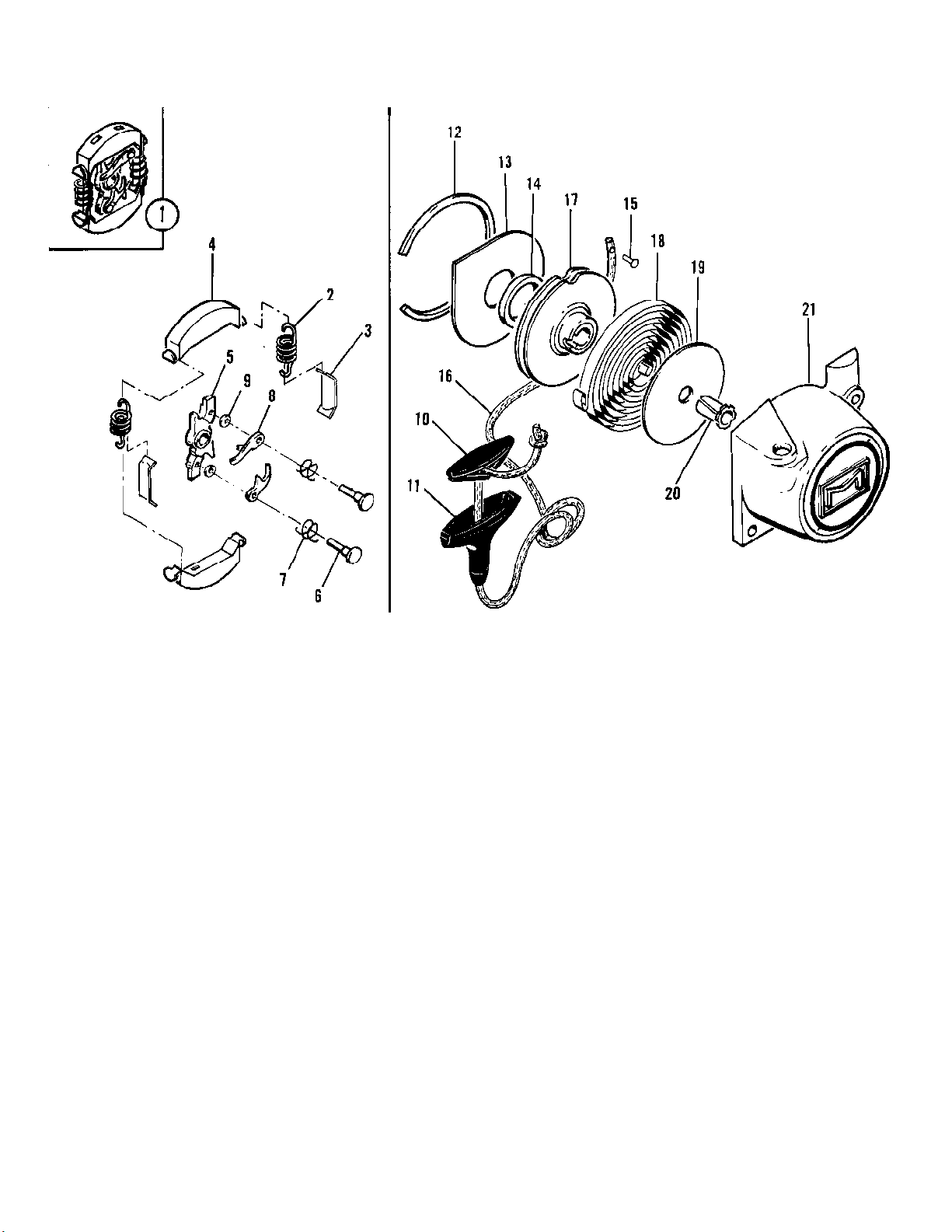

Clutch and Starter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 18 of 39
www.ktoutdoor.com
Clutch and Starter Assemblies
Ref # Part Number DescriptionQty
1 67148 Clutch Assy1
2 66384 Spring - Clutch2
3 64583 Retainer - Spring2
4 67233 Shoe - Clutch2
5 67149 Rotor Assy1
6 67112 Rivet2
7 68837 Spring - Pawl2
8 64857 Pawl2
9 83694 Washer2
67058 Starter Assy1
10 62191A Insert - Handle1
11 62190A Handle1
12 67205 Retainer - Shield1
13 63985 Shield - Dust1
14 63986 Washer - Thrust1
15 110470 Rivet - Rope1
16 69964 Rope - Starter1
17 68695 Drum - Starter1
18 68626 Spring - Rewind1
19 63987 Shield - Spring1
20 61635A Bushing - Nyliner1
21 67059 Housing - Starter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 19 of 39
www.ktoutdoor.com

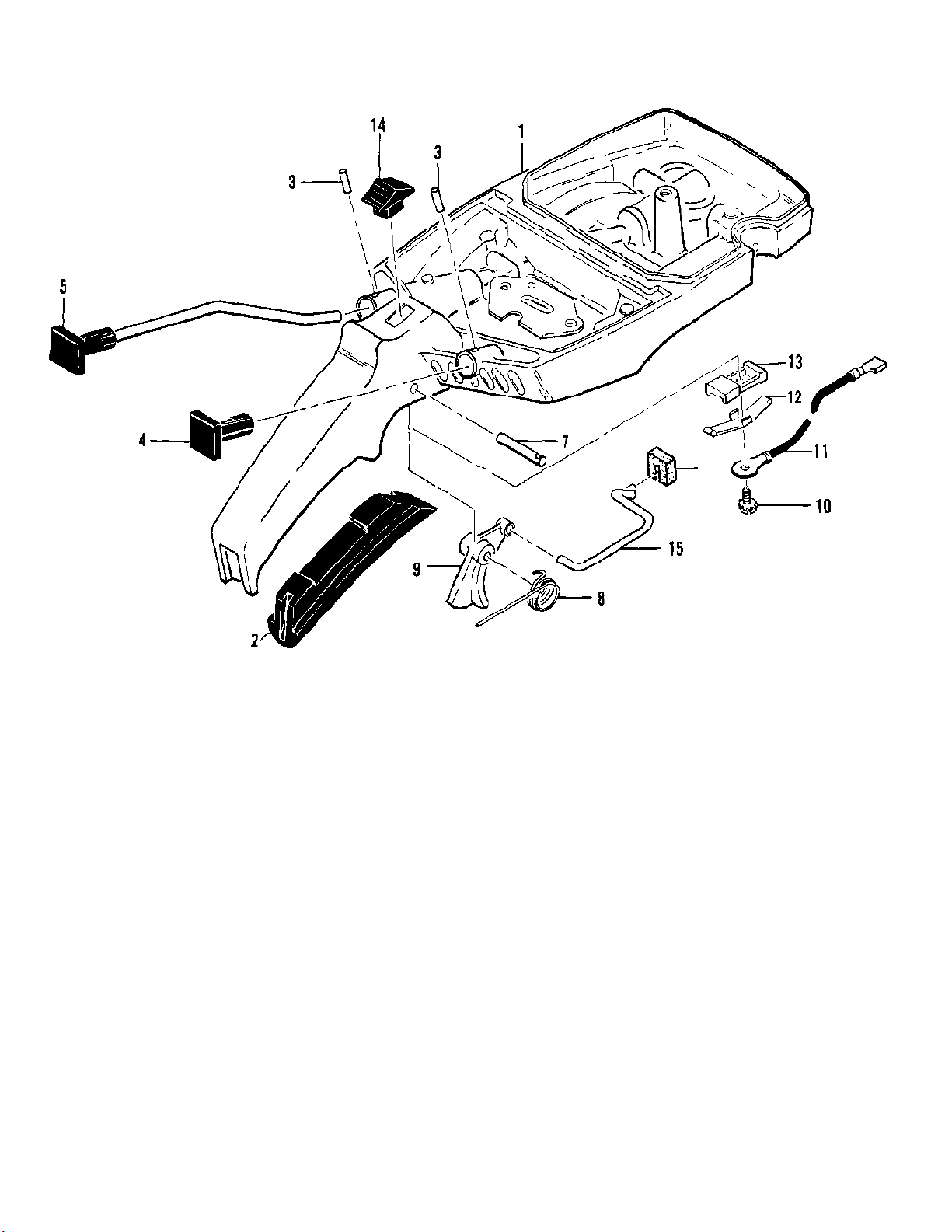

Fuel Tank Assembly (Part 1)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 20 of 39
www.ktoutdoor.com
Fuel Tank Assembly (Part 1)
Ref # Part Number DescriptionQty
1 66648 Fuel Tank Assy1
2 64872 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 66194 Button - Primer1
5 64871 Button and Rod Assy - Oiler1
6 67989 Seal - Throttle rod1
7 110378 Pin - Roll 3/16 x 15/161
8 65734 Spring - Trigger1
9 67224 Trigger - Throttle1
10 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
11 62973A Wire Assy - Stop switch1
12 62451 Contact - Switch1
13 62950A Base - Switch1
14 62951 Button - Switch1
15 65816 Rod - Throttle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 21 of 39
www.ktoutdoor.com
Fuel Tank Assembly (Part 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 22 of 39
www.ktoutdoor.com

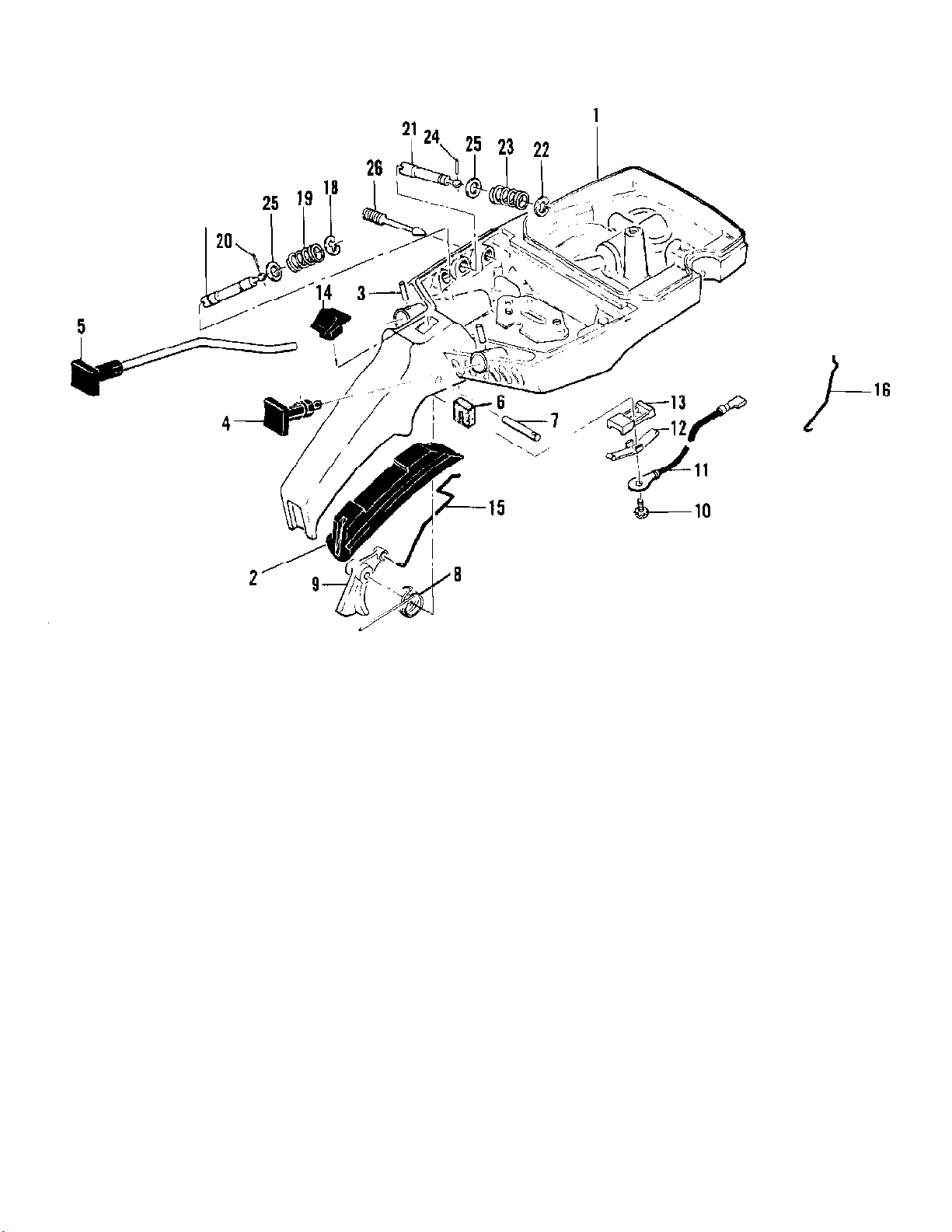

Fuel Tank Assembly (Part 2)
Ref # Part Number DescriptionQty
1 68683 Fuel Tank Assy1
2 64872 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 68517 Button - Choke1
5 64871 Button and Rod Assy - Oiler1
6 67989 Seal - Throttle rod1
7 110378 Pin - Roll 3/16 x 15/161
8 65734 Spring - Trigger1
9 67224 Trigger - Throttle1
10 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
11 62973A Wire Assy - Stop switch1
12 62451 Contact - Switch1
13 62950A Base - Switch1
14 62951 Button - Switch1
15 68170 Rod - Throttle1
16 67355 Rod - Choke1
17 68102 Extension Assy - High speed1
18 110512 Ring - Retaining1
19 67363 Spring1
20 110509 Pin - Groove1
21 68101 Extension Assy - Idle1
22 110512 Ring - Retaining1
23 67363 Spring1
24 110509 Pin - Groove1
25 67292 Washer2
26 67271 Screw - Idle adjustment1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 23
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 23 of 39
www.ktoutdoor.com

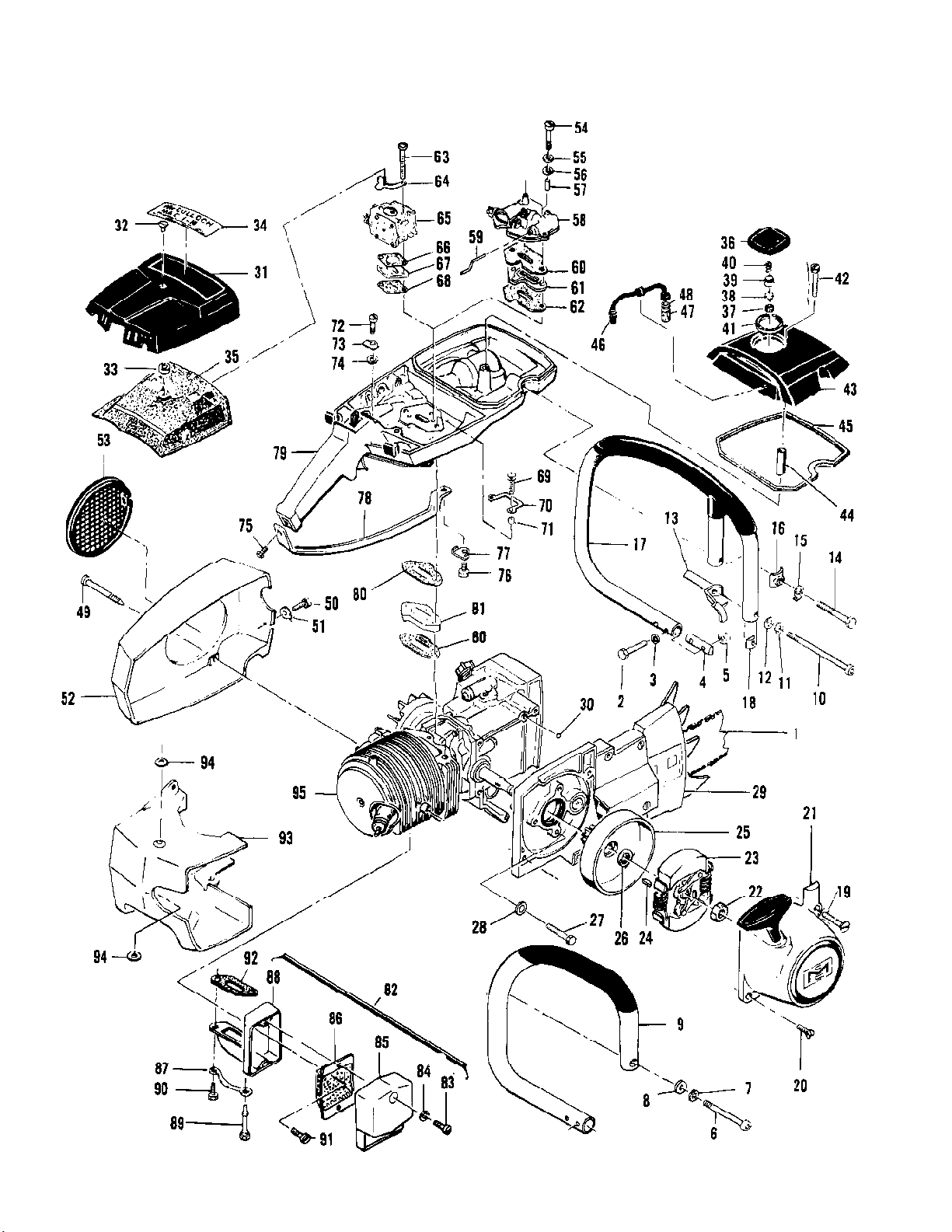

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 24
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 24 of 39
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 Bar and Chain Assy See "Bar and Chain Assembly"
illustration and parts list.
2 102761 Screw - Hex hd 10-24 x 7/82
3 100352 Washer - #102
4 61678 Plug - Nut retainer1
5 101326 Nut - Hex 10-242
6 105187 Screw - Skt hd 1/4-20 x 1-1/81
7 105043 Lockwasher - 1/41
8 100004 Washer - 1/41
9 67372 Frame and Grip Assy1
10 110448 Screw - Skt hd 10-24 x 3-1/41
11 103174 Lockwasher - #101
12 100003 Washer - #101
13 68503 Bracket - Frame1
14 102130 Screw - Hex hd 1/4-20 x 1-1/21
15 100153 Lockwasher - 1/41
16 63484 Clamp - Frame1
17 68458 Frame and Grip Assy1
18 62271 Plug - Frame1
19 104132 Screw - Oval hd 10-24 x 1-1/21
20 110403 Screw - Oval hd 8-321
21 Starter Assy See "Starter Assembly" illustration and
parts list.
22 103746 Nut - Hex 3/8-241
23 Clutch Assy See "Clutch Assembly" illustration and
parts list.
24 103879 Key - Woodruff1
25 63493 Drum, Gear and Seal Assy1
26 63476 Seal1
27 102765 Screw - Hex hd 10-24 x 1-3/42
28 100003 Washer - #102
29 Transmission Assy See "Transmission Assembly"
illustration and parts list.
30 106104 "O" Ring1
31 62117 Cover Assy - Air cleaner1
65866 Cover Assy - Air cleaner1
66597 Cover Assy - Air cleaner1
32 62434 Nut - Cover1
65813 Nut - Cover1
66290 Nut - Cover1
33 66665 Spacer - Nut1
34 65458 Nameplate1
67459 Nameplate1
35 62077 Filter - Air1
66774 Filter - Air1
68520 Filter - Air1
36 68531 Cap Assy - Fuel1
37 68533 Plug1
38 63041 Valve1
39 62316 Guide1
40 63040 Spring1
41 65671 Gasket1
42 110334 Screw - Oval hd 12-24 x 1-3/41
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 25
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 25 of 39
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
110402 Screw - Oval hd 12-24 x 2-3/81
43 63656 Cover - Fuel tank1
63288 Cover - Fuel tank1
44 69686 Spacer - Cover1
45 69345 Gasket - Cover1
46 64848 Hose Assy - Fuel1
47 63932 Filter - Fuel1
48 100440 Washer1
49 62978 Screw - Special3
50 102762 Screw - Hex hd 10-24 x 1/21
51 69890 Lockplate1
52 83521 Kit - Fan housing1
53 55615 Guard - Flywheel1
54 103355 Screw - Hex hd 10-24 x 1-7/82
103124 Screw - Hex hd 10-24 x 22
55 64856 Washer - Special2
56 68203 Washer - Insulator2
57 62327A Sleeve2
65726 Sleeve2
58 Carburetor Assy See "Carburetor Assembly"
illustration and parts list.
Carburetor Assy See "Carburetor Assembly"
illustration and parts list.
59 62066A Rod - Primer1
65604 Rod - Primer1
60 65672 Gasket - Carburetor1
61 65821 Insulator - Carburetor1
62 65672 Gasket - Insulator1
63 110551 Screw - Hex hd 10-24 x 2-1/82
64 66681 Bracket Assy1
65 Carburetor Assy See "Carburetor Assembly"
illustration and parts list.
66 68132 Gasket - Carburetor1
67 66678 Spacer - Carburetor1
68 68131 Gasket - Spacer1
69 110553 Screw - Hex hd 10-24 x 1-3/82
70 68582 Lockplate2
71 66189 Sleeve2
72 110516 Screw - Hex hd 10-24 x 1-1/81
73 63475 Lockplate1
74 64856 Washer - Special1
75 110353 Screw - Oval hd 10-24 x 3/81
76 102289 Screw - Hex hd 10-24 x 3/41
77 69890 Lockplate1
78 69838 Brace - Handle1
79 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list.
80 68130 Gasket - Fuel tank2
81 66659 Insulator - Fuel tank1
66659 Insulator - Fuel tank1
82 68194 Kit - Spark arrester1
K&T Saw Shop 606-678-9623 or 606-561-4983
Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list.
Page 26
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 26 of 39
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
83 102290 Screw - Hex hd 10-24 x 1-1/82
84 110264 Washer - #102
85 62380 Cover1
86 62379B Baffle1
87 67922 Lockplate1
88 83105 Body and Duct Assy1
89 68187 Screw - Special1
90 110506 Screw - Hex hd 10-24 x 5/81
91 110341 Screw - Hex hd 10-24 x 1/21
92 63748 Gasket - Spark arrester1
68149 Gasket - Spark arrester1
93 67377 Shroud1
94 62085A Insulator - Shroud2
95 Powerhead Assy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 27
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 27 of 39
www.ktoutdoor.com

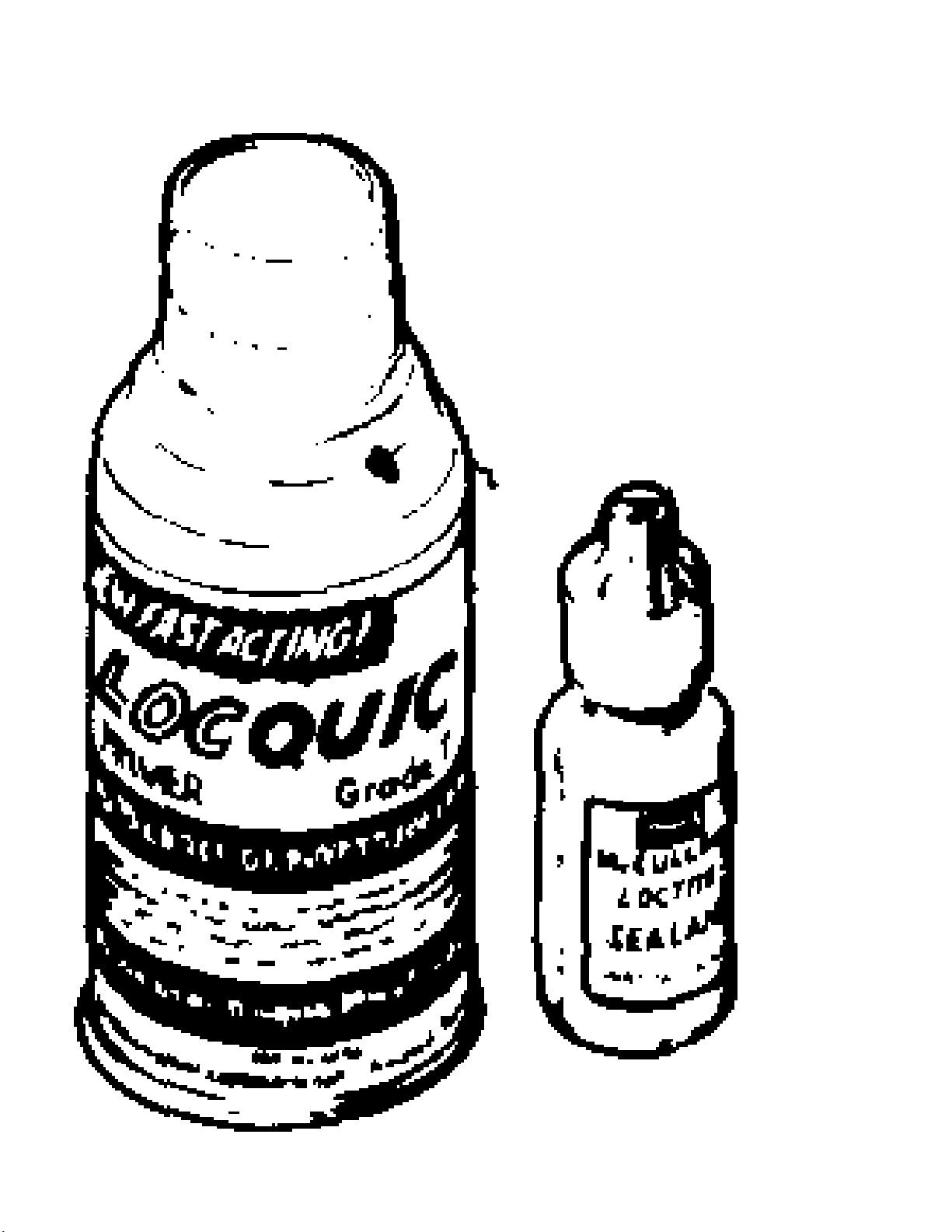

Locquic & Loctite
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 28
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 28 of 39
www.ktoutdoor.com
Locquic & Loctite
Ref # Part Number DescriptionQty
67537 Loctite - 10cc plastic bottle
69794 Locquic - 7-1/2 oz. spray can
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 29
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 29 of 39
www.ktoutdoor.com

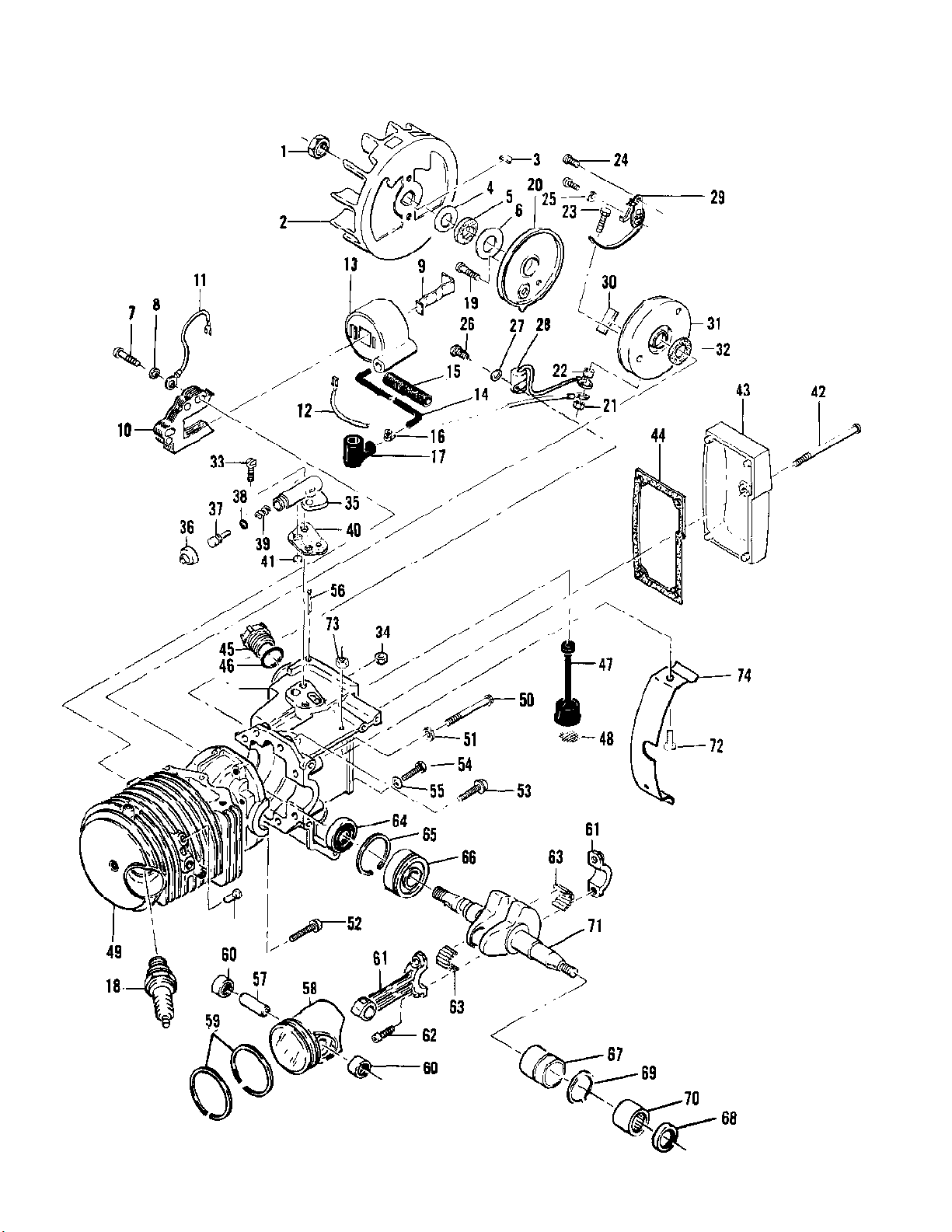

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 30
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 30 of 39
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 101391 Nut - Hex 3/8-241
2 61737A Flywheel Assy1
3 103879 Key - Woodruff1
4 67057 Washer - Thrust1
5 67056 Seal1
6 67054 Washer - Thrust1
7 110127 Screw - Fil hd 10-24 x 7/8 (SEMS)2
8 100003 Washer - #102
9 51253 Retainer - Coil1
10 68164 Lamination Assy1
11 62819 Wire Assy - Ground1
12 69344 Wire Assy - Primary1
13 69798 Coil and Terminal Assy1
14 69966 Wire Assy - Spark plug1
15 67127 Sleeve1
16 62932 Connector1
17 62926 Boot1
18 63097 Spark Plug1
19 110349 Screw - Rd hd 8-32 x 3/41
20 62362 Cover - Breaker box1
21 100298 Nut - Hex 6-321
22 62365 Spacer - Breaker screw1
23 110346 Screw - Hex hd 6-32 x 3/41
24 100934 Screw - Rd hd 8-32 x 3/81
25 105976 Washer - #81
26 105249 Screw - Rd hd 8-32 x 3/8 (SEMS)1
27 100080 Washer - #81
28 61650 Condenser1
29 62363 Breaker Assy1
30 54184 Wiper - Cam1
31 62361 Box - Breaker1
32 67051 Seal - Box1
33 110623 Screw - Fil hd 8-32 x 1/22
34 100955 Nut - Hex 8-321
35 62261A Housing - Pump1
36 62262 Cap - Housing1
37 62266 Plunger - Pump1
38 101056 "O" Ring1
39 66687 Spring - Plunger1
40 62230 Gasket - Pump1
41 62909 Valve - Pump1
42 110407 Screw - Pan hd 10-24 x 3-1/21
43 63974 Cover - Oil tank1
44 63442 Gasket - Cover1
45 57129A Cap - Oil1
46 101148 "O" Ring1
47 62123B Hose Assy - Oil1
48 51506 Screen - Hose1
49 67121 Crankcase Assy1
50 62105 Screw Assy - Sealing4
51 62842 Washer - Sealing4
52 110404 Screw Assy - Hex hd 8-32 x 7/81
53 110288 Screw Assy - Hex hd 8-32 x 3/42
54 63607 Screw Assy - Sealing1
55 63606 Washer - Sealing1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 31
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 31 of 39
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 100010 Pin - Cotter1
57 61649 Pin - Piston1
58 69212 Piston Assy1
59 62814 Ring Set - Piston1
60 103512 Bearing - Needle2
61 65401 Connecting Rod Assy1
62 61627A Screw - Skt hd 8-36 x 1/22
63 63225 Roller - Needle (Set of 20)1
64 65746 Oil Seal1
65 63464 Ring - Snap1
66 63429B Bearing - Ball1
67 63492 Insert and Bearing Assy1
68 65747 Oil Seal1
69 63699 Ring - Insert1
70 104357 Bearing - Needle1
71 68505 Crankshaft1
72 105221 Screw - Rd hd 10-24 x 5/162
73 101191 Nut - Hex 10-242
74 65363 Guard - Crankcase1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 32
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 32 of 39
www.ktoutdoor.com

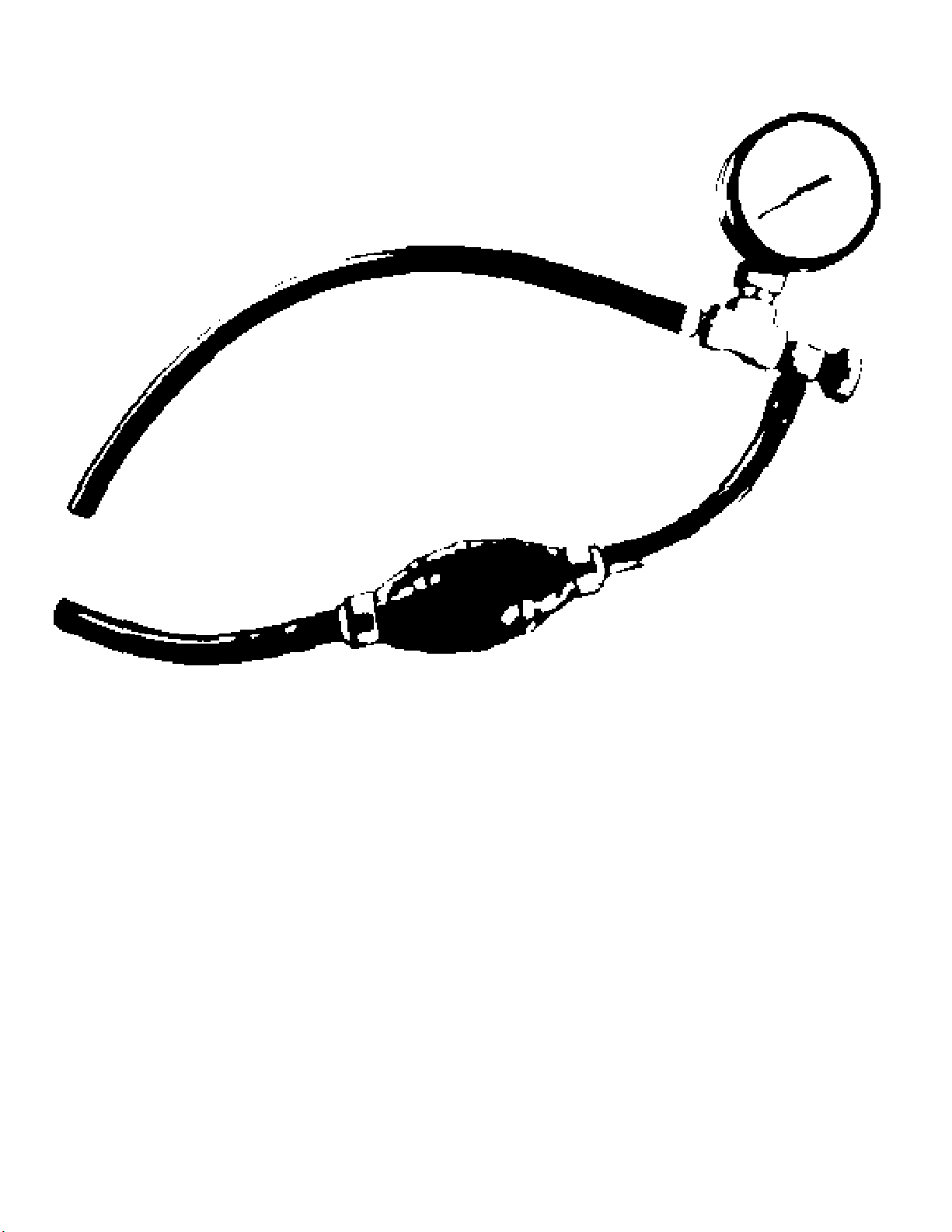

Pressure Test Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 33
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 33 of 39
www.ktoutdoor.com
Pressure Test Tools
Ref # Part Number DescriptionQty
62849 PRESSURE TEST TOOLS, Basic unit.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 34
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 34 of 39
www.ktoutdoor.com
Spray Paint
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 35
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 35 of 39
www.ktoutdoor.com
Spray Paint
Ref # Part Number DescriptionQty
103503 12 oz. can - Black
103400 Case of 12 (12 oz. cans) - Black
102249 12 oz. can - Yellow
102464 Case of 12 (12 oz. cans) - Yellow
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 36
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 36 of 39
www.ktoutdoor.com

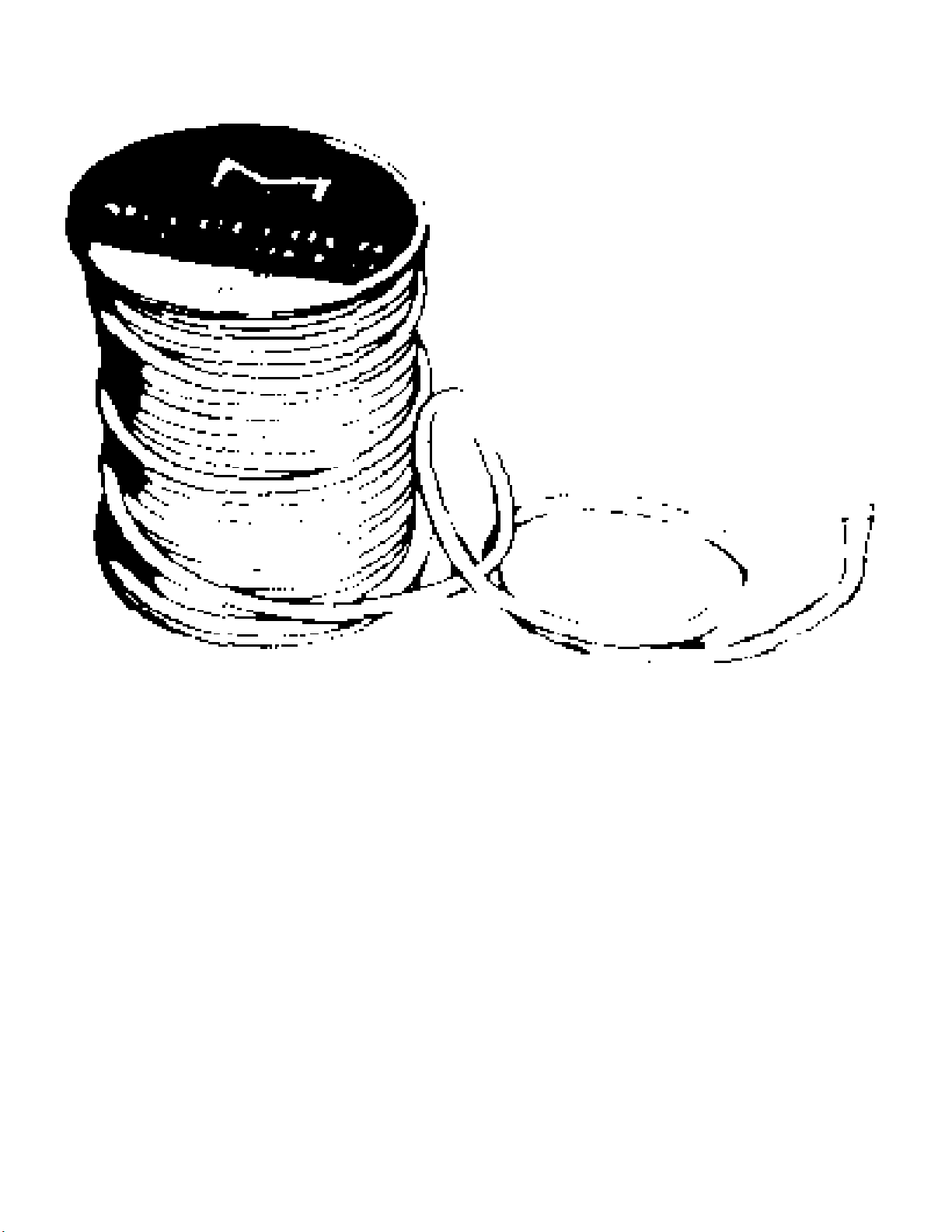

Starter Rope
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 37
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 37 of 39
www.ktoutdoor.com
Starter Rope
Ref # Part Number DescriptionQty
36825 STARTER ROPE, 100' spool.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 38
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 38 of 39
www.ktoutdoor.com

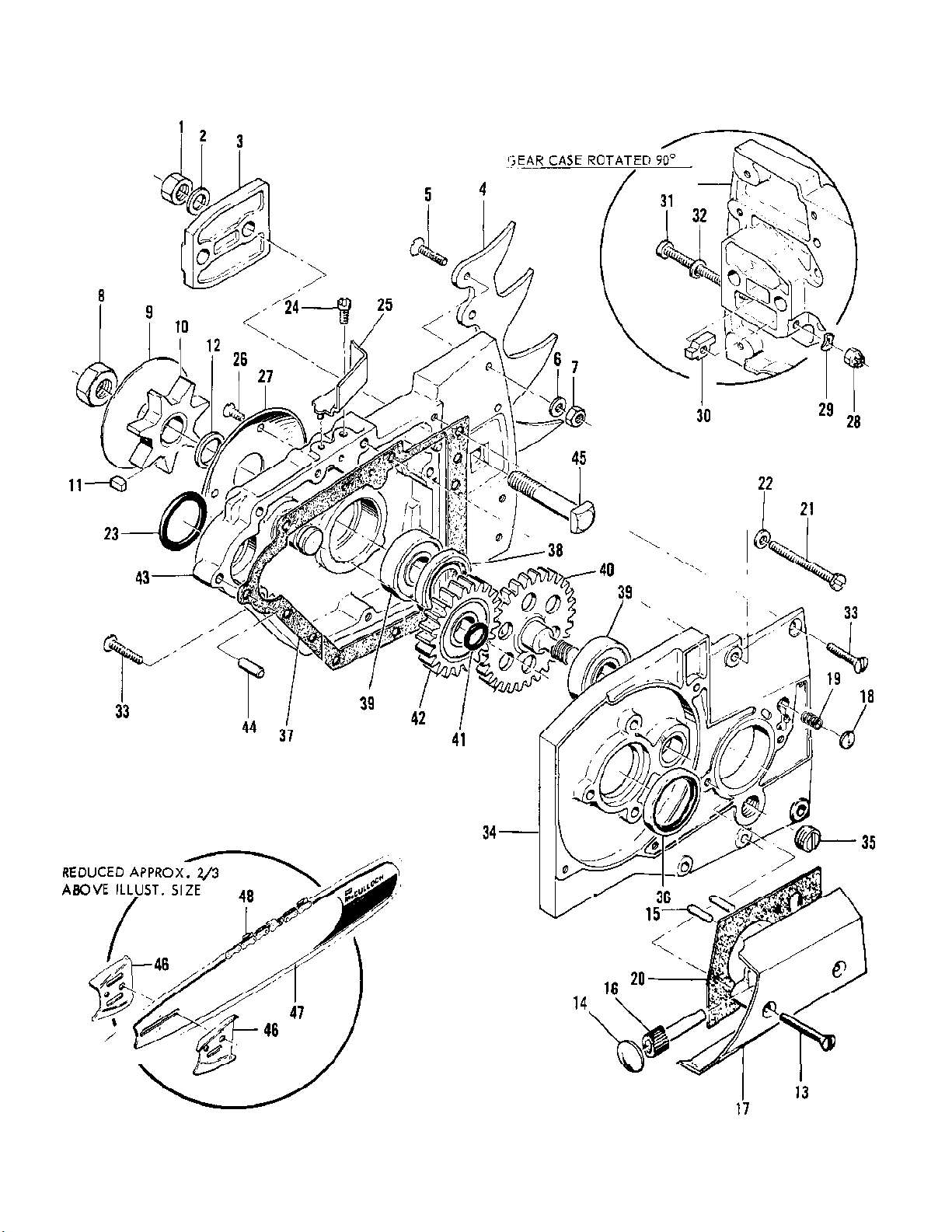

Transmission Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 39
11-600035 MAC 2-10G 04/67 to 01/68 IPL 84484 Page 39 of 39
www.ktoutdoor.com
Transmission Assembly
Ref # Part Number DescriptionQty
1 110625 Nut - Hex hd 3/8-242
2 100006 Washer - 3/82
3 63417 Plate - Bar clamp1
4 63994 Kit - Spike1
5 110245 Screw - Fl hd 10-24 x 3/44
6 101174 Washer - #104
7 101191 Nut - Hex 10-244
8 60972 Nut - Hex 7/16-201
9 63997A Plate - Sprocket1
10 36644A Sprocket1
11 63808 Key - Sprocket1
12 64754 Spacer - Sprocket1
13 110406 Screw - Oval hd 8-32 x 1-1/42
65882 Pump Assy - Oil1
14 105559 Plug - Welch1
15 110392 Pin - Plunger2
16 63428 Plunger - Pump1
17 65881 Body - Pump1
18 62909 Valve - Oiler1
19 63692 Spring - Valve1
20 63474 Gasket - Pump1
21 102765 Screw - Hex hd 10-24 x 1-3/42
22 100003 Washer - #102
66208 Transmission Assy (3:1 Ratio)1
23 104360 "O" Ring1
24 110055 Screw - Fil hd 8-32 x 3/8 (SEMS)1
25 63491 Filler1
26 110417 Screw - Fl hd 6-32 x 3/83
27 63416 Plate - Sprocket1
28 102067 Nut - Hex 10-241
29 110387 Washer - Wave1
30 63824A Nut - Bar adjustment1
31 102144 Screw - Bar adjustment1
32 101174 Washer - #101
33 110405 Screw - Oval hd 8-32 x 7/86
34 64779 Cover Assy - Gearcase1
35 100432 Plug - Filler1
36 63477 Seal - Pinion gear1
37 63433 Gasket - Cover1
38 63478 Seal - Gearcase1
39 110348 Bearing - Sprocket shaft2
40 64775 Gear - Sprocket1
41 110452 "O" Ring1
42 66616 Gear Assy - Idler1
43 64770 Gearcase1
44 101770 Pin - Dowel2
45 64584 Bolt - Bar2
46 64935 Plate - Bar protector2
47 Bar1
48 Chain Assy1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
