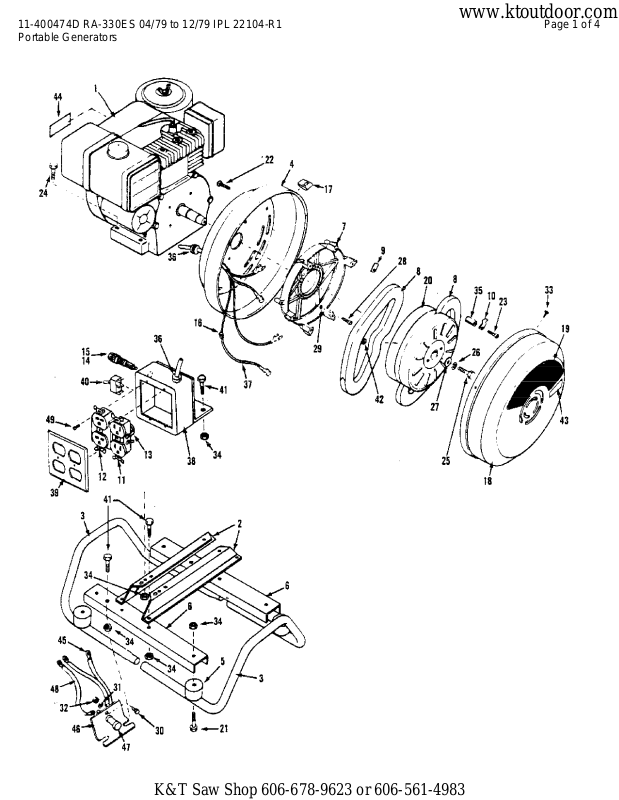

Page 1
11-400474D RA-330ES 04/79 to 12/79 IPL 22104-R1 Page 1 of 4
www.ktoutdoor.com
Portable Generators
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400474D RA-330ES 04/79 to 12/79 IPL 22104-R1 Page 2 of 4
www.ktoutdoor.com
Portable Generators

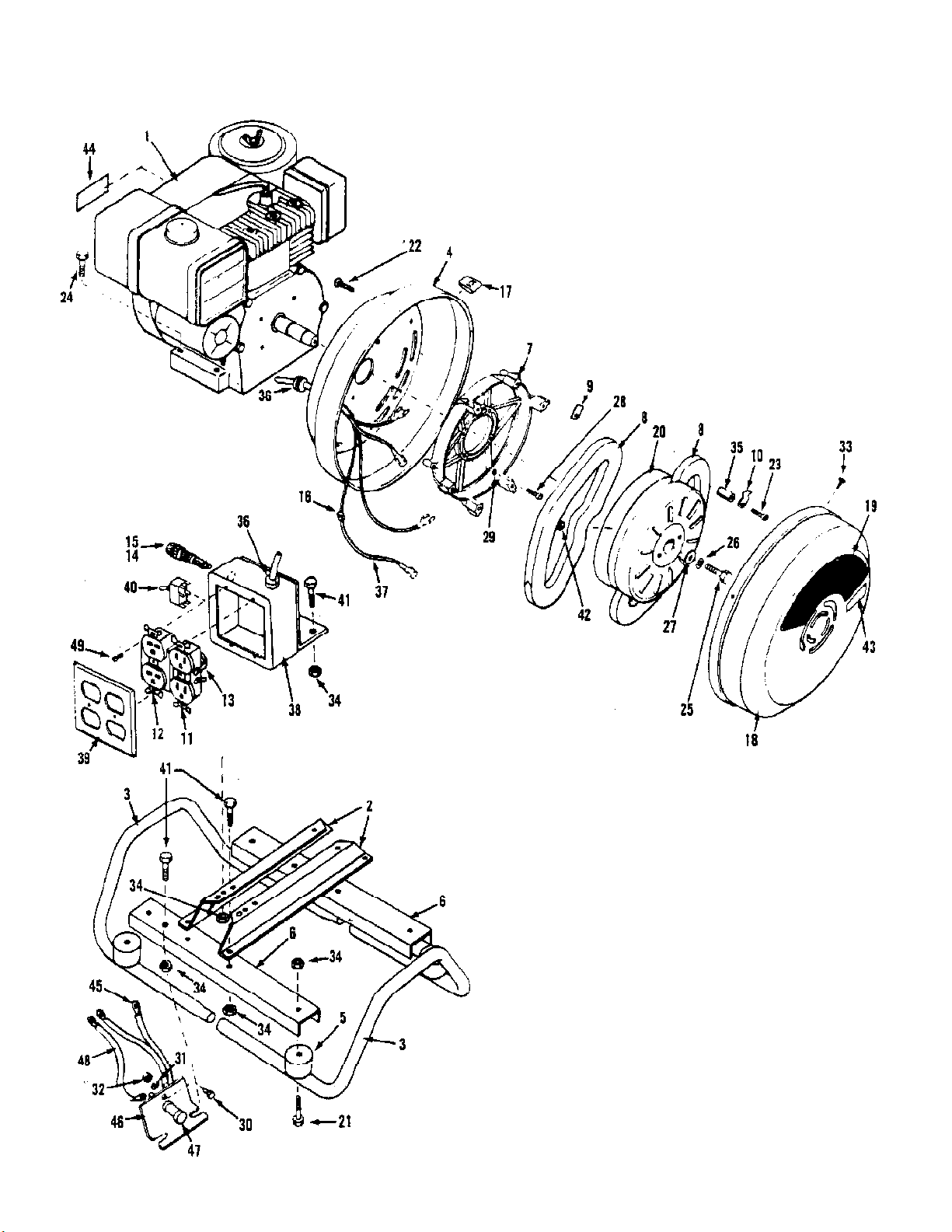

Ref # Part Number DescriptionQty
1 21879 Engine1
1 210500 Engine1
2 21844 Rail - Engine2
3 21862 Cradle1
4 21681 Cover - Back1
5 21804 Isolator4
6 21846 Channel - Isolator2
7 22093 Mount - Stator1
8 21866 Half - Stator2
9 21884 Shim - 1/321
9 21885 Shim - 1/161
10 21850 Spring - Stator Holding6
11 21150 Receptacle - 110V1
12 21392 Receptacle - 220V1
13 21709 Harness - Wiring1
14 21270 Holder - Fuse2
15 21280 Fuse2
16 21643 Keeper - Wire5
17 21726 Nut - Speed4
18 21690 Cover - Front1
19 21868 Decal - Front Cover1
20 21103 Rotor1
20 22089 Rotor1
21 21876 Bolt - Cu. hd 5/16-18 x 1-1/24
22 22070 Screw - Thd form 1/4-20 x 3/44
23 21950 Capscrew - Hx hd 1/4-20 x 1-1/46
24 21878 Bolt - Hx tap 5/16-18 x 1-3/44
25 21143 Capscrew - Hx hd 5/16-24 x 1-1/21
25 22090 Capscrew - Hx hd 3/8-24 x 3-3/41
26 21657 Lockwasher - 5/161
26 21130 Lockwasher - 3/81
27 21704 Washer - Flat 5/16 x 1/41
27 22092 Washer - Flat 3/8 x 1/41
28 22003 Capscrew - Hx hd 3/8-16 x 14
29 21130 Lockwasher - 3/84
30 21020 Capscrew - Hx hd 1/4-20 x 3/42
31 21658 Lockwasher - 1/42
32 21203 Nut - Hx 1/4-202
33 21650 No. 8 Pan Hd Sheet Metal Screw4
34 21653 Keps Nut - 5/16-1815
35 21860 Stator Bushing4
36 21789 Strain Relief Grommet2
37 21864 Wire Cable1
38 21943 Box 5 Bracket1
39 21632 Receptacle Cover1
40 21971 Switch DPDT1
41 21647 Capscrew-Hx hd 5/16-18 x 17
42 21897 Cam Bushing2
43 21922 Wattage Label1
44 21926 Engine Label1
45 21909 Battery Cables1
46 21947 Starter Bracket1
47 21948 Starter Button1
48 21949 Starter Cable1
49 21703 Screw - Truss hd #84
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400474D RA-330ES 04/79 to 12/79 IPL 22104-R1 Page 3 of 4
www.ktoutdoor.com
Portable Generators
Ref # Part Number DescriptionQty
21881 Tool Kit Complete
21880 Rotor Holding Wrench
21925 Stator Clearance Gage
21877 Stator Shim Gage
21896 Rotor Gap Gage
21883 Rotor Puller Bolt (9 1/2")
21502 Propane Conversion Kit RA-330ES
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400474D RA-330ES 04/79 to 12/79 IPL 22104-R1 Page 4 of 4
www.ktoutdoor.com

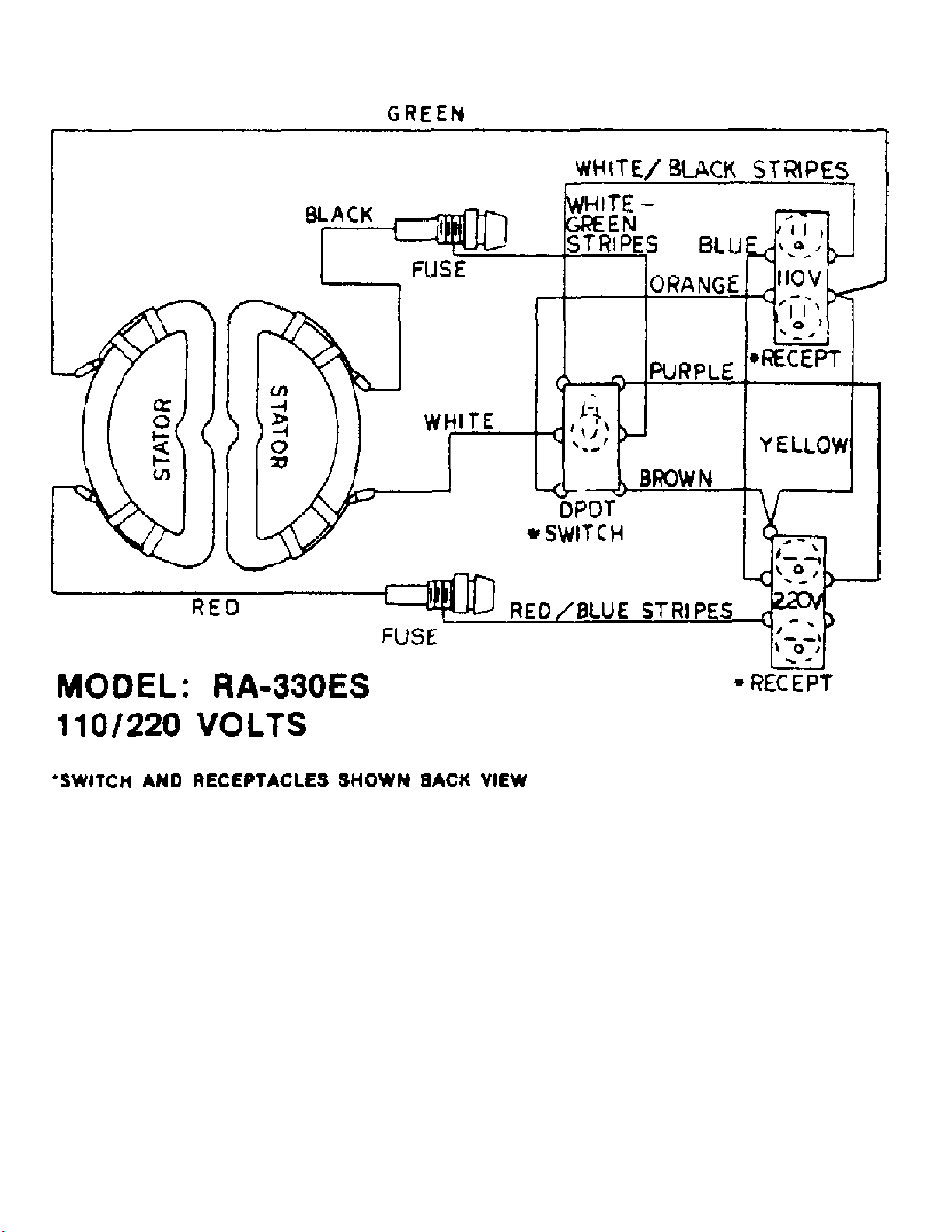

Wiring Schematic
K&T Saw Shop 606-678-9623 or 606-561-4983
