Page 1

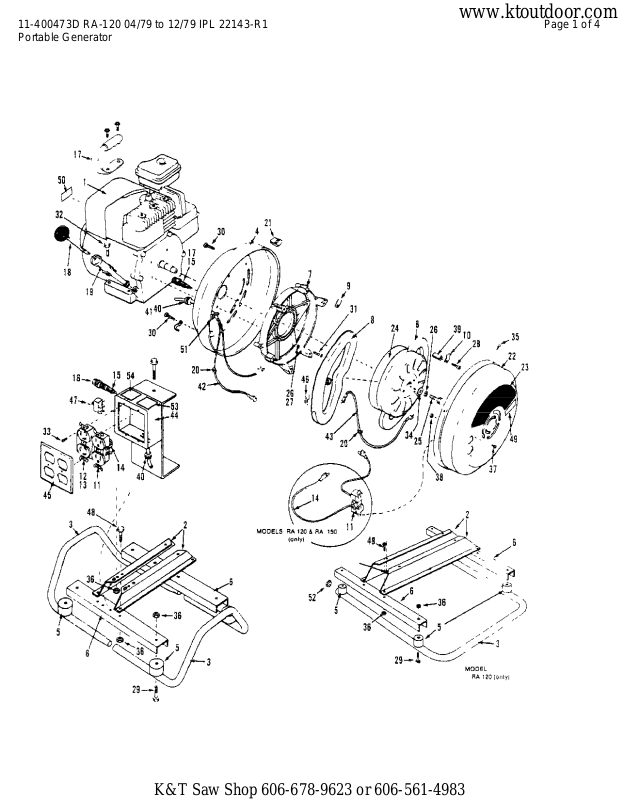

11-400473D RA-120 04/79 to 12/79 IPL 22143-R1 Page 1 of 4
www.ktoutdoor.com

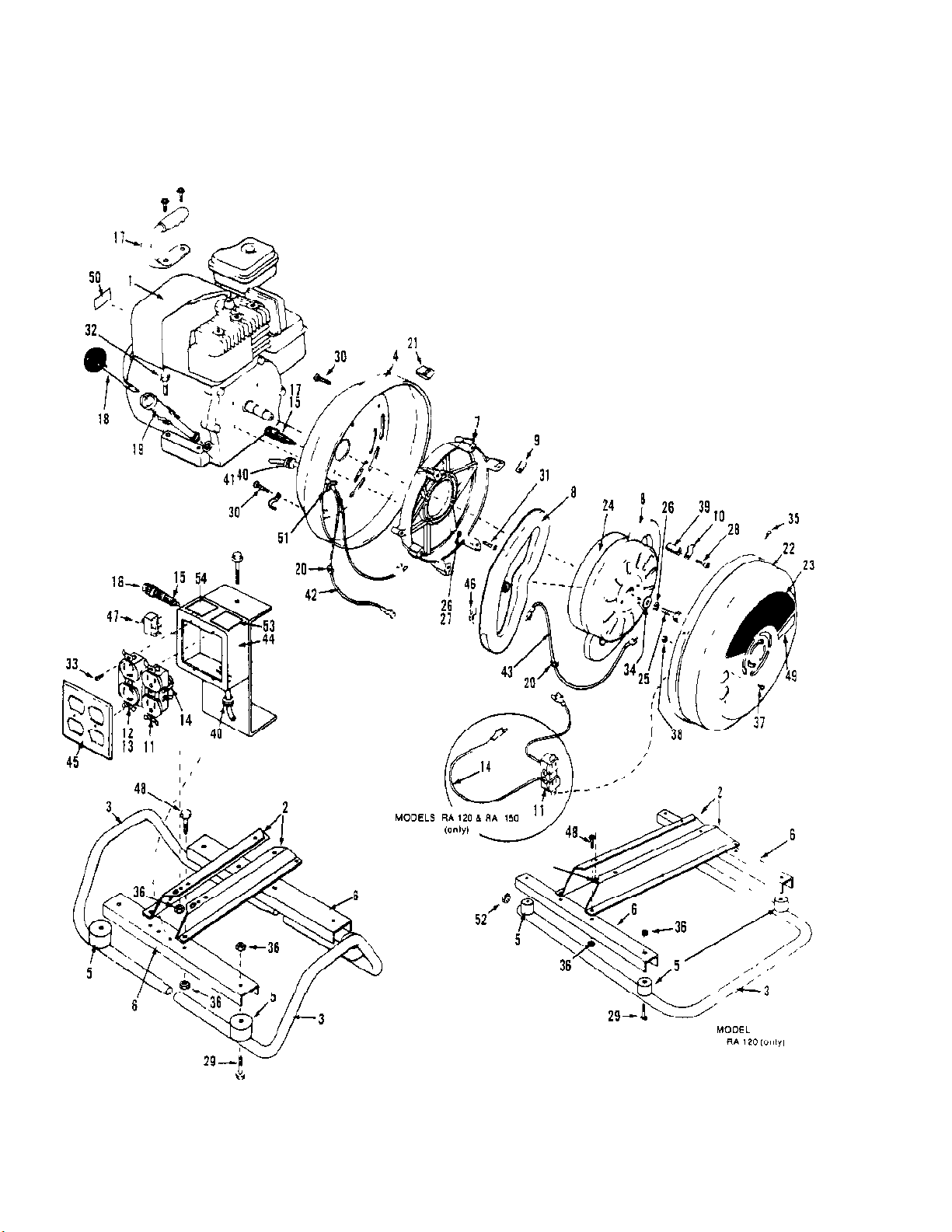

Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400473D RA-120 04/79 to 12/79 IPL 22143-R1 Page 2 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
1 210497 Engine (S/N 11-)1
2 21844 Engine Rail2
3 21592 Cradle - Tube Base1
4 21602 Cover - Back1
5 21804 Isolator4
6 21845 Channel - Isolator2
7 22094 Mount - Stator1
8 21871 Half - Stator2
9 21884 Shim - 1/321
9 21885 Shim - 1/161
10 21850 Springs - Holding6
11 21150 Receptacle - 110V1
12 Twist - Receptacle - 110V Not used on this model
13 Receptacle - 220V Not used on this model
14 21872 Harness - Wiring1
15 21270 Holder - Fuse1
16 21841 Fuse1
17 21671 Handle Assembly1
18 21853 Dipstick1
19 21854 Bracket - Dipstick1
20 21643 Keeper - Wire6
21 21726 Nut - Speed4
22 21666 Cover - Front1
23 21856 Decal - Front Cover1
24 21597 Rotor (S/N 11-)1
25 21857 Capscrew (S/N 11-)1
26 21657 Lockwasher - 5/165
26 Retaining Bolts Engine to Back Cover. Torque Value
120 - 144 In.-Lbs.
27 Lockwasher - 3/8
27 Casting Retaining Bolt. Torque Value 60 - 70 In.-Lbs.
28 21950 Capscrew6
28 Rotor Retaining Screws. Torque Value 240 - 246
In.-Lbs.
29 21876 Bolt - Cv. hd. 5/16-18 x 1-1/24
29 Stator Retaining Screws. Torque Value 55 - 60
In.-Lbs.
30 22070 Screw - Thd form. 1/4-20 x 3/43
31 22068 Capscrew - Hx hd.4
32 21878 Capscrew - Hx hd.4
32 Engine Head Bolts. Torque Value 140 In.-Lbs.
33 Screw - Truss hd. #8 Not used on this model
34 21859 Washer - Flat1
35 21650 Screw - Pn. hd. #84
36 21653 Nut - Keps 5/16-1812
37 21899 Screw - Rd. hd. 8-32 x 1/22
38 21675 Nut - Keps 8-322
39 21860 Bushings - Stator6
40 Grommet - Strain Relief Not used on this model
41 Grommet - Rubber Not used on this model
42 Wire Cable Not used on this model
43 22098 Jumper Wire2
44 Box & Bracket Not used on this model
45 Cover - Receptacle Not used on this model
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400473D RA-120 04/79 to 12/79 IPL 22143-R1 Page 3 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
46 21874 Tab - Fast on2
47 Switch - DPDT Not used on this model
48 21647 Capscrew - Hx hd. 5/16-18 x 14
49 21919 Label - Wattage1
50 21926 Label - Engine1
51 Clip - Butterfly Not used on this model
52 22146 Plug - Hole2
53 Label - 110V Not used on this model
54 Label - 220V Not used on this model
21708 Propane Conversion Kit
21881 Tool Kit Complete
21880 Rotor Holding Wrench Special Tools
21925 Stator Clearance Gage Special Tools
21877 Stator Shim Gage Special Tools
21509 Rotor Gap Gage Special Tools
21882 Rotor Pulley Bolt (8" Rotor) Special Tools
21883 Rotor Pulley Bolt (9 1/2" Rotor) Special Tools
22145 Puller Bolt Pilot Special Tools
22136 Stator Shims 3/64"
22137 Stator Shims 5/64"
22138 Stator Shims 3/32"
22139 Stator Shims 7/64"
22140 Stator Shims 1/8"
22141 Stator Shims 9/64"
392191 Spark Arrester Equipment for Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400473D RA-120 04/79 to 12/79 IPL 22143-R1 Page 4 of 4
www.ktoutdoor.com

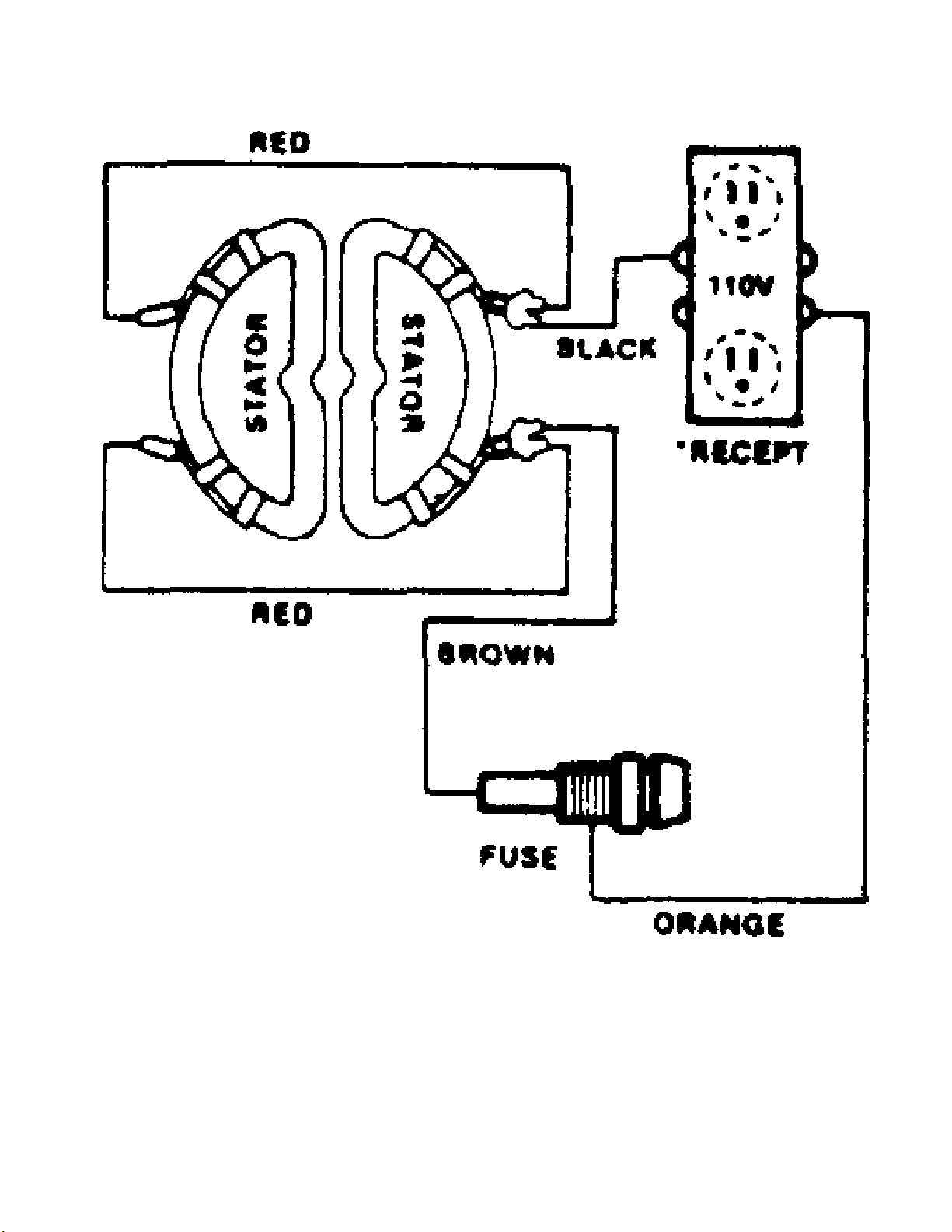

Wiring Schematic
K&T Saw Shop 606-678-9623 or 606-561-4983
