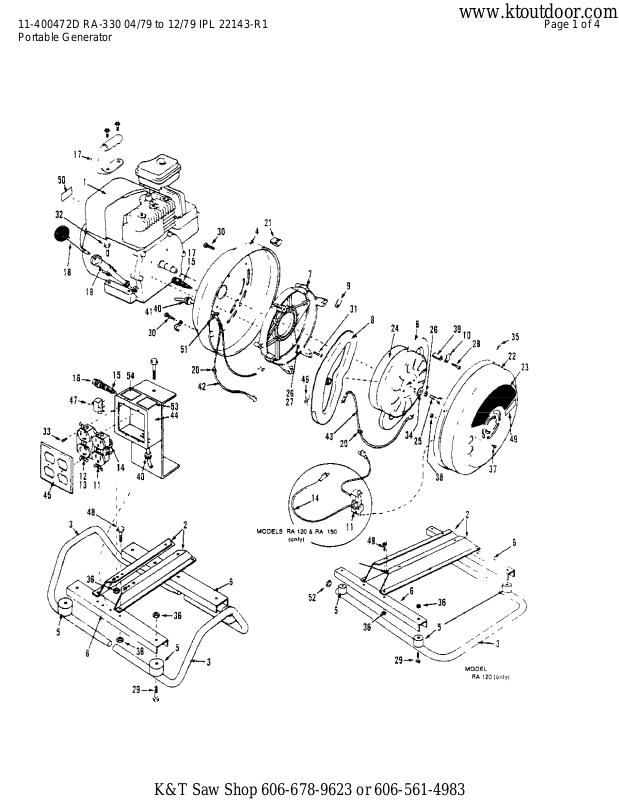

11-400472D RA-330 04/79 to 12/79 IPL 22143-R1 Page 1 of 4
www.ktoutdoor.com
Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400472D RA-330 04/79 to 12/79 IPL 22143-R1 Page 2 of 4
www.ktoutdoor.com
Portable Generator

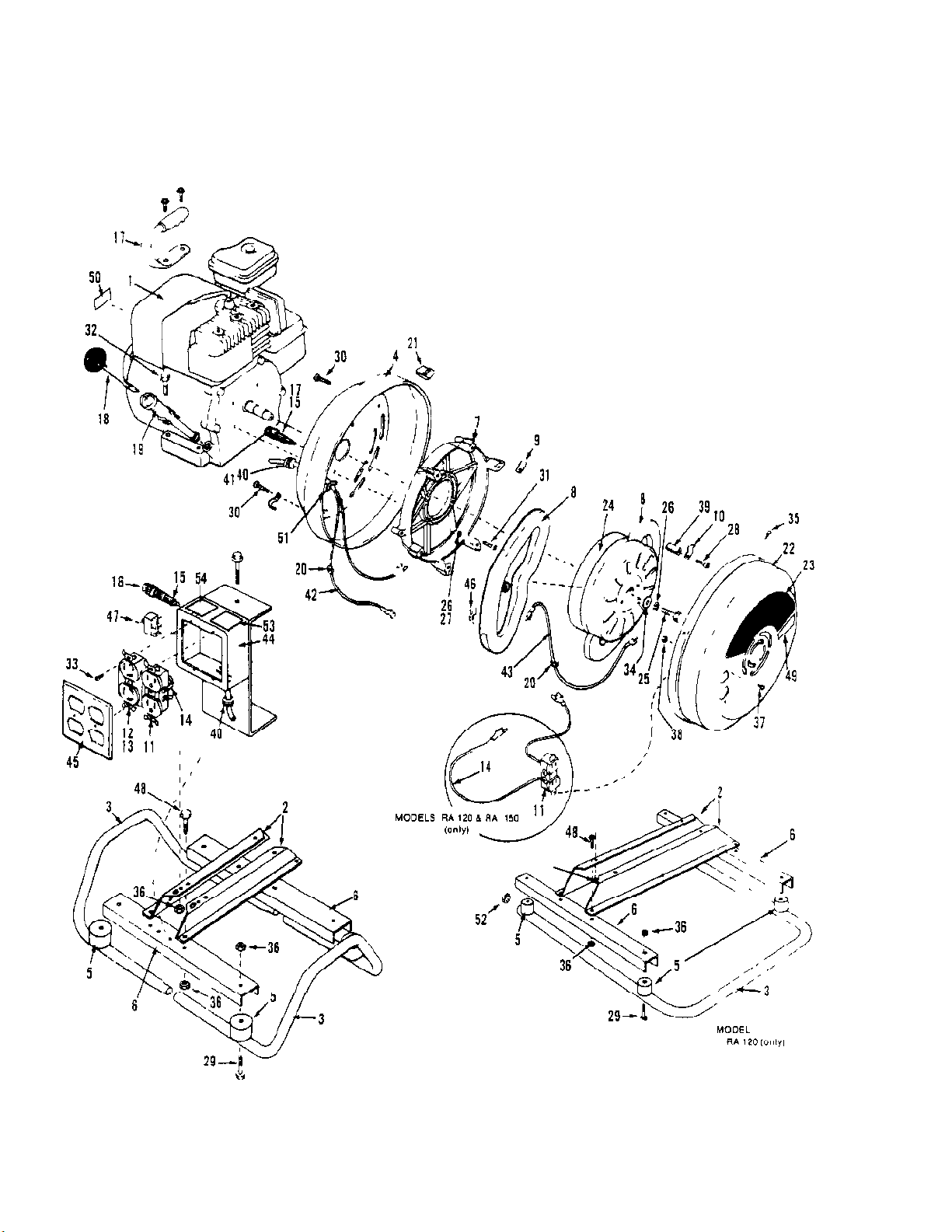

Ref # Part Number DescriptionQty
1 21785 Engine (S/N 11-)
1 210499 Engine (S/N 12-)1
2 21844 Engine Rail Not used on this Model2
3 21862 Cradle - Tube Base Not used on this Model1
4 21681 Cover - Back1
5 21804 Isolator Not used on this Model4
6 21845 Channel - Isolator Not used on this Model2
7 22093 Mount - Stator1
8 21866 Half - Stator2
9 21884 Shim - 1/321
9 21885 Shim - 1/161
10 21850 Springs - Holding6
11 21150 Receptacle - 110V Not used on this Model1
12 Twist - Receptacle - 110V Not used on this Model
13 21628 Receptacle - 220V1
14 21709 Harness - Wiring Not used on this Model1
15 21270 Holder - Fuse2
16 21280 Fuse2
17 Handle Assembly Not used on this Model
18 Dipstick Not used on this Model
19 Bracket - Dipstick Not used on this Model
20 21643 Keeper - Wire6
21 21726 Nut - Speed4
22 21690 Cover - Front1
23 21868 Decal - Front Cover1
24 21103 Rotor (S/N 11-)1
24 22089 Rotor (S/N 12-)1
25 21143 Capscrew (S/N 11-)1
25 22090 Capscrew (S/N 12-)1
26 Lockwasher - 5/16
26 Retaining Bolts Engine to Back Cover Torque Value
120 - 144 In.-Lbs. ; Not used on this Model
27 21130 Lockwasher - 3/85
27 Casting Retaining Bolt Torque Value 60 - 70 In.-Lbs.
28 21950 Capscrew6
28 Rotor Retaining Screws Torque Value 240 - 246
In.-Lbs.
29 21876 Bolt - Cv. hd. 5/16-18 x 1-1/24
29 Stator Retaining Screws Torque Value 55 - 60
In.-Lbs. ; Not used on this Model
30 22070 Screw - Thd form. 1/4-20 x 3/44
31 21003 Capscrew - Hx hd.4
32 21878 Capscrew - Hx hd.4
32 Engine Head Bolts Torque Value 165 In.-Lbs.
33 21703 Screw - Truss hd. #84
34 22092 Washer - Flat1
35 21650 Screw - Pn. hd. #84
36 21653 Nut - Keps 5/16-18 Not used on this Model14
37 Screw - Rd. hd. 8-32 x 1/2 Not used on this model
38 Nut - Keps 8-32 Not used on this model
39 21860 Bushings - Stator6
40 21789 Grommet - Strain Relief2
41 Grommet - Rubber Not used on this model
42 21864 Wire Cable
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400472D RA-330 04/79 to 12/79 IPL 22143-R1 Page 3 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
43 Jumper Wire Not used on this model
44 21943 Box & Bracket1
45 21632 Cover - Receptacle1
46 Tab - Fast on Not used on this model
47 21971 Switch - DPDT1
48 21647 Capscrew - Hx hd. 5/16-18 x 1 Not used on this
49 21922 Label - Wattage1
50 21926 Label - Engine1
51 Clip - Butterfly Not used on this model
52 Plug - Hole Not used on this Model
53 21696 Label - 110V2
54 21697 Label - 220V2
21502 Propane Conversion Kit
21881 Tool Kit Complete
21880 Rotor Holding Wrench Special tools
21925 Stator Clearance Gage Special tools
21877 Stator Shim Gage Special tools
21509 Rotor Gap Gage Special tools
21882 Rotor Pulley Bolt (8" Rotor) Special tools
21883 Rotor Pulley Bolt (9 1/2" Rotor) Special tools
22145 Puller Bolt Pilot Special tools
22136 Stator Shims 3/64"
22137 Stator Shims 5/64"
22138 Stator Shims 3/32"
22139 Stator Shims 7/64"
22140 Stator Shims 1/8"
22141 Stator Shims 9/64"
392195 Spark Arrester Equipment for Generator
4
Model
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400472D RA-330 04/79 to 12/79 IPL 22143-R1 Page 4 of 4
www.ktoutdoor.com

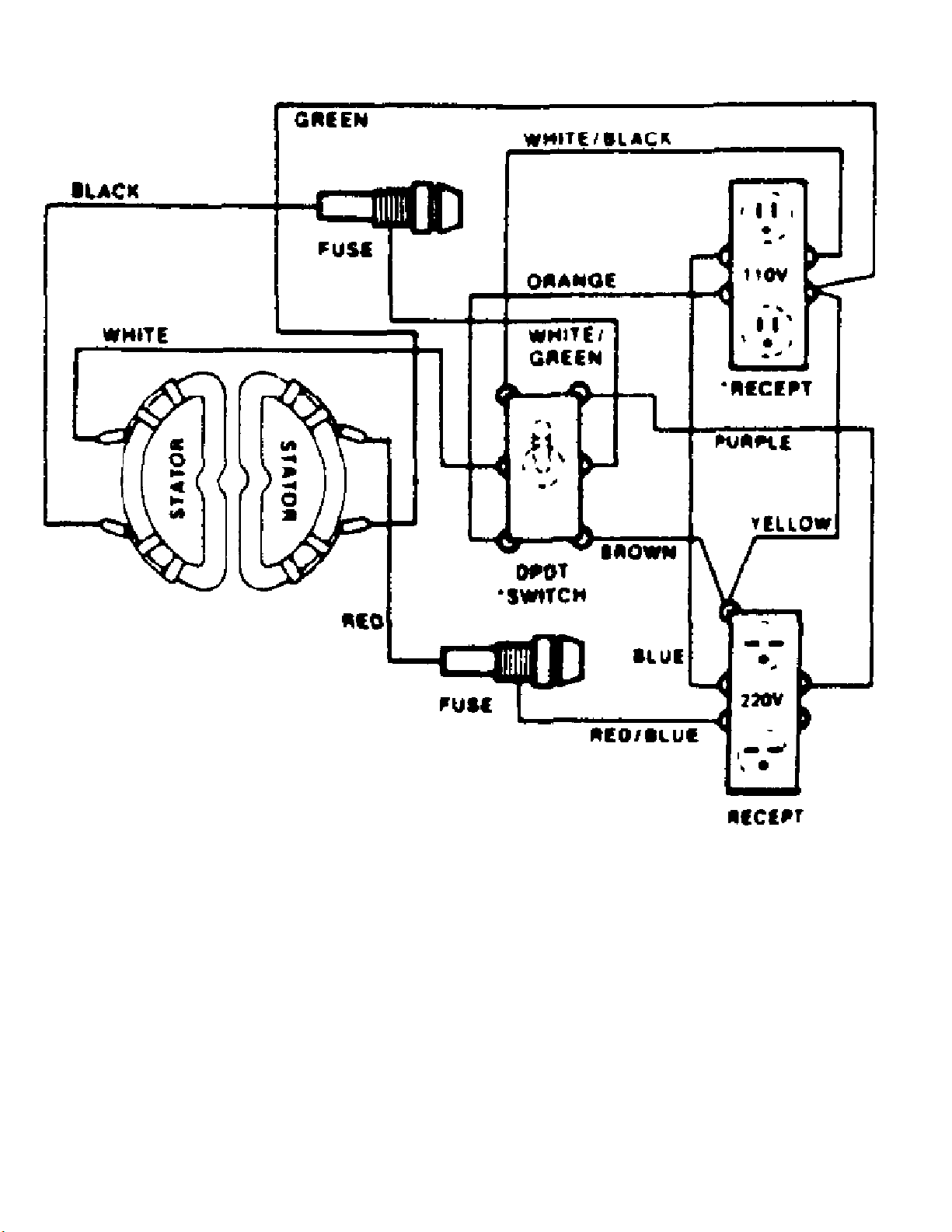

Wiring Schematic
