Page 1

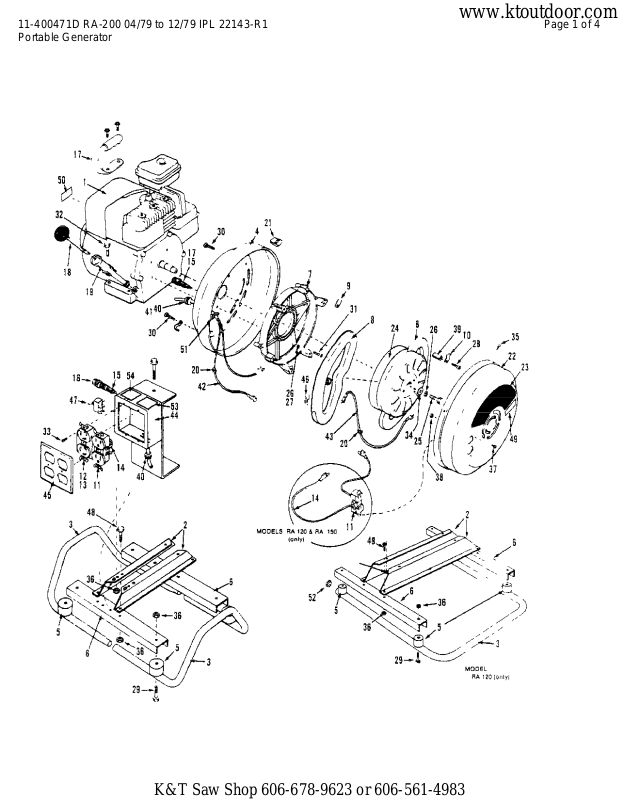

11-400471D RA-200 04/79 to 12/79 IPL 22143-R1 Page 1 of 4
www.ktoutdoor.com

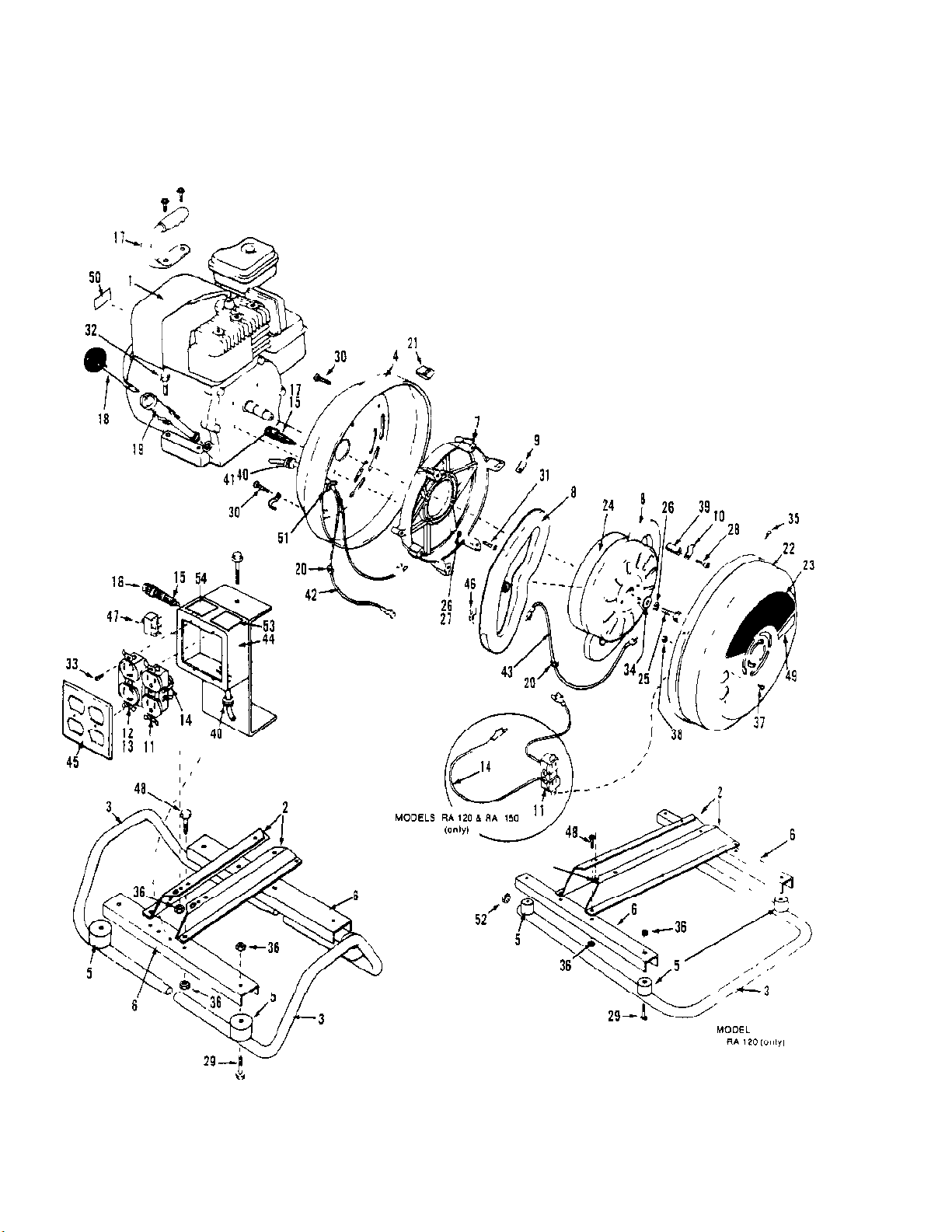

Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400471D RA-200 04/79 to 12/79 IPL 22143-R1 Page 2 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
1 21784 Engine (S/N 11-)
1 210498 Engine (S/N 12-)1
2 21844 Engine Rail Not used on this Model2
3 21901 Cradle - Tube Base Not used on this Model1
4 21602 Cover - Back1
5 21804 Isolator Not used on this Model4
6 21845 Channel - Isolator Not used on this Model2
7 22094 Mount - Stator1
8 21848 Half - Stator2
9 21884 Shim - 1/321
9 21885 Shim - 1/161
10 21850 Springs - Holding6
11 21150 Receptacle - 110V Not used on this Model1
12 21625 Twist - Receptacle - 110V1
13 21628 Receptacle - 220V Not used on this model1
14 21620 Harness - Wiring Not used on this Model1
15 21270 Holder - Fuse1
16 21281 Fuse1
17 21671 Handle Assembly Not used on this model
18 21853 Dipstick1
19 21854 Bracket - Dipstick1
20 21643 Keeper - Wire6
21 21726 Nut - Speed4
22 21612 Cover - Front1
23 21856 Decal - Front Cover1
24 21731 Rotor (S/N 11-)1
24 22131 Rotor (S/N 12-)1
25 21857 Capscrew (S/N 11-)1
25 22090 Capscrew (S/N 12-)1
26 21657 Lockwasher - 5/164
26 Retaining Bolts Engine to Back Cover. Torque Value
120 - 144 In.-Lbs.
27 21130 Lockwasher - 3/81
27 Casting Retaining Bolt. Torque Value 60 - 70 In.-Lbs.
28 21950 Capscrew6
28 Rotor Retaining Screws. Torque Value 240 - 246
In.-Lbs.
29 21876 Bolt - Cv. hd. 5/16-18 x 1-1/2 Not used on this model4
29 Stator Retaining Screws. Torque Value 55 - 60
In.-Lbs.
30 22070 Screw - Thd form. 1/4-20 x 3/43
31 22068 Capscrew - Hx hd.4
32 21878 Capscrew - Hx hd.4
32 Engine Head Bolts Torque Value 140 In.-Lbs.
33 21703 Screw - Truss hd. #84
34 22132 Washer - Flat1
35 21650 Screw - Pn. hd. #84
36 21653 Nut - Keps 5/16-18 Not used on this model12
37 Screw, Rd. 8-32 x 1/2 Not used on this model
38 Nut - Keps 8-32 Not used on this model
39 21860 Bushings - Stator6
40 21851 Grommet - Strain Relief1
41 21642 Grommet - Rubber1
42 21867 Wire Cable1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400471D RA-200 04/79 to 12/79 IPL 22143-R1 Page 3 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
43 22098 Jumper Wire2
44 21907 Box & Bracket1
45 21632 Cover - Receptacle1
46 21874 Tab - Fast on2
47 Switch - DPDT
48 21647 Capscrew - Hx hd. 5/16-18 x 1 Not used on this
49 21921 Label - Wattage1
50 21926 Label - Engine1
51 21767 Clip - Butterfly1
52 Plug - Hole Not used on this model
53 Label - 110V Not used on this model
54 Label - 220V Not used on this model
21708 Propane Conversion Kit
21881 Tool Kit Complete
21880 Rotor Holding Wrench Special tools
21925 Stator Clearance Gage Special tools
21877 Stator Shim Gage Special tools
21509 Rotor Gap Gage Special tools
21882 Rotor Pulley Bolt (8" Rotor) Special tools
21883 Rotor Pulley Bolt (9 1/2" Rotor) Special tools
22145 Puller Bolt Pilot Special tools
22136 Stator Shims 3/64"
22137 Stator Shims 5/64"
22138 Stator Shims 3/32"
22139 Stator Shims 7/64"
22140 Stator Shims 1/8"
22141 Stator Shims 9/64"
392195 Spark Arrester Equipment for Generator
4
model
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400471D RA-200 04/79 to 12/79 IPL 22143-R1 Page 4 of 4
www.ktoutdoor.com

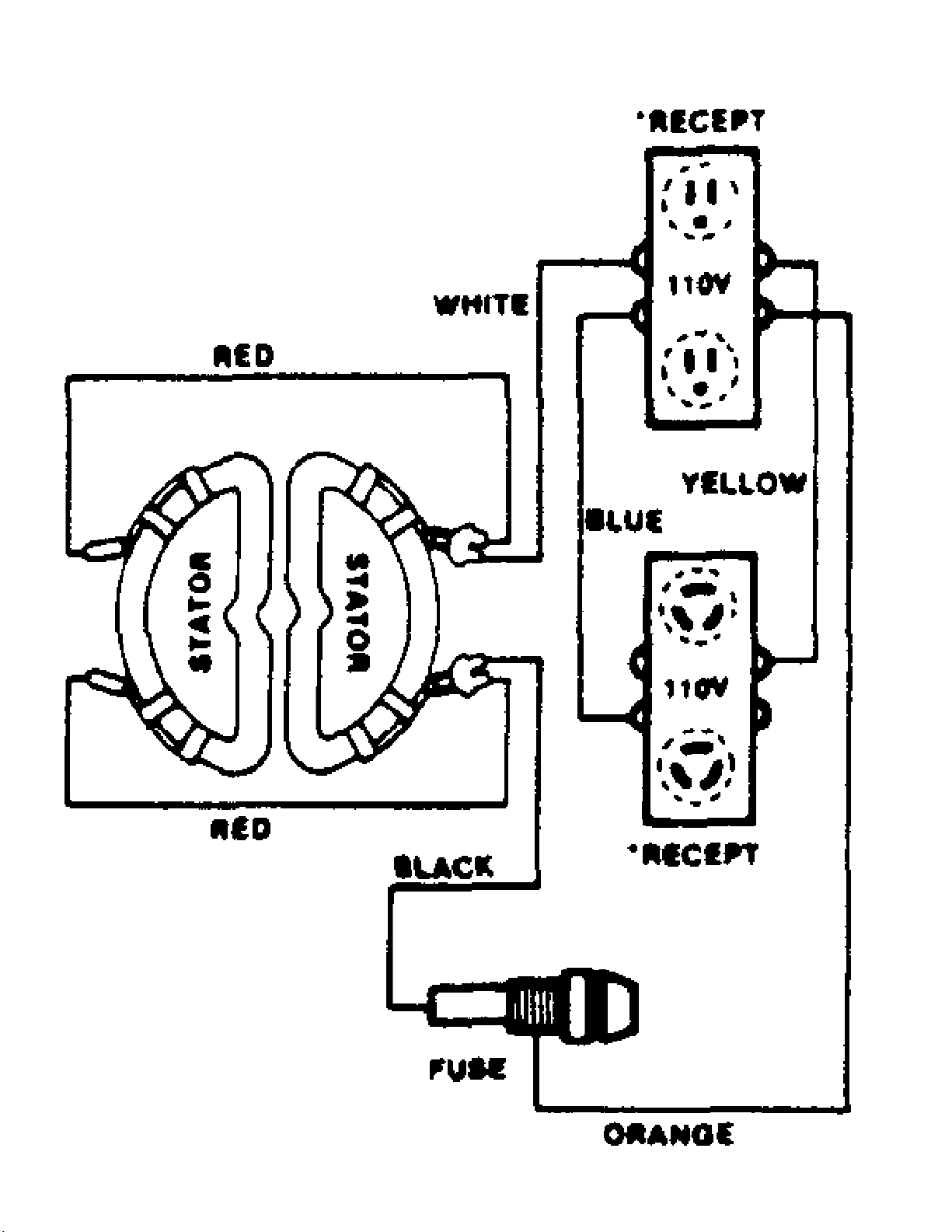

Wiring Schematic
K&T Saw Shop 606-678-9623 or 606-561-4983
