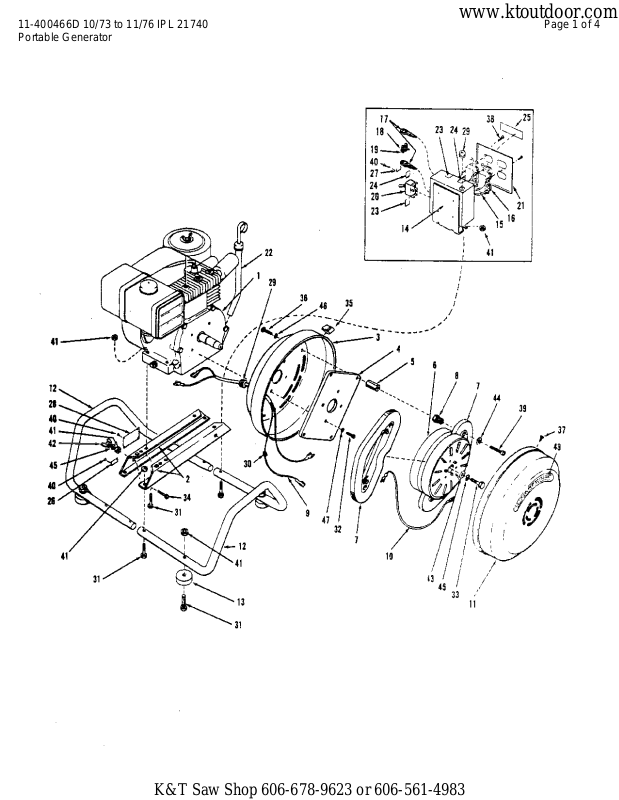

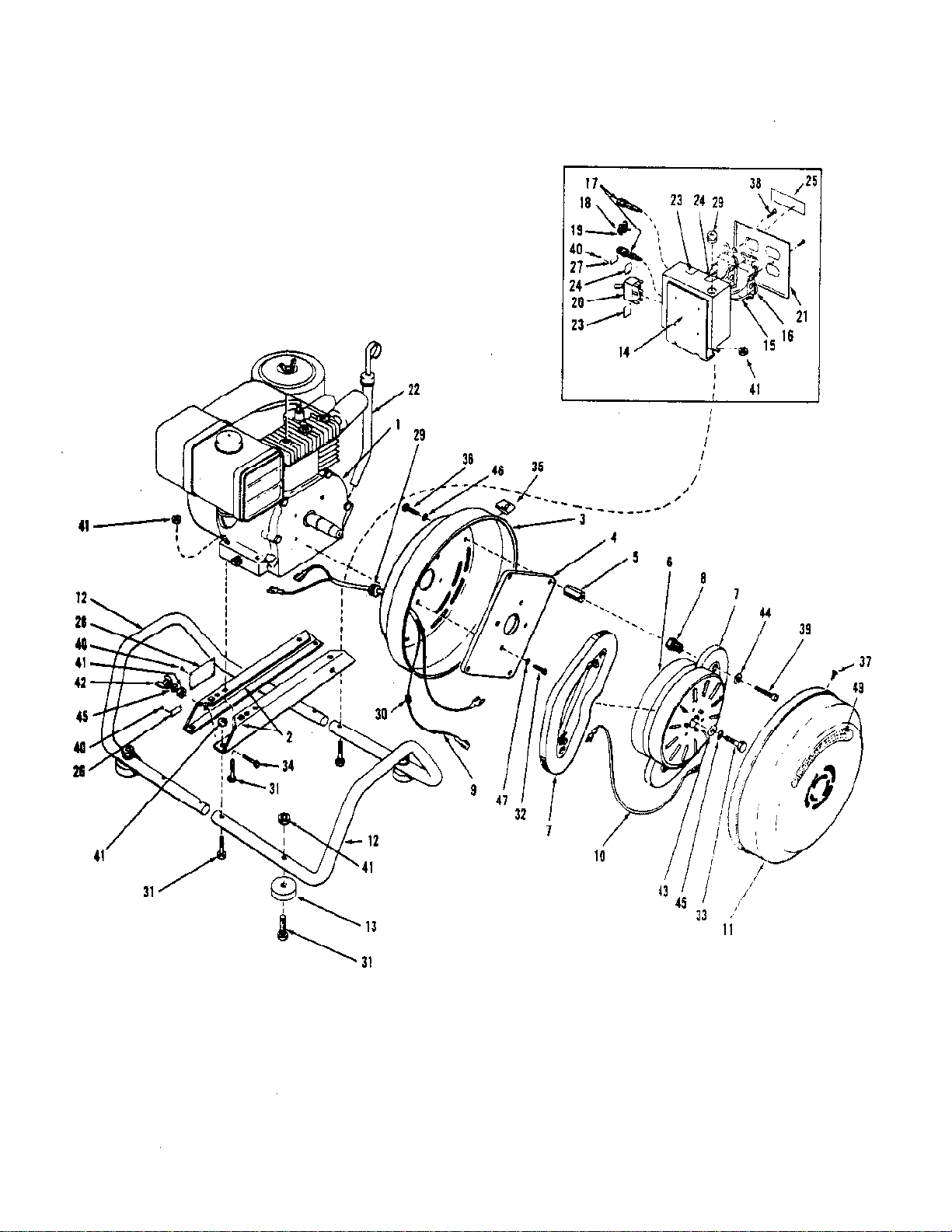

Page 1
11-400466D 10/73 to 11/76 IPL 21740 Page 1 of 4
www.ktoutdoor.com
Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400466D 10/73 to 11/76 IPL 21740 Page 2 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
1 21043 Engine Assy.1
2 21601 Rail Assy.2
3 21681 Cover, Back1
4 21682 Plate, Stator Support1
5 21683 Post, Stator Support4
6 21103 Rotor Assy.1
7 21685 Stator Assy. Half2
8 21608 Screw, Adjusting4
9 21687 Wire Cable Assy.1
10 Wire, Jumper Not used on this model
11 21690 Cover, Front1
12 21613 Cradle Frame Assy.1
13 21190 Mount, Rubber4
14 21712 Rcpt. Box Brckt. Assy.1
15 21693 Wire Harness Set1
21621 Wire Harness Set1
16 21392 Rcpt. 230V Dplx. Sld.1
17 21270 Holder, Fuse2
18 21290 Holder, Spare Fuse1
19 21280 Fuse, ABC 15A4
20 21402 Switch, DPDT1
21 21632 Cover, Rcpt. Domestic1
22 21695 Tube, Oil Fill & Dip Stick1
23 21697 Tag, "220 Volt"1
24 21696 Tag, "110 Volt"1
25 Tag, Voltage I.D. Not used on this model
26 21638 Tag, Ground1
27 Tag, "Fuse 15 Amp" Not used on this model
28 21640 Tag, Serial Number1
29 21700 Grommet2
30 21643 Keeper, Wire5
31 21050 Capscrew, 5/16-18 x 1-1/212
32 21003 Capscrew, 3/8-16 x 14
32 Retaining Bolts Engine to Back Cover Torque Value
216-240 in/lbs
33 21143 Capscrew, 5/16-24 x 1-1/21
33 Rotor Retaining Bolt Torque Value 240-264 in/lbs
34 21647 Capscrew, 5/16-18 x 11
35 21726 Speed Nut4
36 21649 Capscrew, 1/4-20 x 14
36 Stator Post Retaining Bolt Torque Value 120-140
in/lbs
37 21650 Screw, Pan Head Phillips #84
38 21703 Screw, Truss Head Slotted #84
39 21651 Screw, Socket Head 1/4-20 x 1-1/44
39 Stator Retaining Screw Torque Value 55-60 in/lbs
40 Screw, Drive #2 x 1/4 Type U Not used on this model
41 21080 Nut, Keps 5/16-1813
42 21654 Nut, Wing 5/16-181
43 21704 Washer, Flat 5/16 x 1/4 thick1
44 21656 Washer, Flat 1/4 x 1/8 thick4
45 21725 Lock Washer, Star 5/162
46 21030 Washer, Lock 1/44
47 21130 Washer, Lock 3/84
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400466D 10/73 to 11/76 IPL 21740 Page 3 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
48 21740 Parts List Illustrated1
49 21727 Decal, McCulloch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400466D 10/73 to 11/76 IPL 21740 Page 4 of 4
www.ktoutdoor.com

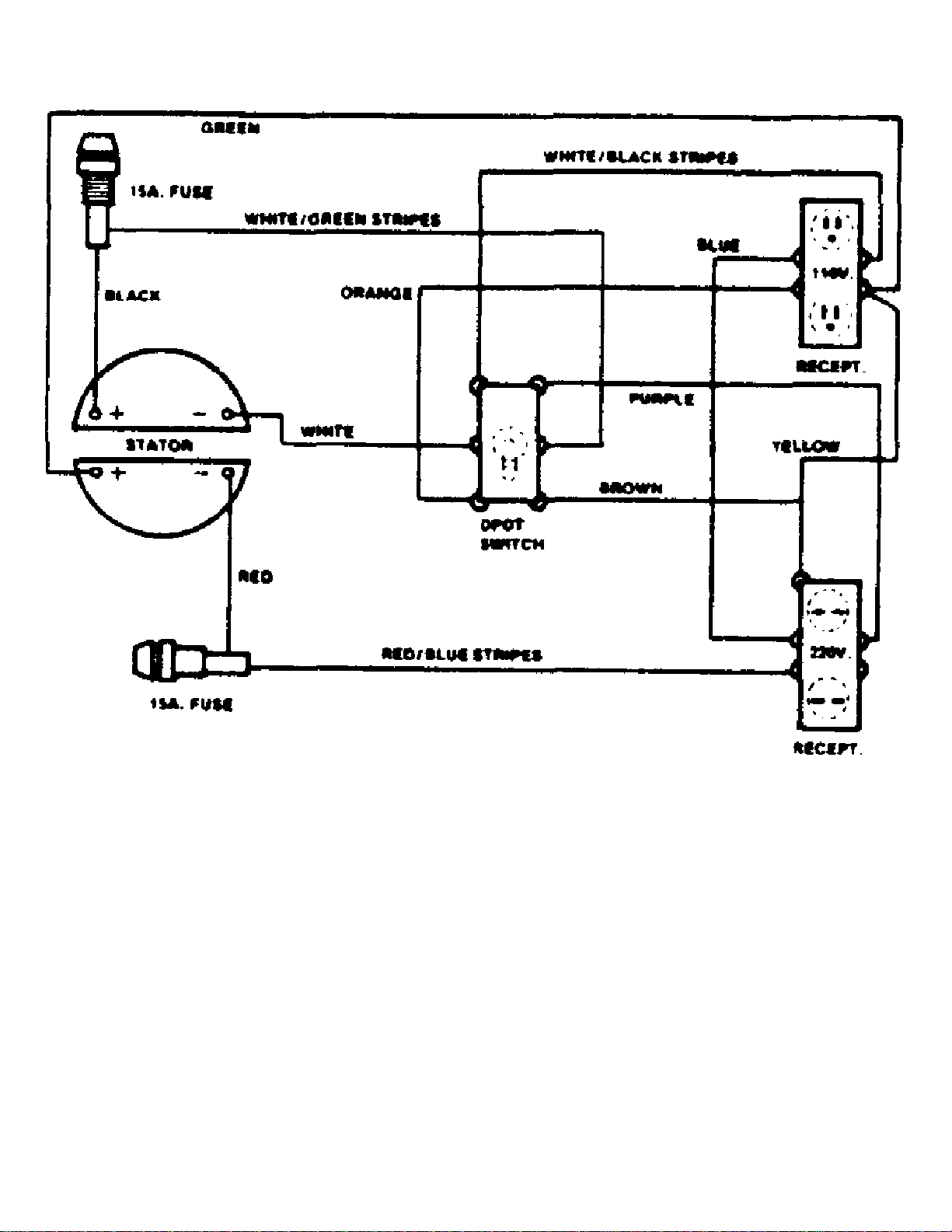

Wiring Schematic
