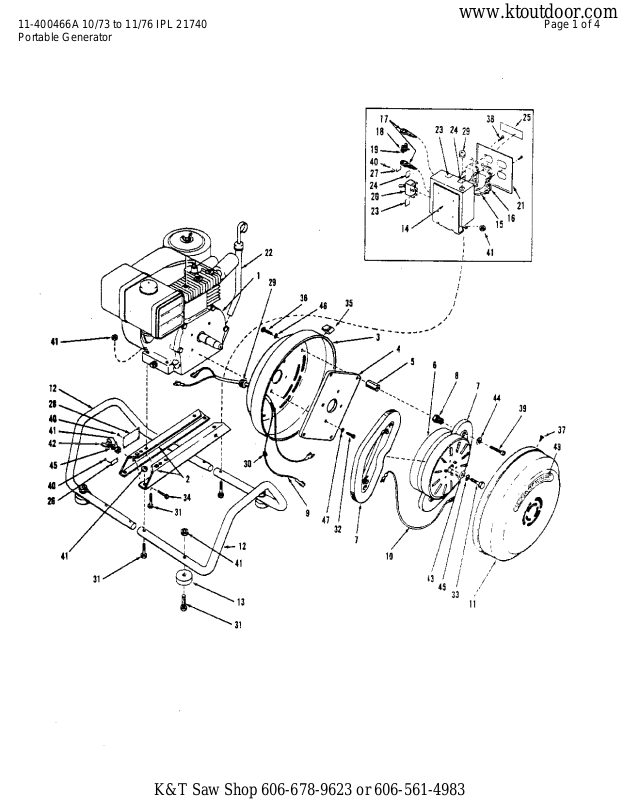

11-400466A 10/73 to 11/76 IPL 21740 Page 1 of 4
www.ktoutdoor.com
Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400466A 10/73 to 11/76 IPL 21740 Page 2 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
1 21043 Engine Assy.1
2 21601 Rail Assy.2
3 21681 Cover, Back1
4 21682 Plate, Stator Support1
5 21683 Post, Stator Support4
6 21103 Rotor Assy.1
7 21713 Stator Assy. Half2
8 21608 Screw, Adjusting4
9 21686 Wire Cable Assy.1
10 21689 Wire, Jumper1
11 21690 Cover, Front1
12 21613 Cradle Frame Assy.1
13 21190 Mount, Rubber4
14 21712 Rcpt. Box Brckt. Assy.1
15 21617 Wire Harness Set1
16 21150 Rcpt. 115V Dplx. Std.1
21626 Rcpt. 230V Australian1
17 21270 Holder, Fuse1
18 21290 Holder, Spare Fuse1
19 21723 Fuse, ABC 10A3
20 Switch, DPDT Not used on this model
21 21634 Cover, Rcpt. Aust.1
22 21695 Tube, Oil Fill & Dip Stick1
23 Tag, "220 Volt" Not used on this model
24 Tag, "110 Volt" Not used on this model
25 Tag, Voltage I.D. Not used on this model
26 21638 Tag, Ground1
27 Tag, "Fuse 15 Amp" Not used on this model
28 21640 Tag, Serial Number1
29 21642 Grommet2
30 21643 Keeper, Wire5
31 21050 Capscrew, 5/16-18 x 1-1/212
32 21003 Capscrew, 3/8-16 x 14
32 Retaining Bolts Engine to Back Cover Torque Value
216-240 in./lbs
33 21143 Capscrew, 5/16-24 x 1-1/21
33 Rotor Retaining Bolt Torque Value 240-264 in./lbs
34 21647 Capscrew, 5/16-18 x 11
35 21726 Speed Nut4
36 21649 Capscrew, 1/4-20 x 14
36 Stator Post Retaining Bolt Torque Value 120-140
in./lbs
37 21650 Screw, Pan Head Phillips #84
38 21703 Screw, Truss Head Slotted #84
39 21651 Screw, Socket Head 1/4-20 x 1-1/44
39 Stator Retaining Screw Torque Value 55-60 in./lbs
40 Screw, Drive #2 x 1/4 Type U Not used on this model
41 21080 Nut, Keps 5/16-1813
42 21654 Nut, Wing 5/16-181
43 21704 Washer, Flat 5/16 x 1/4 thick1
44 21656 Washer, Flat 1/4 x 1/8 thick4
45 21725 Lock Washer, Star 5/162
46 21030 Washer, Lock 1/44
47 21130 Washer, Lock 3/84
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400466A 10/73 to 11/76 IPL 21740 Page 3 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty

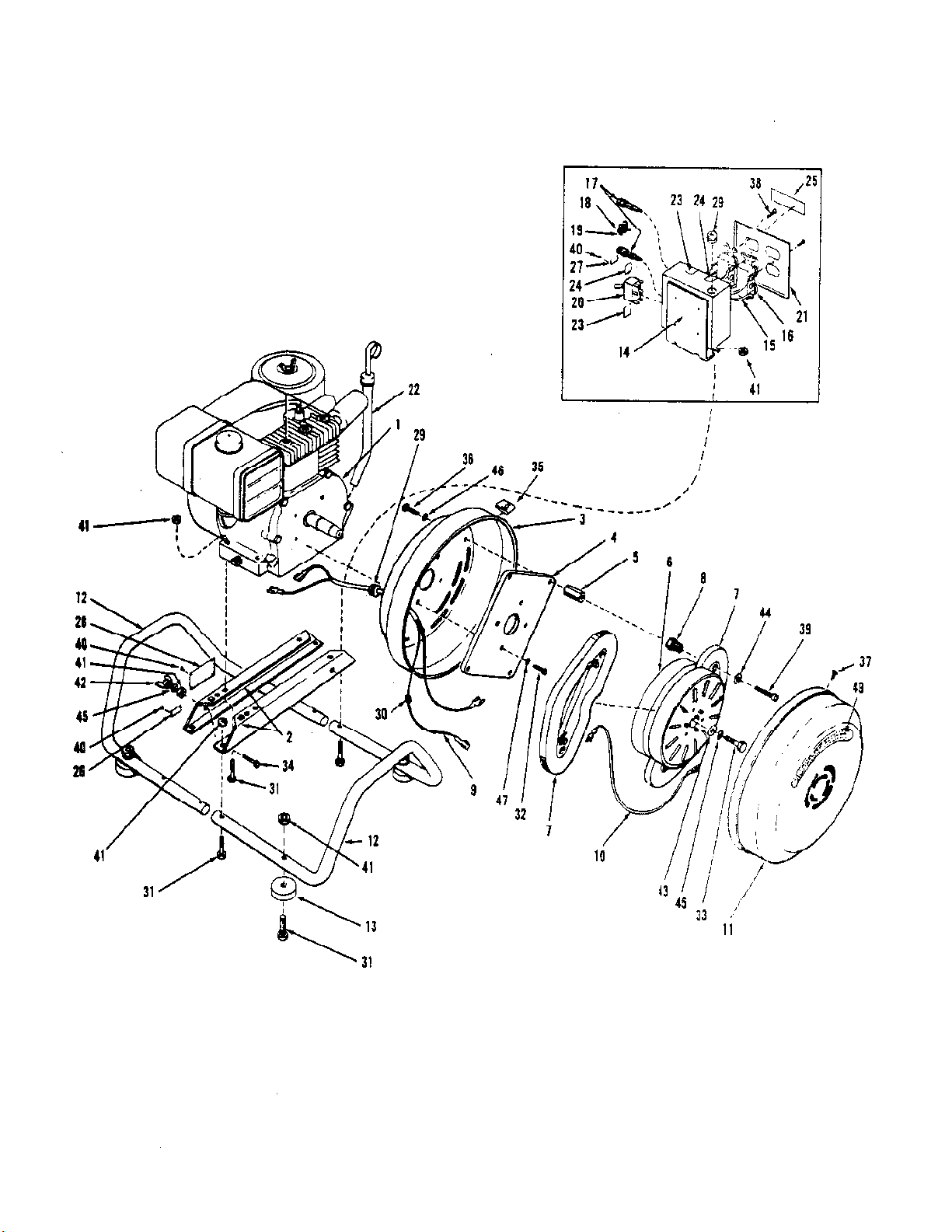

48 21740 Parts List Illustrated1
49 21727 Decal, McCulloch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400466A 10/73 to 11/76 IPL 21740 Page 4 of 4
www.ktoutdoor.com

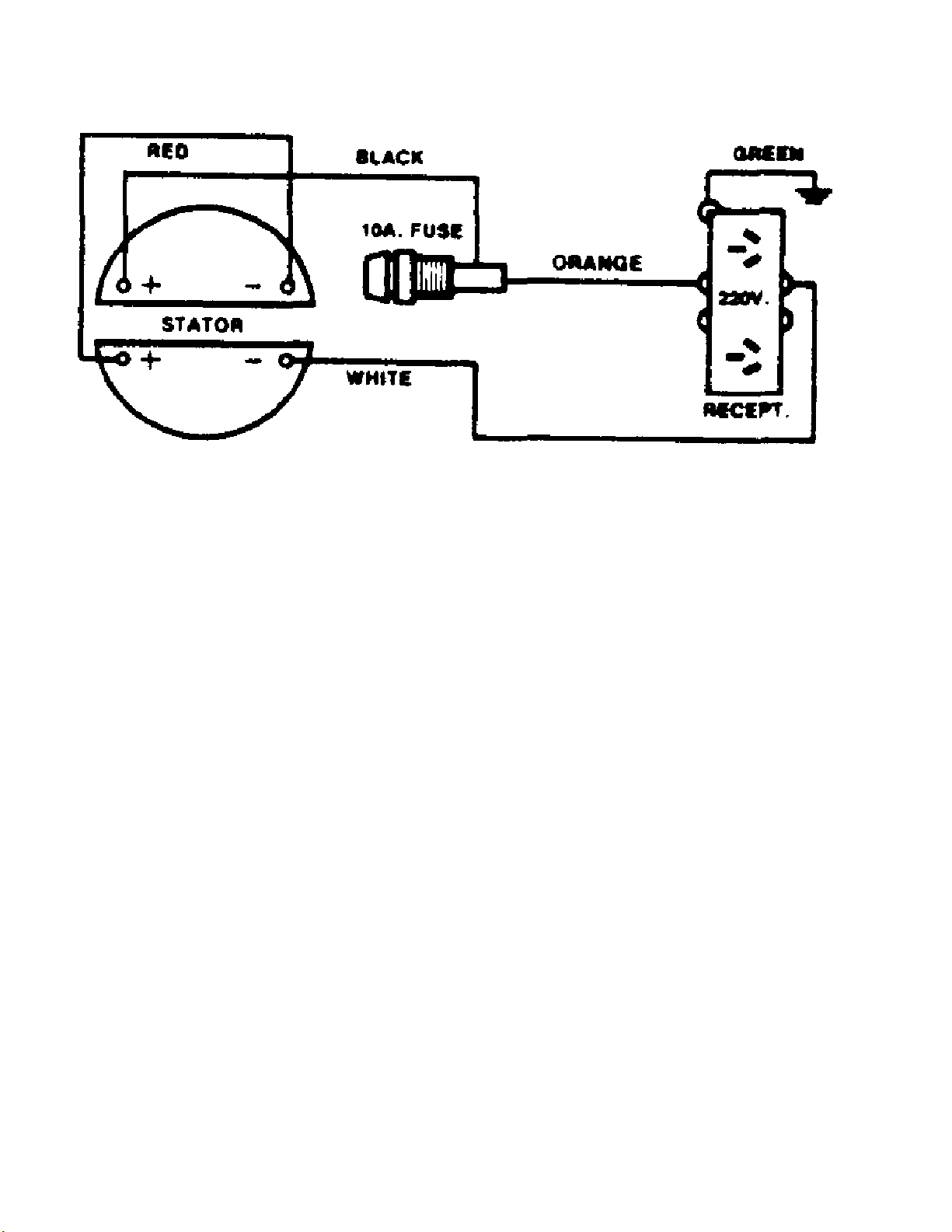

Wiring Schematic
