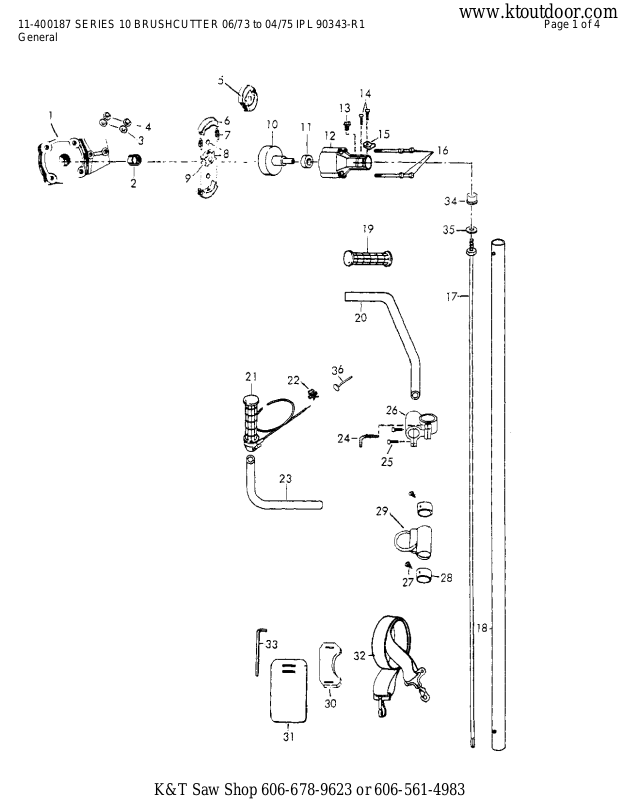

11-400187 SERIES 10 BRUSHCUTTER 06/73 to 04/75 IPL 90343-R1 Page 1 of 4
www.ktoutdoor.com
General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2

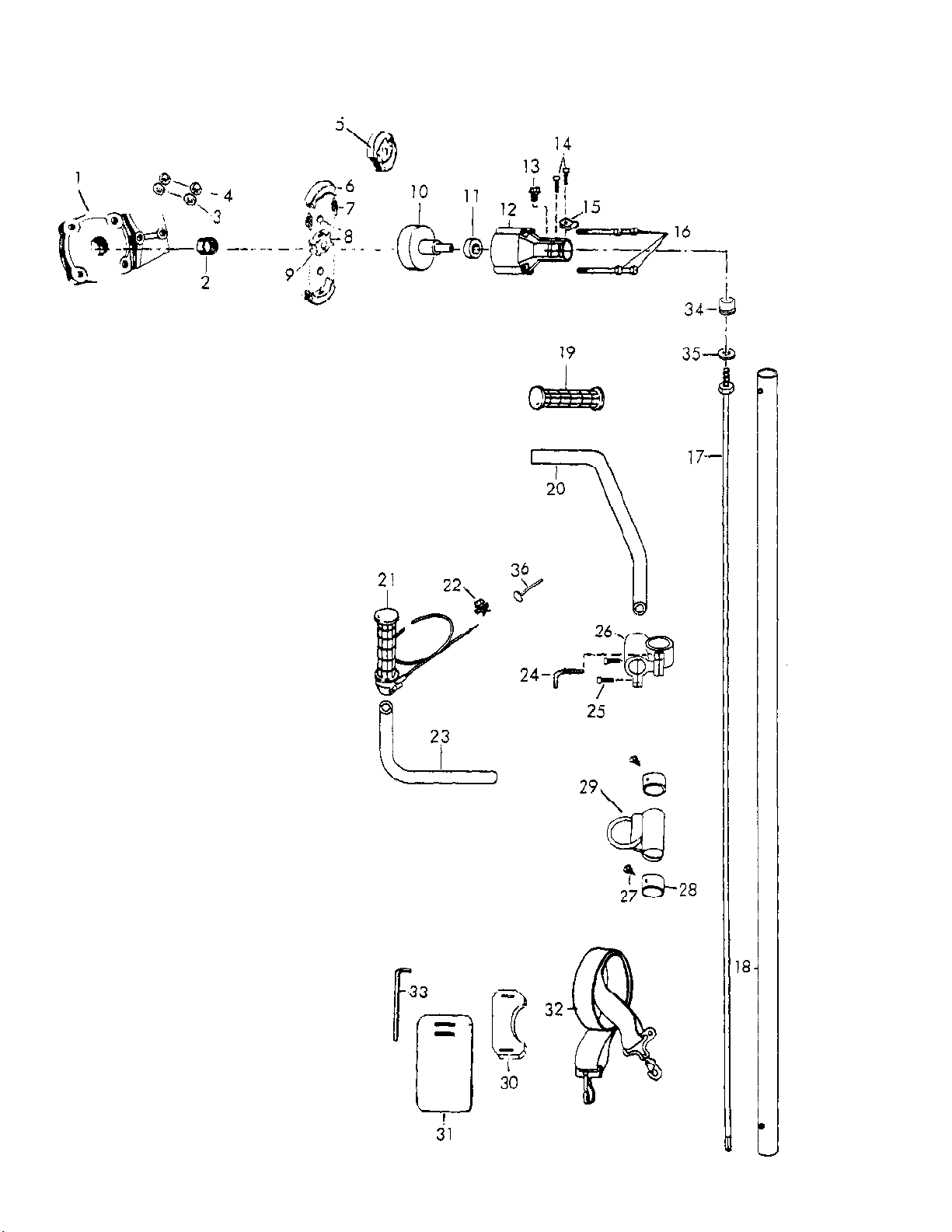

11-400187 SERIES 10 BRUSHCUTTER 06/73 to 04/75 IPL 90343-R1 Page 2 of 4
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 90297 Plate - Adaptor1
2 101206 Bearing - Needle1
3 110879 Washer - 5/162
4 100682 Nut - 5/16-242
5 90302 Clutch Assy1
6 90298 Shoe - Clutch2
7 90299 Spring - Clutch2
8 90300 Keeper - Clutch shoe2
9 90301 Hub - Clutch1
10 90304 Drum - Clutch1
11 90332 Bearing - Ball1
12 90306 Housing - Clutch (w/bearing)1
13 106012 Screw - Hex hd 1/4-20 x 3/8 SEMS1
14 105911 Screw - Skt hd 5/16-18 x 1
15 90307 Clip - Throttle control1
16 90308 Screw - Hex hd 5/16-18 x 2-1/44
17 90309 Shaft - Main drive1
18 90310 Housing - Driveshaft1
19 90325 Grip - Handle (left hand)1
20 90324 Handle bar (left hand)1
21 90319 Twist grip - Throttle control1
22 90321 Clamp - Throttle control1
23 90320 Handle bar (right hand)1
24 90322 Clamp bolt - Handle bar1
25 105911 Screw - Skt hd 5/16-18 x 12
26 90323 Clamp - Handle bar1
27 90317 Screw - Pan hd 8-32 x 3/82
28 90318 Keeper - Swivel2
29 90316 Swivel - Shoulder strap1
90315 Shoulder Strap Assy1
30 90313 Pad - Shoulder1
31 90312 Guard - Leg1
32 90314 Strap - Shoulder1
33 90311 Wrench - Allen 7/321
34 90742 Bushing1
35 90341 Washer - Special1
36 90743 Limiter - Throttle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3

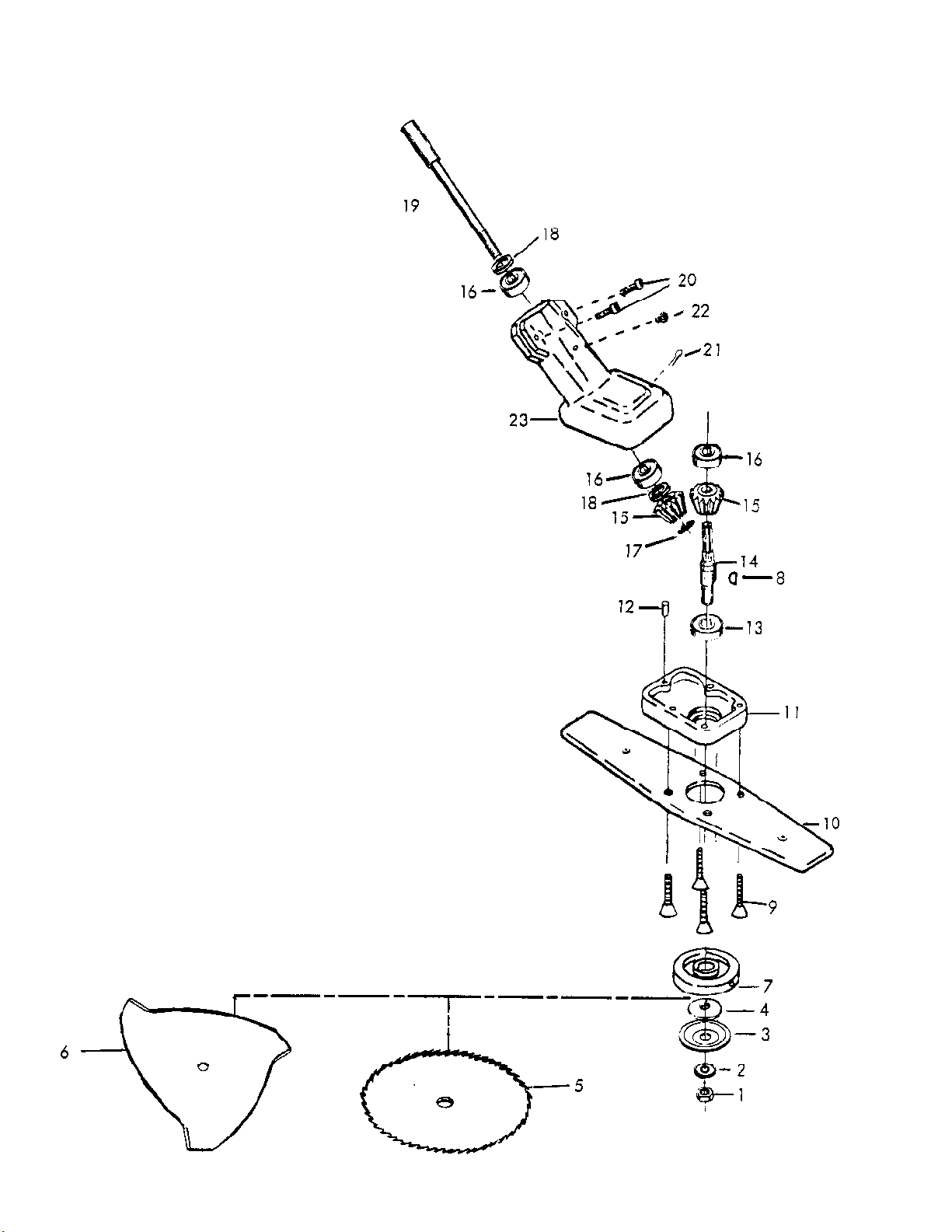

11-400187 SERIES 10 BRUSHCUTTER 06/73 to 04/75 IPL 90343-R1 Page 3 of 4
www.ktoutdoor.com
Lower Head
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400187 SERIES 10 BRUSHCUTTER 06/73 to 04/75 IPL 90343-R1 Page 4 of 4
www.ktoutdoor.com
Lower Head
Ref # Part Number DescriptionQty
1 101492 Nut - Hex hd 1/2-201
2 101320 Washer - 1/21
3 90337 Washer - Lower arbor1
4 90340 Washer - Friction arbor1
5 90338 Blade - 10 in. Saw
6 90339 Blade - Weed
7 90335 Driver - Blade1
8 100256 Key - Woodruff1
9 90336 Screw - Skt hd Cap 1/4-20 x 1-1/44
10 90334 Guard - Blade1
11 90333 Housing - Lower gear1
12 103653 Pin - Groove1
13 90332 Bearing - Ball
14 90331 Shaft Assy - Lower1
15 90329 Gear - Bevel2
16 90328 Bearing - Ball3
17 90330 Ring - Retainer1
18 90341 Washer - Special2
19 90326 Shaft Assy - Pinion1
20 105911 Screw - Skt hd 5/16-18 x 12
21 101496 Pin - Cotter1
22 106012 Screw - Hex hd 1/4-20 x 3/81
23 90327 Housing - Upper Gear1
K&T Saw Shop 606-678-9623 or 606-561-4983
