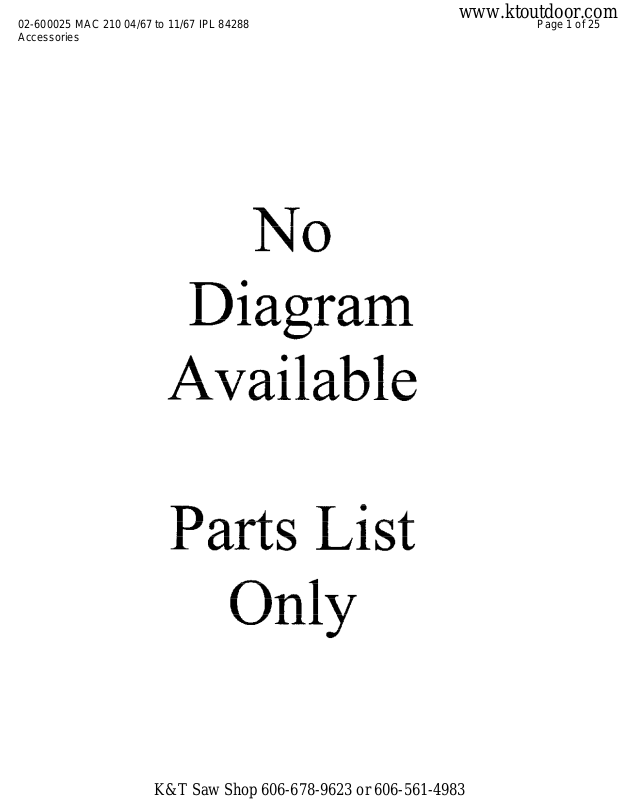

Page 1
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 1 of 25
www.ktoutdoor.com

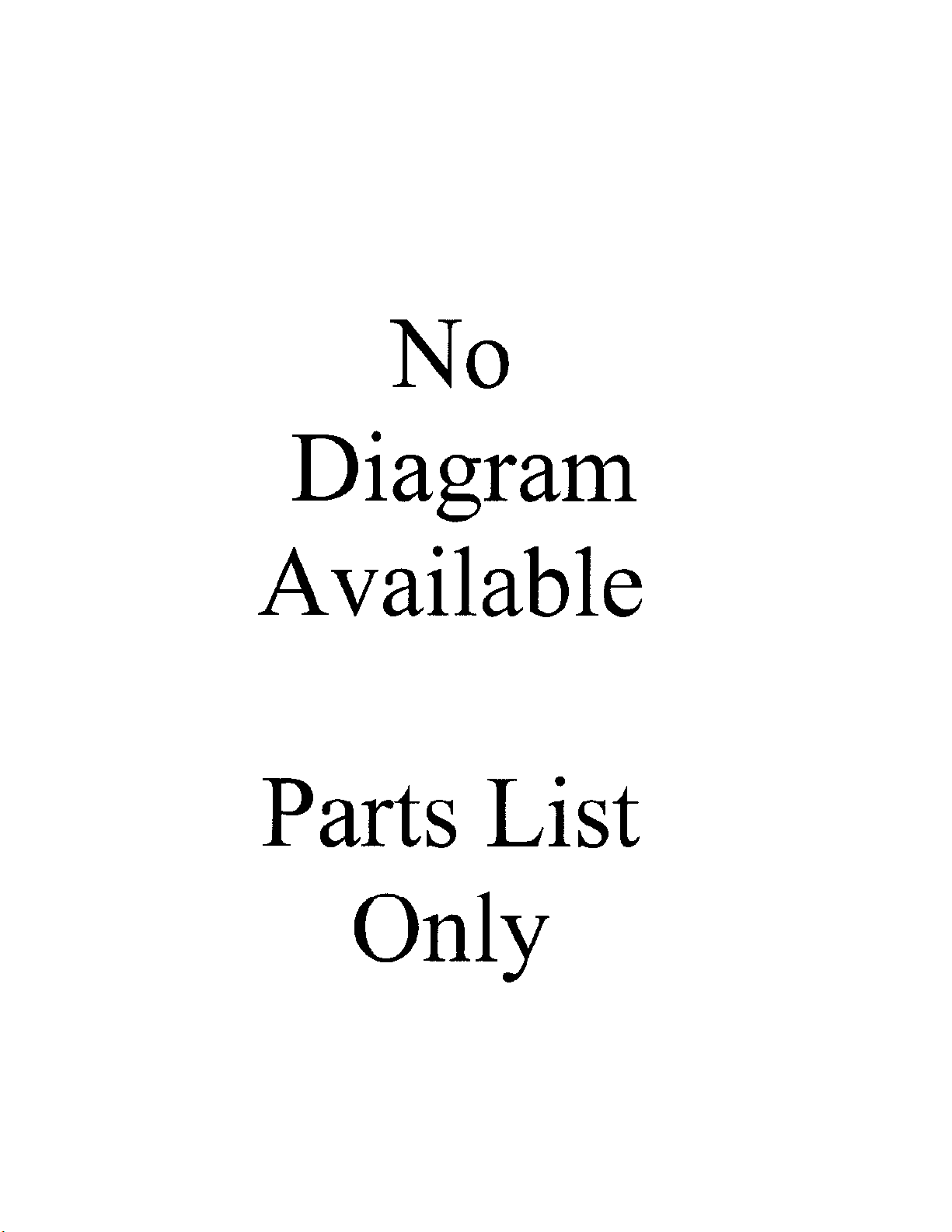

Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 2 of 25
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
83434 Manual - Owner's
62827 Wrench - Screwdriver
63746 Scrench
63341A Kit - Spike
65325 Baffle - Spark arrester
69058 Kit - Wrap-around frame
65712 Guide - Timing
63432 Spark Plug - AC CS 42T
65778 Spark Plug - AC CS 41T
69210 Piston Assy - 0.020 in. oversize
62813 Ring Set - Piston 0.020 in. oversize
103512 Bearing - Needle2
69211 Piston Assy - 0.030 in. oversize
62812 Ring Set - Piston 0.030 in. oversize
103512 Bearing - Needle2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 3 of 25
www.ktoutdoor.com

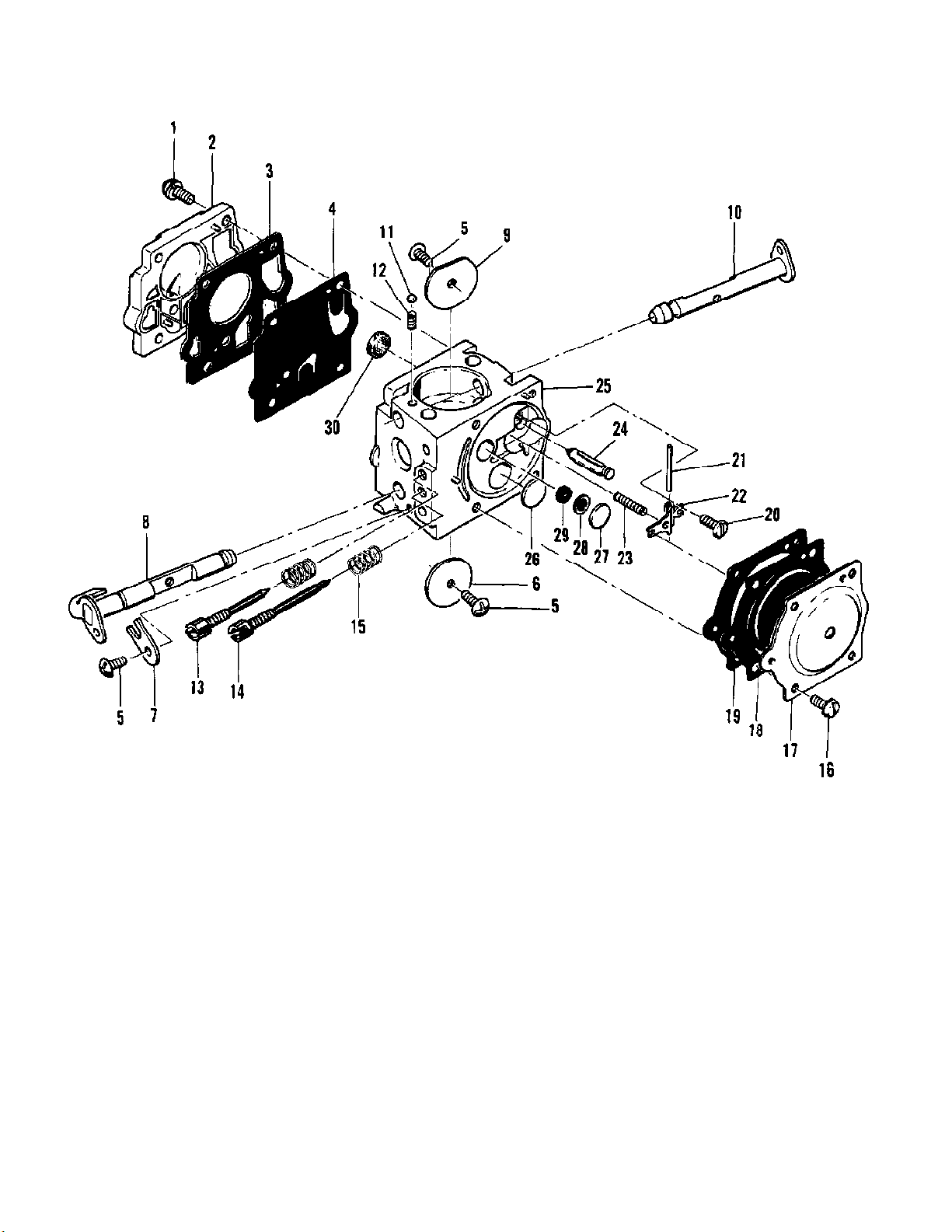

Carburetor (SDC-2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 4 of 25
www.ktoutdoor.com
Carburetor (SDC-2)
Ref # Part Number DescriptionQty
67379 Carburetor Assy (McCulloch SDC-2)1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 83114 Diaphragm - Fuel pump1
5 47690 Screw - Plate3
6 67487 Plate - Throttle1
7 67489 Clip - Shaft1
8 67486 Shaft Assy - Throttle1
9 67490 Plate - Choke1
10 67488 Shaft Assy - Choke1
11 100302 Ball - Choke friction1
12 67504 Spring - Choke1
13 67506 Needle - High speed1
14 67505 Needle - Idle1
15 67502 Spring - Needle2
16 70798 Screw - Diaphragm cover4
17 83761 Cover - Diaphragm1
18 67499 Diaphragm - Metering1
19 67496 Gasket - Diaphragm1
20 67500 Screw - Lever pin1
21 67508 Pin - Lever1
22 67509 Lever - Metering1
23 67503 Spring - Lever1
24 67491 Valve - Needle1
25 67483 Body Assy - Carburetor1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 69203 Seat Assy1
29 69204 Valve1
30 67507 Screen - Fuel1
67482 Gasket Set
67481 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 5 of 25
www.ktoutdoor.com

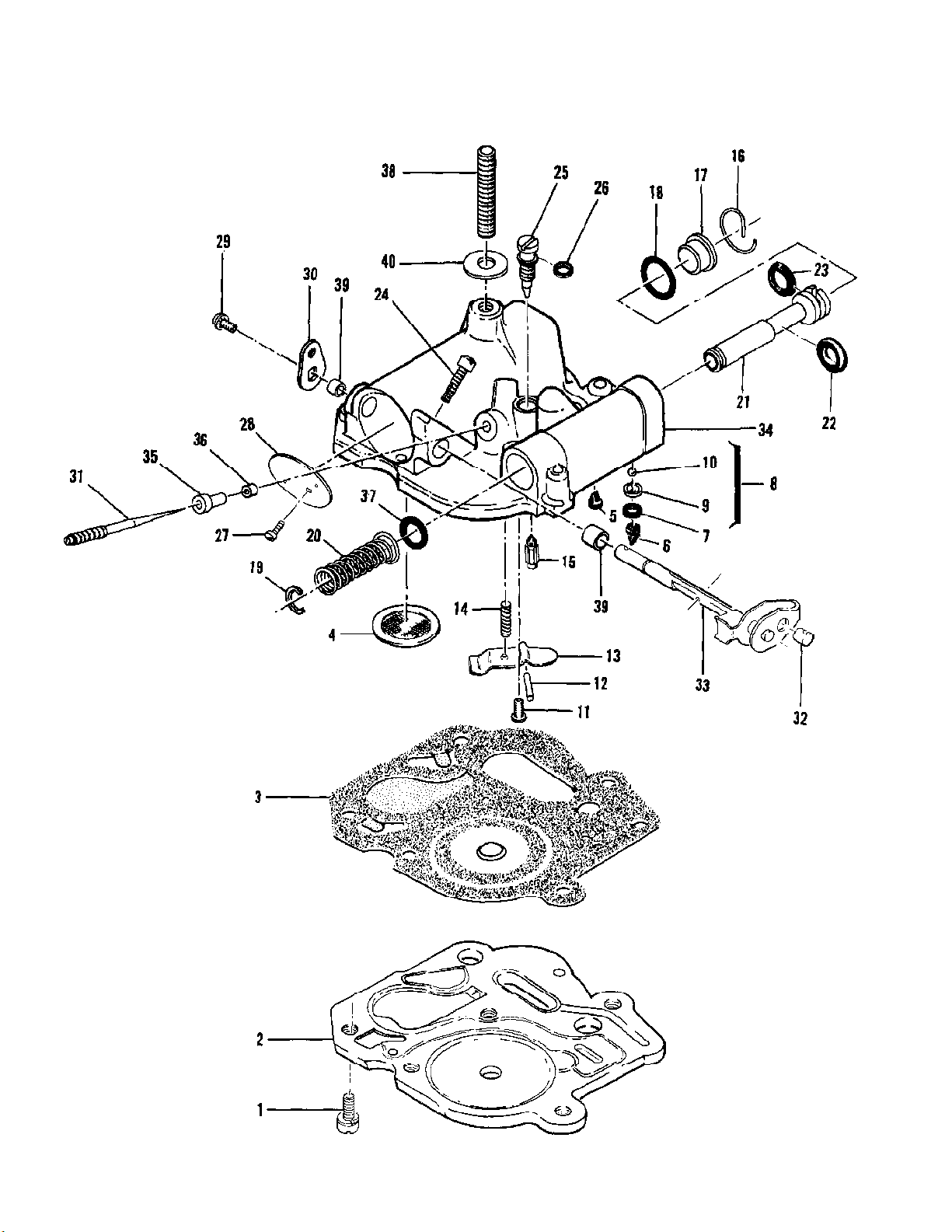

Carburetor Assembly (Double Needle)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 6 of 25
www.ktoutdoor.com
Carburetor Assembly (Double Needle)
Ref # Part Number DescriptionQty
66503 Carburetor Assy (McCulloch Double Needle)1
1 110397 Screw - Pan hd 8-32 x 7/16 (SEMS)5
2 65597 Plate - Carburetor base1
3 67357 Diaphragm Assy - Pump1
4 66796 Seal - Capillary1
5 63041 Valve - Primer1
6 63041 Valve - Primer1
7 106136 Ring1
8 65868 Set - Ball and seat1
9 66153 Seat1
10 61151 Ball1
11 104728 Screw - Bind hd 6-32 x 1/41
12 110337 Pin - Inlet lever1
13 62310 Lever - Inlet1
14 62923A Spring - Inlet lever1
15 63038 Valve - Inlet needle1
16 65677 Retainer - Primer plug1
17 65617 Plug - Primer1
18 105617 "O" Ring1
19 101289 Ring - Retaining1
20 65859 Spring - Plunger1
21 66552 Plunger - Primer1
22 59796 "O" Ring2
66551 "O" Ring1
23 67116 Seal - "V" Packing1
24 110483 Screw - Adjusting1
25 65445 Needle - Main fuel1
26 104001 "O" Ring1
27 104814 Screw - Pan hd 4-40 x 1/4 (SEMS)1
28 62290A Plate - Throttle1
29 104814 Screw - Pan hd 4-40 x 1/4 (SEMS)1
30 65430 Lever - Throttle1
31 65431 Needle - Metering1
32 62975 Swivel - Needle1
33 65428 Shaft Assy - Carburetor1
34 66504 Body Assy - Carburetor1
35 65432 Orifice - Air1
36 66569 Orifice - Fuel1
37 59796 "O" Ring1
38 65724 Stud - Carburetor1
39 62368 Bushing2
40 67062 Seal - Air cleaner stud1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 7 of 25
www.ktoutdoor.com

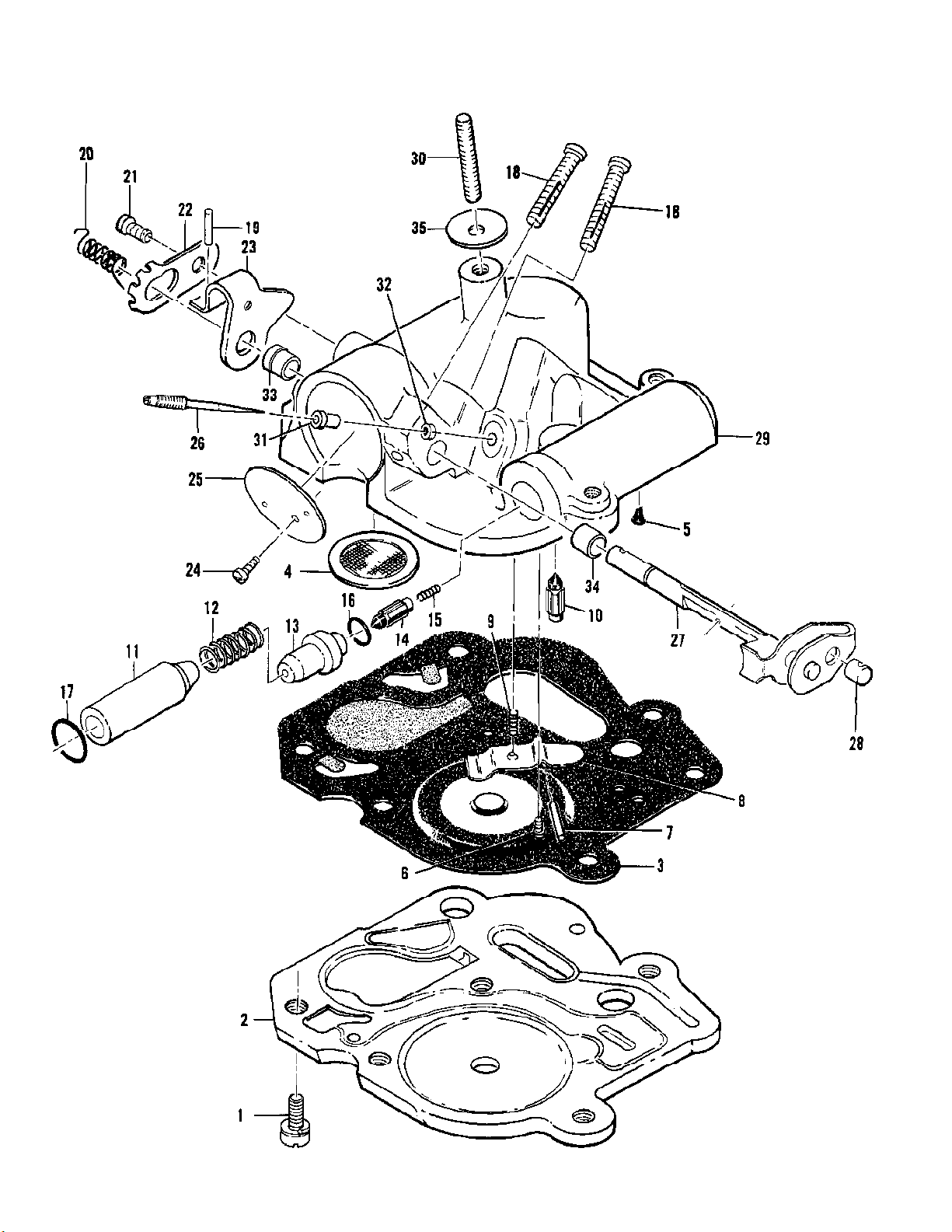

Carburetor Assembly (Single Needle)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 8 of 25
www.ktoutdoor.com
Carburetor Assembly (Single Needle)
Ref # Part Number DescriptionQty
66564 Carburetor Assy (McCulloch Single Needle)1
1 110397 Screw - Pan hd 8-32 x 7/16 (SEMS)5
2 65597 Plate - Carburetor base1
3 67357 Diaphragm Assy - Pump1
4 55690B Seal - Capillary1
5 63041 Valve - Primer1
6 104728 Screw - Bind hd 6-32 x 1/41
7 110337 Pin - Inlet lever1
8 62310 Lever - Inlet1
9 62923A Spring - Inlet lever1
10 63038 Valve - Inlet needle1
11 62308A Plunger - Primer1
12 11086 Spring - Plunger1
13 63037 Seat - Primer valve1
14 63038 Valve - Primer needle1
15 63039 Spring - Needle valve1
16 101056 "O" Ring1
17 105606 "O" Ring1
18 62971 Screw - Long locking adjustment2
19 104245 Pin - Roll 1/16 x 1/21
20 62939A Spring - Idle governor1
21 103934 Screw - Pan hd 6-32 x 1/4 (SEMS)1
22 62938 Clip - Throttle shaft1
23 62343A Lever - Throttle1
24 104814 Screw - Pan hd 4-40 x 1/4 (SEMS)1
25 62290A Plate - Throttle1
26 62976A Needle - Metering1
27 62291A Shaft Assy - Throttle1
28 62975 Swivel - Needle1
29 63019B Body Assy - Carburetor1
30 62433B Stud - Carburetor1
31 62295D Orifice - Air1
32 66569 Orifice - Fuel1
33 62288A Bushing - Throttle shaft1
34 62368 Bushing - Throttle shaft1
35 67062 Seal - Air cleaner stud1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 9 of 25
www.ktoutdoor.com

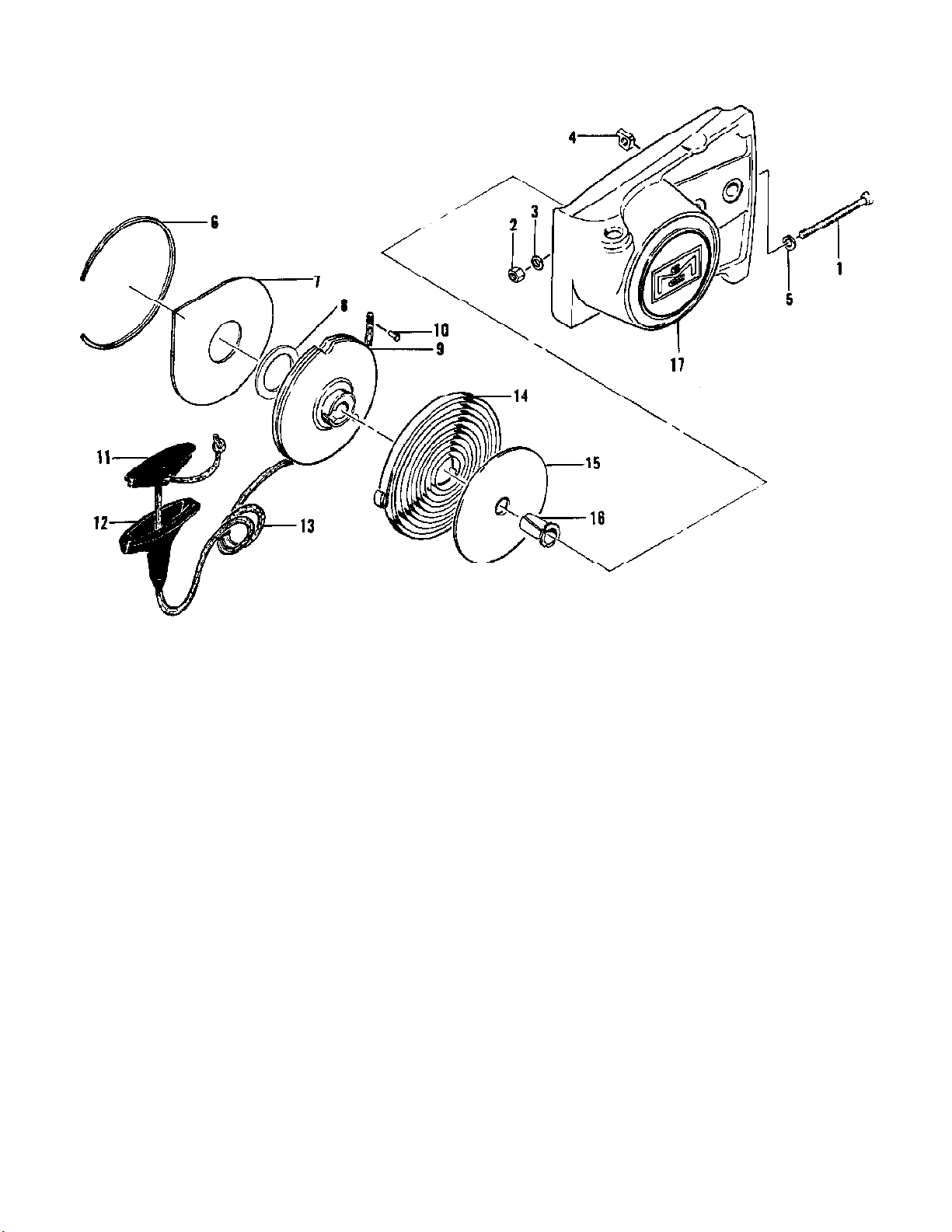

Clutch And Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 10 of 25
www.ktoutdoor.com
Clutch And Starter Assembly
Ref # Part Number DescriptionQty
67206 Clutch Guard Assy1
1 102144 Screw - Bar adjusting1
2 102067 Nut - Hex 10-241
3 110387 Washer - Wave1
4 61705 Nut - Bar adjusting1
5 101174 Washer - #101
6 67205 Retainer - Shield1
7 63985 Shield - Dust1
8 63986 Washer - Thrust1
9 68695 Drum - Starter1
10 110470 Rivet - Starter rope1
11 62191A Insert - Starter handle1
12 62190A Handle - Starter1
13 69964 Rope - Starter1
14 68626 Spring - Starter rewind1
15 63987 Shield - Starter spring1
16 61635A Bushing - Nyliner1
17 67207 Guard - Clutch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 11 of 25
www.ktoutdoor.com

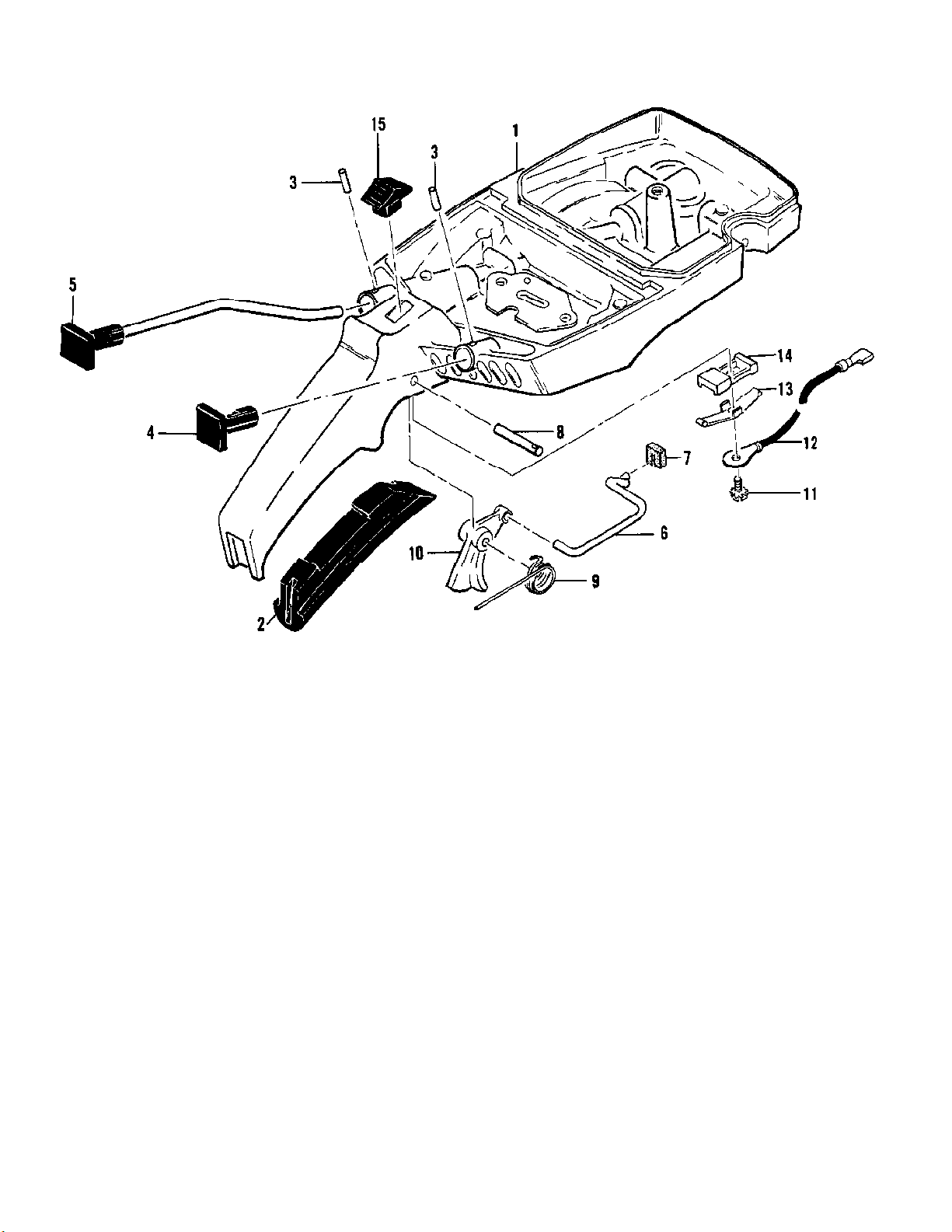

Fuel Tank Assembly (Part 1)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 12 of 25
www.ktoutdoor.com
Fuel Tank Assembly (Part 1)
Ref # Part Number DescriptionQty
1 66648 Fuel Tank Assy1
2 64872 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 66194 Button - Primer1
5 63052 Button and Rod Assy - Oiler1
64871 Button and Rod Assy - Oiler1
6 62970C Rod - Throttle1
65816 Rod - Throttle1
7 67989 Seal - Throttle rod1
8 110378 Pin - Roll 3/16 x 15/161
9 65734 Spring - Throttle return1
10 67224 Trigger - Throttle1
11 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
12 62973A Wire Assy - Stop switch1
13 62451 Contact - Switch1
14 62950A Base - Switch1
15 62951 Button - Switch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 13 of 25
www.ktoutdoor.com

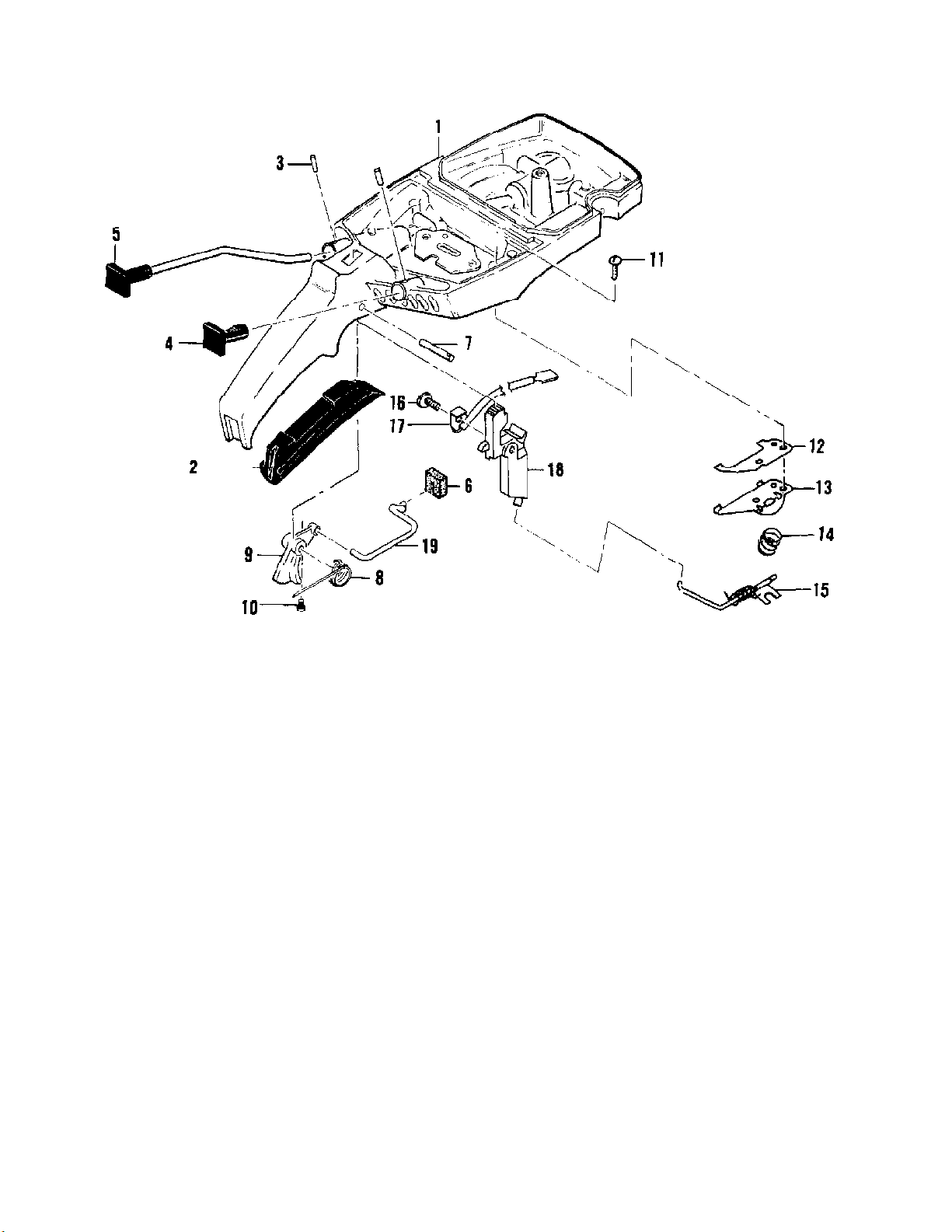

Fuel Tank Assembly (Part 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 14 of 25
www.ktoutdoor.com
Fuel Tank Assembly (Part 2)
Ref # Part Number DescriptionQty
1 66648 Fuel Tank Assy1
2 64872 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 66194 Button - Primer1
5 64871 Button and Rod Assy - Oiler1
6 67989 Seal - Throttle rod1
7 110378 Pin - Roll 3/16 x 15/161
8 65734 Spring - Throttle return1
9 67224 Trigger - Throttle1
10 110537 Screw - Fil hd 8-36 x 1/21
11 105249 Screw - Rd hd 8-32 x 3/81
12 64621 Shield - Bracket1
13 64721 Bracket - Lever assy1
14 69687 Spring - Valve1
15 69811 Lever Assy - Compression release1
16 110469 Screw - Pan hd 8-32 x 5/161
17 65873 Wire Assy - Stop switch1
18 67209 Button - Control1
19 66156 Rod - Throttle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 15 of 25
www.ktoutdoor.com

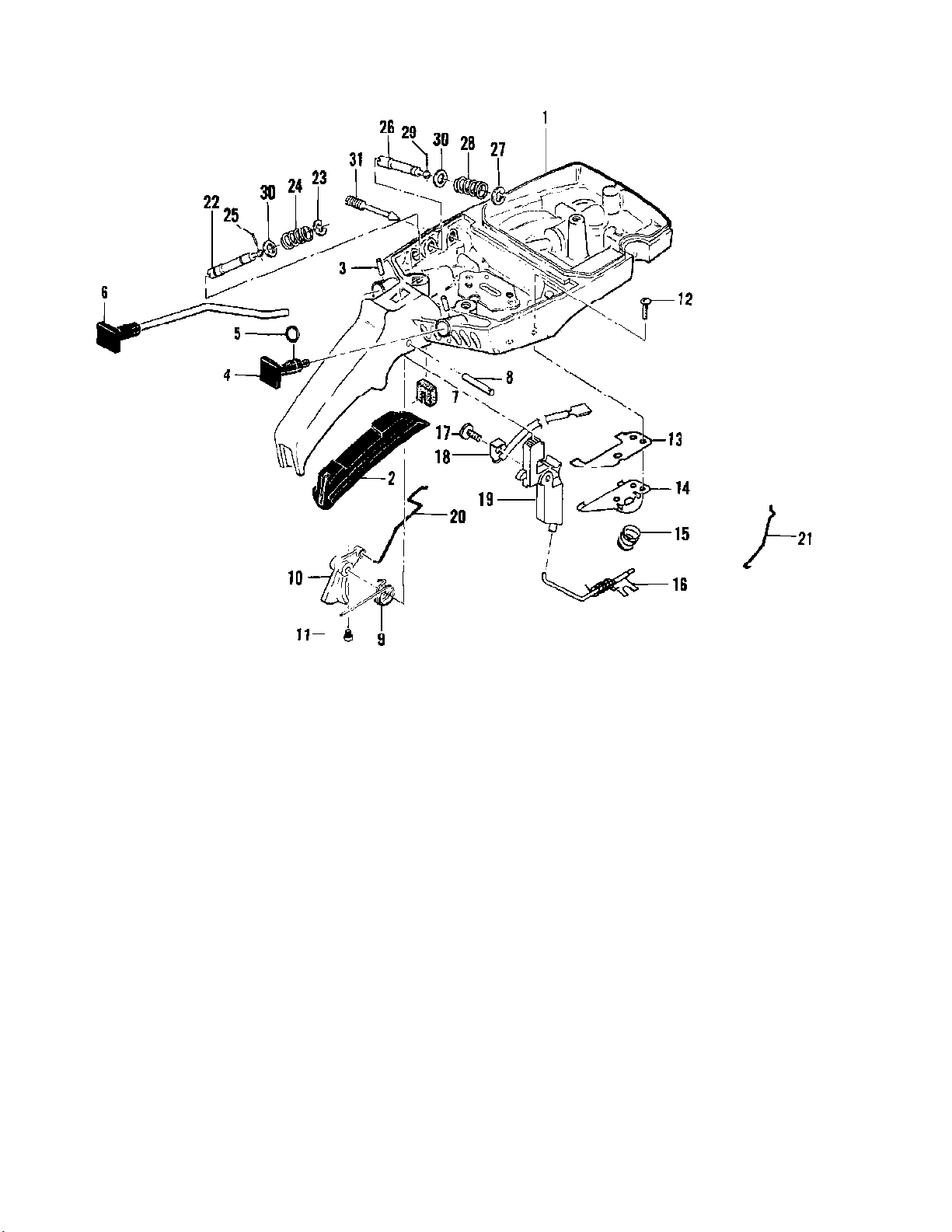

Fuel Tank Assembly (Part 3)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 16 of 25
www.ktoutdoor.com
Fuel Tank Assembly (Part 3)
Ref # Part Number DescriptionQty
1 68683 Fuel Tank Assy1
2 64872 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 68517 Button - Choke1
5 101056 "O" Ring1
6 64871 Button and Rod Assy - Oiler1
7 67989 Seal - Throttle rod1
8 110378 Pin - Roll 3/16 x 15/161
9 65734 Spring - Throttle return1
10 67224 Trigger - Throttle1
11 110537 Screw - Fil hd 8-36 x 1/21
12 105249 Screw - Rd hd 8-32 x 3/82
13 64621 Shield - Bracket1
14 64721 Bracket - Lever assy1
15 69687 Spring - Valve1
16 69811 Lever Assy - Compression release1
17 110469 Screw - Pan hd 8-32 x 5/161
18 65873 Wire Assy - Stop switch1
19 67209 Button - Control1
20 68170 Rod - Throttle1
21 67355 Rod - Choke1
22 68102 Extension Assy - High speed1
23 110512 Ring - Retaining1
24 67363 Spring1
25 110509 Pin - Groove1
26 68101 Extension Assy - Idle1
27 110512 Ring - Retaining1
28 67363 Spring1
29 110509 Pin - Groove1
30 67292 Washer2
31 67271 Screw - Idle speed1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 17 of 25
www.ktoutdoor.com

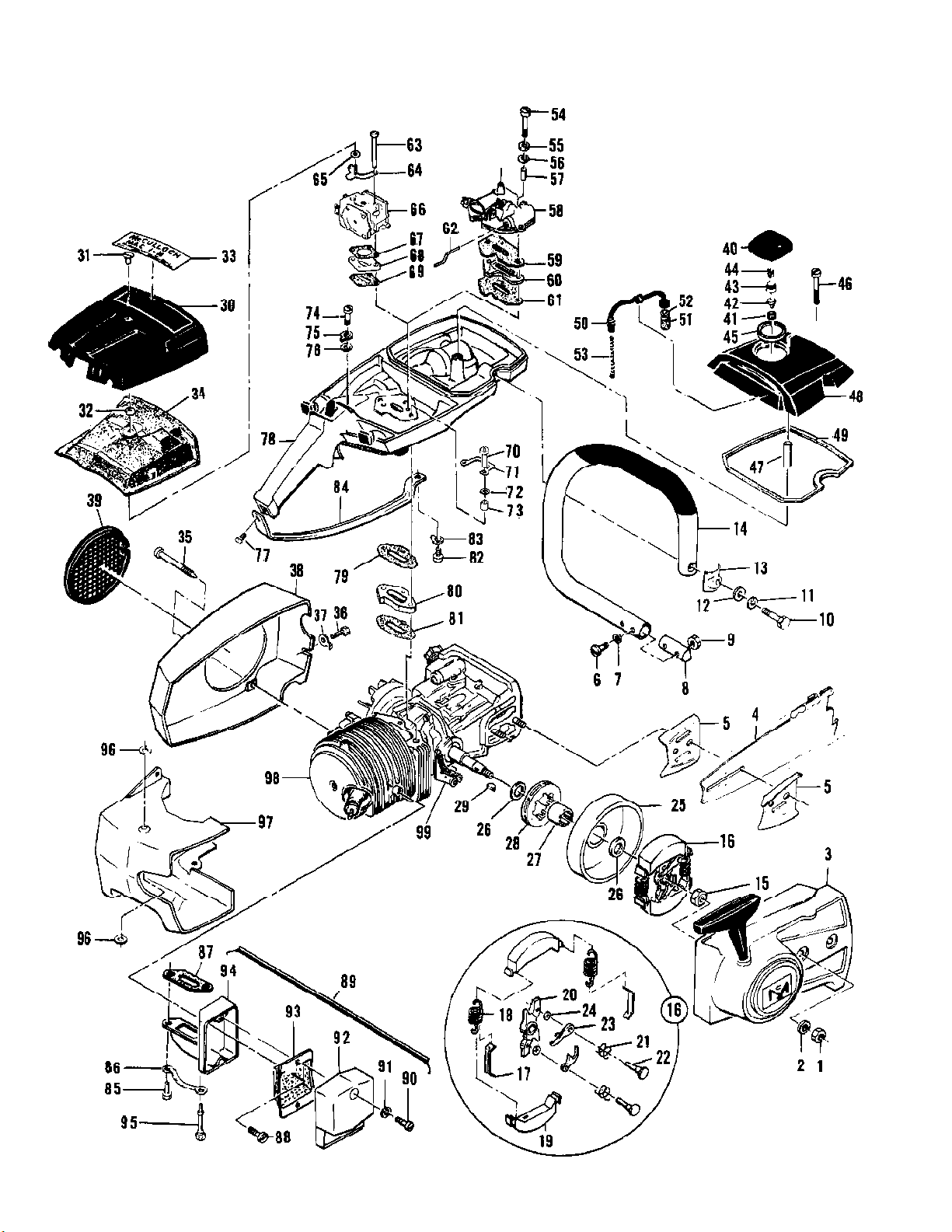

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 18 of 25
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 Clutch Guard and Starter Assy See "Clutch Guard
and Starter Assembly" illustration and parts list;
4 Bar and Chain Assy
5 64330 Set - Bar plates (Accessory Item)1
6 102761 Screw - Hex hd 10-24 x 7/82
7 100352 Washer - #102
8 61678 Plug - Nut retainer1
9 101326 Nut - Hex 10-242
10 101977 Screw - Fil hd 1/4-20 x 3/41
105187 Screw - Skt hd 1/4-20 x 1-1/81
102130 Screw - Hex hd 1/4-20 x 1-1/21
11 105043 Lockwasher - 1/41
100153 Lockwasher - 1/41
12 100004 Washer - 1/41
13 63484 Clamp1
14 67372 Kit - Frame and grip1
69054 Frame and Grip Assy1
15 110350 Nut - Flexloc 5/16-241
103746 Nut - Flexloc 3/8-241
16 67148 Clutch Assy1
17 64583 Retainer2
18 66384 Spring - Clutch2
19 67233 Shoe - Clutch2
20 67149 Rotor Assy1
21 68837 Spring - Pawl2
22 67112 Rivet2
23 64857 Pawl2
24 65473 Washer - Special2
25 65370 Kit - Sprocket and drum assy1
26 61692 Shim2
64031 Shim2
25 67644 Drum and Bearing Assy1
27 104519 Bearing1
110330 Bearing1
28 67646 Sprocket1
29 103879 Key - Woodruff1
30 62117 Cover Assy - Air cleaner1
65866 Cover Assy - Air cleaner1
65750 Cover Assy - Air cleaner1
66597 Cover Assy - Air cleaner1
31 62434 Nut - Cover1
65813 Nut - Cover1
65720 Nut - Cover1
66290 Nut - Cover1
32 66665 Spacer - Nut
33 65456 Nameplate
67417 Nameplate
67425 Nameplate1
67433 Nameplate
34 62077 Filter - Air1
66774 Filter - Air
68521 Filter - Air
68520 Filter - Air
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 19 of 25
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
35 62978 Screw - Special3
36 105348 Screw - Hex hd 10-24 x 1/21
37 69890 Lockplate1
38 83521 Kit - Fan housing1
39 55615 Guard - Flywheel1
40 68531 Fuel Cap Assy1
41 68533 Plug1
42 63041 Valve1
43 62316 Guide1
44 63040 Spring1
45 65671 Gasket1
46 110334 Screw - Oval hd 12-24 x 1-3/41
110402 Screw - Oval hd 12-24 x 2-3/81
47 69686 Spacer - Screw1
48 64796 Kit - Fuel tank cover1
63656 Cover - Fuel tank1
63288 Cover - Fuel tank1
49 69345 Gasket - Cover1
50 63935 Hose Assy - Fuel1
64848 Hose Assy - Fuel1
51 63932 Filter - Fuel1
52 100440 Washer1
53 67944 Spring - Hose stiffener1
54 102433 Screw - Hex hd 10-24 x 1-5/82
103355 Screw - Hex hd 10-24 x 1-7/82
103124 Screw - Hex hd 10-24 x 22
110551 Screw - Hex hd 10-24 x 2-1/82
55 100352 Washer - #102
64856 Washer - #102
36388 Lockplate2
56 64856 Washer - #102
68203 Washer - Insulating2
57 62327A Sleeve - Insulating2
65726 Sleeve - Insulating2
58 Carburetor Assy See "Carburetor Assembly"
illustration and parts list
Carburetor Assy See "Carburetor Assembly"
illustration and parts list
59 65672 Gasket - Carburetor1
60 65821 Spacer - Carburetor1
67380 Spacer - Carburetor1
61 65672 Gasket - Spacer1
67235 Gasket - Spacer1
62 62066A Rod - Primer1
65758 Rod - Primer1
63 110551 Screw - Hex hd 10-24 x 2-1/82
64 66681 Bracket Assy1
65 67062 Seal - Air cleaner1
66 Carburetor Assy See "Carburetor Assembly"
illustration and parts list
67 68132 Gasket - Carburetor1
68 66678 Spacer - Carburetor1
69 68131 Gasket - Spacer1
70 110553 Screw - Hex hd 10-24 x 1-3/82
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 20 of 25
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
71 68582 Lockplate1
72 100003 Washer - #102
73 66189 Sleeve2
74 102760 Screw - Hex hd 10-24 x 11
102290 Screw - Hex hd 10-24 x 1-1/81
110516 Screw - Hex hd 10-24 x 1-1/81
75 100352 Washer - #101
64856 Washer - #101
63475 Lockplate1
76 68203 Washer - Insulating1
64856 Washer - #10
77 110353 Screw - Oval hd 10-24 x 3/8
78 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list
Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list
Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list
79 68130 Gasket - Fuel tank1
80 61680B Insulator - Fuel tank1
63396 Insulator - Fuel tank1
66659 Insulator - Fuel tank1
81 68130 Gasket - Insulator1
82 102289 Screw - Hex hd 10-24 x 3/41
83 100352 Washer - #101
69890 Lockplate1
84 69838 Brace - Handle1
85 110506 Screw - Hex hd 10-24 x 5/81
86 67922 Lockplate1
87 68149 Gasket - Spark arrester1
88 110341 Screw - Hex hd 10-24 x 1/21
89 68194 Spark Arrester Assy1
68191 Spark Arrester Assy1
90 102290 Screw - Hex hd 10-24 x 1-1/82
91 110264 Washer - #102
92 62380 Cover Assy1
93 62379B Baffle1
94 83105 Body and Duct Assy1
83106 Body and Duct Assy1
95 68187 Screw - Special1
96 62085A Insulator - Shroud2
97 67377 Shroud1
98 Powerhead Assy See "Powerhead Assembly"
1
illustration and parts list
99 Power-Sharp System See "Power-Sharp System"
1
illustration and parts list
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 21 of 25
www.ktoutdoor.com

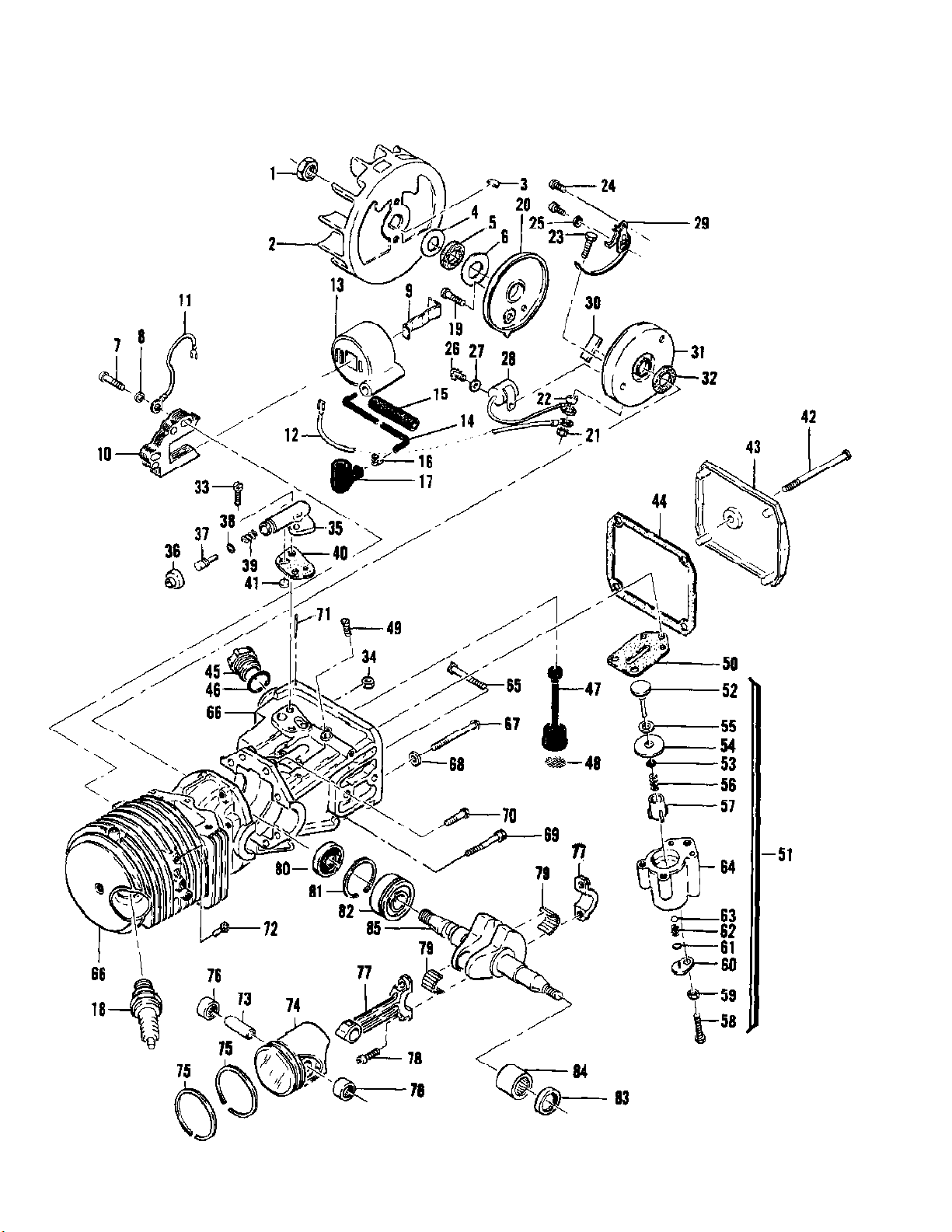

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 22 of 25
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 101391 Nut - Hex 3/8-241
2 61737A Flywheel Assy1
3 103879 Key - Woodruff1
4 67057 Washer - Thrust1
5 67056 Seal - Cover1
6 67054 Washer - Thrust1
7 101965 Screw - Fil hd 10-24 x 7/8 (SEMS)2
110127 Screw - Hex hd 10-24 x 7/8 (SEMS)2
8 100002 Washer - #102
100003 Washer - #102
9 51253 Retainer - Coil1
10 68164 Lamination1
11 62819 Wire Assy - Ground1
12 69344 Wire Assy - Primary1
13 69798 Kit - Coil1
14 69966 Wire Assy - Spark plug1
15 67127 Sleeve1
16 62932 Connector1
17 62926 Boot1
18 63097 Spark Plug1
19 110349 Screw - Rd hd 8-32 x 3/41
20 62362 Cover - Breaker box1
21 100298 Nut - Hex 6-321
22 62365 Spacer - Breaker screw1
23 110346 Screw - Hex hd 6-32 x 3/41
24 100934 Screw - Rd hd 8-32 x 3/82
25 105976 Washer - #81
26 105249 Screw - Rd hd 8-32 x 3/8 (SEMS)1
27 100080 Washer - #81
28 61650 Condenser1
29 62363 Breaker Assy1
30 54184 Wiper1
31 62361 Box - Breaker1
32 67051 Seal - Breaker box1
33 110623 Screw - Hex hd 8-32 x 1/22
34 100955 Nut - Hex 8-321
35 62261A Housing - Pump1
36 62262 Cap - Housing1
37 62266 Plunger - Pump1
38 101056 "O" Ring1
39 66687 Spring1
40 62230 Gasket - Pump1
41 62909 Valve1
42 110291 Screw - Pan hd 10-24 x 2-5/81
43 63072 Cover - Oil tank1
44 62116 Gasket - Cover1
45 57129A Cap - Oil tank1
46 101148 "O" Ring1
47 62123B Hose Assy - Oil1
48 51506 Screen - Hose1
49 110333 Screw - Oval hd 8-32 x 1/23
50 62274 Gasket - Pulse pump1
51 83134 Pump Assy - Pulse1
52 60260A Piston Assy - Pump1
53 104159 "O" Ring1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 23
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 23 of 25
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
104001 "O" Ring
54 60263 Ring - Pump piston1
55 60937 Washer - Teflon1
56 60259 Spring - Piston oiler1
57 62227 Sleeve - Oiler adjustment1
58 110386 Screw - Hex hd 8-32 x 11
59 100251 Nut - Hex 8-321
60 63858 Cover - Outlet valve1
61 106104 "O" Ring1
62 62885A Spring - Outlet valve1
63 102809 Ball1
64 83128 Body Assy - Pump1
65 62065 Bolt - Bar mounting2
66 67908 Crankcase Assy1
67250 Crankcase Assy1
67 62105 Screw Assy - Sealing4
68 62842 Washer - Sealing4
69 110288 Screw - Hex hd 8-32 x 3/4 (SEMS)3
70 100010 Pin - Cotter1
71 83166 Valve - Compression release1
72 110618 Screw - Hex hd 8-32 x 1-3/81
110491 Screw - Hex hd 8-32 x 1-5/82
73 61649 Pin - Piston1
74 69212 Piston Assy1
75 62814 Ring Set - Piston1
76 103512 Bearing - Needle2
77 65401 Connecting Rod Assy1
78 61627A Screw - Skt hd 8-36 x 1/22
79 63225 Roller - Needle (Set of 20)1
80 65746 Oil Seal1
81 63464 Ring - Snap1
82 63429B Bearing - Ball1
83 65747 Oil Seal1
84 104357 Bearing - Needle1
85 63336 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 24
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 24 of 25
www.ktoutdoor.com

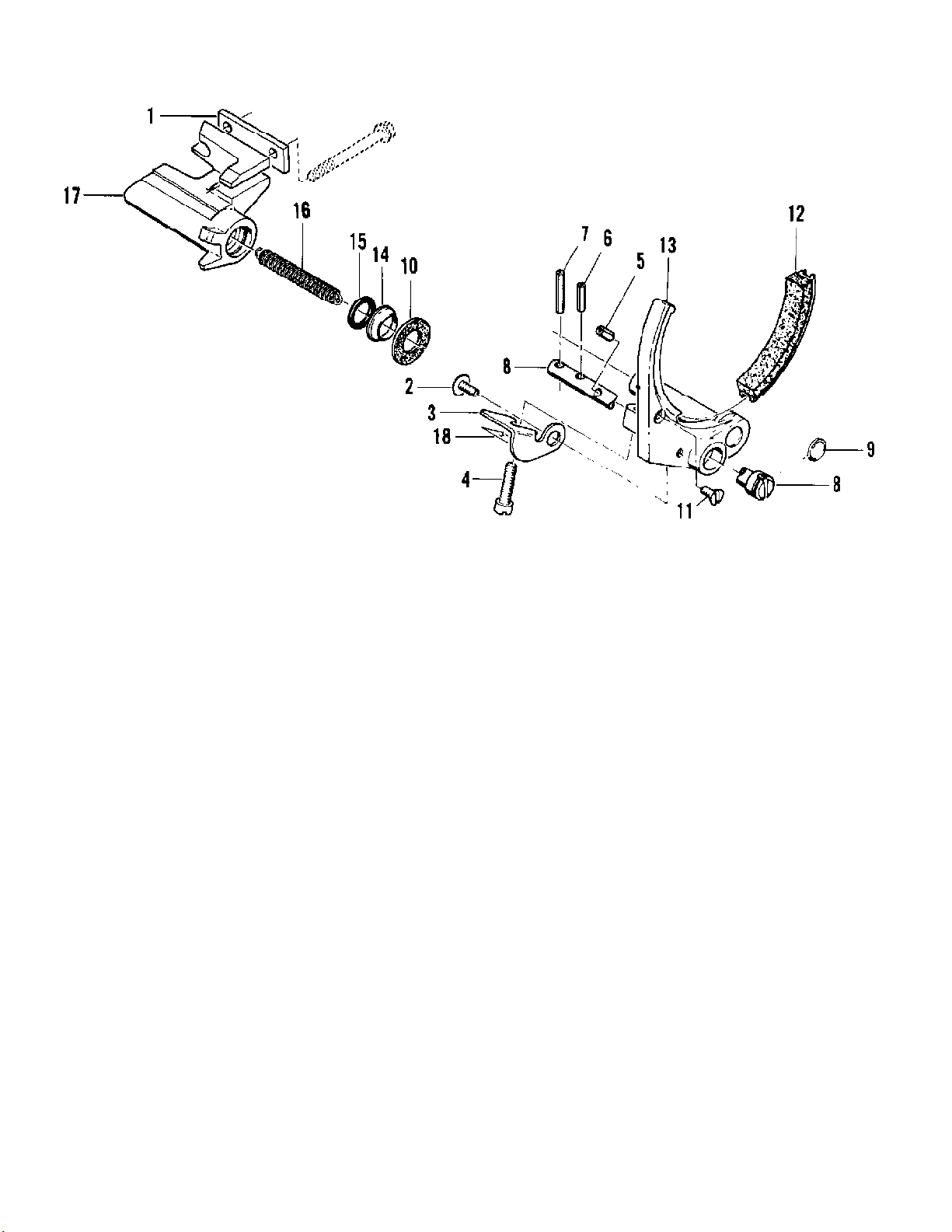

Power-Sharp System
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 25
02-600025 MAC 210 04/67 to 11/67 IPL 84288 Page 25 of 25
www.ktoutdoor.com
Power-Sharp System
Ref # Part Number DescriptionQty
1 66307 Plate - Base1
67928 Sharpener Assy1
2 105027 Screw - Tr hd 8-32 x 7/161
3 66075 Bracket - Arm1
4 110497 Screw - Fil hd 10-32 x 3/41
5 105661 Pin - Roll 1/8 x 3/81
6 103127 Pin - Roll 1/8 x 1/21
7 105651 Pin - Roll 1/8 x 11/161
8 67878 Shaft - Locking1
9 67879 Ring - Retaining1
10 67881 Washer - Felt1
11 110492 Screw - Fl hd 8-32 x 5/161
12 67648 Stone Assy1
13 67882 Arm - Sharpener1
14 66068 Scraper - Dirt1
15 105607 "O" Ring1
16 66070 Spring - Arm1
17 67886 Base1
18 67523 Label - Grinder adjustment1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
