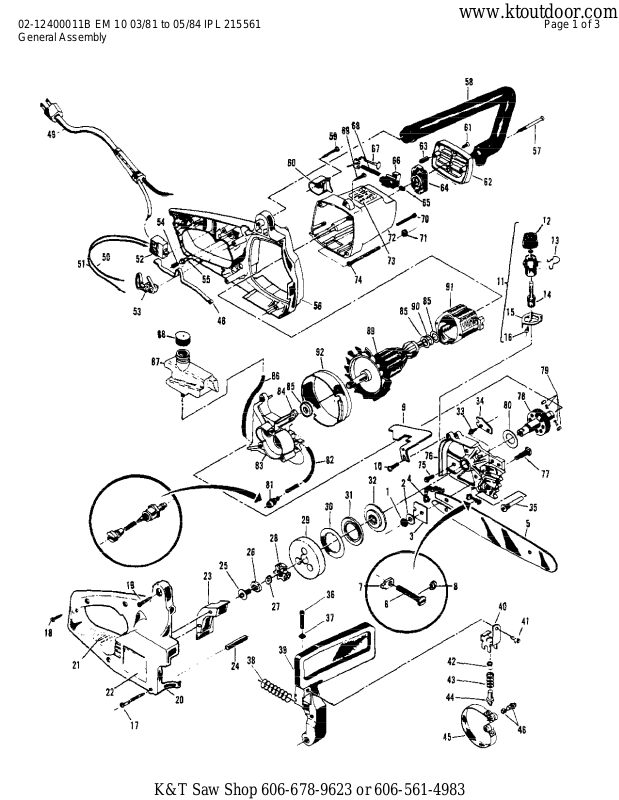

Page 1
02-12400011B EM 10 03/81 to 05/84 IPL 215561 Page 1 of 3
www.ktoutdoor.com

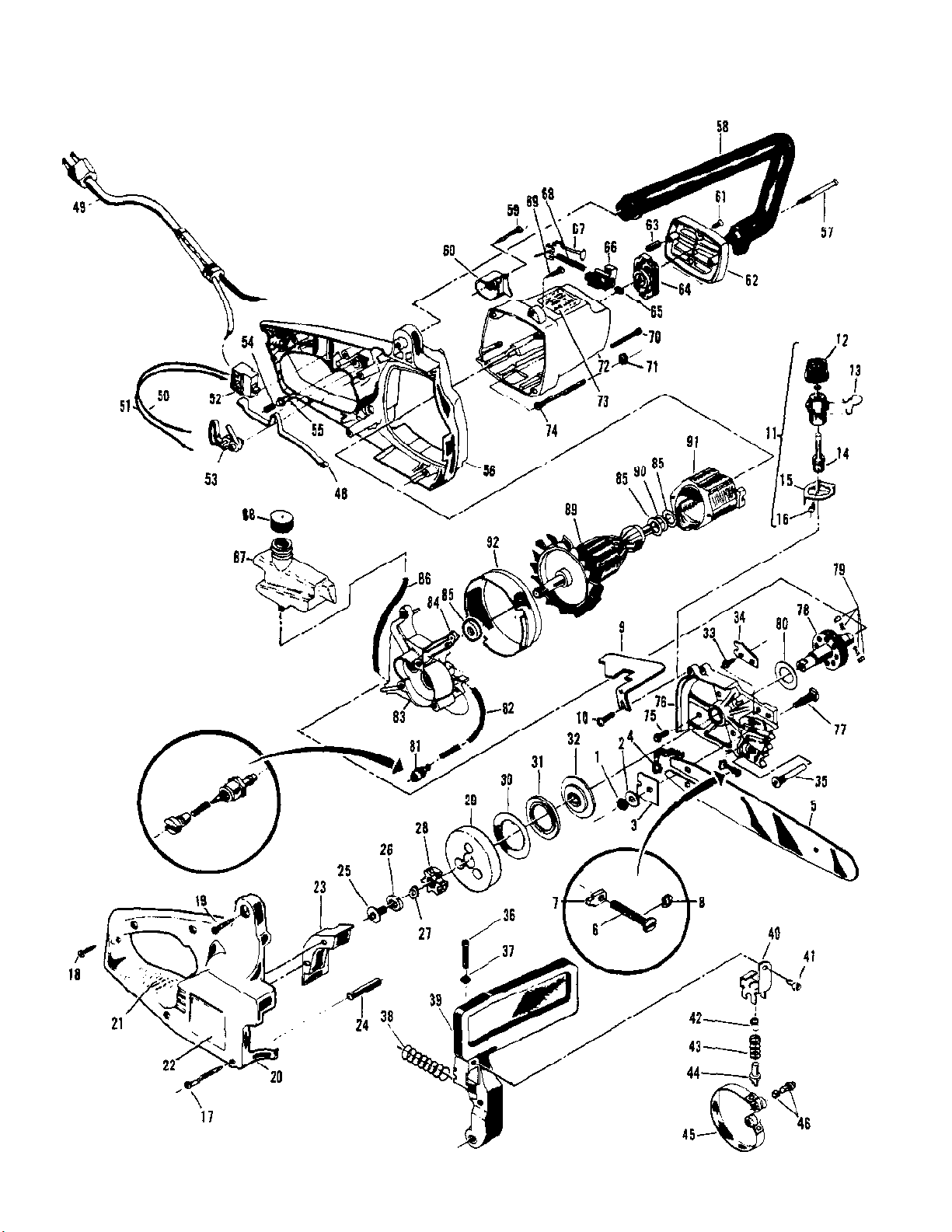

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
02-12400011B EM 10 03/81 to 05/84 IPL 215561 Page 2 of 3
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 120029 Nut - Bar1
2 215087 Washer - Flat1
3 977937 Plate - Bar1
4 214918 Chain1
4 215199 Chain (AUTO-SHARP)1
4 214656 Chain (AUTO-SHARP)1
5 215250 Bar1
5 214235 Bar1
5 214234 Bar1
6 90658 Screw - Adjusting1
7 84929 Nut - Adjusting1
8 110907 Ring - Retaining1
9 215248 Plate - Support1
10 215249 Screw - Support plate1
11 215665 AUTO-SHARP Assembly1
12 215447 Knob1
13 94024 Bail1
14 95168 Wheel - Grinding1
15 215062 Bracket - AUTO-SHARP1
16 215063 Screw - 8-32 x 3/82
17 215086 Screw - 8-16 x 2.52
18 215081 Screw - 8-16 x .8624
19 215084 Screw - 10-14 x 1.251
20 215107 Handle - Cover1
20 215041 Handle - Cover1
21 215115 Label - Warning1
22 215097 Label - Logo1
23 215047 Shield - Dust1
23 978461 Shield - Dust1
24 215069 Tube1
25 215088 Screw - 10-32 x .60 (SEMS)1
26 215083 Washer - Thrust1
27 215184 Washer1
28 215077 Sprocket Assembly1
29 215076 Drum1
30 215089 Washer - Belleville spring1
31 215177 Washer - Thrust1
32 215085 Plate - Clamp1
33 215065 Screw - 10-32 x .622
34 94339 Plate - Latch1
35 95616 Bolt - Shoulder M81
36 215067 Screw - 10-32 x 1.01
37 215066 Nut - Square 10-321
38 215074 Spring - Compression1
39 215064 Brake/Guard Lever1
40 213541 Guide - Latch1
41 215070 Screw - 10-11 x .4371
42 213396 Eyelet1
43 94360 Spring - Compression1
44 213397 Guide - Spring1
45 213989 Band - Brake1
46 237543 Roller - Brake1
48 215054 Actuator1
49 215071 Power Cord1
50 215094 Lead1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
02-12400011B EM 10 03/81 to 05/84 IPL 215561 Page 3 of 3
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
51 215093 Lead1
52 215565 Kit - Switch1
53 215053 Trigger1
54 215091 Spring - Compression1
55 215123 Button - Lock off1
56 215040 Handle - Housing1
57 215086 Screw - 8-16 x 2.51
58 215043 Handle - Auxiliary1
59 215092 Screw - 8-16 x 1.51
60 215042 Boss - Cover1
61 215179 Screw - 8-16 x .9371
62 214515 Cap - End1
63 214516 Plug - End cap2
64 214507 Heat Sink & Bearing Assembly1
65 214514 Brush2
66 215105 Holder - Brush2
67 215183 Lead - Brush2
68 215182 Spring - Brush2
69 215179 Screw - 8-16 x .9371
70 215178 Screw - 10-32 x 2.54
71 215180 Nut2
72 214506 Case - Field1
73 215566 Plate - Name1
73 215567 Plate - Name1
73 215568 Plate - Name1
74 215099 Screw - 10-32 x 2.3752
75 215065 Screw - 10-32 x .623
76 215045 Gear Case Cover Assembly1
77 94524 Bolt - Bar1
78 215046 Spindle, Gear, Rotor Assembly1
79 978981 Kit - Vane/Spring1
80 215185 Washer - Spring1
81 215098 Kit - Oiler valve1
82 215051 Hose - Oil pickup1
83 215044 Gear Case Assembly1
84 215183 Spacer1
85 214512 Washer - Fiber3
86 215050 Hose - Oil pickup1
87 215048 Reservoir - Oil1
88 215049 Cap - Reservoir (vented)1
89 215104 Armature & Fan Assembly1
89 215260 Armature & Fan Assembly1
90 214511 Washer - Spring1
91 214509 Field Assembly1
91 215261 Field Assembly1
92 215068 Baffle - Fan1
93797 Wrench - Combination1
215202 Extension Cord - 50 ft.1
K&T Saw Shop 606-678-9623 or 606-561-4983
