01-11400010B ELECTROMAC 8 03/81 to 05/84 IPL 215052-R1 Page 1 of 2
www.ktoutdoor.com

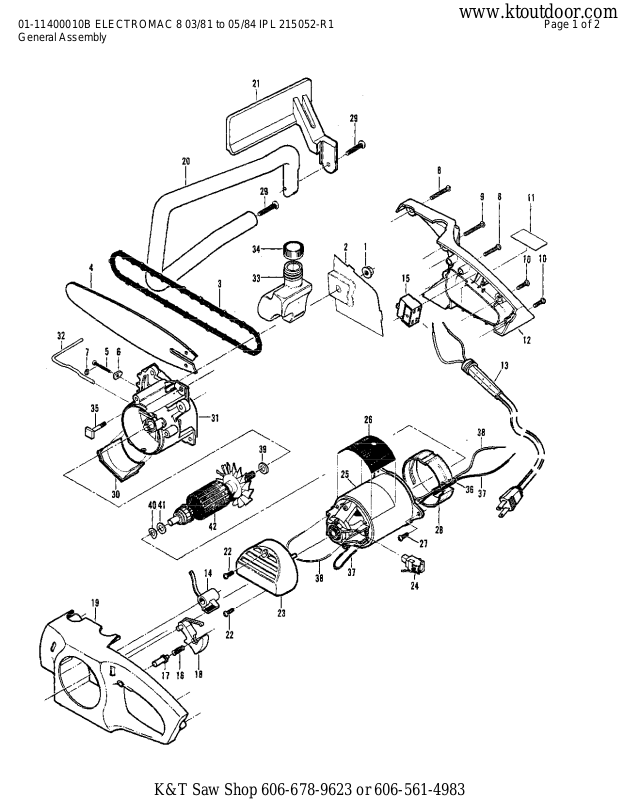

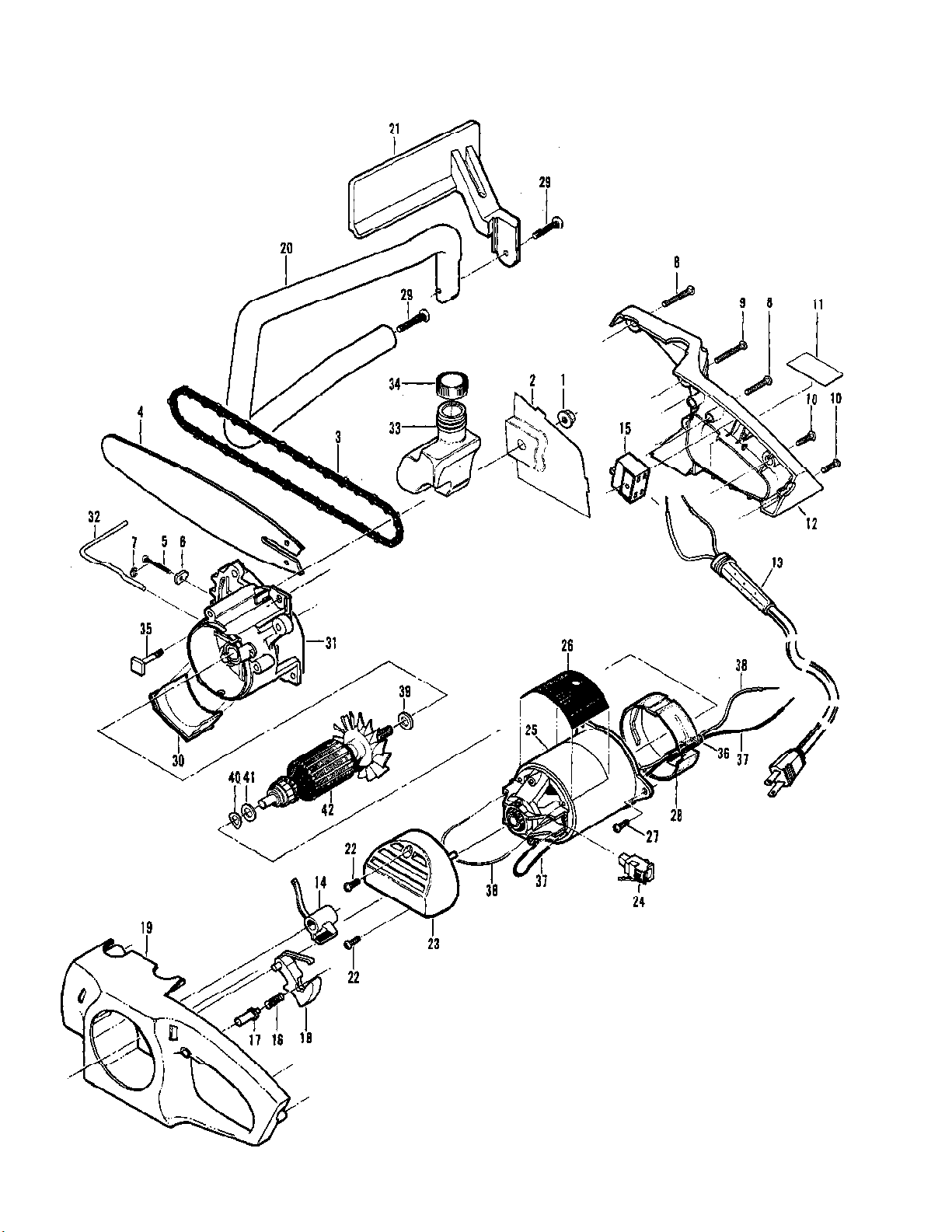

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
01-11400010B ELECTROMAC 8 03/81 to 05/84 IPL 215052-R1 Page 2 of 2
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 120029 Nut - Bar1
2 215100 Cover - Chain1
3 214261N Chain - MM370 GL1
4 213698 Bar1
5 90658 Screw - Bar adjusting1
6 68656 Nut - Bar adjusting1
7 110907 Ring - Retaining1
8 215080 Screw - 8-16 x .942
9 215061 Screw - 8-16 x 1.251
10 215072 Screw - 8-16 x .622
11 215115 Label - Warning1
12 215060 Housing - Cover1
13 215125 Power Cord1
14 215128 Trigger - Oil pump1
15 215126 Switch1
16 215124 Spring1
17 215123 Button - Lock off1
18 215053 Trigger1
19 215127 Housing - Motor1
20 215082 Handle - Aux1
21 215058 Hand Guard1
22 215122 Screw - 7-18 x .431
23 215121 Cap - End1
24 215120 Brush, Spring & Plate Asy.2
25 215130 Field Case & Field Asy1
26 215073 Label - Name1
27 215079 Screw - 8-32 x .503
28 215119 Baffle1
29 215059 Screw - .25-14 x 1.3752
30 215110 Cover - Gear case1
31 215109 Gear Case Assembly1
32 215129 Push Rod - Oil pump1
33 215056 Reservoir - Oil1
34 215057 Cap - Reservoir1
35 94524 Bolt - Guide bar1
36 215118 Tubing1
37 215117 Lead - Black1
38 215116 Lead - White1
39 215113 Washer - Fiber1
40 215114 Washer - Spring1
41 215112 Washer - Fiber1
42 215111 Armature & Fan Assembly1
93797 Wrench - Combination1
