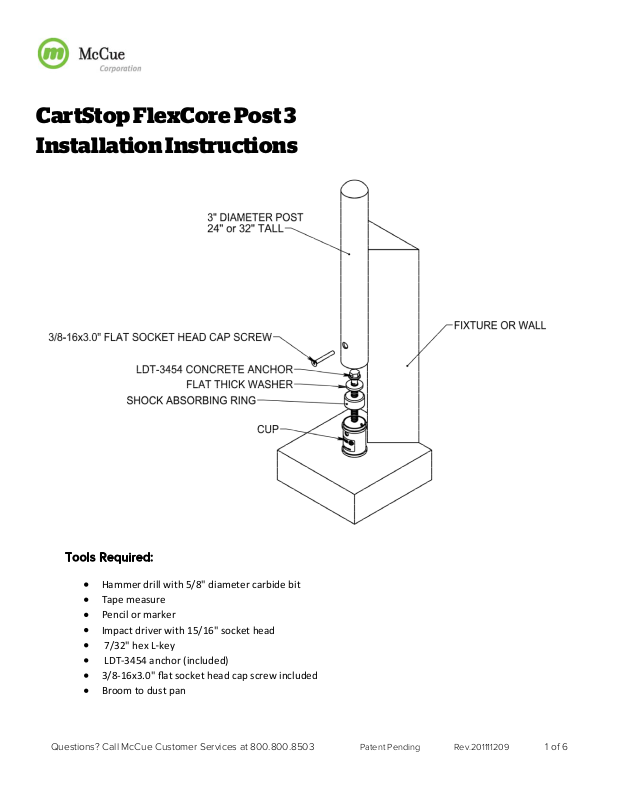

CartStop FlexCore Post 3
Installation Instructions
Tools Required:
Hammer drill with 5/8" diameter carbide bit
Tape measure
Pencil or marker
Impact driver with 15/16" socket head
7/32" hex L key
LDT 3454 anchor (included)
3/8 16x3.0" flat socket head cap screw included
Broom to dust pan
Questions? Call McCue Customer Services at 800.800.8503 Patent Pending Rev.201111209 1 of 6
Page 2
Step 1: Layout
Set the cup in front of the fixture or corner to be protected. Leave no more than 1" maximum to
5/8" minimum gap between the back of the cup and the front of the fixture or corner.
Trace a circle around the inside of the cup onto floor.
Using a hammer drill, drill a hole that is 5/8" diameter and a minimum of 3-1/2" deep.
Remove any dust and debris from and around the hole.
Questions? Call McCue Customer Services at 800.800.8503 Patent Pending Rev.201111209 2 of 6
Page 3

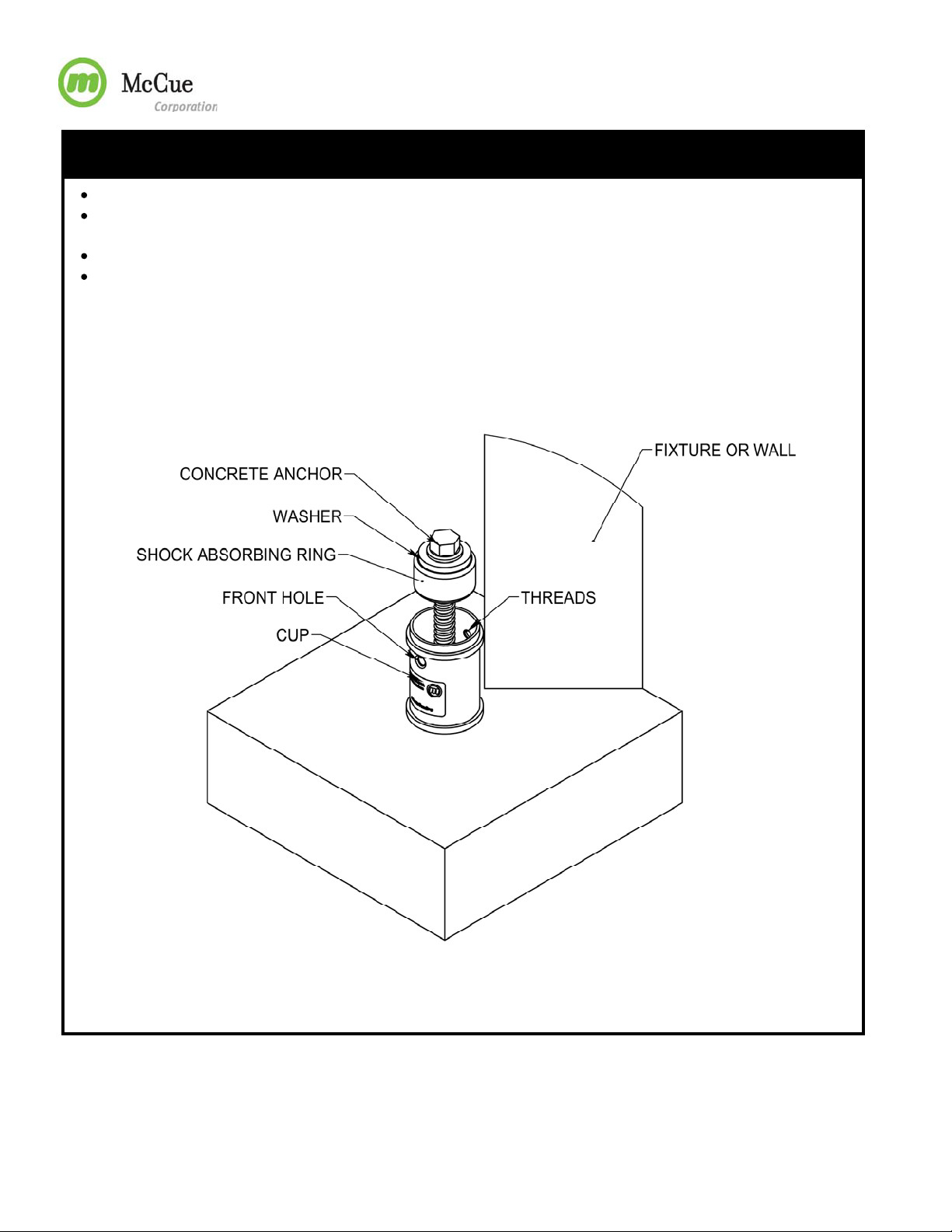

Step 2: Installing Anchor Base
Place the cup in front of the fixture or corner so that the hole in the cup is facing outward as shown.
Slide the washer and shock absorbing ring onto the concrete anchor then slide the anchor into the
cup and the 5/8" hole in the floor.
Tighten the anchor using an impact driver with a 15/16" socket.
Important: grasp the cup with your hands and tighten the anchor until the cup feels solid and cannot
be moved by hand.
Questions? Call McCue Customer Services at 800.800.8503 Patent Pending Rev.201111209 3 of 6
Page 4

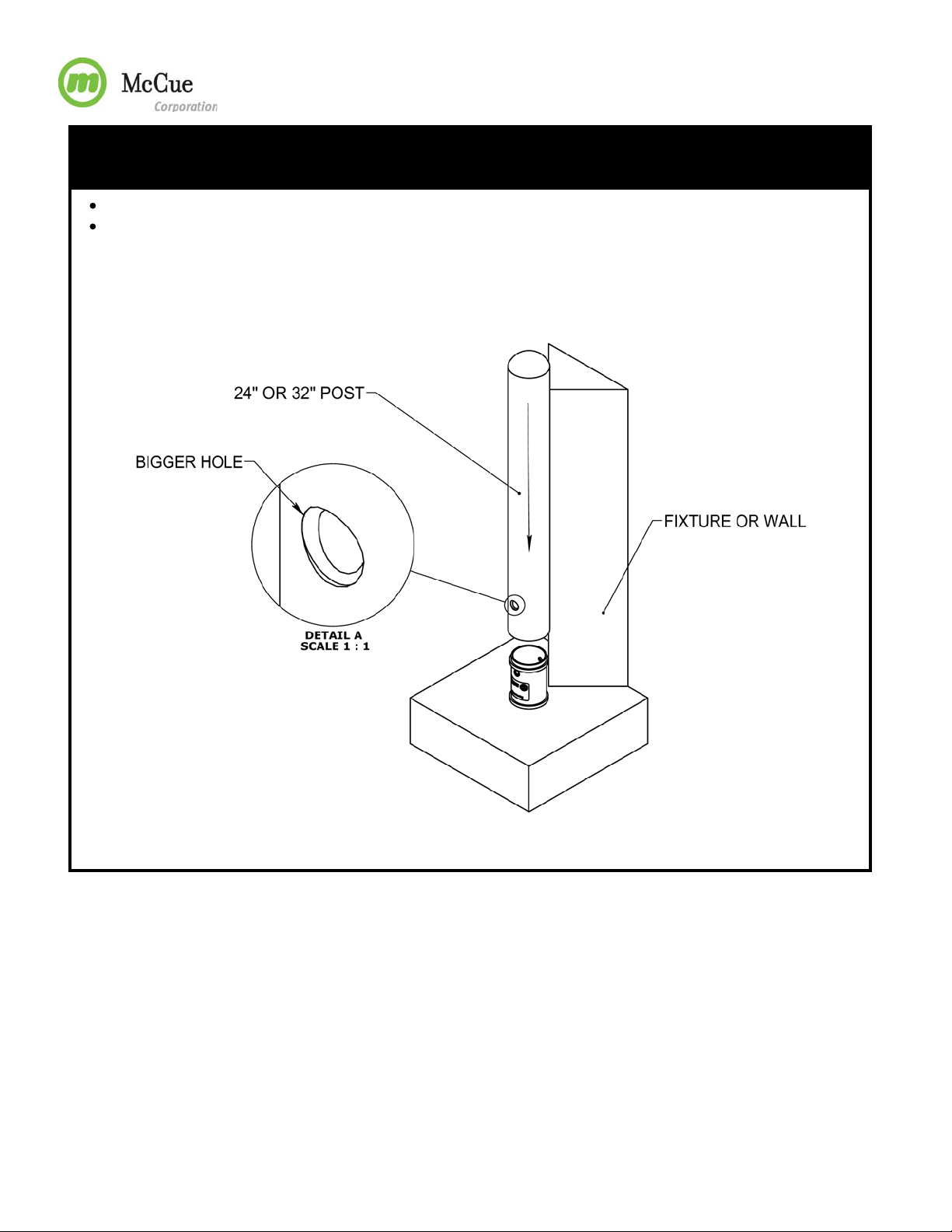

Step 3: Installing the Post
Slide the post onto the cup assembly until it is flush with the floor.
The post has two holes in it. Rotate the post so that the bigger hole in the post lines up with the
front hole of the cup. The bigger hole in the post accommodates the head of the screw.
Questions? Call McCue Customer Services at 800.800.8503 Patent Pending Rev.201111209 4 of 6
Page 5

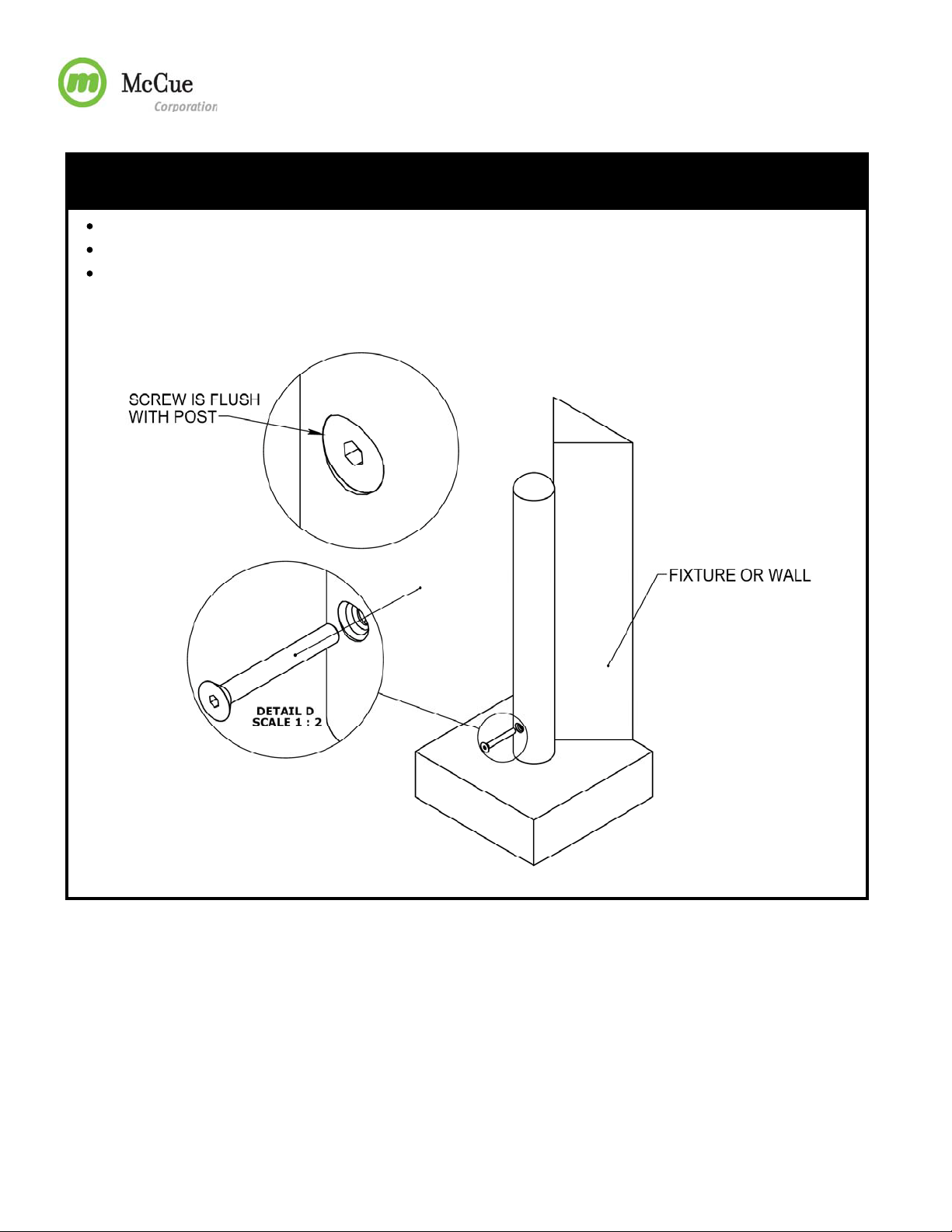

Step 4: Securing the Post to the Anchor Base
Slide the 3/8-16 x 3.0" long flat socket head cap screw through post and into the cup.
Use a 7/32" hex L key to turn the screw clockwise and secure the post to the cup.
Fully tighten the screw until the head of the screw is flush with the outside of post.
Questions? Call McCue Customer Services at 800.800.8503 Patent Pending Rev.201111209 5 of 6
Page 6

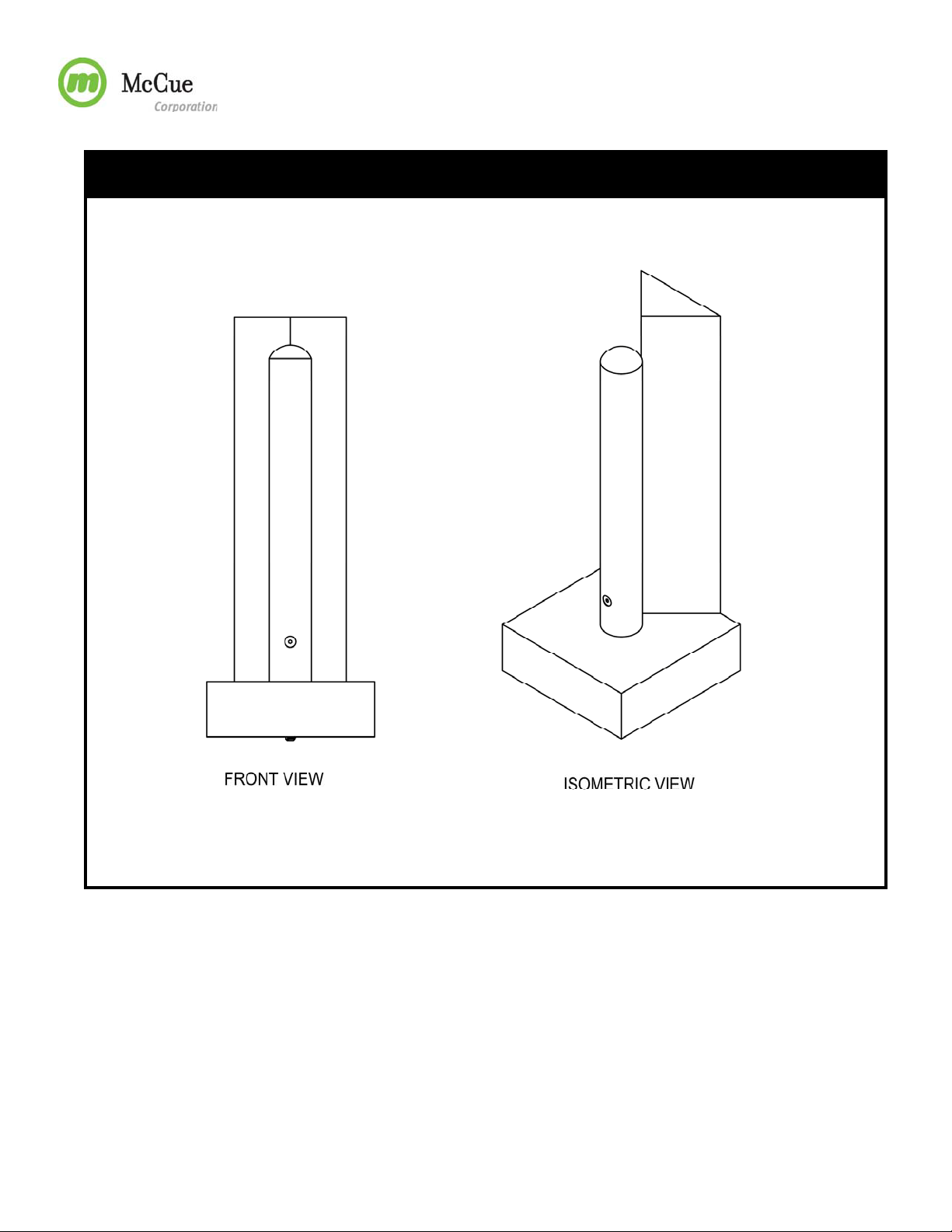

Step 5: Installation is Complete
Questions? Call McCue Customer Services at 800.800.8503 Patent Pending Rev.201111209 6 of 6
