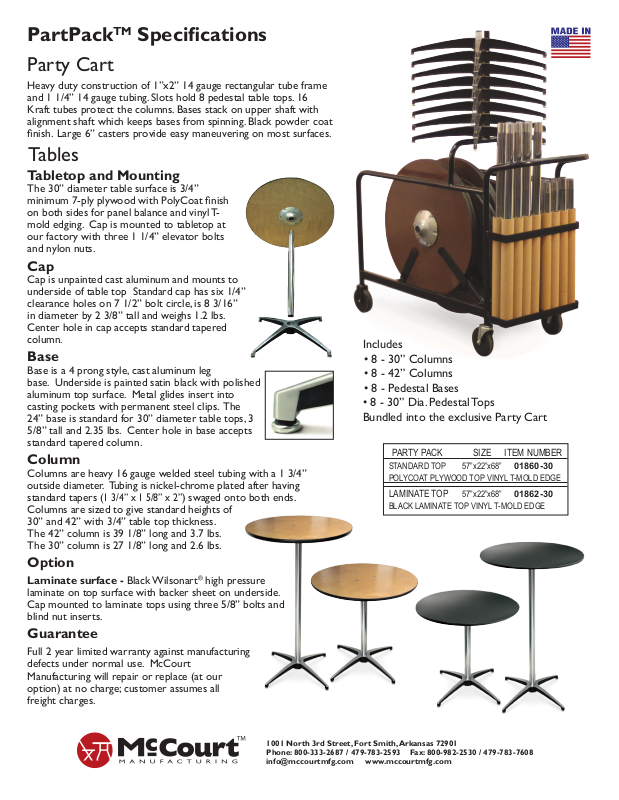

McCourt Manufacturing MCCT1009 Specifications

PartPackTM Specications

Party Cart

Heavy duty construction of 1”x2” 14 gauge rectangular tube frame
and 1 1/4” 14 gauge tubing. Slots hold 8 pedestal table tops. 16
Kraft tubes protect the columns. Bases stack on upper shaft with
alignment shaft which keeps bases from spinning. Black powder coat
nish. Large 6” casters provide easy maneuvering on most surfaces.

Tables

Tabletop and Mounting

The 30” diameter table surface is 3/4”

minimum 7-ply plywood with PolyCoat nish

on both sides for panel balance and vinyl T­mold edging. Cap is mounted to tabletop at
our factory with three 1 1/4” elevator bolts
and nylon nuts.

Cap

Cap is unpainted cast aluminum and mounts to
underside of table top Standard cap has six 1/4”
clearance holes on 7 1/2” bolt circle, is 8 3/16”
in diameter by 2 3/8” tall and weighs 1.2 lbs.
Center hole in cap accepts standard tapered
column.

Base

Base is a 4 prong style, cast aluminum leg
base. Underside is painted satin black with polished
aluminum top surface. Metal glides insert into
casting pockets with permanent steel clips. The
24” base is standard for 30” diameter table tops, 3
5/8” tall and 2.35 lbs. Center hole in base accepts
standard tapered column.

Column

Columns are heavy 16 gauge welded steel tubing with a 1 3/4”
outside diameter. Tubing is nickel-chrome plated after having
standard tapers (
Columns are sized to give standard heights of
30” and 42” with 3/4” table top thickness.
The 42” column is 39 1/8” long and 3.7 lbs.
The 30” column is 27 1/8” long and 2.6 lbs.

1 3/4” x 1 5/8” x 2”

) swaged onto both ends.

Includes

• 8 - 30” Columns

• 8 - 42” Columns

• 8 - Pedestal Bases

• 8 - 30” Dia. Pedestal Tops
Bundled into the exclusive Party Cart

PARTY PACK SIZE ITEM NUMBER

STANDARD TOP 57”x22”x68” 01860-30
POLYCOAT PLYWOOD TOP VINYL T-MOLD EDGE

LAMINATE TOP 57”x22”x68” 01862-30

BLACK LAMINATE TOP VINYL T-MOLD EDGE

Option

Laminate surface - Black Wilsonart® high pressure

laminate on top surface with backer sheet on underside.
Cap mounted to laminate tops using three 5/8” bolts and
blind nut inserts.

Guarantee

Full 2 year limited warranty against manufacturing
defects under normal use. McCourt
Manufacturing will repair or replace (at our
option) at no charge; customer assumes all
freight charges.
