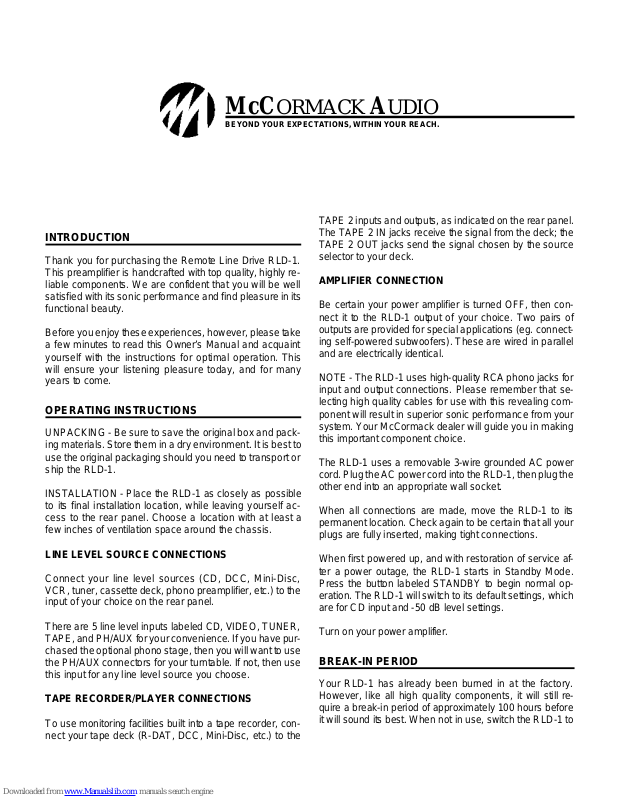

McCormack RLD-1 User Manual

Page 1
McCORMACK AUDIO
BEYOND YOUR EXPECTATIONS, WITHIN YOUR REACH.
INTRODUCTION
Thank you for purchasing the Remote Line Drive RLD-1. This preamplifier is handcrafted with top quality, highly re­liable components. We are confident that you will be well satisfied with its sonic performance and find pleasure in its functional beauty.
Before you enjoy these experiences, however, please take a few minutes to read this Owner’s Manual and acquaint yourself with the instructions for optimal operation. This will ensure your listening pleasure today, and for many years to come.
OPERATING INSTRUCTIONS
UNPACKING - Be sure to save the original box and pack­ing materials. Store them in a dry environment. It is best to use the original packaging should you need to transport or ship the RLD-1.
INSTALLATION - Place the RLD-1 as closely as possible to its final installation location, while leaving yourself ac­cess to the rear panel. Choose a location with at least a few inches of ventilation space around the chassis.
TAPE 2 inputs and outputs, as indicated on the rear panel. The TAPE 2 IN jacks receive the signal from the deck; the TAPE 2 OUT jacks send the signal chosen by the source selector to your deck.
AMPLIFIER CONNECTION
Be certain your power amplifier is turned OFF, then con­nect it to the RLD-1 output of your choice. Two pairs of outputs are provided for special applications (eg. connect­ing self-powered subwoofers). These are wired in parallel and are electrically identical.
NOTE - The RLD-1 uses high-quality RCA phono jacks for input and output connections. Please remember that se­lecting high quality cables for use with this revealing com­ponent will result in superior sonic performance from your system. Your McCormack dealer will guide you in making this important component choice.
The RLD-1 uses a removable 3-wire grounded AC power cord. Plug the AC power cord into the RLD-1, then plug the other end into an appropriate wall socket.
When all connections are made, move the RLD-1 to its permanent location. Check again to be certain that all your plugs are fully inserted, making tight connections.
LINE LEVEL SOURCE CONNECTIONS
Connect your line level sources (CD, DCC, Mini-Disc, VCR, tuner, cassette deck, phono preamplifier, etc.) to the input of your choice on the rear panel.
There are 5 line level inputs labeled CD, VIDEO, TUNER, TAPE, and PH/AUX for your convenience. If you have pur­chased the optional phono stage, then you will want to use the PH/AUX connectors for your turntable. If not, then use this input for any line level source you choose.
TAPE RECORDER/PLAYER CONNECTIONS
To use monitoring facilities built into a tape recorder, con­nect your tape deck (R-DAT, DCC, Mini-Disc, etc.) to the
When first powered up, and with restoration of service af­ter a power outage, the RLD-1 starts in Standby Mode. Press the button labeled STANDBY to begin normal op­eration. The RLD-1 will switch to its default settings, which are for CD input and -50 dB level settings.
Turn on your power amplifier.
BREAK-IN PERIOD
Your RLD-1 has already been burned in at the factory. However, like all high quality components, it will still re­quire a break-in period of approximately 100 hours before it will sound its best. When not in use, switch the RLD-1 to
Page 2
Standby mode which will shut down the displays and mute the outputs while keeping the audio circuits powered.
CONTROLS
All front panel and remote controls are "tact" switches which operate by pressing and releasing.
SELECT (front panel only) Pressing this switch steps se­quentially through the five main inputs (CD, VIDEO, TUNER, TAPE, PH/AUX). An led illuminates to indicate the selected source.
CD, VIDEO, TUNER, TAPE, PH/AUX (remote control only) - On the remote control, the five main inputs may be directly accessed by pressing the associated button.
THEATER (front panel and remote) Theater Mode will only operate on the Video input. When Video is selected, this switch will toggle the unit in and out of Theater Mode. In Theater Mode, the RLD-1 is set to unity gain, and vol­ume and balance controls are disabled. Other functions (Select, Monitor, Mute, Standby) work as usual.
MONITOR (front panel and remote) Pressing the Monitor switch toggles between the selected main source and the TAPE 2 input.
MUTE (front panel and remote) - The MUTE circuit turns off the main outputs, but does not affect the TAPE outputs.
VOLUME - + (front panel and remote) Press these buttons to decrease or increase the level setting. The actual set­ting, expressed in dB of gain, appears for each channel in the display window. Negative numbers indicate dB of at­tenuation. NOTE the volume control is disabled when the RLD-1 is in Theater mode.
BALANCE < > (front panel and remote) - Press these but­tons to shift the balance to left or right. NOTE the balance control is disabled when the RLD-1 is in Theater mode.
STANDBY (front panel only) - This button will toggle the RLD-1 in and out of Standby Mode. In Standby Mode all displays are turned off except for the Standby led, which is lit. When switching out of standby mode, the RLD-1 re­turns to the previously selected source and level settings.
TROUBLESHOOTING
sure it is intact. The fuse is located in a tray in the AC power cord receptacle, located in the lower left corner on the back of the chassis. The top section accepts a 3-prong power cord plug. Below that is a small tray which is divided into two sections, front and back. The back section holds the active AC line fuse; the front section holds a spare fuse. To open this tray, remove the power cord plug, insert a small screwdriver in the slot at the top of the drawer and pull out. If the fuse has blown, replace it once with the cor­rect replacement fuse. Use only the correct replacement fuse value and type. The correct fuse for each voltage standard is listed in the specifications below. Check for proper operation. If it blows again STOP!
There are no user serviceable parts in the RLD-1 other than the AC line fuse. Contact your McCormack Dealer for service options.
SPECIFICATIONS
Line Amplifier Section
Gain: 20 dB Bandwidth: 0.5Hz-300kHz +0,-3dB Maximum Output: 3.5 v rms THD: less than .1 % at 1.0 v rms out Hum and Noise: 100 dB below 2.5 v rms out Signal Polarity("Absolute Phase"): Non-inverting Output Impedance: less than 100 ohms Input Impedance: 13.5 kohms
Optional Phono Stage
MM Phono Sensitivity: 5mv for 0.5v @ 1kHz MC Phono Sensitivity: 0.9mv for 0.5v @1kHz MM & MC Phono Overload: 200mv MM & MC Phono Input Capacitance: Adjustable
(minimum = 100pF) MM & MC Input Load Resistance: Adjustable (maxi-
mum = 47.5k ohm) MM S/N: -80dB relative to 10 mv input MC S/N: -75dB relative to 100 mv input
Fuse:
120 volt ac line: 200 ma 5 x 20 mm "t" type 240 volt ac line: 100 ma 5 x 20 mm "t" type
If you experience loss of power, signal, or indicator lights, check your cable connections and AC line cord carefully. Test your AC outlet to make sure it is supplying power. Check the AC line fuse located on the rear panel to make
Mechanical
Dimensions: 19"W, 3.5"H, 11.25"D Weight: 18 lbs.
