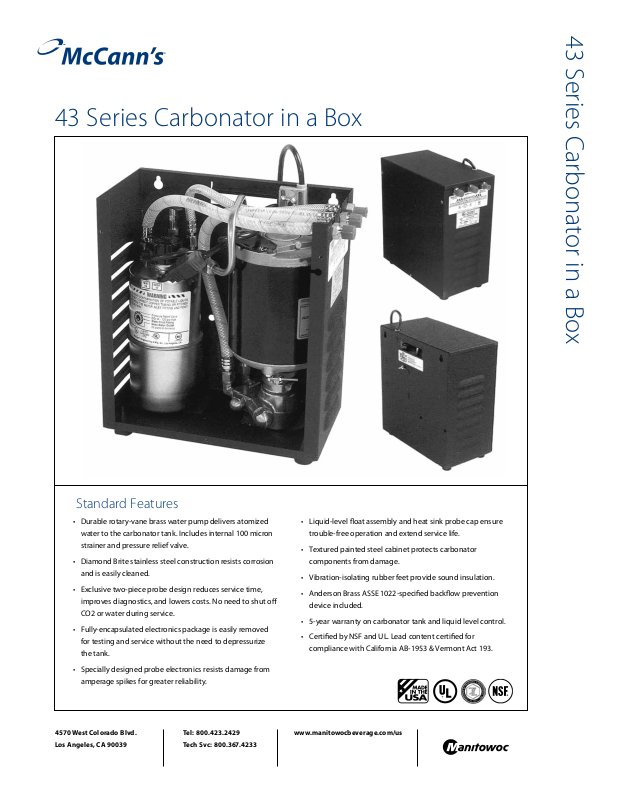

43 Series Carbonator in a Box
43 Series Carbonator in a Box

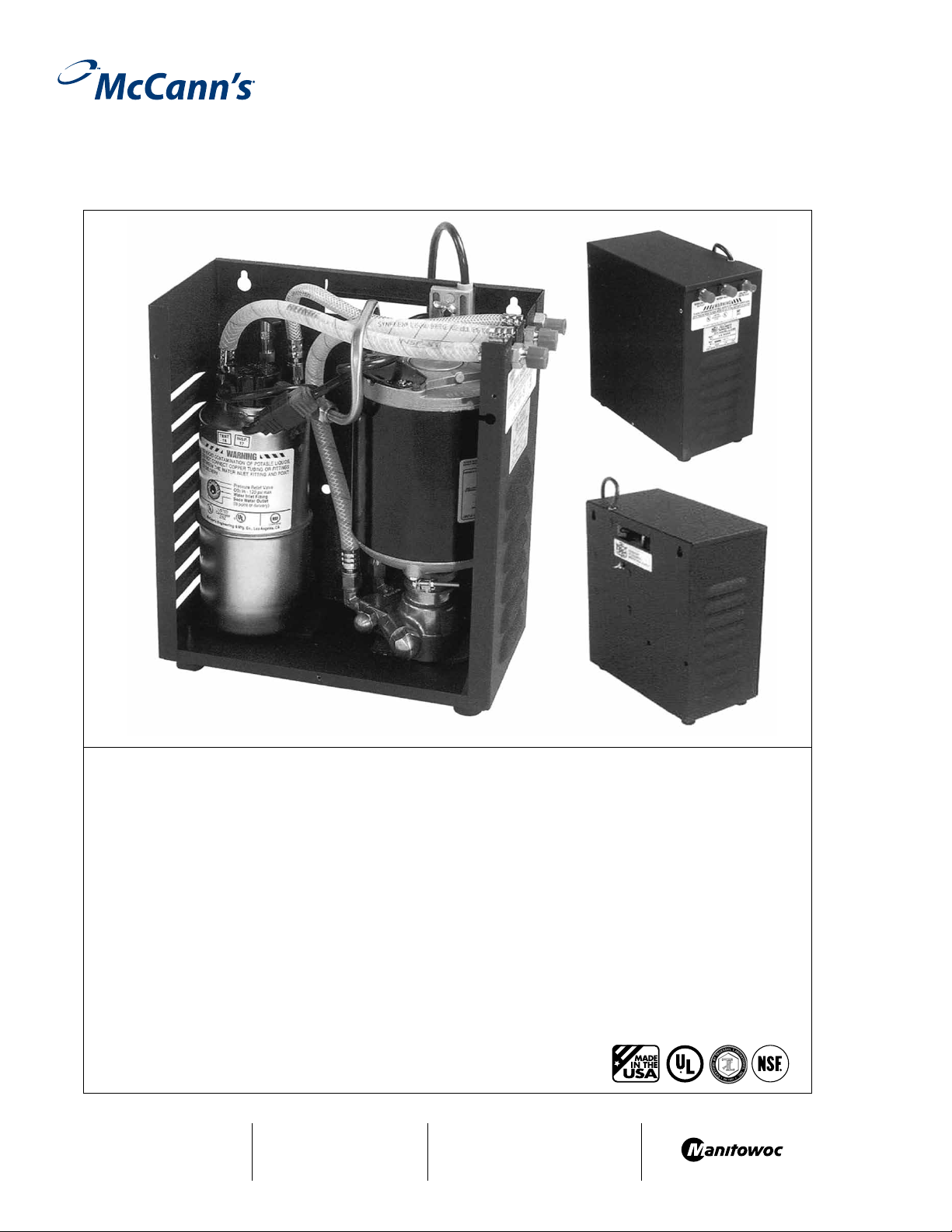

Standard Features
• Durable rotary-vane brass water pump delivers atomized
water to the carbonator tank. Includes internal 100 micron
strainer and pressure relief valve.
• Diamond Brite stainless steel construction resists corrosion
and is easily cleaned.
• Exclusive two-piece probe design reduces service time,
improves diagnostics, and lowers costs. No need to shut off
CO2 or water during service.
• Fully-encapsulated electronics package is easily removed
for testing and service without the need to depressurize
the tank.
• Specially designed probe electronics resists damage from
amperage spikes for greater reliability.
4570 West Colorado Blvd.
Los Angeles, CA 90039
Tel: 800.423.2429
Tech Svc: 800.367.4233
• Liquid-level float assembly and heat sink probe cap ensure
trouble-free operation and extend service life.
• Textured painted steel cabinet protects carbonator
components from damage.
• Vibration-isolating rubber feet provide sound insulation.
• Anderson Brass ASSE 1022-specified backflow prevention
device included.
• 5-year warranty on carbonator tank and liquid level control.
• Certified by NSF and UL. Lead content certified for
compliance with California AB-1953 & Vermont Act 193.
www.manitowocbeverage.com/us

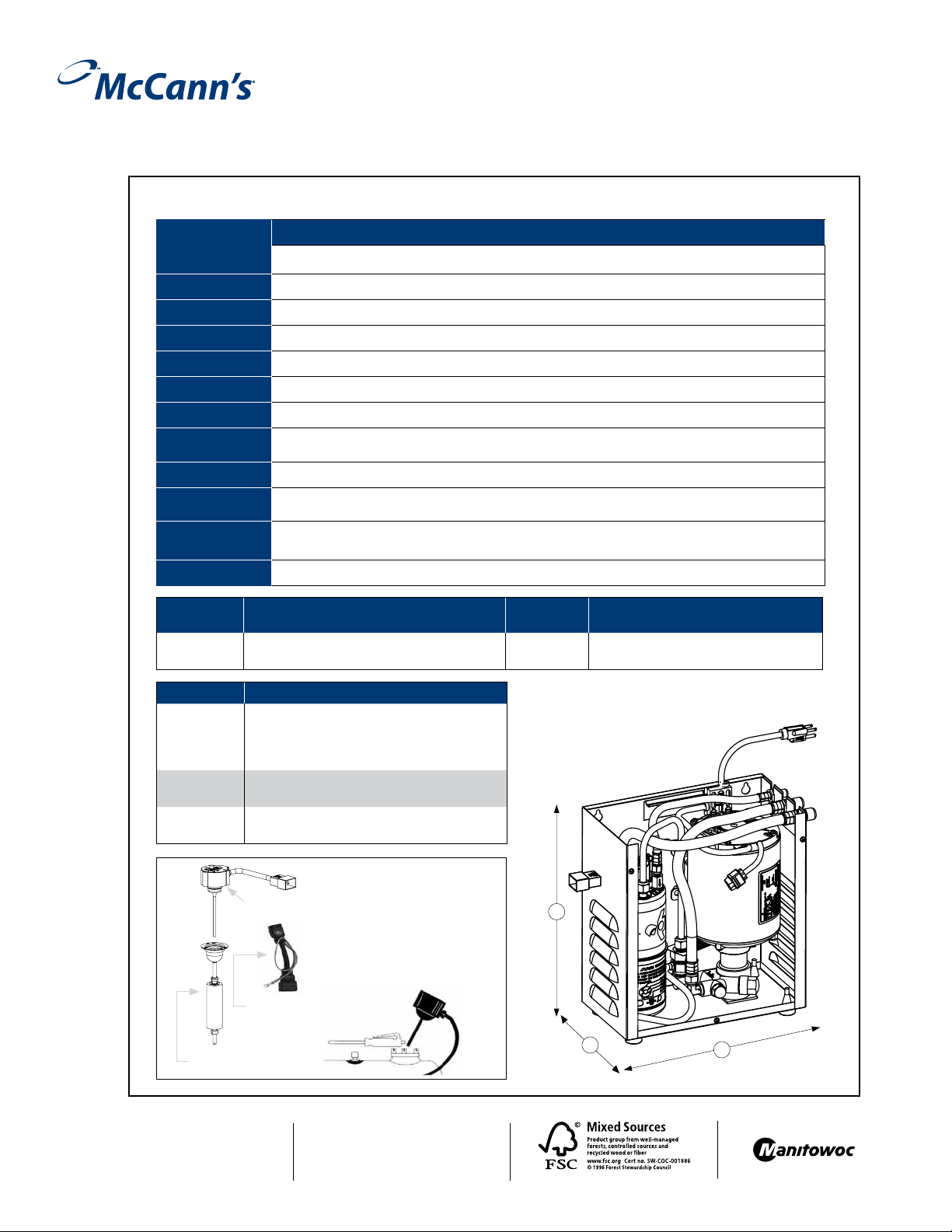

Page 2
43 Series Carbonator in a Box
Specifications
43 Series Carbonator in a Box
Water Capacity 100 gph (378 lph) maximum
Tank Capacity 32 fl. ounces (0.95 liter)
Soda Outlets 1
Base Black textured painted steel cabinet with rubber vibration-isolating feet. Can be wall mounted
Electrical 115V / 60 hz / 1ph and 220V / 50-60 hz / 1 ph
Pump 100 GPH rotary-vane brass pump with internal strainer and by-pass relief
Pressure Relief 180 PSI pressure relief valve
Backflow
Protection
Motor 115V models: 1/3 HP, 6.5 amps, 1725 RPM and 220V models: 1/4 HP, 2.0 amps, 1425 RPM
Inlet/Outlet
Fittings
Approximate
Shipping Weights
Carton Dimensions 15 x 15 x 15 in. (38 x 38 x 38 cm)
1/4 male flare CO2 inlet, 3/8 male flare water inlet, 3/8 male flare soda water outlet
Anderson Brass ASSE 1022-specified backflow prevention device
29 lbs. (13.2 kg)
Model
Number Description
43-5502 McCann's Carbonator in a Box, 115V 60hz,
Accessories Description
16-0856 Optional Pump Saver – Automatically shuts
16-1459 Optional 6" Stand
16-1480 Optional Wall-Mounted Shelf – For 43 Series,
Probe Float
Assembly
32-Ounce SS tank
carbonator motor off if water pressure drops
below 15 PSI. Restarts unit when incoming
water pressure returns to 20 PSI or more.
E200, and E400 models
Easy to test 2-Piece Probe
Probe
Electronics
2-Prong to
3-Prong Adapter
1. Remove probe.
2. Pass magnetic tip
of screwdriver across
lower end of the tube
extending from
electronics package.
3. If reed switch closes,
motor should start.
Model
Number Description
43-5602 McCann's Carbonator in a Box, 220V
50/60hz, 32-Ounce SS tank
Carbonator
in a Box
A 6.5" (16.5 cm)
B 12.5" (31.8 cm)
C 15.0" (38.1 cm)
C
A
B
4774 ©2011 Mc Cann's 1/1 1 Continu ing produ ct impro vement ma y necess itate cha nge of specifi cations w ithout n otice.
