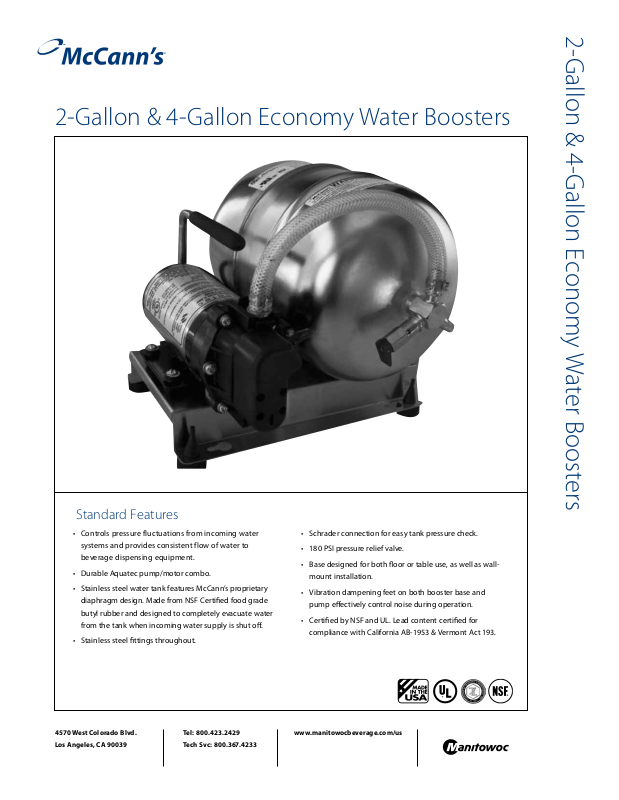

2-Gallon & 4-Gallon Economy Water Boosters
2-Gallon & 4-Gallon Economy Water Boosters
Standard Features
• Controls pressure fluctuations from incoming water
systems and provides consistent flow of water to
beverage dispensing equipment.
• Durable Aquatec pump/motor combo.
• Stainless steel water tank features McCann’s proprietary
diaphragm design. Made from NSF Certified food grade
butyl rubber and designed to completely evacuate water
from the tank when incoming water supply is shut off.
• Stainless steel fittings throughout.
4570 West Colorado Blvd.
Los Angeles, CA 90039
Tel: 800.423.2429
Tech Svc: 800.367.4233
• Schrader connection for easy tank pressure check.
• 180 PSI pressure relief valve.
• Base designed for both floor or table use, as well as wall-
mount installation.
• Vibration dampening feet on both booster base and
pump effectively control noise during operation.
• Certified by NSF and UL. Lead content certified for
compliance with California AB-1953 & Vermont Act 193.
www.manitowocbeverage.com/us
2-Gallon & 4-Gallon Economy Water Boosters
Specifications
Flow Rate
Inlet/Outlet
Pressure
Tank Capacity
Water Available at
80-100 PSI
Total Water
Reserve
Base
Manifold
Electrical
Pump
Motor
Pressure Relief
2-Gallon Models 4-Gallon Models
100 gph (378 lph) maximum
Minimum inlet pressure 20 PSI (1.4 bar)
Outlet pressure factory set at 80 PSI (5.5 bar) ON and100 PSI (6.9 bar) OFF
2 gallon (7.6 liter) 4.4 gallon (16.7 liter)
21 fl. ounces (0.62 liter) 51 fl. ounces (1.5 liter)
93 fl. ounces (2.8 liter) 222 fl. ounces (6.6 liter)
Stainless steel base with vibration
dampening feet and carrying handle
Flexible tubing Rigid stainless steel tube
115V / 60 hz / 1 ph and 230V / 50Hz / 1 ph
Positive displacement diaphragm pump
1/5 HP, 1.3 amps at 115V and 0.65 amps at 230V
180 psig relief setting
Powder coated cold rolled steel base with
vibration dampening feet
Inlet/Outlet
Approximate
Shipping Weights
Carton Volume
Model
Number Description
16-3172-1/2
16-3172-3/8
16-3182-3/8
Economy Water Booster, 115V 60hz,
2-Gallon SS Tank, 1/2” inlet/outlet fittings
Economy Water Booster, 115V 60hz,
2-Gallon SS Tank, 3/8” inlet/outlet fittings
Economy Water Booster, 230V 50hz,
2-Gallon SS Tank, 3/8” inlet/outlet fittings
Model 16-3172
A 11.875" (30.2 cm)
B 15.625" (39.7 cm)
C 9.00" (22.9 cm)
C
3/8” or 1/2” stainless steel barbed hose fittings (indicated Inlet/Outlet on model number)
16 lbs. (7.26 kg) 22 lbs. (9.98 kg)
1.8 cu. ft. (51 liter) 2.5 cu. ft. (71 liter)
Model
Number Description
16-3174-1/2
16-3174-3/8
16-3184
Economy Water Booster, 115V 60hz,
4-Gallon SS Tank, 1/2” inlet/outlet fittings
Economy Water Booster, 115V 60hz,
4-Gallon SS Tank, 3/8” inlet/outlet fittings
Economy Water Booster, 230V 50hz,
4-Gallon SS Tank, 1/2” inlet/outlet fittings
Model 16-3174
A 15.00" (38.1 cm)
B 17.875" (30.5 cm)
C 12.00" (45.4 cm)
C
B
4570 West Colorado Blvd.
Los Angeles, CA 90039
A
2-Gallon Model
Tel: 800.423.2429
Tech Svc: 800.367.4233
www.manitowocbeverage.com/us
A
4-Gallon Model
B
4711 ©2011 Mc Cann's 1/1 1 Continu ing produ ct impro vement ma y necess itate cha nge of specifi cations w ithout n otice.
