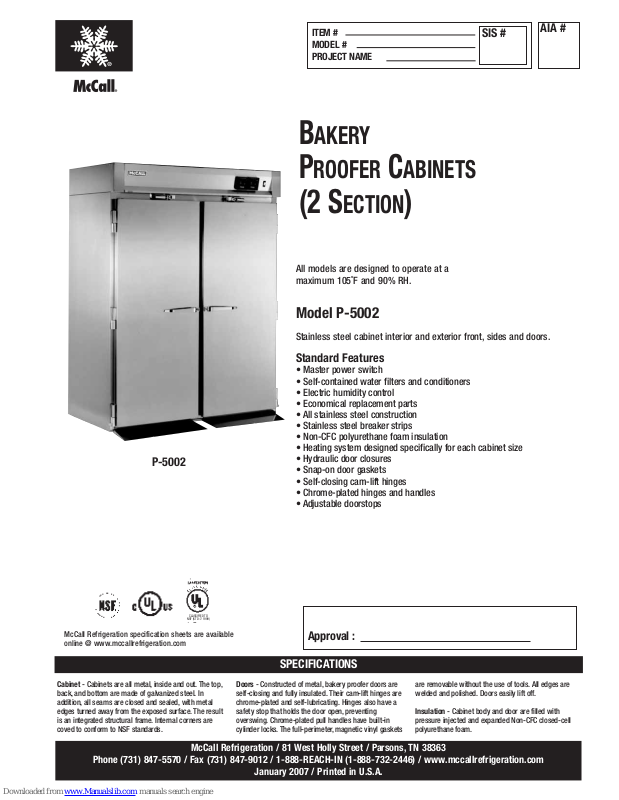

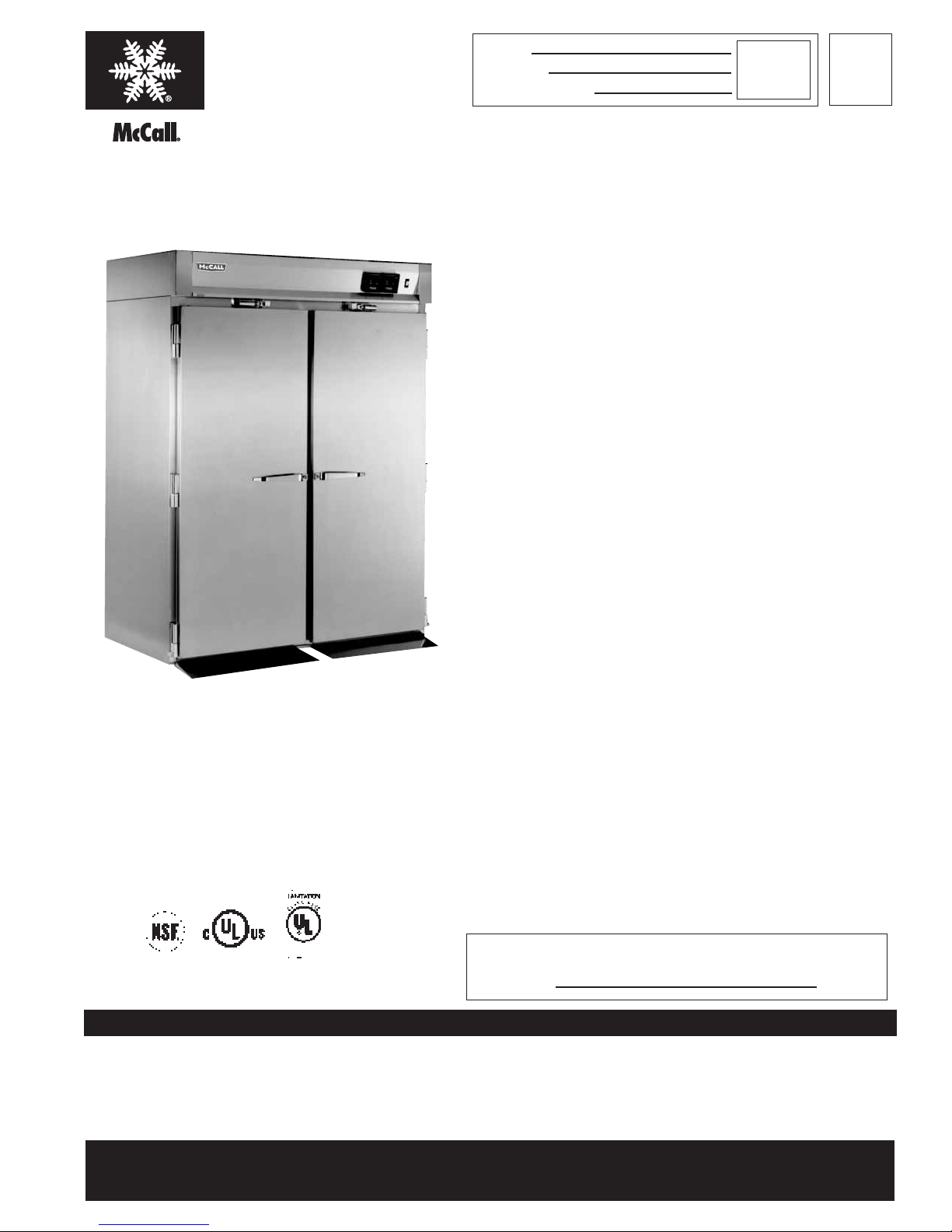

Model P-5002
Stainless steel cabinet interior and exterior front, sides and doors.
Standard Features
• Master power switch
• Self-contained water filters and conditioners
• Electric humidity control
• Economical replacement parts
• All stainless steel construction
• Stainless steel breaker strips
• Non-CFC polyurethane foam insulation
• Heating system designed specifically for each cabinet size
• Hydraulic door closures
• Snap-on door gaskets
• Self-closing cam-lift hinges
• Chrome-plated hinges and handles
• Adjustable doorstops
SPECIFICATIONS
Cabinet - Cabinets are all metal, inside and out. The top,
back, and bottom are made of galvanized steel. In
addition, all seams are closed and sealed, with metal
edges turned away from the exposed surface. The result
is an integrated structural frame. Internal corners are
coved to conform to NSF standards.
Doors - Constructed of metal, bakery proofer doors are
self-closing and fully insulated. Their cam-lift hinges are
chrome-plated and self-lubricating. Hinges also have a
safety stop that holds the door open, preventing
overswing. Chrome-plated pull handles have built-in
cylinder locks. The full-perimeter, magnetic vinyl gaskets
are removable without the use of tools. All edges are
welded and polished. Doors easily lift off.
Insulation - Cabinet body and door are filled with
pressure injected and expanded Non-CFC closed-cell
polyurethane foam.
Approval :
P-5002
McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com
AIA #
ITEM #
MODEL #
PROJECT NAME
SIS #
CLASSIFIED TO
NSF (STD-7-1999)
Page 2
McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.
BAKERY PROOFER CABINETS
(2 SECTION)
Width: TWO SECTION 66.88"
Height: 87"
Depth: cabinet only 33.19"
Depth: over hardware 36.94"
Depth: door open 90° 65.75"
Net Door Opening: width 27.38"
Net Door Opening: height 73"
Racks per section: 1
Plumbing Requirements: Water Line 0.5"
Drain Line 0.5"
Shipping Weight
ELECTRICAL
Heater Wattage 3,000
Voltage (60 hz, 1 ph) 230
Total Amperage: 12.8
OPTIONS
Finished Back.
Alarm System.
66.88
33.19
37.19
87
E
D
W
C
McCall Bakery Proofer Cabinets Shall Have:
Matched and balanced system. Cabinets operate a maximum 105˚F
temperature with 90% RH. Self contained water filters and conditioners.
Stainless steel front, doors and floor. Self-closing all metal doors with
welded and polished corners. Cam-lift hinges with concealed light switch.
Adjustable doorstops. Exterior digital thermometer (1000 series) dial
thermometer (2000-4000 series). Chrome-plated door handles with security
lock. Removable stainless steel ramp, each door opening. Master Power
Switch. Cord and plug attached.
Bidding Specifications
Specifications subject to change without notice.
Certain options and accessories may affect
UL/NSF listing and electrical requirements.
Model P-5002
Model P-5003
Two
Section
LEGEND:
C CONTROL BOX
D FLOOR DRAIN
E ELECTRICAL CONNECTION
W WATER CONNECTION
Model P-5002
690 lbs.

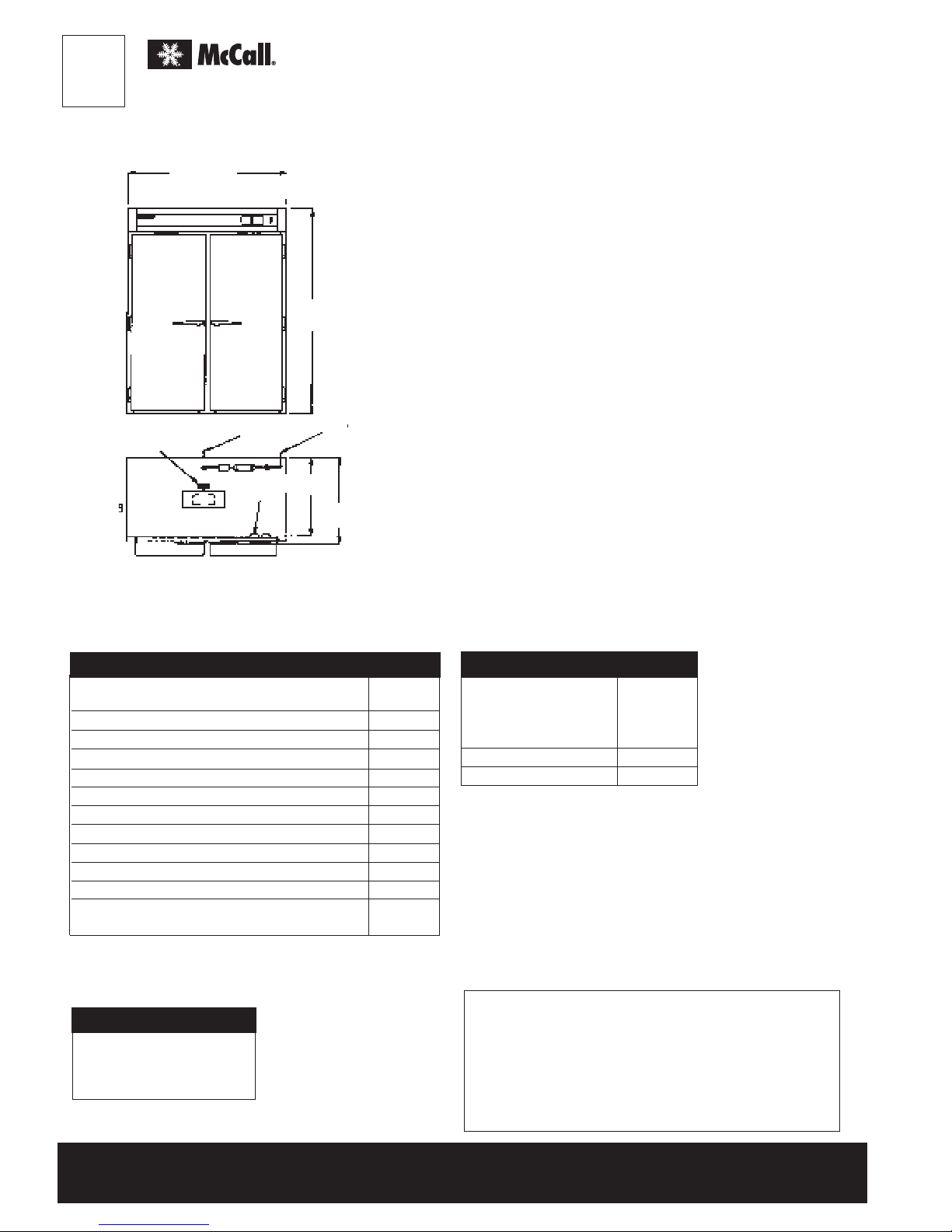

FRONT VIEW
TOP VIEW
DIMENSIONS
AIA #
16041
