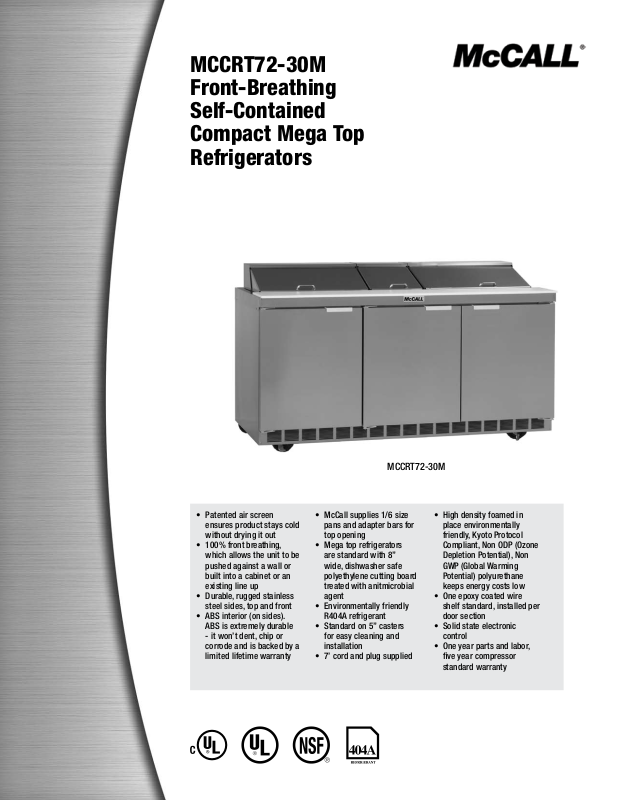

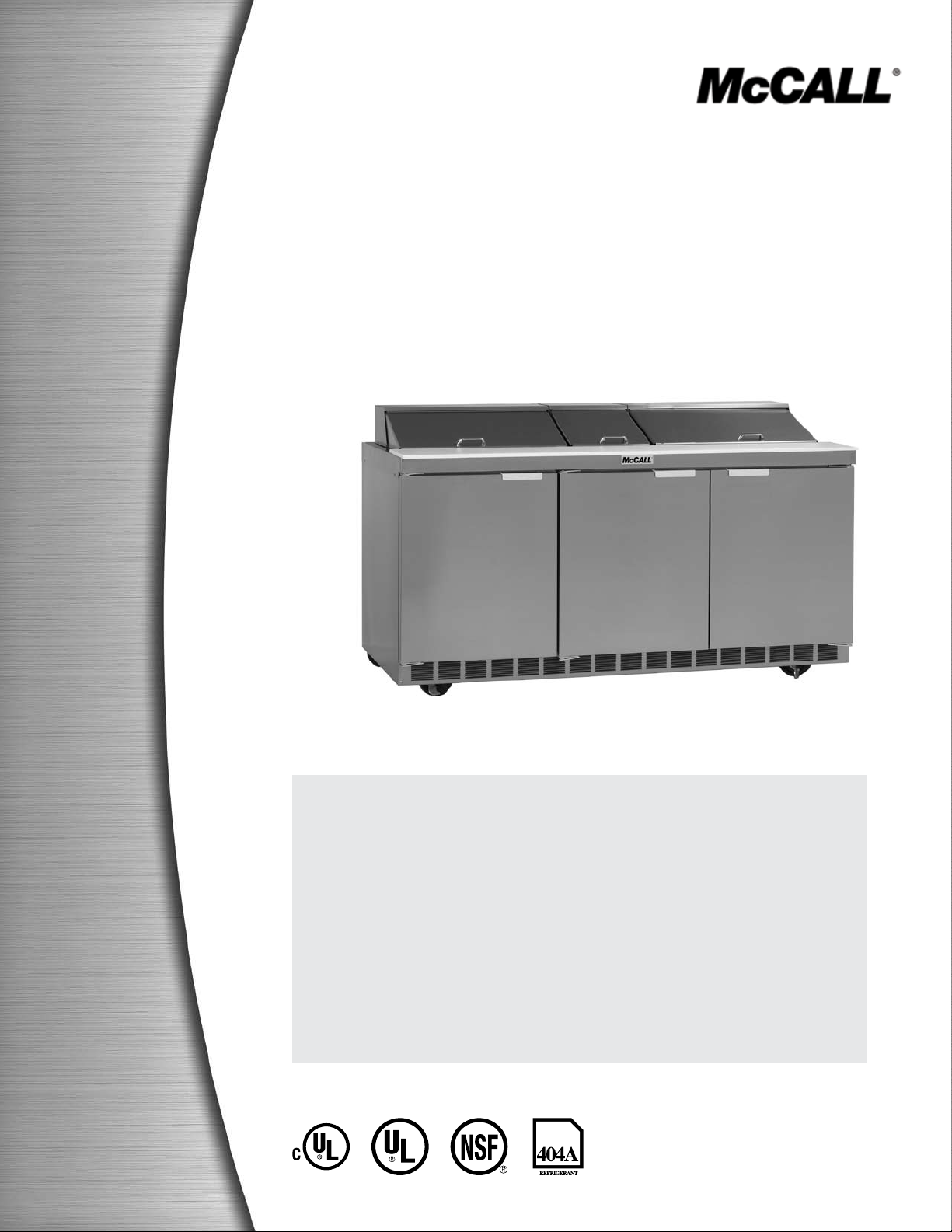

MCCRT72-30M
Front-Breathing
Self-Contained
Compact Mega Top
Refrigerators
Patented air screen
•
ensures product stays cold
without drying it out
100% front breathing,
•
which allows the unit to be
pushed against a wall or
built into a cabinet or an
existing line up
Durable, rugged stainless
•
steel sides, top and front
ABS interior (on sides).
•
ABS is extremely durable
- it won’t dent, chip or
corrode and is backed by a
limited lifetime warranty
MCCRT72-30M
McCall supplies 1/6 size
•
pans and adapter bars for
top opening
Mega top refrigerators
•
are standard with 8”
wide, dishwasher safe
polyethylene cutting board
treated with anitmicrobial
agent
Environmentally friendly
•
R404A refrigerant
Standard on 5” casters
•
for easy cleaning and
installation
7’ cord and plug supplied
•
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP (Ozone
Depletion Potential), Non
GWP (Global Warming
Potential) polyurethane
keeps energy costs low
One epoxy coated wire
•
shelf standard, installed per
door section
Solid state electronic
•
control
One year parts and labor,
•
five year compressor
standard warranty
Page 2

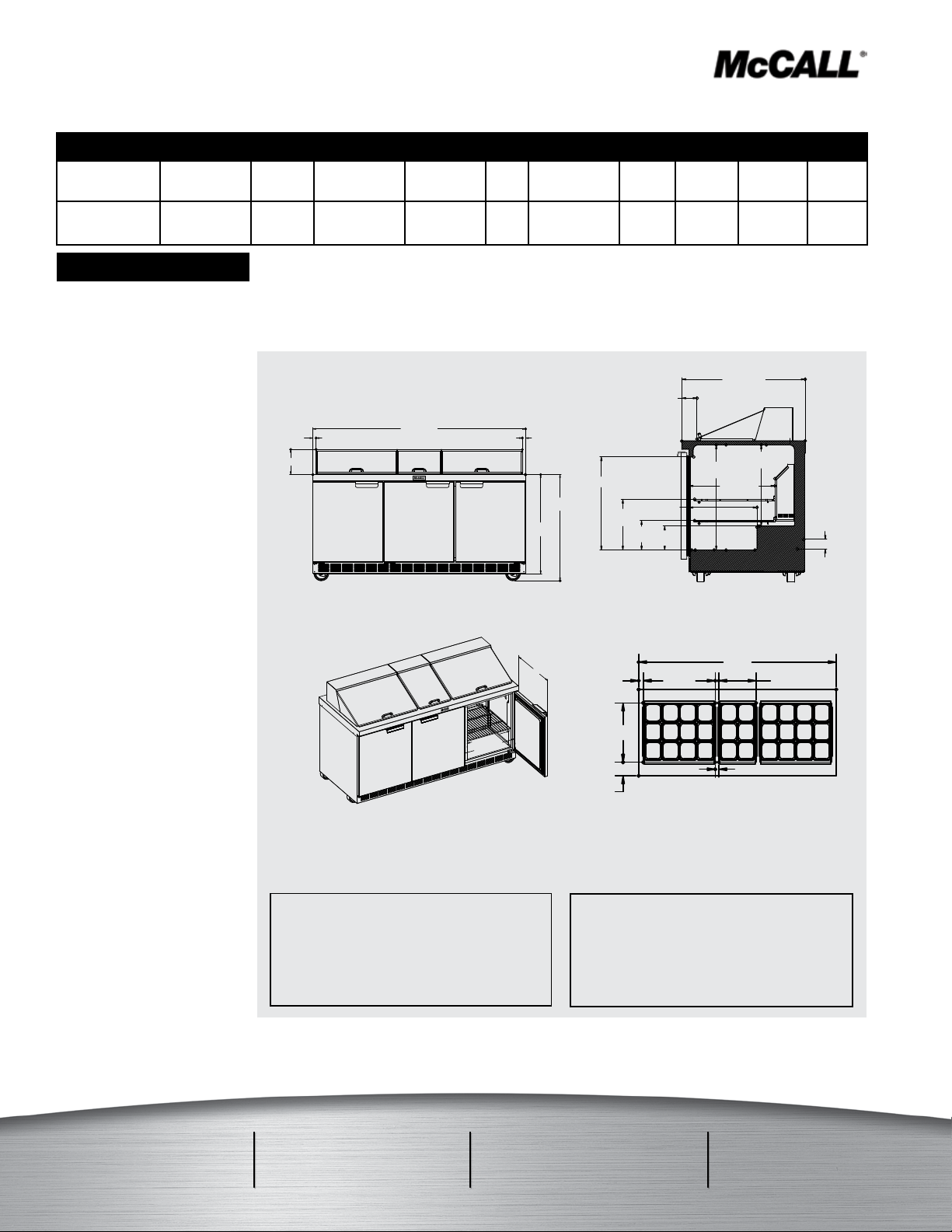

MCCRT72-30M Front-Breathing Self-Contained Compact Mega Top Refrigerators
NOSE OF UNIT
TO EDGE OF DOOR
ALT. SHELF
SHELF
6.11"
[15.52]
12.98"
[33.00]
7.53"
[19.10]
17.35" [44.08]
23.79" [60.43]
20.75"
[52.70]
26.86"
[68.22]
21.94"[55.73]
2.50" [6.30]
19.94"[50.65]
DOOR WIDTH
67.75" [172.09]
INTERIOR DIMENSION
22.66" [57.56]
31.50" [80.01]
3.88” [9.86]
NOSE OF UNIT
TO EDGE OF DOOR
ALT. SHELF
SHELF
33.59"
[85.31]
36.00"
[91.40]
6.11"
[15.52]
12.98"
[33.00]
7.53"
[19.10]
17.35" [44.08]
23.79" [60.43]
20.75"
[52.70]
26.86"
[68.22]
21.94"[55.73]
2.50" [6.30]
19.94"[50.65]
DOOR WIDTH
67.75" [172.09]
INTERIOR DIMENSION
22.66" [57.56]
31.50" [80.01]
3.88” [9.86]
72.13" [183.21]
1.10” [2.79] 1.10” [2.80]
8.54” [21.69]
NOSE OF UNIT
TO EDGE OF DOOR
19.94"[50.65]
DOOR WIDTH
67.75" [172.09]
INTERIOR DIMENSION
22.66" [57.56]
13.63
26.25
1.69
4.96
21.63
1.31
72.13
Specifications
MODEL
1/6 SIZE PAN
CAPACITY
MCCRT72-30M 30 3 8.42 18.7 1/2 115/60/1 12.0 5-15P
Specifications
Exterior top is one-piece 22-gauge stainless
steel with integral 2.12” (5.1cm) square nosing
on the front. Telescoping lid is constructed of 20gauge stainless steel. Top opening can accept 30
1/6 size plastic pans 4”-6” (10.1cm-15.2cm)
deep. Adapter bars and 1/6 size pans are supplied
by McCall. Temperature in top openings maintains
33°F (1°C) to 41°F (5°C), with pans recessed
2.5” (6.4cm) at 86°F ambient room temperature,
meeting NSF 7 requirements. One 72” x 8” x .5”
(183cm x 20.3cm x 1.3cm) polyethylene cutting
board treated with antimicrobial agent is mounted
on the top at the front edge.
Exterior back and bottom are two-piece 24-gauge
galvanized steel. Exterior ends are stainless steel.
Interior sides are thermoformed ABS plastic
with shelf supports. Base is fully insulated with
high-density foamed in place environmentally
friendly, Kyoto Protocol Compliant, Non ODP
(Ozone Depletion Potential), Non GWP (Global
Warming Potential) polyurethane.
Refrigeration system uses HFC-404A
refrigerant. Compressor is 1/2 H.P., with
condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet.
Evaporator coils and temperature control are
located on the interior rear wall of the cabinet.
Refrigerant flow is controlled by a capillary tube.
Cabinet maintains an interior cabinet temperature
of 36°F to 40°F (2°C to 4°C).
Electronic, solid state control, mounted on the
exterior rear of the cabinet, allows unit to maintain
precise temperatures in heavy duty conditions.
Electrical connections are 115 volt, 60
Hertz, single phase. Unit has a 7’ (2.1m) long
electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5” (13cm)
diameter plate casters with front two locking.
Equipment clearance above the floor is 2.5”
(6.35cm).
Doors have a 24-gauge stainless steel exterior,
with thermoformed ABS plastic interior liner.
Cabinet has one adjustable epoxy-coated wire
shelf per door opening.
# OF
SHELVES
SHELF AREA
SQ.FT.
STORAGE
CAP.CU.FT.
MCCRT72-30M Elevation Vi ew
MCCRT72-30M ISO View
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
H.P.
VOLTS/
HERTZ/PHASE
AMPS
NEMA
PLUG
MCCRT72-30M Right Side V ie w
Pan Cutout C on fi guration
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however,
any air which passes through the louver is
beneficial.
SHIP
WEIGHT
485LBS./
220KG.
ENERGY
KWH
14.93
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
DSMCCRT72-30M ©2009 McCall
09/09
