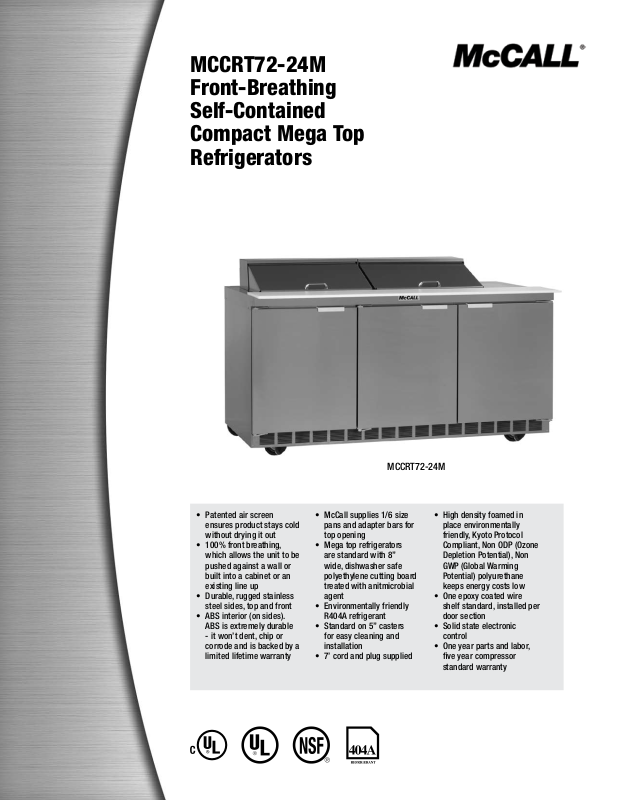

MCCRT72-24M
Front-Breathing
Self-Contained
Compact Mega Top
Refrigerators
Patented air screen
•
ensures product stays cold
without drying it out
100% front breathing,
•
which allows the unit to be
pushed against a wall or
built into a cabinet or an
existing line up
Durable, rugged stainless
•
steel sides, top and front
ABS interior (on sides).
•
ABS is extremely durable
- it won’t dent, chip or
corrode and is backed by a
limited lifetime warranty
MCCRT72-24M
McCall supplies 1/6 size
•
pans and adapter bars for
top opening
Mega top refrigerators
•
are standard with 8”
wide, dishwasher safe
polyethylene cutting board
treated with anitmicrobial
agent
Environmentally friendly
•
R404A refrigerant
Standard on 5” casters
•
for easy cleaning and
installation
7’ cord and plug supplied
•
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP (Ozone
Depletion Potential), Non
GWP (Global Warming
Potential) polyurethane
keeps energy costs low
One epoxy coated wire
•
shelf standard, installed per
door section
Solid state electronic
•
control
One year parts and labor,
•
five year compressor
standard warranty
Page 2

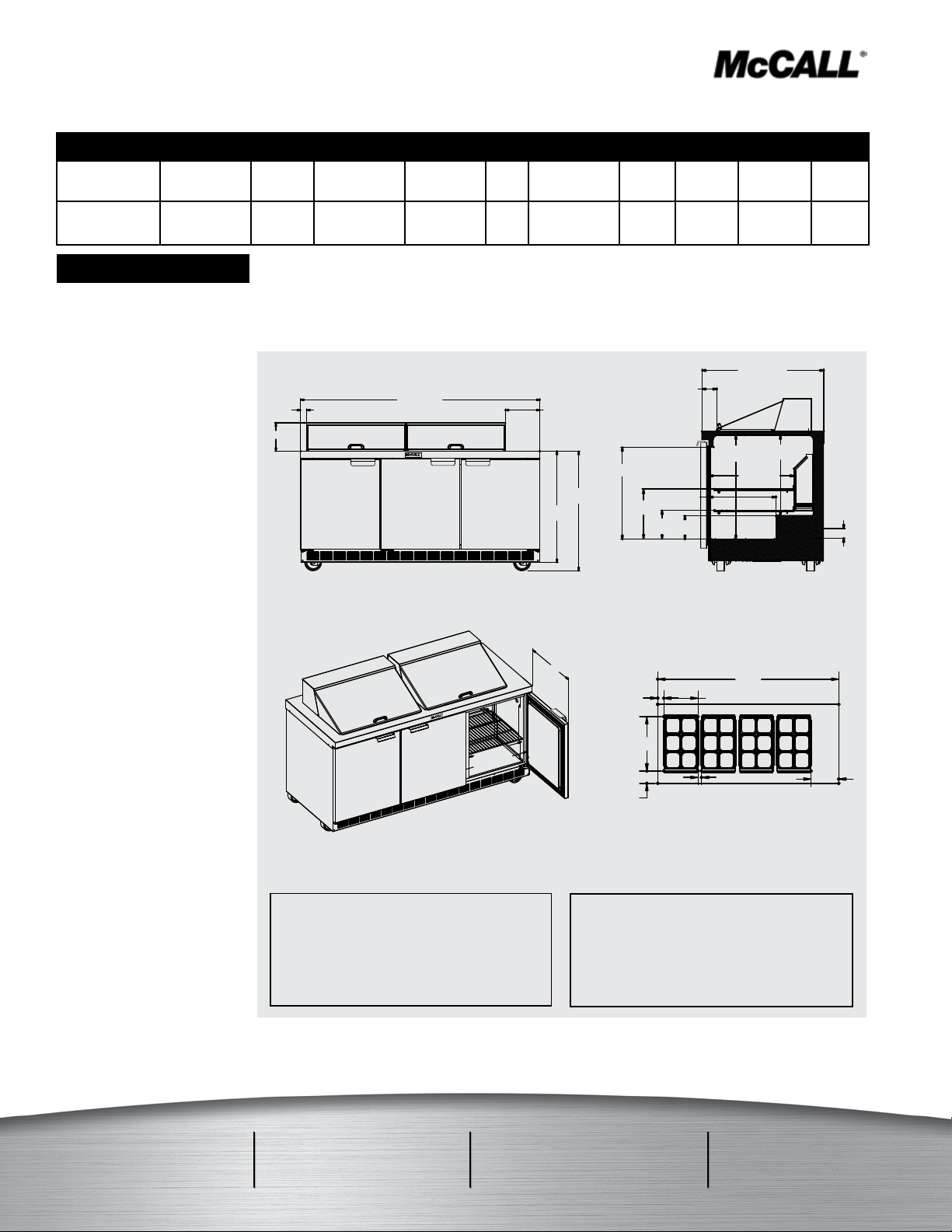

MCCRT72-24M Front-Breathing Self-Contained Compact Mega Top Refrigerators
NOSE OF UNIT
TO EDGE OF DOOR
19.94"[50.65]
DOOR WIDTH
67.75" [172.09]
INTERIOR DIMENSION
22.66" [57.56]
ALT. SHELF
SHELF
6.11"
[15.52]
12.98"
[33.00]
7.53"
[19.10]
17.35"[44.08]
23.79" [60.43]
20.75"
[52.70]
26.86"
[68.22]
21.94"[55.73]
2.50" [6.30]
31.50" [80.01]
3.88” [9.86]
13.63
2.42
4.96
21.63
1.39
11.03
72.13
NOSE OF UNIT
TO EDGE OF DOOR
33.59"
[85.31]
36.00"
[91.40]
19.94"[50.65]
DOOR WIDTH
67.75" [172.09]
INTERIOR DIMENSION
22.66" [57.56]
72.13" [183.21]
1.83 [4.65] 10.44 [26.52]
8.54 [21.69]
ALT. SHELF
SHELF
6.11"
[15.52]
12.98"
[33.00]
7.53"
[19.10]
17.35"[44.08]
23.79" [60.43]
20.75"
[52.70]
26.86"
[68.22]
21.94"[55.73]
2.50" [6.30]
31.50" [80.01]
3.88” [9.86]
NOSE OF UNIT
TO EDGE OF DOOR
19.94"[50.65]
DOOR WIDTH
67.75" [172.09]
INTERIOR DIMENSION
22.66" [57.56]
MODEL
1/6 SIZE PAN
CAPACITY
MCCRT72-24M 24 3 8.42 18.7 1/2 115/60/1 12.0 5-15P
Specifications
Exterior top is one-piece 22-gauge stainless
steel with integral 2.12” (5.1cm) square nosing
on the front. Telescoping lid is constructed
of 20-gauge stainless steel. Top opening
can accept 24 1/6 size plastic pans 4”-6”
(10.1cm-15.2cm) deep. Adapter bars and 1/6
size pans are supplied by McCall. Temperature
in top openings maintains 33°F (1°C) to 41°F
(5°C), with pans recessed 2.5” (6.4cm) at
86°F ambient room temperature, meeting NSF
7 requirements. One 72” x 8” x .5” (183cm
x 20.3cm x 1.3cm) polyethylene cutting board
treated with antimicrobial agent is mounted on
the top at the front edge.
Exterior back and bottom are two-piece 24gauge galvanized steel. Exterior ends are
stainless steel.
Interior sides are thermoformed ABS plastic
with shelf supports. Base is fully insulated with
high-density foamed in place environmentally
friendly, Kyoto Protocol Compliant, Non ODP
(Ozone Depletion Potential), Non GWP (Global
Warming Potential) polyurethane.
Refrigeration system uses HFC-404A
refrigerant. Compressor is 1/2 H.P., with
condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet.
Evaporator coils and temperature control are
located on the interior rear wall of the cabinet.
Refrigerant flow is controlled by a capillary
tube. Cabinet maintains an interior cabinet
temperature of 36°F to 40°F (2°C to 4°C).
Electronic, solid state control, mounted on
the exterior rear of the cabinet, allows unit to
maintain precise temperatures in heavy duty
conditions.
Electrical connections are 115 volt, 60
Hertz, single phase. Unit has a 7’ (2.1m) long
electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5” (13m)
diameter plate casters with front two locking.
Equipment clearance above the floor is 2.5”
(6.35cm).
Doors have a 24-gauge stainless steel exterior,
with thermoformed ABS plastic interior liner.
Cabinet has one adjustable epoxy-coated wire
shelf per door opening.
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
# OF
SHELVES
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
Specifications
SHELF AREA
SQ.FT.
MCCRT72-24M El eva tion View
STORAGE
CAP.CU.FT.
MCCRT72-24M IS O V iew
H.P.
VOLTS/
HERTZ/PHASE
AMPS
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however,
any air which passes through the louver is
beneficial.
DSMCCRT72-24M ©2009 McCall
09/09
NEMA
PLUG
SHIP
WEIGHT
485LBS./
220KG.
ENERGY
14.93
MCCRT72-24M Ri ght Side View
Pan Cuto ut Configurations
KWH
