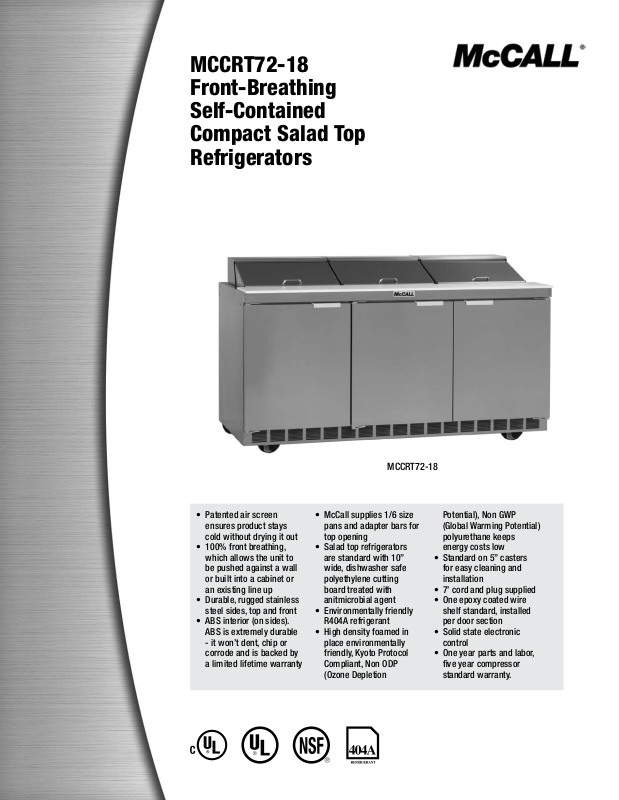

Page 1
MCCRT72-18
Front-Breathing
Self-Contained
Compact Salad Top
Refrigerators
Patented air screen
•
ensures product stays
cold without drying it out
100% front breathing,
•
which allows the unit to
be pushed against a wall
or built into a cabinet or
an existing line up
Durable, rugged stainless
•
steel sides, top and front
ABS interior (on sides).
•
ABS is extremely durable
- it won’t dent, chip or
corrode and is backed by
a limited lifetime warranty
MCCRT72-18
McCall supplies 1/6 size
•
pans and adapter bars for
top opening
Salad top refrigerators
•
are standard with 10”
wide, dishwasher safe
polyethylene cutting
board treated with
anitmicrobial agent
Environmentally friendly
•
R404A refrigerant
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming Potential)
polyurethane keeps
energy costs low
Standard on 5” casters
•
for easy cleaning and
installation
7’ cord and plug supplied
•
One epoxy coated wire
•
shelf standard, installed
per door section
Solid state electronic
•
control
One year parts and labor,
•
five year compressor
standard warranty.
Page 2
2.50" [6.30]
23.79" [60.43]
17.35" [44.08]
7.53"
[19.10]
12.98"
[33.00]
6.11"
[15.52]
SHELF
ALT. SHELF
21.94"[55.73]
20.75" [52.70]
TO EDGE OF DOOR
NOSE OF UNIT
22.66" [57.56]
INTERIOR DIMENSION
67.75" [172.09]
DOOR WIDTH
19.94"[50.65]
9.72”[24.69]
31.50" [80.01]
2.24
21.63
1.39
12.96
13.63
72.13
2.50" [6.30]
23.79" [60.43]
17.35" [44.08]
7.53"
[19.10]
12.98"
[33.00]
6.11"
[15.52]
SHELF
ALT. SHELF
21.94"[55.73]
20.75" [52.70]
36.00" [91.40]
33.59" [85.31]
TO EDGE OF DOOR
NOSE OF UNIT
22.66" [57.56]
INTERIOR DIMENSION
67.75" [172.09]
DOOR WIDTH
19.94"[50.65]
72.13" [183.21]
6.14” [15.61]
9.72”[24.69]
31.50" [80.01]
1.64” [4.17]
TO EDGE OF DOOR
NOSE OF UNIT
22.66" [57.56]
INTERIOR DIMENSION
67.75" [172.09]
DOOR WIDTH
19.94"[50.65]
MCCRT72-18 Front-Breathing Self-Contained Compact Salad Top Refrigerators
Specifications
MODEL
1/6 SIZE PAN
CAPACITY
MCCRT72-18 18 2 8.42 18.7 1/2 115/60/1 12.0 5-15P
Specifications
Exterior top is one-piece 22-gauge stainless
steel with integral 2.12” (5.1cm) square nosing
at the front. Top has openings to accept 18 1/6size 4”- 6” (10.2cm - 15.2cm) deep plastic
pans. Adapter bars and 1/6 pans are supplied
by McCall. Temperature in top opening to
maintain 33°F (1°C) to 41°F (5°C), with pans
recessed 2.5” (6.4cm) at 86°F ambient room
temperature, meeting NSF 7 requirements.
One 72” x 10” x .5” (183cm x 25.4cm x
1.3cm) polyethylene cutting board treated with
antimicrobial agent is mounted on the top at the
front edge.
Exterior back and bottom are two-piece 24gauge galvanized steel. Exterior ends are
stainless steel.
Interior sides are thermoformed ABS plastic
with shelf supports. Base is fully insulated with
high-density foamed in place environmentally
friendly, Kyoto Protocol Compliant, Non ODP
(Ozone Depletion Potential), Non GWP (Global
Warming Potential) polyurethane.
Refrigeration system uses HFC-404A
refrigerant. Compressor is 1/2 H.P., with
condenser coil and condensate evaporator
mounted on rear of the cabinet. Evaporator
coils are located on the interior rear wall of
the cabinet. Refrigerant flow is controlled by
a capillary tube. Cabinet maintains an interior
cabinet temperature of 36°F to 40°F (2°C to
4°C).
Electronic, solid state control, mounted on
the exterior rear of the cabinet, allows unit to
maintain precise temperatures in heavy duty
conditions.
Electrical connections are 115 volt, 60
Hertz, single phase. Unit has a 7’ (2.1m) long
electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5” (13cm)
diameter casters, with front two locking.
Equipment clearance above the floor is 2.5”
(6.35cm).
Doors have a 24-gauge stainless steel exterior,
with thermoformed ABS plastic interior liner.
Cabinet has one adjustable epoxy-coated wire
shelf per door opening.
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
# OF
SHELVES
SHELF AREA
SQ.FT.
STORAGE
CAP.CU.FT.
MCCRT72-18 Elevation V iew
MCCRT72-18 ISO View
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
VOLTS/HERTZ/
H.P.
PHASE
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however,
any air which passes through the louver is
beneficial.
DSMCCRT72-18 ©2009 McCall 09/09
AMPS
NEMA
PLUG
SHIP
WEIGHT
485LBS./
220KG.
MCCRT72-18 Right Side View
Pan Cuto ut Configur ation
ENERGY
KWH
14.93
