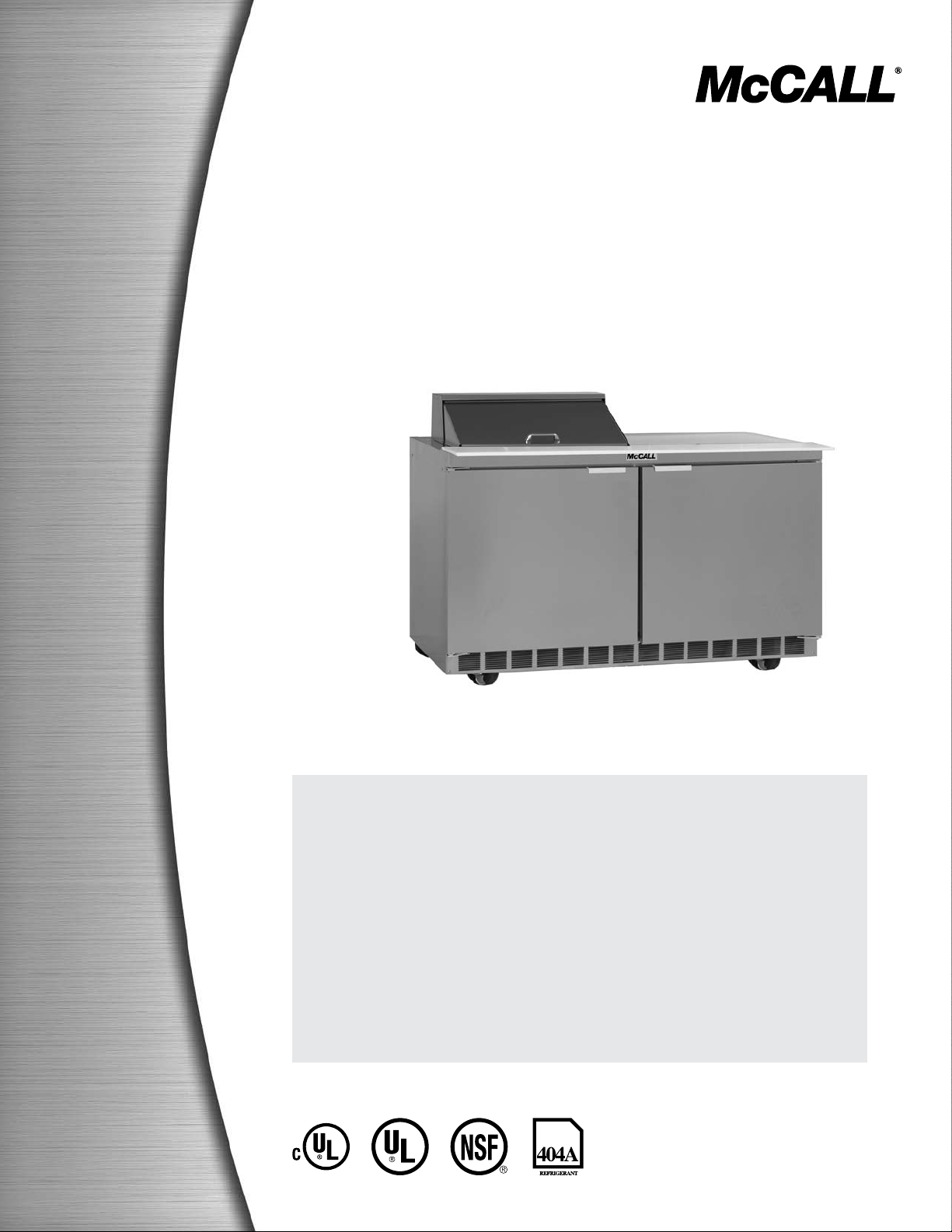

MCCRT60-12M
Front-Breathing
Self-Contained
Compact Mega Top
Refrigerators
Patented air screen
•
ensures product stays cold
without drying it out
100% front breathing,
•
which allows the unit to be
pushed against a wall or
built into a cabinet or an
existing line up
Durable, rugged stainless
•
steel sides, top and front
McCall supplies 1/6 size
•
pans and adapter bars for
top opening
ABS interior (on sides).
•
ABS is extremely durable
- it won’t dent, chip or
MCCRT60-12M
corrode and is backed by a
limited lifetime warranty
Mega top refrigerators
•
are standard with 8”
wide, dishwasher safe
polyethylene cutting board
treated with anitmicrobial
agent
Environmentally friendly
•
R404A refrigerant
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP (Ozone
Depletion Potential), Non
GWP (Global Warming
Potential) polyurethane
keeps energy costs low
Standard on 5” casters
•
for easy cleaning and
installation
7’ cord and plug supplied
•
One epoxy coated wire
•
shelf standard, installed per
door section
Solid state electronic
•
control
One year parts and labor,
•
five year compressor
standard warranty
Page 2
ALT. SHELF
SHELF
2.50" [6.30]
30.66" [77.88]
TO EDGE OF DOOR
NOSE OF UNIT
INTERIOR DIMENSION
55.75" [141.61]
DOOR WIDTH DIMENSION
25.94" [65.89]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
3.88 [9.87]
31.50" [80.01]
60.13
13.63
3.13
4.96
21.63
28.35
1.39
ALT. SHELF
SHELF
2.50" [6.30]
30.66" [77.88]
TO EDGE OF DOOR
NOSE OF UNIT
33.59" [85.31]
36.00" [91.40]
INTERIOR DIMENSION
55.75" [141.61]
DOOR WIDTH DIMENSION
25.94" [65.89]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
3.88 [9.87]
31.50" [80.01]
60.13" [152.72]
28.09 [71.36]
8.54 [21.69]
2.21 [5.63]
30.66" [77.88]
TO EDGE OF DOOR
NOSE OF UNIT
INTERIOR DIMENSION
55.75" [141.61]
DOOR WIDTH DIMENSION
25.94" [65.89]
MCCRT60-12M Front-Breathing Self-Contained Compact Mega Top Refrigerators
MODEL
MCCRT60-12M 12 2 7.36 15.7 1/2 115/60/1 12.0 5-15P
Specifications
Exterior top is one-piece 22-gauge
stainless steel with integral 2.12” (5.1cm)
square nosing on the front. Telescoping lid is
constructed of 20-gauge stainless steel. Top
opening can accept 12 1/6 size plastic pans
4”-6” (10.1cm-15.2cm) deep. Adapter bars
and 1/6 size pans are supplied by McCall.
Temperature in top openings maintains 33°F
(1°C) to 41°F (5°C), with pans recessed 2.5”
(6.4cm) at 86°F ambient room temperature,
meeting NSF 7 requirements. One 60” x 8” x
.5” (152.4cm x 20.3cm x 1.3cm) polyethylene
cutting board treated with antimicrobial agent
is mounted on the top at the front edge.
Exterior back and bottom are two-piece 24gauge galvanized steel. Exterior ends are
stainless steel.
Interior sides are thermoformed ABS plastic
with shelf supports. Base is fully insulated with
high-density foamed in place polyurethane.
Refrigeration system uses HFC-404A
refrigerant. Compressor is 1/2 H.P., with
condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet.
Evaporator coils and temperature control are
located on the interior rear wall of the cabinet.
Refrigerant flow is controlled by a capillary
tube. Cabinet maintains an interior cabinet
temperature of 36°F to 40°F (2°C to 4°C).
Electronic, solid state control, mounted on
the exterior rear of the cabinet, allows unit to
maintain precise temperatures in heavy duty
conditions.
Electrical connections are 115 volt, 60
Hertz, single phase. Unit has a 7’ (2.1m) long
electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5”
(13cm) diameter plate casters with front two
locking. Equipment clearance above the floor
is 2.5” (6.35cm).
Doors have a 24-gauge stainless steel
exterior, with thermoformed ABS plastic interior
liner. Cabinet has one adjustable epoxy-coated
wire shelf per door opening.
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
1/6 SIZE PAN
CAPACITY
Specifications
# OF
SHELVES
SHELF AREA
SQ.FT.
STORAGE CAP.
CU.FT.

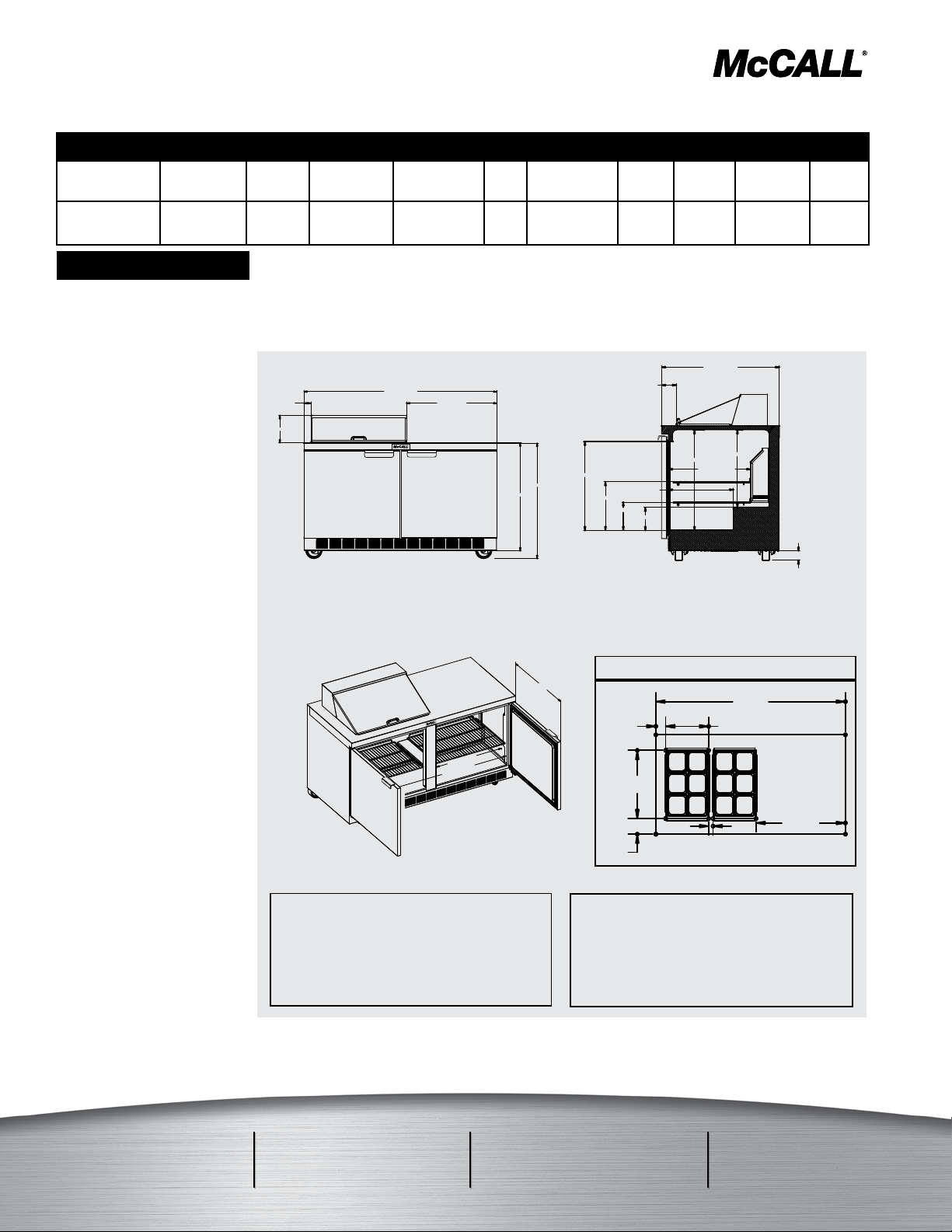

MCCRT60-12M ELEVATION VIEW
MCCRT60-12M ISO VIEW
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
H.P.
VOLTS/
HERTZ/PHASE
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however,
any air which passes through the louver is
beneficial.
DSMCCRT60-12M ©2009 McCall
09/09
AMPS
NEMA
PLUG
SHIP
WEIGHT
430LBS./
195KG.
MCCRT60-12M RIGHT SIDE VIEW
Pan Cutout Configuration
ENERGY
KWH
12.79
