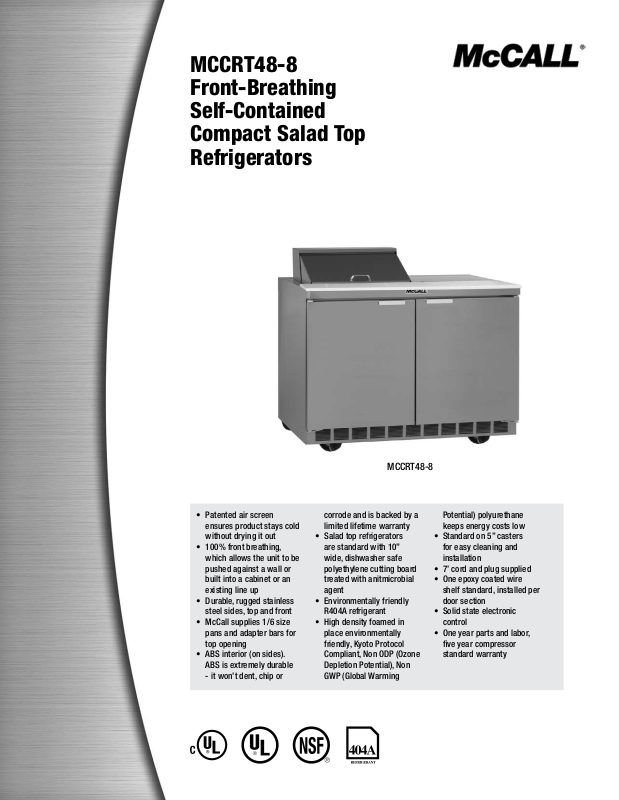

Page 1
MCCRT48-8
Front-Breathing
Self-Contained
Compact Salad Top
Refrigerators
Patented air screen
•
ensures product stays cold
without drying it out
100% front breathing,
•
which allows the unit to be
pushed against a wall or
built into a cabinet or an
existing line up
Durable, rugged stainless
•
steel sides, top and front
McCall supplies 1/6 size
•
pans and adapter bars for
top opening
ABS interior (on sides).
•
ABS is extremely durable
- it won’t dent, chip or
MCCRT48-8
corrode and is backed by a
limited lifetime warranty
Salad top refrigerators
•
are standard with 10”
wide, dishwasher safe
polyethylene cutting board
treated with anitmicrobial
agent
Environmentally friendly
•
R404A refrigerant
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP (Ozone
Depletion Potential), Non
GWP (Global Warming
Potential) polyurethane
keeps energy costs low
Standard on 5” casters
•
for easy cleaning and
installation
7’ cord and plug supplied
•
One epoxy coated wire
•
shelf standard, installed per
door section
Solid state electronic
•
control
One year parts and labor,
•
five year compressor
standard warranty
Page 2
MCCRT48-8 Front-Breathing Self-Contained Compact Salad Top Refrigerators
ALT. SHELF
SHELF
2.50" [6.30]
22.66" [57.56]
TO EDGE OF DOOR
NOSE OF UNIT
INTERIOR DIMENSION
43.75" [111.13]
DOOR WIDTH DIMENSION
19.94" [50.65]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
31.50" [80.01]
9.72 [24.69]
16.96
12.96
48.13
28.63
2.54
13.63
ALT. SHELF
SHELF
2.50" [6.30]
22.66" [57.56]
TO EDGE OF DOOR
NOSE OF UNIT
33.59" [85.31]
36.00" [91.40]
INTERIOR DIMENSION
43.75" [111.13]
DOOR WIDTH DIMENSION
19.94" [50.65]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
1.94 [4.93]
48.13" [122.30]
16.37 [41.57]
31.50" [80.01]
9.72 [24.69]
6.14 [15.61]
22.66" [57.56]
TO EDGE OF DOOR
NOSE OF UNIT
INTERIOR DIMENSION
43.75" [111.13]
DOOR WIDTH DIMENSION
19.94" [50.65]
Specifications
MODEL
1/6 SIZE PAN
CAPACITY
MCCRT48-8 8 2 4.53 10.7 1/5 115/60/1 7.2 5-15P
Specifications
Exterior top is one-piece 22-gauge stainless
steel with integral 2.12” (5.1cm) square
nosing on the front. Top has openings to
accept 8 1/6-size 4”- 6”(10.1cm - 15.2cm)
deep plastic pans. Adapter bars and 1/6 pans
are supplied by McCall. Lid is constructed of
20-gauge stainless steel. Temperature in top
opening to maintain 33°F (1°C) to 41°F
(5°C), with pans recessed 2.5” (6.4cm) at
86°F ambient room temperature, meeting
NSF 7 requirements. One 48” x 10” x .5”
(121.9cm x 25.4cm x 1.3cm) polyethylene
cutting board treated with antimicrobial agent
is mounted on the top at the front edge.
Exterior back and bottom are two-piece 24gauge galvanized steel. Exterior ends are
stainless steel.
Interior sides are thermoformed ABS plastic
with integral shelf supports. Base is fully
insulated with high-density foamed in place
polyurethane.
Refrigeration system uses HFC-404A
refrigerant. Compressor is 1/5 H.P., with
condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet.
Evaporator coils are located on the interior
rear wall of the cabinet. Refrigerant flow
is controlled by a capillary tube. Cabinet
maintains an interior cabinet temperature of
36°F to 40°F (2°C to 4°C).
Electronic, solid state control, mounted on
the exterior rear of the cabinet, allows unit to
maintain precise temperatures in heavy duty
conditions.
Electrical connections are 115 volt, 60
Hertz, single phase. Unit has a 7’ (2.1m) long
electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5”
(13cm) diameter casters, with front two
locking. Equipment clearance above the floor
is 2.5” (6.35cm).
Doors have a 24-gauge stainless steel
exterior, with thermoformed ABS plastic
interior liner. Cabinet of door models has one
adjustable epoxy-coated wire shelf.
# OF
SHELVES
SHELF AREA
SQ.FT.
STORAGE
CAP.CU.FT.
MCCRT48-8 ELEVATION VIEW MCCRT48-8 RIGHT SIDE VIEW
MCCRT48-8 ISO VIEW
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
H.P.
VOLTS/HERTZ/
PHASE
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however,
any air which passes through the louver is
beneficial.
AMPS
NEMA
PLUG
WEIGHT
320LBS./
145KG.
Pan Cutout Configurations
SHIP
ENERGY
KWH
8.11
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
DSMCCRT48-8 ©2009 McCall 09/09
