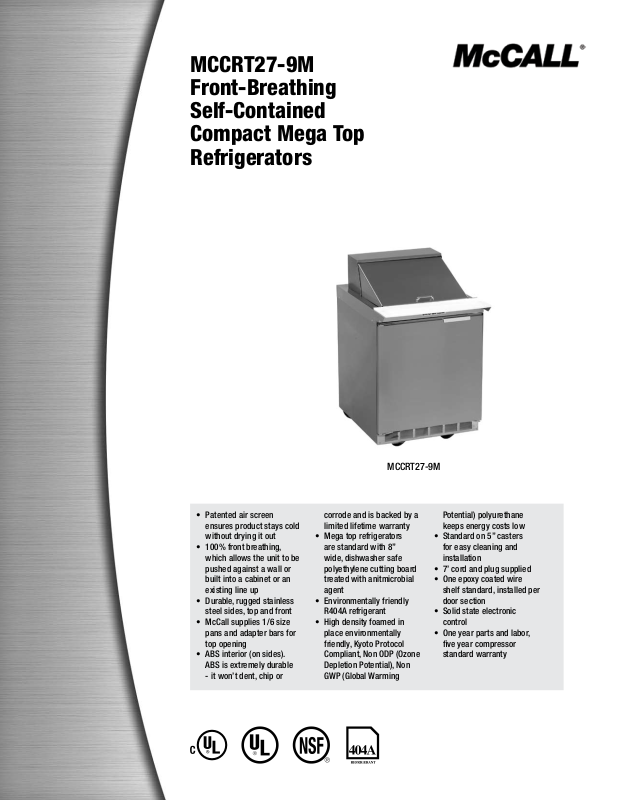

MCCRT27-9M
Front-Breathing
Self-Contained
Compact Mega Top
Refrigerators
Patented air screen
•
ensures product stays cold
without drying it out
100% front breathing,
•
which allows the unit to be
pushed against a wall or
built into a cabinet or an
existing line up
Durable, rugged stainless
•
steel sides, top and front
McCall supplies 1/6 size
•
pans and adapter bars for
top opening
ABS interior (on sides).
•
ABS is extremely durable
- it won’t dent, chip or
MCCRT27-9M
corrode and is backed by a
limited lifetime warranty
Mega top refrigerators
•
are standard with 8”
wide, dishwasher safe
polyethylene cutting board
treated with anitmicrobial
agent
Environmentally friendly
•
R404A refrigerant
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP (Ozone
Depletion Potential), Non
GWP (Global Warming
Potential) polyurethane
keeps energy costs low
Standard on 5” casters
•
for easy cleaning and
installation
7’ cord and plug supplied
•
One epoxy coated wire
•
shelf standard, installed per
door section
Solid state electronic
•
control
One year parts and labor,
•
five year compressor
standard warranty
Page 2
2.75
19.63
6.96
27.13
21.63
25.67" [65.20]
TO EDGE OF DOOR
NOSE OF UNIT
33.59" [85.31]
36.00" [91.40]
2.50" [6.30]
INSIDE DIMENSION
22.75" [57.79]
23.79" [60.43]
17.35" [44.08]
7.53" [19.10]
12.98" [33.00]
6.11" [15.52]
SHELF
ALT. SHELF
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
3.88 [9.87]
31.50" [80.01]
2.15 [5.47] 2.15 [5.47]
27.13" [68.91]
8.54 [21.69]
25.67" [65.20]
TO EDGE OF DOOR
NOSE OF UNIT
INSIDE DIMENSION
22.75" [57.79]
25.67" [65.20]
TO EDGE OF DOOR
NOSE OF UNIT
2.50" [6.30]
INSIDE DIMENSION
22.75" [57.79]
23.79" [60.43]
17.35" [44.08]
7.53" [19.10]
12.98" [33.00]
6.11" [15.52]
SHELF
ALT. SHELF
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
3.88 [9.87]
31.50" [80.01]
MCCRT27-9M Front-Breathing Self-Contained Compact Mega Top Refrigerators
Specifications
MODEL
1/6 SIZE PAN
CAPACITY
MCCRT27-9M 9 1 3.24 5.7 1/5 115/60/1 7.2 5-15P
Specifications
Exterior top is one-piece, 22-gauge stainless
steel with integral 2.12” (5.1cm) square nosing
on the front. Top of unit has one opening to
accept six 1/6-size 4-6” deep pans or one 12” x
20” full size pan and three 1/6-size 4” deep pans.
Adapter bars and 1/6 size pans are supplied by
McCall. Lid is constructed of 20-gauge stainless
steel. Temperature in top opening to maintain
33°F (1°C) to 41°F (5°C), with pans recessed
2.5” (6.4cm) at 86°F ambient room temperature,
meeting NSF 7 requirements. One 27” x 8” x
.5” (68.6cm x 20.3cm x 1.3cm) polyethylene
cutting board treated with antimicrobial agent is
mounted on the top at the front edge.
Exterior back and bottom are two-piece 24-gauge
galvanized steel. Exterior ends are stainless steel.
Interior sides are thermoformed ABS plastic
with integral shelf supports. Base is fully insulated
with high-density foamed in place polyurethane.
Refrigeration system uses HFC-404A
refrigerant. Compressor is 1/5 H.P., with
condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet.
Evaporator coils and temperature control are
located on the interior rear wall of the cabinet.
Refrigerant flow is controlled by a capillary tube.
Cabinet maintains an interior cabinet temperature
of 36°F to 40°F (2°C to 4°C).
Electronic, solid state control, mounted on the
exterior rear of the cabinet, allows unit to maintain
precise temperatures in heavy duty conditions.
Electrical connection is 115 volt, 60 Hertz,
single phase. Unit has a 7’ (2.1m) long electrical
cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5” (13cm)
diameter plate casters with front two locking.
Equipment clearance above the floor is 2.5”
(6.35cm).
Doors have a 22-gauge stainless steel exterior,
with thermoformed ABS plastic interior liner.
Cabinet has one adjustable epoxy-coated wire
shelf.
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
# OF
SHELVES
SHELF AREA
SQ.FT.
STORAGE CAP.
CU.FT.

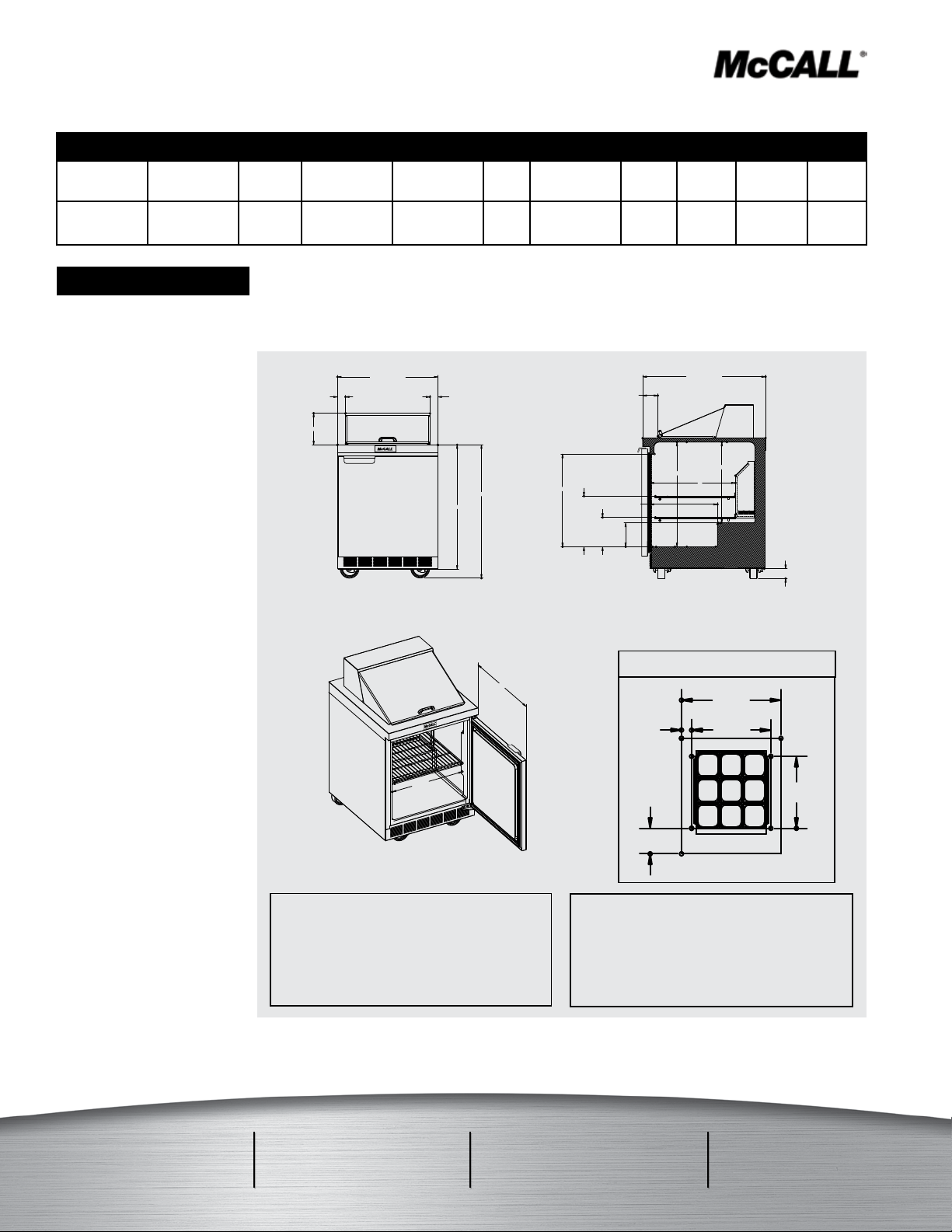

MCCRT27-9M ELEVATION VIEW
MCCRT27-9M ISO VIEW
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
H.P.
VOLTS/
HERTZ/PHASE
AMPS
MCCRT27-9M RIGHT SIDE VIEW
Pan Cutout Configurations
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however,
any air which passes through the louver is
beneficial.
DSMCCRT27-9M ©2009 McCall 11/09
NEMA
PLUG
SHIP
WEIGHT
240LBS./
