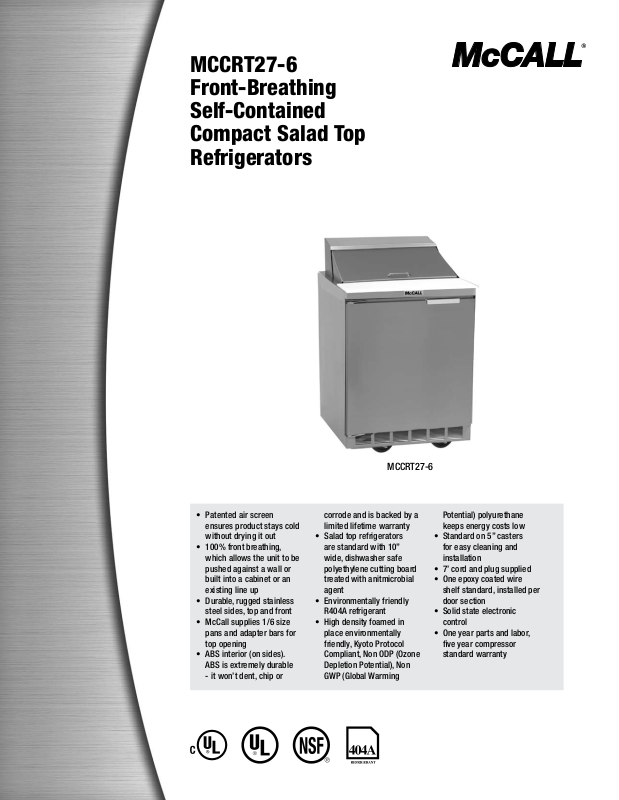

Page 1
MCCRT27-6
Front-Breathing
Self-Contained
Compact Salad Top
Refrigerators
Patented air screen
•
ensures product stays cold
without drying it out
100% front breathing,
•
which allows the unit to be
pushed against a wall or
built into a cabinet or an
existing line up
Durable, rugged stainless
•
steel sides, top and front
McCall supplies 1/6 size
•
pans and adapter bars for
top opening
ABS interior (on sides).
•
ABS is extremely durable
- it won’t dent, chip or
MCCRT27-6
corrode and is backed by a
limited lifetime warranty
Salad top refrigerators
•
are standard with 10”
wide, dishwasher safe
polyethylene cutting board
treated with anitmicrobial
agent
Environmentally friendly
•
R404A refrigerant
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP (Ozone
Depletion Potential), Non
GWP (Global Warming
Potential) polyurethane
keeps energy costs low
Standard on 5” casters
•
for easy cleaning and
installation
7’ cord and plug supplied
•
One epoxy coated wire
•
shelf standard, installed per
door section
Solid state electronic
•
control
One year parts and labor,
•
five year compressor
standard warranty
Page 2
MCCRT27-6 Front-Breathing Self-Contained Compact Salad Top Refrigerators
13.63
2.75
12.96
21.63
27.13
25.67" [65.20]
TO EDGE OF DOOR
NOSE OF UNIT
27.13" [68.91]
33.59" [85.31]
36.00" [91.40]
2.50" [6.30]
INSIDE DIMENSION
22.75" [57.79]
23.79" [60.43]
17.35" [44.08]
7.53" [19.10]
12.98" [33.00]
6.11" [15.52]
SHELF
ALT. SHELF
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.14 [15.61]
2.15 [5.47] 2.15 [5.47]
31.50" [80.01]
9.72 [24.69]
25.67" [65.20]
TO EDGE OF DOOR
NOSE OF UNIT
INSIDE DIMENSION
22.75" [57.79]
25.67" [65.20]
TO EDGE OF DOOR
NOSE OF UNIT
2.50" [6.30]
INSIDE DIMENSION
22.75" [57.79]
23.79" [60.43]
17.35" [44.08]
7.53" [19.10]
12.98" [33.00]
6.11" [15.52]
SHELF
ALT. SHELF
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
31.50" [80.01]
9.72 [24.69]
1/6 SIZE PAN
CAPACITY
MODEL
MCCRT27-6 6 1 3.24 5.7 1/5 115/60/1 7.2 5-15P
Specifications
Exterior top is one-piece, 22-gauge
stainless steel with integral 2.12” (5.1cm)
square nosing on the front. Top of door unit
has one opening to accept six 1/6-size 46” deep pans or one 12” x 20” full size pan.
Adapter bars and 1/6 size pans are supplied
by McCall. Lid is constructed of 20-gauge
stainless steel. Temperature in top opening to
maintain 33°F (1°C) to 41°F (5°C), with pans
recessed 2.5” (6.4cm) at 86°F ambient room
temperature, meeting NSF 7 requirements.
One 27” x 10” x .5” (68.6cm x 25.4cm x
1.3cm) polyethylene cutting board treated
with antimicrobial agent is mounted on the top
at the front edge.
Exterior back and bottom are two-piece 24gauge galvanized steel. Exterior ends are
stainless steel.
Interior sides are thermoformed ABS plastic
with integral shelf supports. Base is fully
insulated with high-density foamed in place
polyurethane.
Refrigeration system uses HFC-404A
refrigerant. Compressor is 1/5 H.P., with
condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet.
Evaporator coils are located on the interior
rear wall of the cabinet. Refrigerant flow
is controlled by a capillary tube. Cabinet
maintains an interior cabinet temperature of
36°F to 40°F (2°C to 4°C).
Electronic, solid state control, mounted on
the exterior rear of the cabinet, allows unit to
maintain precise temperatures in heavy duty
conditions.
Electrical connection is 115 volt, 60
Hertz, single phase. Unit has a 7’ (2.1m) long
electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5”
(13cm) diameter plate casters with front two
locking. Equipment clearance above the floor
is 2.5” (6.35cm).
Doors have a 24-gauge stainless steel
exterior, with thermoformed ABS plastic interior
liner. Cabinet has one adjustable epoxy-coated
wire shelf.
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Specifications
# OF
SHELVES
SHELF AREA
SQ.FT.
STORAGE
CAP.CU.FT.
MCCRT27-6 ELEVATION VIEW
MCCRT27-6 ISO VIEW
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
VOLTS/HERTZ/
H.P.
PHASE
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however,
any air which passes through the louver is
beneficial.
DSMCCRT27-6 ©2009 McCall 09/09
AMPS
NEMA
PLUG
SHIP
WEIGHT
240LBS./
109KG.
MCCRT27-6 RIGHT SIDE VIEW
Pan Cutout Configurations
ENERGY
KWH
4.82
