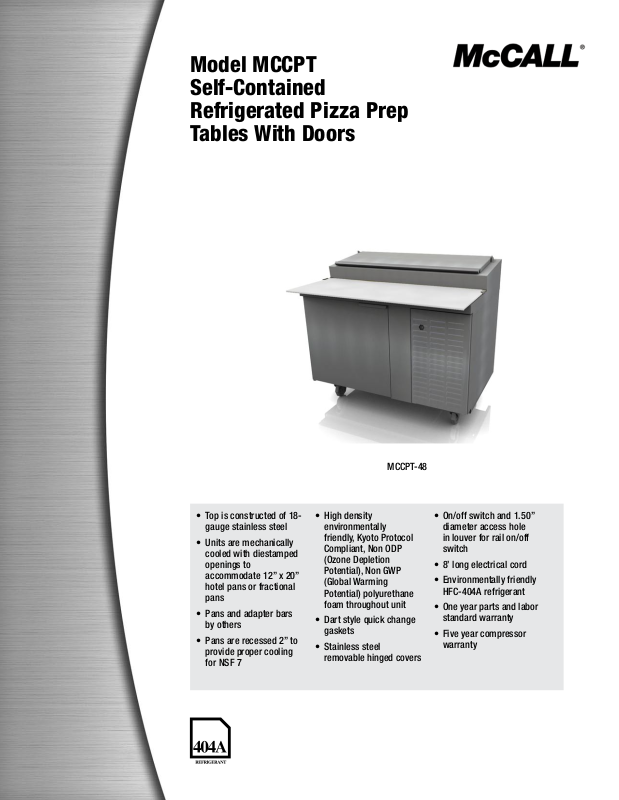

Page 1
Model MCCPT
Self-Contained
Refrigerated Pizza Prep
Tables With Doors
Top is constructed of 18-
•
gauge stainless steel
Units are mechanically
•
cooled with diestamped
openings to
accommodate 12” x 20”
hotel pans or fractional
pans
Pans and adapter bars
•
by others
Pans are recessed 2” to
•
provide proper cooling
for NSF 7
MCCPT-48
High density
•
environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
foam throughout unit
Dart style quick change
•
gaskets
Stainless steel
•
removable hinged covers
On/off switch and 1.50”
•
diameter access hole
in louver for rail on/off
switch
8’ long electrical cord
•
Environmentally friendly
•
HFC-404A refrigerant
One year parts and labor
•
standard warranty
Five year compressor
•
warranty
Page 2
48.00”
122cm
33.00”
84cm
15.00”
38cm
54.00”
137cm
18.00”
46cm
72.00”
183cm
31.50”
80cm
99.00”
251cm
81.00”
206cm
18.00”
46cm
42.00”
107cm
6.13”
16cm
7.63”
19cm
36.00”
91cm
Plan View
MCCPT-48
Plan View
MCCPT-72
Plan View
MCCPT-99
Elevation View
MCCPT-48
Elevation View
MCCPT-72
Elevation View
MCCPT-99
End View
All Models
27" REF'G
Door R404A
27" REF'G
Door R404A
27" REF'G
Door R404A
27" REF'G
Door R404A
27" REF'G
Door R404A
27" REF'G
Door R404A
15.50”
39cm
27.50"
70 cm
Model MCCPT Self-Contained Refrigerated Pizza Prep Tables With Doors
Pan Capacity
(1/3)
6 1 8.39 3.36 1/4 115 10.0
9 2 16.77 7.72 1/2 115 14.0
12 3 25.87 11.58 1/2
Model
MCCPT-48
MCCPT-72
MCCPT-99
-C Models are standard with a 19” polyethylene cutting board.
Specifications
Exterior Top: Constructed of one-piece 18gauge stainless steel, with integral 2.12" (5cm) high
square nosing at the front. Top has a mechanically
cooled refrigerated raised rail at the rear with
openings to accommodate pans (provided by
others). Rail interior is 22-gauge stainless steel.
Raised rail openings have 18-gauge stainless steel
removable lids. Unit is equipped with separate
expansion valve and on/off switch for refrigerated
rail. Temperature in top openings maintains 33°F
(1°C) to 41°F (5°C) with pans recessed 2” (5cm)
at 86°F ambient room temperature, meeting NSF
7 requirements.
Exterior Back, Bottom and Sides: Back and
bottom are 24-gauge galvanized steel. Exterior
ends are finished with aluminum.
Base Interior: Stainless steel back and
bottom. Base interior sides and door frames are
thermoformed ABS plastic. Each interior door
section has (1) 25” (64cm) deep removable epoxy
coated wire shelf. Base is insulated with 2” (5cm)
high density foamed in place polyurethane. End of
base has a machine compartment with condensing
unit installed.
Doors: 22-gauge stainless steel exterior front, with
a thermoformed ABS plastic interior liner.
Refrigeration System: HFC-404A refrigerant.
Cabinet has a blower coil assembly with expansion
valve located in coil housing. Base is equipped with
independently controlled thermostat, solenoid valve
and condensate evaporator. Refrigerated base
maintains temperature of 36°F (2°C) to 40°F
(4°C). 1.5” (4cm) diameter access hole in louver
for recessed on/off rail switch. Main power switch
is located behind the louvered panel.
Electrical Connections: 115 volt, 60 Hertz,
single phase. Unit is wired with 3-wire, grounded,
maximum 8’ (2.4m) cord and plug.
Casters: Equipment is mounted on 5” (13cm)
diameter casters; overall height of casters is 6.13”
(16cm).
McCall reserves the right to make changes to the
design or specifications without prior notice.
Specifications
# Of Shelves Storage FT3Shelf Area FT
Door Clearance Detail
NOTE: Pans and adapter pans are not included.
All Models
2
H.P. Voltage Amps Nema Plug Ship Weight
5-15P 520lbs / 236kg
5-20P 635lbs / 288kg
115 14.0
C = Condensing Unit
J = Junction Box with 8ft/2.4m cord and plug
Mechanical Access
(Plan View) All Models
5-20P 805lbs /365kg
J
C
Mechanical Access
Behind Louver
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
DSMCCPT ©2009 McCall 08/09
