Self-Contained
Glass Door Heated
Reach-In
Aluminum interior and
•
exterior, stainless front
Built in door locks with
•
heavy duty strikes
Exterior digital
•
thermometer
Easy to use
•
electromechanical
control
Key lock shroud for
•
easy access to heating
system
(shown with optional left hinged door)
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
keeps energy costs low
Three chrome plated
•
wire shelves per section
6” adjustable black legs
•
One year parts & labor
•
warranty
MCCH1-G
Page 2
29.00”
73.7cm
34.00”
86.4cm
56.00”
142.2cm
83.00”
210.8cm
25.00"
63.5cm
52.00"
132.1cm
79.00"
200.7cm
34.00”
86.4cm
34.00”
86.4cm
48.00”
121.9cm
44.00"
111.8cm
34.00”
86.4cm
56.00”
142.2cm
83.00”
210.8cm
52.00"
132.1cm
79.00"
200.7cm
34.00”
86.4cm
34.00”
86.4cm
83.00”
210.8cm
79.00"
200.7cm
34.00”
86.4cm
30"
58"
6.12
81.12
29.00
34.00
56.00
34.00
83.00
34.00
56.00
34.00
83.00
34.00
83.00
34.00
6.12”
15.5cm
81.12”
206.0cm
75.00”
190.5cm
58.00”
147.3cm
30.00”
76.2cm
Self-Contained Glass Door Heated Reach-In
Specifications
MODEL VOLTAGE AMPS STORAGE CU.FT. SHELVES SQ.FT. NO. OF SHELVES UNIT H.P. MA X WATTS SHIP WEIGHT NEMA PLUG ENERGY (KWH)
MCCH1-G 120/208-240 9.0 24.96 12.81 3 N/A 2160
MCCH2-G 120/208-240 16.0 51.92 27.54 6 N/A 3840
MCCH3-G 120/208-240 11.4 78.89 42.47 9 N/A 4272
Specifications
Exterior: Models shall have corrosion
resistant aluminum on exterior cabinet sides
and will have stainless front and shroud.
Interior: Cabinet interior shall be corrosion
resistant stainless steel heavy gauge aluminum.
Bottom and top surfaces shall be die stamped
to provide radius corners and recessed floor.
Three wire shelves are provided per section,
standard shelves are chrome plated. Shelves
rest on clips which are adjustable on 1”
increments on stainless steel pilasters affixed
to the cabinet interior. Pilasters are removable
without tools for cleaning. Mounted to the
interior ceiling, the interior fluorescent light
is controlled automatically through a switch
mounted in the hinge assembly to protect
against breakage.
Doors: Double paned tempered thermopane
glass. Constructed with a combination of
extruded aluminum and PVC. Each door has
two edgemount, self-closing, cam lift style
hinges. Doors can be removed from the
cabinet without the use of tools. Door handle
is continuous along vertical dimension of the
door. Door gaskets are magnetic and mount
to the door, snapping in place and removable
with out tools. Keyed door lock is mounted
to the door. Lock engages into a heavy duty
strike mounted to the cabinet face.
Heating system: Cabinets are designed to
maintain temperatures between 120ºF and
200ºF. Heating elements are helical shaped,
with tubular fins. High speed blower provides
uniform airflow in the cabinet. Entire heating
system is mounted to the exterior of the
cabinet ceiling, outside the food zone. It is
assembled as one piece and can be removed
as one piece. Temperature is controlled by an
adjustable thermostat. System on/off switch is
located on the front exterior of the cabinet.
Electrical: Standard electrical is 120/208240 Volt, 60 Hz single phase. Connection
must be hard wired to junction box on the
exterior top of the cabinet.
Legs: Units are standard with painted metal
legs and are 6” high with 1” adjustability.
Shipped loose for field installation.
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858

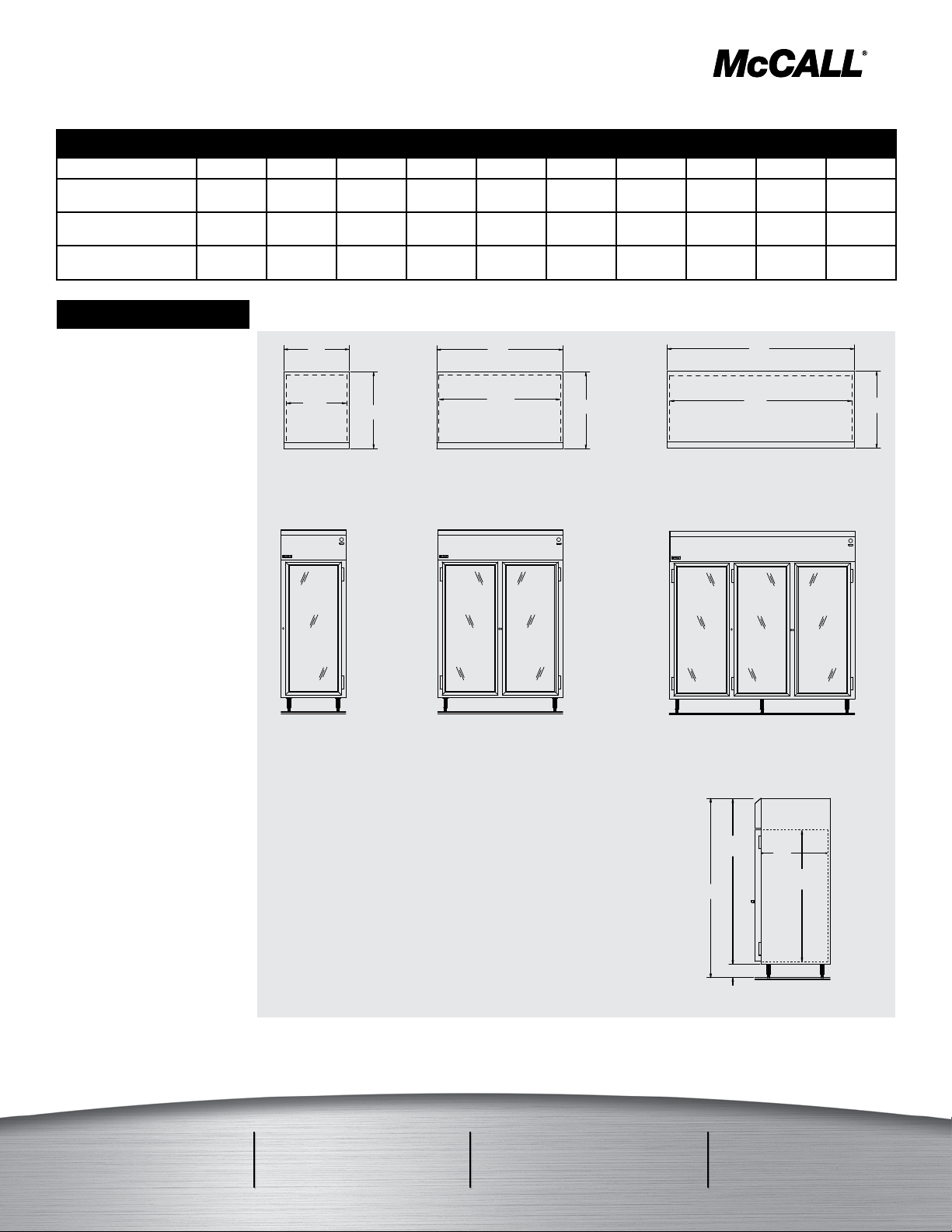

PLAN VIEW
MCCH1-G
ELEVATION VIEW
MCCH1-G
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
PLAN VIEW
MCCH2-G
ELEVATION VIEW
MCCH2-G
DSMCCH-G ©2009 McCall 09/09
418lbs
(190kg)
650lbs
(295kg)
830lbs
(376kg)
PLAN VIEW
MCCH3-G
ELEVATION VIEW
MCCH3-G
N/A N/A
N/A N/A
N/A N/A
END VIEW
ALL MODELS
