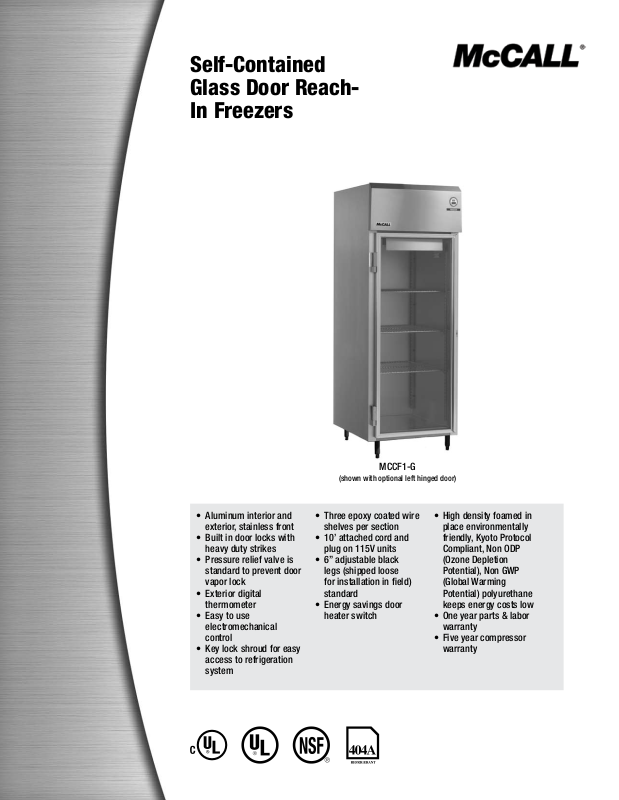

Page 1
Self-Contained
Glass Door ReachIn Freezers
Aluminum interior and
•
exterior, stainless front
Built in door locks with
•
heavy duty strikes
Pressure relief valve is
•
standard to prevent door
vapor lock
Exterior digital
•
thermometer
Easy to use
•
electromechanical
control
Key lock shroud for easy
•
access to refrigeration
system

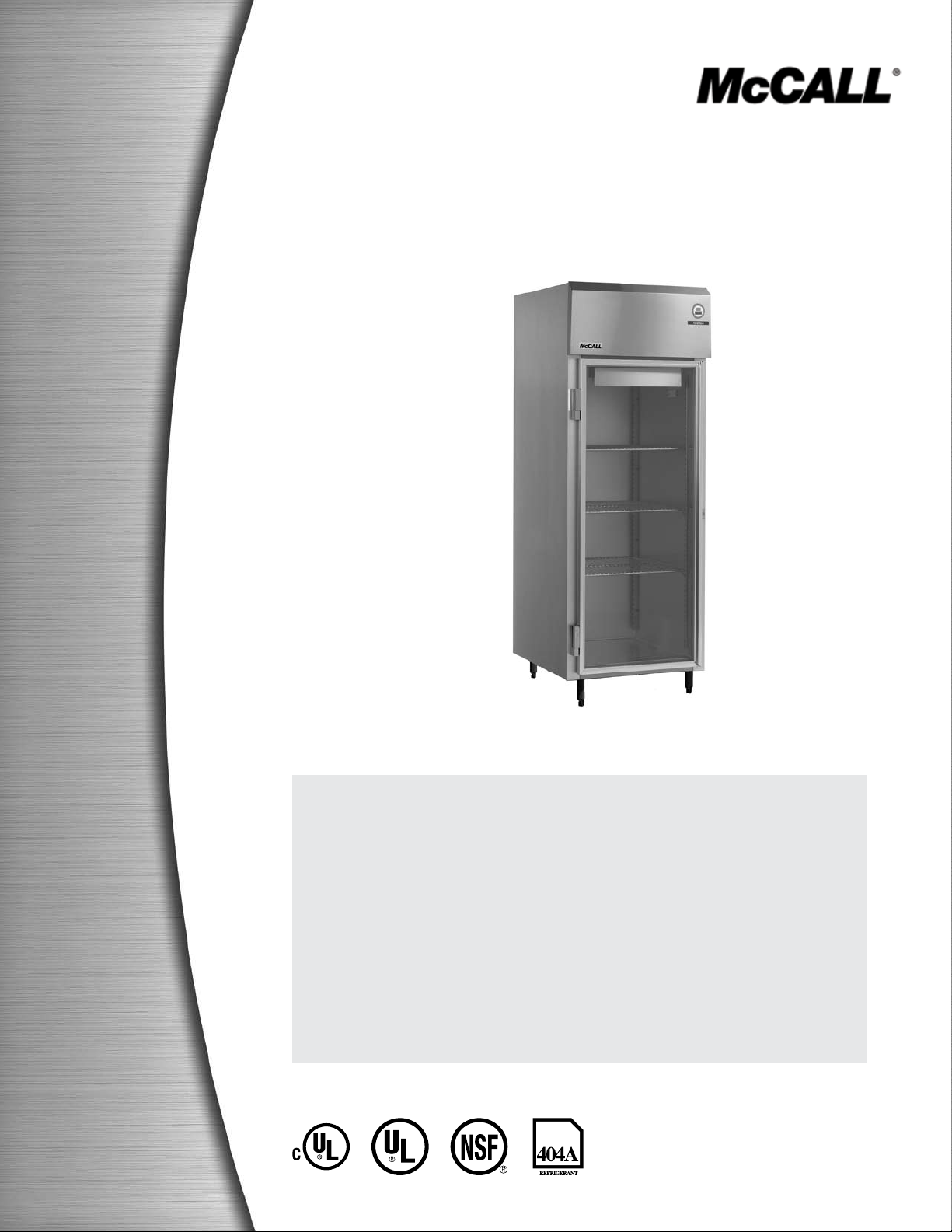

MCCF1-G
(shown with optional left hinged door)
Three epoxy coated wire
•
shelves per section
10’ attached cord and
•
plug on 115V units
6” adjustable black
•
legs (shipped loose
for installation in field)
standard
Energy savings door
•
heater switch
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
keeps energy costs low
One year parts & labor
•
warranty
Five year compressor
•
warranty
Page 2
29.00”
73.7cm
34.00”
86.4cm
56.00”
142.2cm
83.00”
210.8cm
25.00"
63.5cm
52.00"
132.1cm
79.00"
200.7cm
34.00”
86.4cm
34.00”
86.4cm
48.00”
121.9cm
44.00"
111.8cm
34.00”
86.4cm
56.00”
142.2cm
83.00”
210.8cm
52.00"
132.1cm
79.00"
200.7cm
34.00”
86.4cm
34.00”
86.4cm
83.00”
210.8cm
79.00"
200.7cm
34.00”
86.4cm
30"
58"
6.12
81.12
29.00
34.00
56.00
34.00
83.00
34.00
56.00
34.00
83.00
34.00
CONDENSING UNIT
CONDENSING UNIT
CONDENSING UNIT
CONDENSING UNIT CONDENSING UNIT
CONDENSING UNIT
CONDENSING UNIT
6.12
82.62
6.12
82.62
6.12
82.62
6.12
90.50
90.50
89.88”
228.3cm
82.00”
208.3cm
72.00”
182.9m
30.00”
76.2cm
6.12”
15.5cm
75.00”
190.5cm
58.00”
147.3cm
30.00”
76.2cm
83.00
34.00
83.00
34.00
6.12”
15.5cm
81.12”
206.0cm
75.00”
190.5cm
58.00”
147.3cm
30.00”
76.2cm
56.00
34.00
83.00
34.00
30"
58"
6.12
81.12
29.00
34.00
56.00
34.00
83.00
34.00
Self-Contained Glass Door Reach-In Freezers
MODEL VOLTAGE AMPS STORAGE CU.FT. SHELVES SQ.FT. NO. OF SHELVES UNIT H.P.
MCCF1-G, MCCF1-GH 115 11.5 24.96 12.81 3 3/4 1923
MCCF2-G, MCCF2-GH 115/208-230 10.0 51.92 27.54 6 1 4793
MCCF3-G, MCCF3-GH 115/208-230 11.4 78.89 42.47 9 1 5940
Specifications
Exterior: Models shall have corrosion resistant
aluminum on exterior cabinet sides and will have
stainless front and shroud.
Interior: Cabinet interior shall be heavy gauge aluminum.
Bottom and top surfaces shall be die stamped to provide
radius corners and recessed floor. Three epoxy coated
wire shelves are provided per section. Shelves rest on
clips which are adjustable on 1” increments on stainless
steel pilasters affixed to the cabinet interior. Pilasters are
removable without tools for cleaning. Mounted to the
interior ceiling, the interior fluorescent light is controlled
automatically through a switch mounted in the hinge
assembly to protect against breakage. An air duct shall
be mounted to the ceiling assuring low velocity, even air
movement throughout the cabinet interior.
Doors: Double paned tempered thermopane glass.
Constructed with a combination of extruded aluminum
and PVC. Each door has two edgemount, self-closing,
cam lift style hinges. Doors can be removed from
the cabinet without the use of tools. Door handle is
continuous along vertical dimension of the door. Door
gaskets are magnetic and mount to the door, snapping
in place and removable with out tools. Keyed door lock
is mounted to the door. Lock engages into a heavy duty
strike mounted to the cabinet face.
Refrigeration system: All components are mounted
to the exterior of the cabinet ceiling, outside the food
zone and are assembled as one piece and can be
removed as one piece. Environmentally friendly R404A
refrigerant is used. The system has the capability of
maintaining between -5ºF and 0ºF in heavy use food
service operations. Refrigerant is metered using a highly
responsive thermostatic expansion valve. System is
controlled using an electronic temperature control, which
provides improved pull down times, reduces compressor
cycling and longer compressor life with lower energy
consumption.
Control system uses adaptive defrost to assure
evaporator coil is free of ice and is operating at optimum
efficiency. Evaporator condensate is eliminated using an
energy efficient hot gas system.
Electrical: Standard electrical on one section units
shall be 115V, 60 Hz single phase. A 10’ cord and plug
is supplied and attached to a junction box mounted on
the exterior top of the cabinet. Two and three section
units shall be 115/208-230 and will require hardwire
connections.
Legs: Units are standard with painted metal legs and
are 6” high with 1” adjustability. Shipped loose for field
installation.
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Specifications
BTU/HR
SYSTEM CAP
SHIP WEIGHT NEMA PLUG ENERGY (KWH)
440lbs
(200kg)
710lbs
(322kg)
960lbs
(435kg)

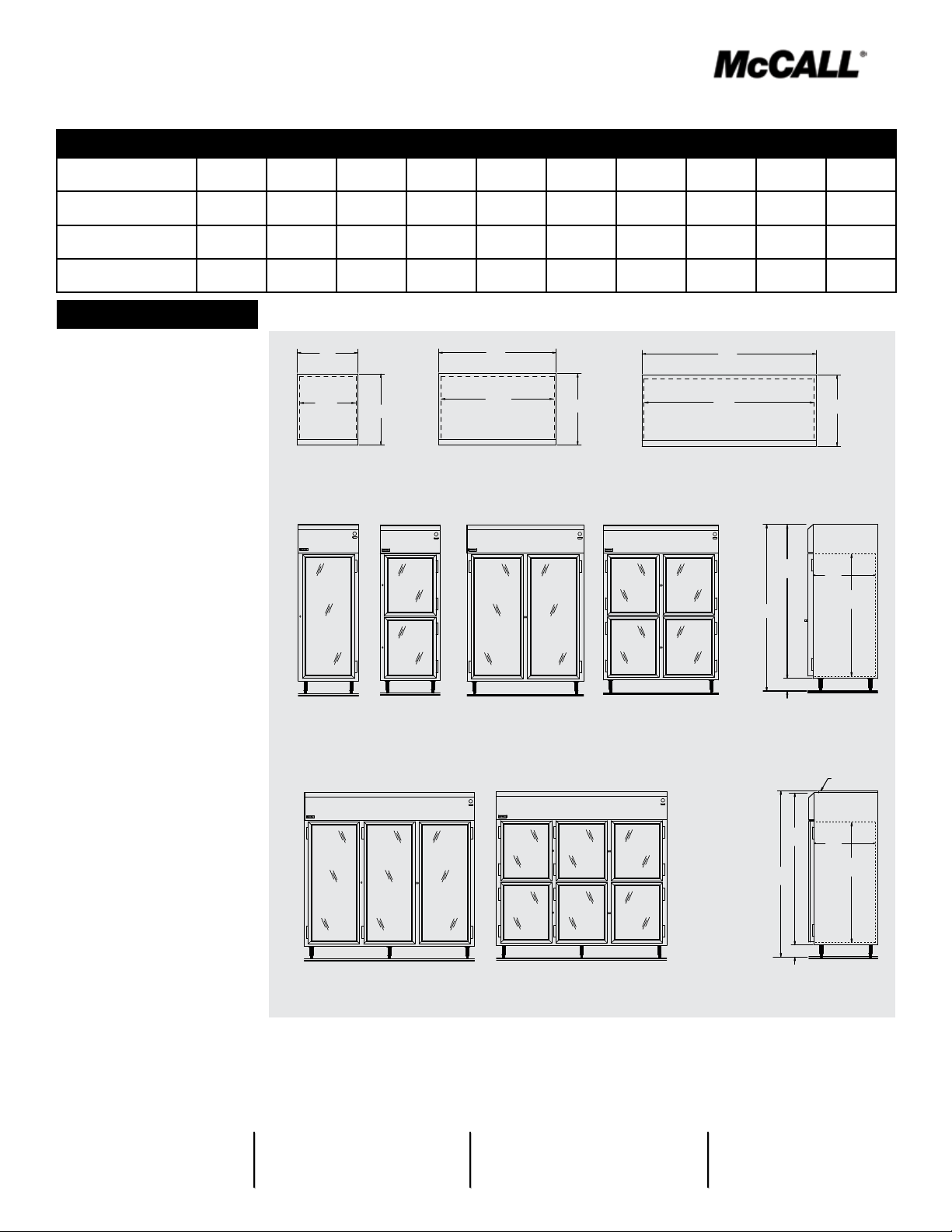

PLAN VIEW
MCCF3-G, MCCF3-GH
PLAN VIEW
MCCF2-G, MCCF2-GH
ELEVATION VIEW
MCCF2-G
ELEVATION VIEW
MCCF3-GH
DSMCCF-G ©2010 McCall 06/10
ELEVATION VIEW
MCCF2-GH
PLAN VIEW
MCCF1-G, MCCF1-GH
ELEVATION VIEW
MCCF1-G
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
ELEVATION VIEW
MCCF1-GH
ELEVATION VIEW
MCCF3-G
5-15P 11.29
N/A 19.95
N/A 29.07
END VIEW
MCCF1-G, MCCF1-GH
END VIEW
MCCF2-G, MCCF2-GH
MCCF3-G, MCCF3-GH
