Page 1
McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.

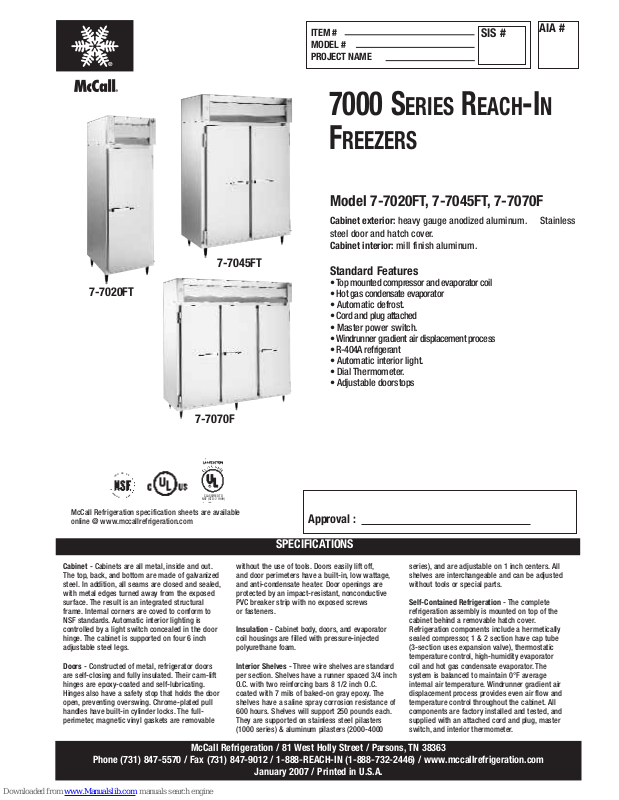

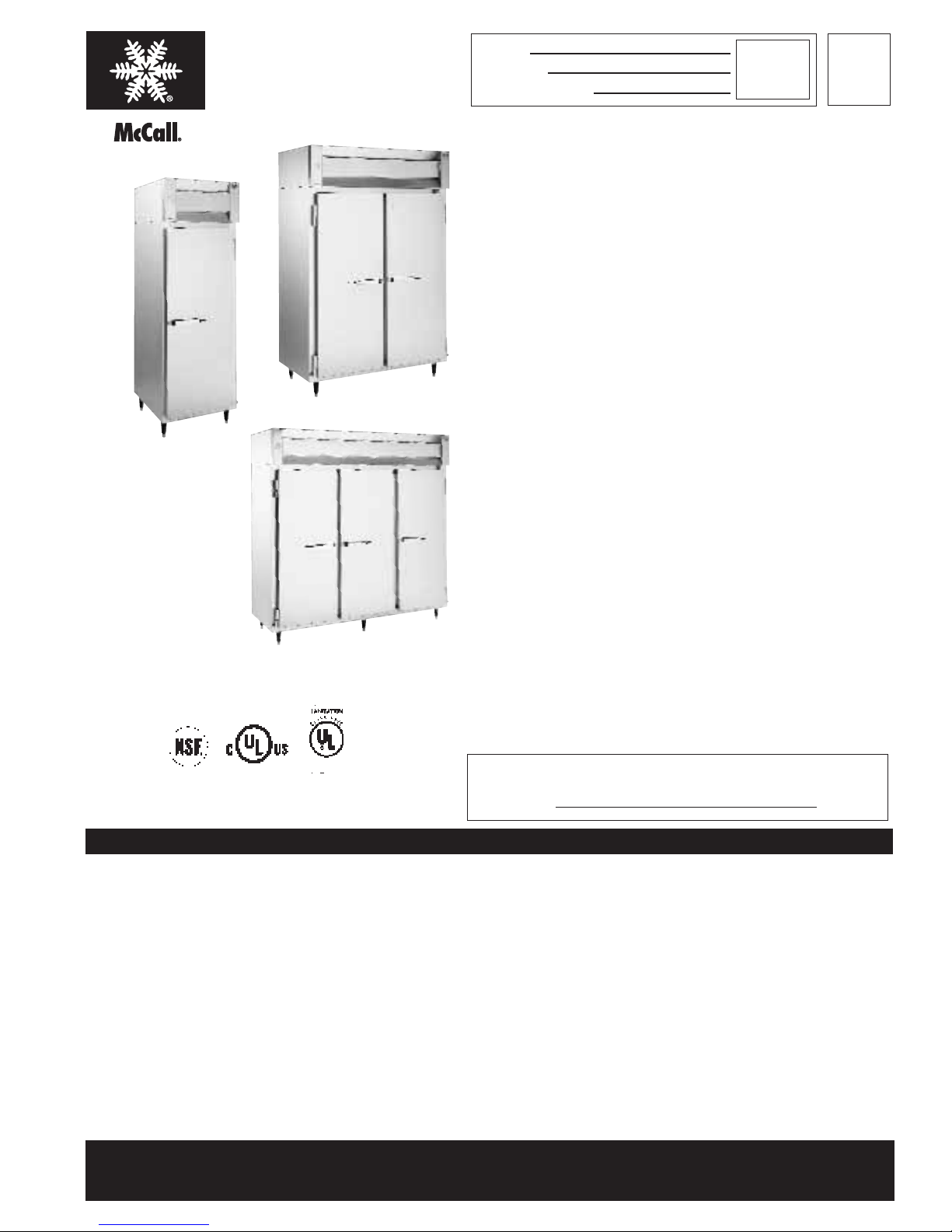

Model 7-7020FT, 7-7045FT, 7-7070F
Cabinet exterior: heavy gauge anodized aluminum. Stainless
steel door and hatch cover.
Cabinet interior: mill finish aluminum.
Standard Features
• Top mounted compressor and evaporator coil
• Hot gas condensate evaporator
• Automatic defrost.
• Cord and plug attached
• Master power switch.
• Windrunner gradient air displacement process
• R-404A refrigerant
• Automatic interior light.
• Dial Thermometer.
• Adjustable doorstops
Cabinet - Cabinets are all metal, inside and out.
The top, back, and bottom are made of galvanized
steel. In addition, all seams are closed and sealed,
with metal edges turned away from the exposed
surface. The result is an integrated structural
frame. Internal corners are coved to conform to
NSF standards. Automatic interior lighting is
controlled by a light switch concealed in the door
hinge. The cabinet is supported on four 6 inch
adjustable steel legs.
Doors - Constructed of metal, refrigerator doors
are self-closing and fully insulated. Their cam-lift
hinges are epoxy-coated and self-lubricating.
Hinges also have a safety stop that holds the door
open, preventing overswing. Chrome-plated pull
handles have built-in cylinder locks. The fullperimeter, magnetic vinyl gaskets are removable
without the use of tools. Doors easily lift off,
and door perimeters have a built-in, low wattage,
and anti-condensate heater. Door openings are
protected by an impact-resistant, nonconductive
PVC breaker strip with no exposed screws
or fasteners.
Insulation - Cabinet body, doors, and evaporator
coil housings are filled with pressure-injected
polyurethane foam.
Interior Shelves - Three wire shelves are standard
per section. Shelves have a runner spaced 3/4 inch
O.C. with two reinforcing bars 8 1/2 inch O.C.
coated with 7 mils of baked-on gray epoxy. The
shelves have a saline spray corrosion resistance of
600 hours. Shelves will support 250 pounds each.
They are supported on stainless steel pilasters
(1000 series) & aluminum pilasters (2000-4000
series), and are adjustable on 1 inch centers. All
shelves are interchangeable and can be adjusted
without tools or special parts.
Self-Contained Refrigeration - The complete
refrigeration assembly is mounted on top of the
cabinet behind a removable hatch cover.
Refrigeration components include a hermetically
sealed compressor, 1 & 2 section have cap tube
(3-section uses expansion valve), thermostatic
temperature control, high-humidity evaporator
coil and hot gas condensate evaporator. The
system is balanced to maintain 0°F average
internal air temperature. Windrunner gradient air
displacement process provides even air flow and
temperature control throughout the cabinet. All
components are factory installed and tested, and
supplied with an attached cord and plug, master
switch, and interior thermometer.
7000 S
ERIESREACH
-I
N
F
REEZERS
Approval :
SPECIFICATIONS
McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com
AIA #
ITEM #
MODEL #
PROJECT NAME
SIS #
7-7070F
7-7045FT
7-7020FT
CLASSIFIED TO
NSF (STD-7-1999)
Page 2
McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.
**Based on 90°F ambient and -20·F evaporating temperature
Certain options and accessories may affect UL/NSF
listing and electrical requirements.
Specifications subject to change without notice.
7000 SERIES
REACH-IN FREEZERS
Heavy-duty 6 inch casters,
(cord connected models only).
Left or right door hinge.
Tray slides
extra epoxy coated shelves.
OPTIONS
33.5
34.81
27.5
13.56
64.94
83.69 (2 & 3 SECTION
6
84.5
Stainless steel front, sides, floors, and door. Aluminum interior.
Adjustable doorstops. Camlift chrome-plated hinges. Chromeplated horizontal door handles with security lock. Exterior dial
thermometer (1000 series) dial thermometer (2000-4000 series).
Bidding Specifications
Model 7-7020FT
Model 7-7045FT
Model 7-7070F

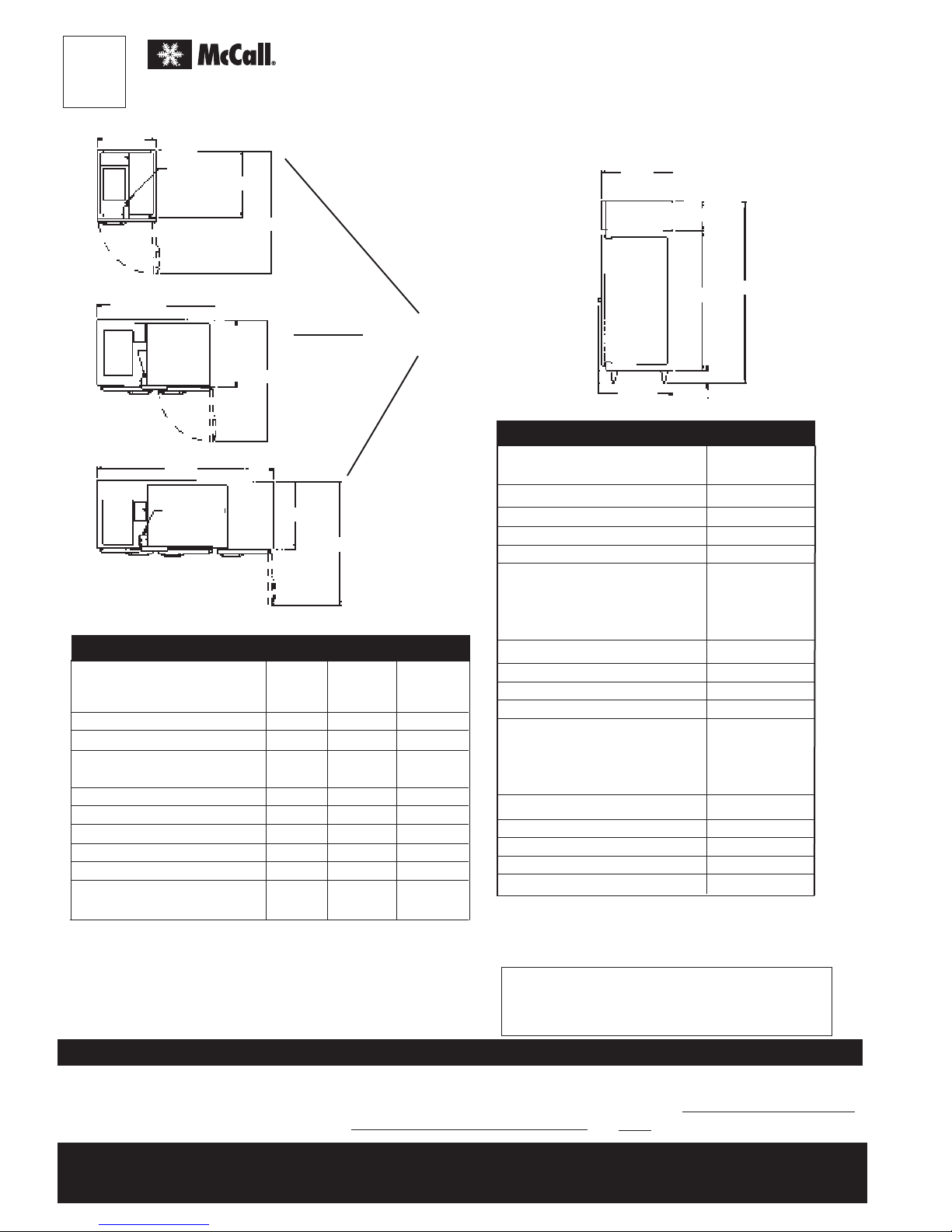

SIDE VIEW
ELECTRICAL
One Section
Base Model Number 7-7020FT
Compressor HP 1/2
Voltage (60 hz, 1 ph) 115
Total Amperage: 11.9
BTU/HR** 1394
Cord connection - ANSI 5-15P
Two Section
Model Number 7-7045FT
Compressor HP 3/4
Voltage (60 hz, 1 ph) 115
Total Amperage: 16
BTU/HR** 2840
Cord connection - ANSI 5-20P
Three Section
Base Model Number 7-7070F
Compressor HP 1
Voltage (60 hz, 1 ph) 208/230
Total Amperage: 15.8
BTU/HR** 3450
Cord connection -
55
31.18
57.81
POWER
CONNECTION
82.5
31.18
57.81
POWER
CONNECTION
27.5
POWER
CONNECTION
31.18
57.81
TOP VIEW
Description
DIMENSIONS
One Two Three
Section Section Section
Net Capacity (cu.ft.) 22.4 49 72
Width: 27.5" 55" 82.5"
Height: with legs or casters 84.5" 84.5" 84.5"
Depth: cabinet only -
including controls 31.18" 31.18" 31.18"
Depth: over hardware 34.81" 34.81" 34.81"
Depth: door open 90° 57.81" 57.81" 57.81"
Net Door Opening: width 21.25" 21.25" 21.25"
Net Door Opening: height 58" 58" 58"
Adjustable Shelves: 3 6 9
Shipping Weight: 360lb. 520lb. 705lb.
AIA #
16008
*4-wire dual voltage required; 115 for lights, 208-230 for
compressor.
