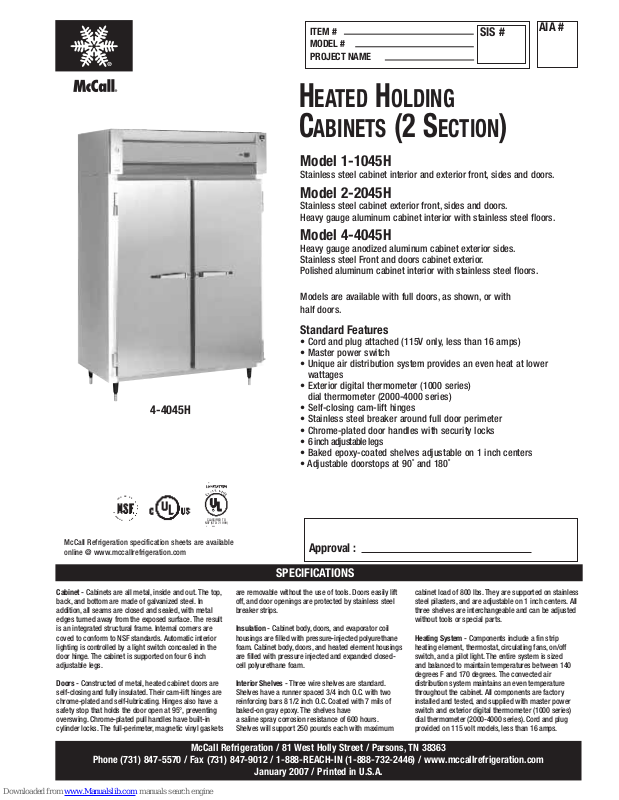

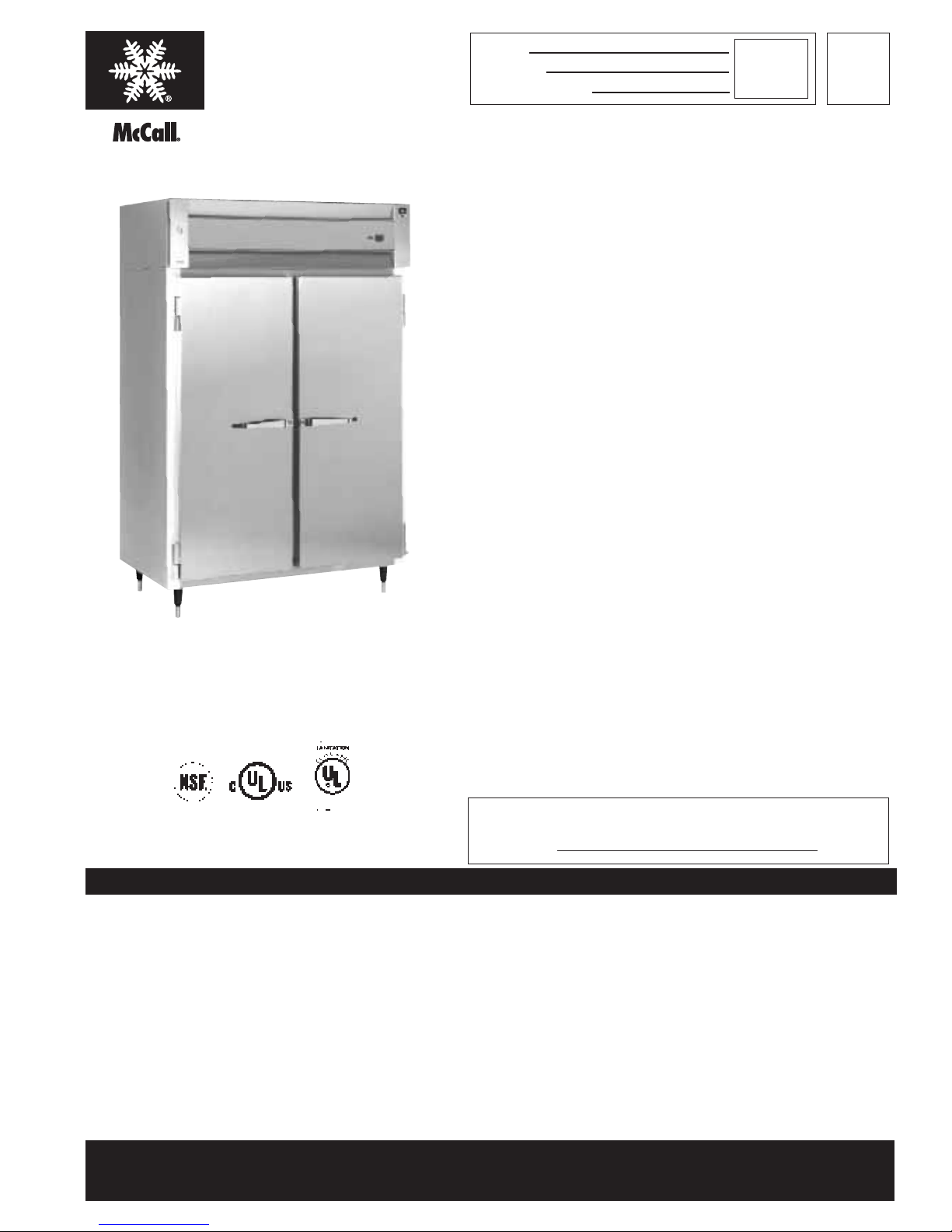

Page 1
McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.
H
EATEDHOLDING
C
ABINETS
(2 S
ECTION
)
Cabinet - Cabinets are all metal, inside and out. The top,
back, and bottom are made of galvanized steel. In
addition, all seams are closed and sealed, with metal
edges turned away from the exposed surface. The result
is an integrated structural frame. Internal corners are
coved to conform to NSF standards. Automatic interior
lighting is controlled by a light switch concealed in the
door hinge. The cabinet is supported on four 6 inch
adjustable legs.
Doors - Constructed of metal, heated cabinet doors are
self-closing and fully insulated. Their cam-lift hinges are
chrome-plated and self-lubricating. Hinges also have a
safety stop that holds the door open at 95°, preventing
overswing. Chrome-plated pull handles have built-in
cylinder locks. The full-perimeter, magnetic vinyl gaskets
are removable without the use of tools. Doors easily lift
off, and door openings are protected by stainless steel
breaker strips.
Insulation - Cabinet body, doors, and evaporator coil
housings are filled with pressure-injected polyurethane
foam. Cabinet body,doors, and heated element housings
are filled with pressure injected and expanded closedcell polyurethane foam.
Interior Shelves - Three wire shelves are standard.
Shelves have a runner spaced 3/4 inch O.C. with two
reinforcing bars 8 1/2 inch O.C. Coated with 7 mils of
baked-on gray epoxy. The shelves have
a saline spray corrosion resistance of 600 hours.
Shelves will support 250 pounds each with maximum
cabinet load of 800 lbs. They are supported on stainless
steel pilasters, and are adjustable on 1 inch centers. All
three shelves are interchangeable and can be adjusted
without tools or special parts.
Heating System - Components include a fin strip
heating element, thermostat, circulating fans, on/off
switch, and a pilot light. The entire system is sized
and balanced to maintain temperatures between 140
degrees F and 170 degrees. The convected air
distribution system maintains an even temperature
throughout the cabinet. All components are factory
installed and tested, and supplied with master power
switch and exterior digital thermometer (1000 series)
dial thermometer (2000-4000 series). Cord and plug
provided on 115 volt models, less than 16 amps.
Approval :
SPECIFICATIONS
4-4045H
AIA #
ITEM #
MODEL #
PROJECT NAME
SIS #
Standard Features
• Cord and plug attached (115V only, less than 16 amps)
• Master power switch
• Unique air distribution system provides an even heat at lower
wattages
• Exterior digital thermometer (1000 series)
dial thermometer (2000-4000 series)
• Self-closing cam-lift hinges
• Stainless steel breaker around full door perimeter
• Chrome-plated door handles with security locks
• 6 inch adjustable legs
• Baked epoxy-coated shelves adjustable on 1 inch centers
• Adjustable doorstops at 90˚ and 180˚
Model 1-1045H
Stainless steel cabinet interior and exterior front, sides and doors.
Model 2-2045H
Stainless steel cabinet exterior front, sides and doors.
Heavy gauge aluminum cabinet interior with stainless steel floors.
Model 4-4045H
Heavy gauge anodized aluminum cabinet exterior sides.
Stainless steel Front and doors cabinet exterior.
Polished aluminum cabinet interior with stainless steel floors.
Models are available with full doors, as shown, or with
half doors.
CLASSIFIED TO
NSF (STD-7-1999)
McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com
Page 2
McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.
6
McCall Heated Holding Cabinets shall have:
Stainless steel front, doors and floor. Self-closing all metal doors with welded and
polished corners. Cam-lift hinges with concealed light switches. Adjustable
doorstops. Exterior digital thermometer (1000 series) dial thermometer (20004000 series). Sized and balanced systems maintains temperature range of 140˚F170˚F. Chrome-plated door handles with security lock. Stainless steel pilasters
(1000 series) & aluminum pilasters (2000-4000 series) adjustable on 1" centers.
Three epoxy coated shelves per section. 6" adjustable legs. Master Power Switch.
49 cubic ft. capacity. Dimensions:Width = 55"/Height = 84.5"
Pass Thru
(see Pass-Thru Heated Holding Cabinet spec sheet)
Hinged glass doors
Half height doors.
Heavy-duty 6 inch casters
(cord connected models only).
Finished back.
Tray slides
Alarm systems.
300 series stainless steel shelves.
extra epoxy coated shelves.
Dial Thermometer
Sliding glass doors
OPTIONS
Description
DIMENSIONS
Two
Section
Net Capacity: 49 cu.ft.
Width: 55"
Depth: cabinet only 31.19"
Depth: over hardware - reach-in 34.81"
Depth: over hardware - pass-thru 38.44"
Depth: door open 90° - reach-in 57.81"
Depth: door open 90° - pass-thru 84.19"
Height: including 6" legs 84.5"
Net Door Opening: width 21.25"
Net Door Opening:
height - half doors 27"
Net Door Opening:
height - full doors 58"
Adjustable Shelves: 6
Shipping Weight
Model 1-1045H
3-4045H
2-2045H
690 lbs.
610 lbs.
540 lbs.
Two Section
Voltage (60 cycle single phase): 208/240
Heater Wattage: 2630/3500
Total Amperage (fans & heaters): 13.4/15.4
ELECTRICAL
55
78.5
84.5
Model 1-1045H
Model 2-2045H
Model 4-4045H
HEATED HOLDING CABINETS
(2 SECTION)
Certain options and accessories may affect UL/NSF
listing and electrical requirements.
Specifications subject to change without notice.

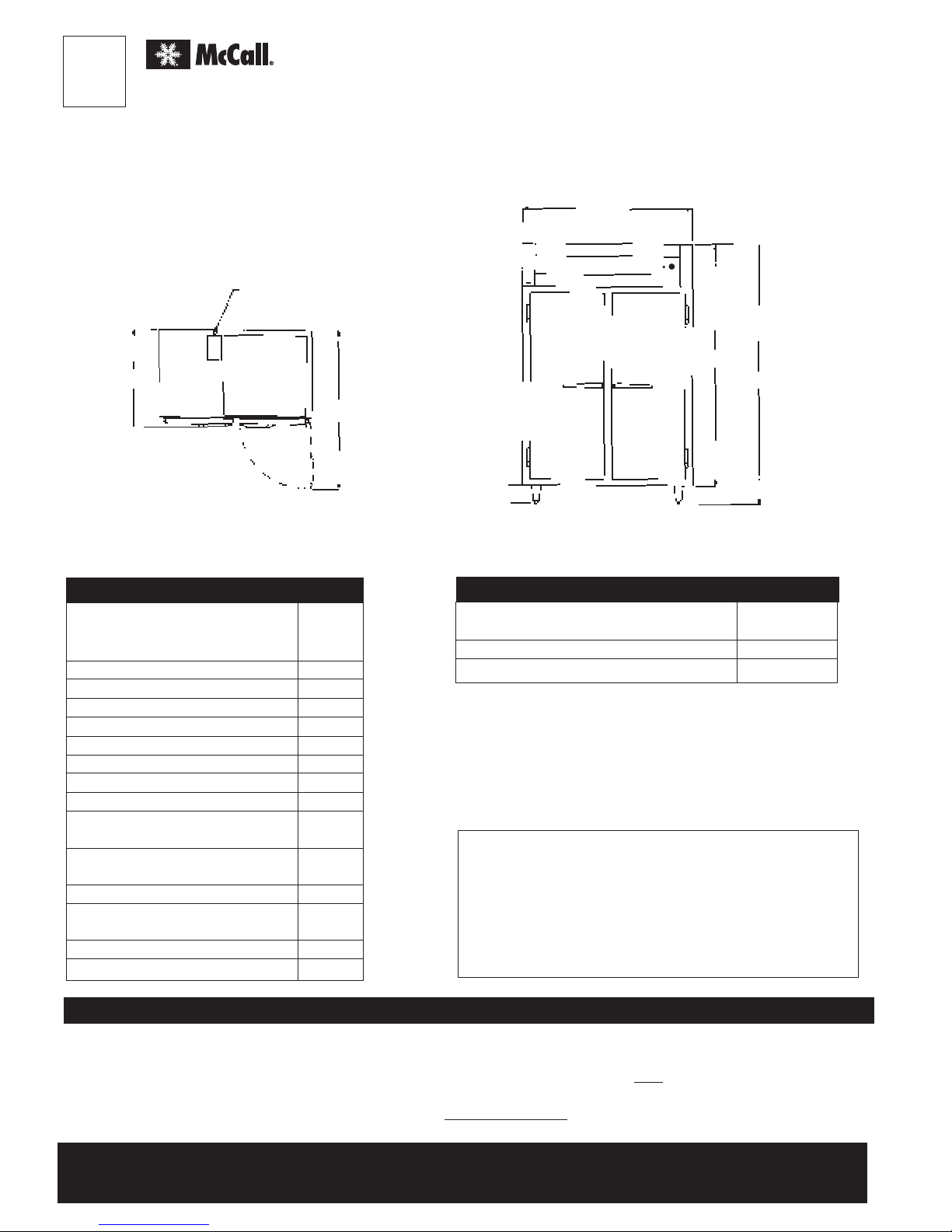

TOP VIEW
FRONT VIEW
Bidding Specifications
34.19
57.81
POWER
CONNECTION
AIA #
16032
