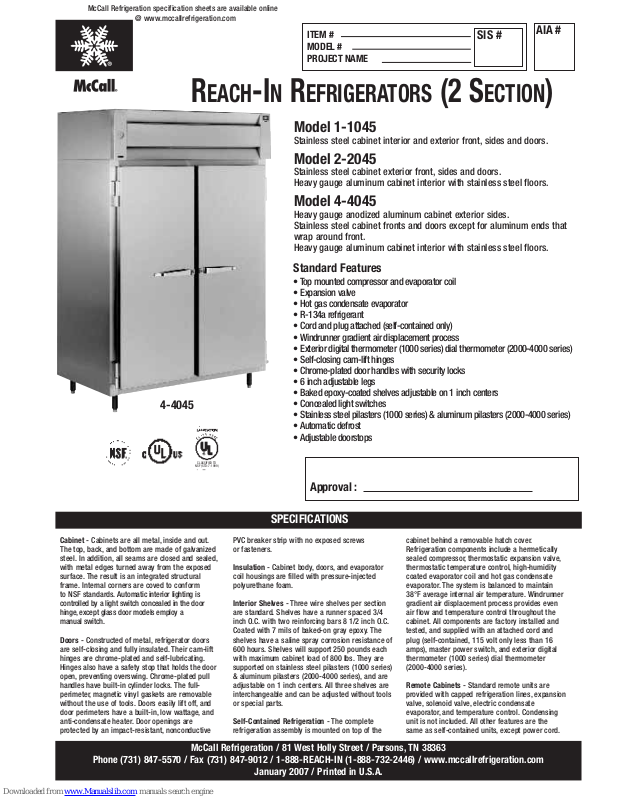

McCall 4-4045F01, 2-2045F01, 2-2045PGD, 2-2045X, 2-2045XPGD Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

4-4045

R

EACH

-INR

EFRIGERATORS

(2 S

ECTION

)

SPECIFICATIONS

Cabinet - Cabinets are all metal, inside and out.

The top, back, and bottom are made of galvanized
steel. In addition, all seams are closed and sealed,
with metal edges turned away from the exposed
surface. The result is an integrated structural
frame. Internal corners are coved to conform
to NSF standards. Automatic interior lighting is
controlled by a light switch concealed in the door
hinge, except glass door models employ a
manual switch.

Doors - Constructed of metal, refrigerator doors
are self-closing and fully insulated. Their cam-lift
hinges are chrome-plated and self-lubricating.
Hinges also have a safety stop that holds the door
open, preventing overswing. Chrome-plated pull
handles have built-in cylinder locks. The full­perimeter, magnetic vinyl gaskets are removable
without the use of tools. Doors easily lift off, and
door perimeters have a built-in, low wattage, and
anti-condensate heater. Door openings are
protected by an impact-resistant, nonconductive

PVC breaker strip with no exposed screws
or fasteners.

Insulation - Cabinet body, doors, and evaporator
coil housings are filled with pressure-injected
polyurethane foam.

Interior Shelves - Three wire shelves per section
are standard. Shelves have a runner spaced 3/4
inch O.C. with two reinforcing bars 8 1/2 inch O.C.
Coated with 7 mils of baked-on gray epoxy. The
shelves have a saline spray corrosion resistance of
600 hours. Shelves will support 250 pounds each
with maximum cabinet load of 800 lbs. They are
supported on stainless steel pilasters (1000 series)
& aluminum pilasters (2000-4000 series), and are
adjustable on 1 inch centers. All three shelves are
interchangeable and can be adjusted without tools
or special parts.

Self-Contained Refrigeration - The complete
refrigeration assembly is mounted on top of the

cabinet behind a removable hatch cover.
Refrigeration components include a hermetically
sealed compressor, thermostatic expansion valve,
thermostatic temperature control, high-humidity
coated evaporator coil and hot gas condensate
evaporator. The system is balanced to maintain
38°F average internal air temperature. Windrunner
gradient air displacement process provides even
air flow and temperature control throughout the
cabinet. All components are factory installed and
tested, and supplied with an attached cord and
plug (self-contained, 115 volt only less than 16
amps), master power switch, and exterior digital
thermometer (1000 series) dial thermometer
(2000-4000 series).

Remote Cabinets - Standard remote units are
provided with capped refrigeration lines, expansion
valve, solenoid valve, electric condensate
evaporator, and temperature control. Condensing
unit is not included. All other features are the
same as self-contained units, except power cord.

Standard Features

• Top mounted compressor and evaporator coil

• Expansion valve

• Hot gas condensate evaporator

• R-134a refrigerant

• Cord and plug attached (self-contained only)

• Windrunner gradient air displacement process

• Exterior digital thermometer (1000 series) dial thermometer (2000-4000 series)

• Self-closing cam-lift hinges

• Chrome-plated door handles with security locks

• 6 inch adjustable legs

• Baked epoxy-coated shelves adjustable on 1 inch centers

• Concealed light switches

• Stainless steel pilasters (1000 series) & aluminum pilasters (2000-4000 series)

• Automatic defrost

• Adjustable doorstops

Approval :

Model 1-1045

Stainless steel cabinet interior and exterior front, sides and doors.

Model 2-2045

Stainless steel cabinet exterior front, sides and doors.
Heavy gauge aluminum cabinet interior with stainless steel floors.

Model 4-4045

Heavy gauge anodized aluminum cabinet exterior sides.
Stainless steel cabinet fronts and doors except for aluminum ends that
wrap around front.
Heavy gauge aluminum cabinet interior with stainless steel floors.

CLASSIFIED TO

NSF (STD-7-1999)

McCall Refrigeration specification sheets are available online

@ www.mccallrefrigeration.com

AIA #

ITEM #
MODEL #
PROJECT NAME

SIS #

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

REACH-IN REFRIGERATORS
(2 SECTION)

DIMENSIONS

Two

Section

Net Capacity: 49 cu.ft.
Width: 55"
Height: with legs or casters 84.5"
Depth: cabinet only -

including controls 31.18"

Depth: over hardware -

reach-in 34.81"

Depth: door open 90° -

reach-in 57.81"

Net Door Opening:

width 21.25"

Net Door Opening:

height -full doors 58"

Net Door Opening:

height - half doors 27"
Adjustable Shelves 6
Shipping Weight

55

31.18

57.81

POWER

CONNECTION

Model 1-1045

Model 4-4045

Model 2-2045

Model 1-1045

4-4045

2-2045

615 lbs.
550 lbs.
500 lbs.

Notes: (R) Remote cabinets are equipped for 15 amp permanent connection.
*First 3 digits omitted.
**Based on 90°F ambient and 20°F evaporating temperature.

Specifications subject to change without notice.

Certain options and accessories may affect
UL/NSF listing and electrical requirements.

TOP VIEW

ELECTRICAL

Two Section

Base Model Number* 45
Compressor HP 1/3

Voltage

(60 hz, 1 ph) 115
Total Amperage: 8.7
BTU/HR** 2353
Cord connection

- ANSI 5-15P

Bidding Specifications

McCall Reach In Cabinets shall have:

Top mounted compressor. Automatic defrost. Expansion Valve. Hot gas condensate evaporator.
Matched and balanced system. Exclusive Windrunner Gradient Air Displacement Process.
Stainless steel front, doors and floor. Self-closing all metal doors with welded and polished
corners. Cam-lift hinges with concealed light switches. Adjustable doorstops. Exterior digital
thermometer (1000 series) dial thermometer (2000-4000 series). Chrome-plated door handles
with security lock. Stainless steel pilasters (1000 series) & aluminum pilasters (2000-4000
series) adjustable on 1" centers. Three epoxy coated shelves per section. 6" adjustable legs.
Master Power Switch. R-134a refrigerant. 49 cubic ft. capacity.
Dimensions: Width=55"/Height=84.5"

33.5

13.56

64.93

34.81

84.5

SIDE VIEW

OPTIONS

E  Electric condensate

evaporator.

 Finished back.
 Tray slides
 Stainless steel shelves.
 extra epoxy

coated shelves.

 Left or right door hinge.
 Digital Thermometer

Description

Model Suffix

Description

Model Suffix

Description

Model Suffix

AIA #

01  Half height doors Qty.______
C  Heavy-duty 6 inch casters

(on cord connected models only).

GD  Glass Doors

(See Glass Doors Reach In

Refrigerators specification
sheet)

A  Audio visual alarm.

R  Remote.
X  Sliding glass doors

(with vertical 40 watt
fluorescent lighting)
2 section only.

P  PassThru (see Pass-Thru

Refrigerators specification sheet)

6

16001
