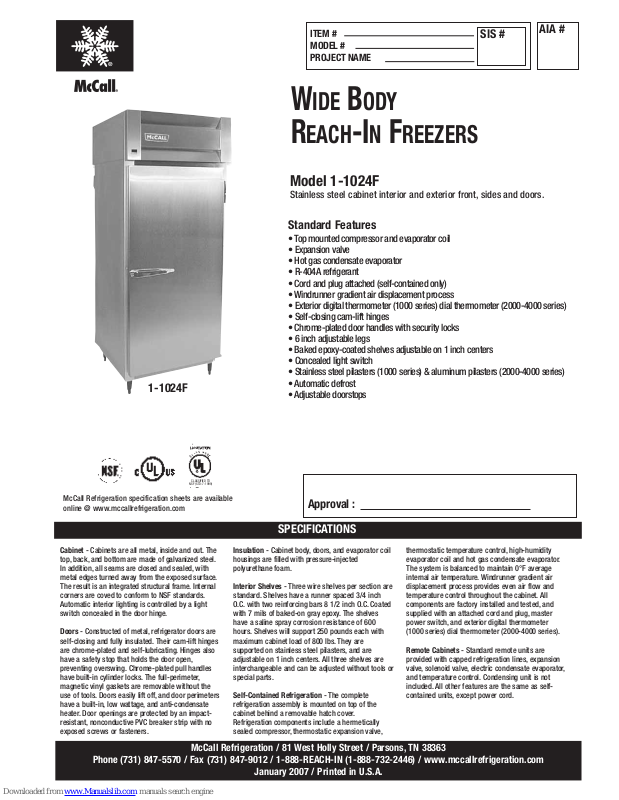

McCall 1-1024F Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.
W
IDEBODY
R
EACH
-INF
REEZERS
SPECIFICATIONS
Cabinet - Cabinets are all metal, inside and out. The
top, back, and bottom are made of galvanized steel. In addition, all seams are closed and sealed, with metal edges turned away from the exposed surface. The result is an integrated structural frame. Internal corners are coved to conform to NSF standards. Automatic interior lighting is controlled by a light switch concealed in the door hinge.
Doors - Constructed of metal, refrigerator doors are self-closing and fully insulated. Their cam-lift hinges are chrome-plated and self-lubricating. Hinges also have a safety stop that holds the door open, preventing overswing. Chrome-plated pull handles have built-in cylinder locks. The full-perimeter, magnetic vinyl gaskets are removable without the use of tools. Doors easily lift off, and door perimeters have a built-in, low wattage, and anti-condensate heater. Door openings are protected by an impact­resistant, nonconductive PVC breaker strip with no exposed screws or fasteners.
Insulation - Cabinet body, doors, and evaporator coil housings are filled with pressure-injected polyurethane foam.
Interior Shelves - Three wire shelves per section are standard. Shelves have a runner spaced 3/4 inch O.C. with two reinforcing bars 8 1/2 inch O.C. Coated with 7 mils of baked-on gray epoxy. The shelves have a saline spray corrosion resistance of 600 hours. Shelves will support 250 pounds each with maximum cabinet load of 800 lbs. They are supported on stainless steel pilasters, and are adjustable on 1 inch centers. All three shelves are interchangeable and can be adjusted without tools or special parts.
Self-Contained Refrigeration - The complete refrigeration assembly is mounted on top of the cabinet behind a removable hatch cover. Refrigeration components include a hermetically sealed compressor, thermostatic expansion valve,
thermostatic temperature control, high-humidity evaporator coil and hot gas condensate evaporator. The system is balanced to maintain 0°F average internal air temperature. Windrunner gradient air displacement process provides even air flow and temperature control throughout the cabinet. All components are factory installed and tested, and supplied with an attached cord and plug, master power switch, and exterior digital thermometer (1000 series) dial thermometer (2000-4000 series).
Remote Cabinets - Standard remote units are provided with capped refrigeration lines, expansion valve, solenoid valve, electric condensate evaporator, and temperature control. Condensing unit is not included. All other features are the same as self­contained units, except power cord.
Approval :
1-1024F
McCall Refrigeration specification sheets are available online @ www.mccallrefrigeration.com
AIA #
ITEM # MODEL # PROJECT NAME
SIS #
Model 1-1024F
Stainless steel cabinet interior and exterior front, sides and doors.
Standard Features
• Top mounted compressor and evaporator coil
• Expansion valve
• Hot gas condensate evaporator
• R-404A refrigerant
• Cord and plug attached (self-contained only)
• Windrunner gradient air displacement process
• Exterior digital thermometer (1000 series) dial thermometer (2000-4000 series)
• Self-closing cam-lift hinges
• Chrome-plated door handles with security locks
• 6 inch adjustable legs
• Baked epoxy-coated shelves adjustable on 1 inch centers
• Concealed light switch
• Stainless steel pilasters (1000 series) & aluminum pilasters (2000-4000 series)
• Automatic defrost
• Adjustable doorstops
CLASSIFIED TO
NSF (STD-7-1999)
McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.
Notes: (R) Remote cabinets are equipped for 15 amp
permanent connection. *First 3 digits omitted. **Based on 90°F ambient and -20°F evaporating temperature.
Specifications subject to change without notice.
Certain options and accessories may affect UL/NSF approval and electrical requirements.
33.5
13.56
64.93
33.25
63.5
34.81
84.5
31.18
POWER
CONNECTION
WIDE BODY REACH-IN FREEZERS
Model 1-1024F
TOP VIEW
SIDE VIEW
DIMENSIONS
One
Section
Net Capacity: 28.5 cu.ft. Width: 33.25" Height: with legs or casters 84.5" Depth: cabinet only -
including controls 31.18"
Depth: over hardware -
reach-in 34.81"
Depth: over hardware -
pass-thru 38.44"
Depth: door open 90° -
reach-in 63.5"
Depth: door open 90° -
pass-thru 96"
Net Door Opening:
width 26.87"
Net Door Opening:
height -full doors 58"
Net Door Opening:
height - half doors 27" Adjustable Shelves 3 Shipping Weight
Model 1-1024F
500 lbs.
OPTIONS
E Electric condensate
evaporator.
Finished back.Tray slides Stainless steel shelves.
extra epoxy
coated shelves.
Left or right door hinge.
Description
Model Suffix
Description
Model Suffix
01 Half height doors. C Heavy-duty 6 inch casters
(on cord connected models only). A Audio visual alarm. P Pass-Thru. R Remote.
McCall Wide Body Reach In Freezer Cabinets shall have:
Matched and balanced system. Stainless steel front, doors and floor. Self-closing all metal doors with welded and polished corners. Cam-lift hinges with concealed light switches. Adjustable doorstops. Exterior digital thermometer (1000 series) dial thermometer (2000-4000 series). Chrome-plated door handles with security lock. Stainless steel pilasters (1000 series) & aluminum pilasters (2000-4000 series) adjustable on 1" centers. Three epoxy coated shelves per section. 6" adjustable legs. Master Power Switch. R-404A refrigerant. Cord and plug attached 28.5 cubic ft. capacity. Dimensions:Width =33.25"/Height =84.5"
Bidding Specifications
ELECTRICAL
One Section
Base Model Number* 24F 24FP Compressor HP 1/2 3/4
Voltage (60 hz, 1 ph) 115 115 Total Amperage: 12.4 15 BTU/HR** 1700 2870 Cord connection - ANSI 5-15P 5-20P
Pass Thru
AIA #
6
16012
