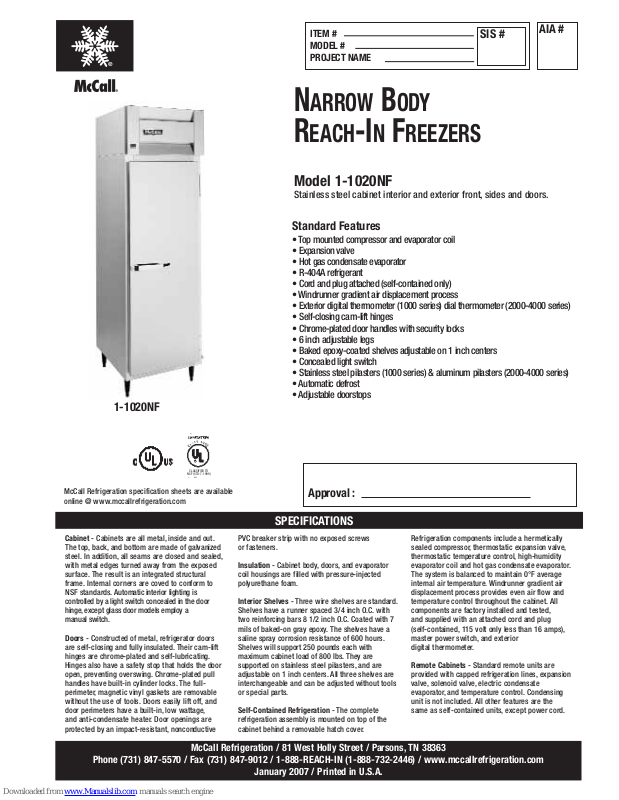

McCall 1-1020NF Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

N

ARROWBODY

R

EACH

-INF

REEZERS

SPECIFICATIONS

Cabinet - Cabinets are all metal, inside and out.

The top, back, and bottom are made of galvanized
steel. In addition, all seams are closed and sealed,
with metal edges turned away from the exposed
surface. The result is an integrated structural
frame. Internal corners are coved to conform to
NSF standards. Automatic interior lighting is
controlled by a light switch concealed in the door
hinge, except glass door models employ a
manual switch.

Doors - Constructed of metal, refrigerator doors
are self-closing and fully insulated. Their cam-lift
hinges are chrome-plated and self-lubricating.
Hinges also have a safety stop that holds the door
open, preventing overswing. Chrome-plated pull
handles have built-in cylinder locks. The full­perimeter, magnetic vinyl gaskets are removable
without the use of tools. Doors easily lift off, and
door perimeters have a built-in, low wattage,
and anti-condensate heater. Door openings are
protected by an impact-resistant, nonconductive

PVC breaker strip with no exposed screws
or fasteners.

Insulation - Cabinet body, doors, and evaporator
coil housings are filled with pressure-injected
polyurethane foam.

Interior Shelves - Three wire shelves are standard.
Shelves have a runner spaced 3/4 inch O.C. with
two reinforcing bars 8 1/2 inch O.C. Coated with 7
mils of baked-on gray epoxy. The shelves have a
saline spray corrosion resistance of 600 hours.
Shelves will support 250 pounds each with
maximum cabinet load of 800 lbs. They are
supported on stainless steel pilasters, and are
adjustable on 1 inch centers. All three shelves are
interchangeable and can be adjusted without tools
or special parts.

Self-Contained Refrigeration - The complete
refrigeration assembly is mounted on top of the
cabinet behind a removable hatch cover.

Refrigeration components include a hermetically
sealed compressor, thermostatic expansion valve,
thermostatic temperature control, high-humidity
evaporator coil and hot gas condensate evaporator.
The system is balanced to maintain 0°F average
internal air temperature. Windrunner gradient air
displacement process provides even air flow and
temperature control throughout the cabinet. All
components are factory installed and tested,
and supplied with an attached cord and plug
(self-contained, 115 volt only less than 16 amps),
master power switch, and exterior
digital thermometer.

Remote Cabinets - Standard remote units are
provided with capped refrigeration lines, expansion
valve, solenoid valve, electric condensate
evaporator, and temperature control. Condensing
unit is not included. All other features are the
same as self-contained units, except power cord.

Approval :

1-1020NF

McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com

Model 1-1020NF

Stainless steel cabinet interior and exterior front, sides and doors.

Standard Features

• Top mounted compressor and evaporator coil

• Expansion valve

• Hot gas condensate evaporator

• R-404A refrigerant

• Cord and plug attached (self-contained only)

• Windrunner gradient air displacement process

• Exterior digital thermometer (1000 series) dial thermometer (2000-4000 series)

• Self-closing cam-lift hinges

• Chrome-plated door handles with security locks

• 6 inch adjustable legs

• Baked epoxy-coated shelves adjustable on 1 inch centers

• Concealed light switch

• Stainless steel pilasters (1000 series) & aluminum pilasters (2000-4000 series)

• Automatic defrost

• Adjustable doorstops

AIA #

ITEM #
MODEL #
PROJECT NAME

SIS #

CLASSIFIED TO

NSF (STD-7-1999)

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

ELECTRICAL

One Section

Base Model Number* 20NF
Compressor HP 1/2

Voltage (60 hz, 1 ph) 115
Total Amperage: 12.4
BTU/HR** 1700
Cord connection - ANSI 5-15

Notes: (R) Remote cabinets are equipped for 15 amp permanent connection.
*First 3 digits omitted.
**Based on 90°F ambient and -20°F evaporating temperature.

Specifications subject to change without notice.

Certain options and accessories may affect UL/NSF listing and
electrical requirements.

33.5

34.81

24

13.56

64.93

84.5

6

31.18

56

POWER

CONNECTION

NARROW BODY
REACH-IN FREEZERS

Model 1-1020NF

DIMENSIONS

One

Section

Net Capacity: 20 cu.ft.
Width: 24"
Height: with legs or casters 84.5"
Depth: cabinet only -

including controls 31.18"

Depth: over hardware -

reach-in 34.81"

Depth: door open 90° -

reach-in 56"

Net Door Opening:

width 19.3"

Net Door Opening:

height -full doors 59.7"

Net Door Opening:

height - half doors 28.5"
Adjustable Shelves 3
Shipping Weight

Model 1-1020NF

450 lbs.

TOP VIEW

SIDE VIEW

OPTIONS

01  Half height doors.
C  Heavy-duty 6 inch casters

(on cord connected models only).
A  Audio visual alarm.
R  Remote.

E  Electric condensate

evaporator.

 Finished back.
 Tray slides
 Stainless steel shelves.


extra epoxy

coated shelves.

 Left or right door hinge.


Description

Model Suffix

Description

Model Suffix

Bidding Specifications

McCall Narrow Body Reach In Freezer Cabinets shall have:

Top mounted compressor. Automatic defrost. Expansion Valve. Hot gas condensate evaporator.
Matched and balanced system. Exclusive Windrunner Gradient Air Displacement Process.
Stainless steel front, doors and floor. Self-closing all metal doors with welded and polished
corners. Cam-lift hinges with concealed light switches. Adjustable doorstops. Exterior digital
thermometer (1000 series) dial thermometer (2000-4000 series). Chrome-plated door handles
with security lock. Stainless steel pilasters (1000 series) & aluminum pilasters (2000-4000
series) adjustable on 1" centers. Three epoxy coated shelves per section. 6" adjustable legs.
Master Power Switch. R-404A refrigerant. 20 cubic ft. capacity.
Dimensions: Width=24"/Height=84.5"

AIA #

16010
