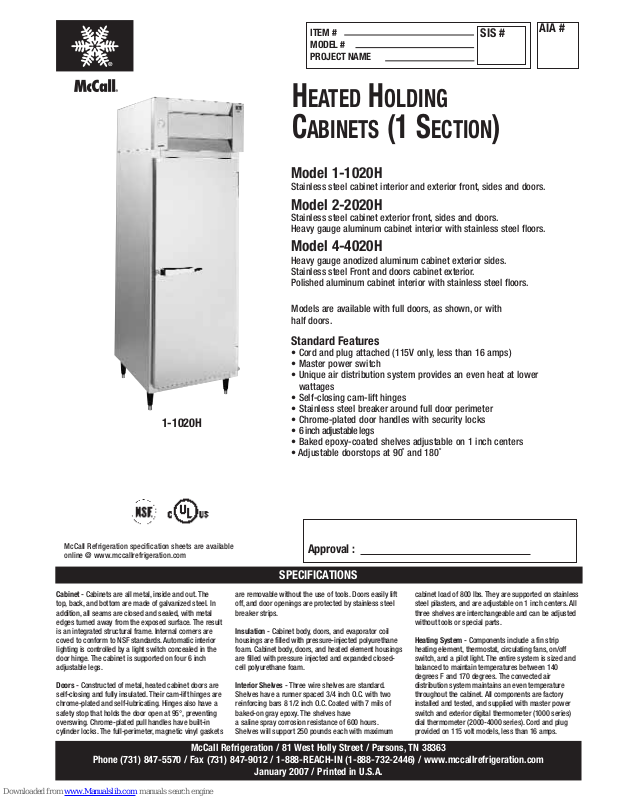

McCall 1-1020HP, 2-2020HP, 4-4020HP Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

H

EATEDHOLDING

C

ABINETS

(1 S

ECTION

)

Cabinet - Cabinets are all metal, inside and out. The

top, back, and bottom are made of galvanized steel. In
addition, all seams are closed and sealed, with metal
edges turned away from the exposed surface. The result
is an integrated structural frame. Internal corners are
coved to conform to NSF standards. Automatic interior
lighting is controlled by a light switch concealed in the
door hinge. The cabinet is supported on four 6 inch
adjustable legs.

Doors - Constructed of metal, heated cabinet doors are
self-closing and fully insulated. Their cam-lift hinges are
chrome-plated and self-lubricating. Hinges also have a
safety stop that holds the door open at 95°, preventing
overswing. Chrome-plated pull handles have built-in
cylinder locks. The full-perimeter, magnetic vinyl gaskets

are removable without the use of tools. Doors easily lift
off, and door openings are protected by stainless steel
breaker strips.

Insulation - Cabinet body, doors, and evaporator coil
housings are filled with pressure-injected polyurethane
foam. Cabinet body,doors, and heated element housings
are filled with pressure injected and expanded closed­cell polyurethane foam.

Interior Shelves - Three wire shelves are standard.
Shelves have a runner spaced 3/4 inch O.C. with two
reinforcing bars 8 1/2 inch O.C. Coated with 7 mils of
baked-on gray epoxy. The shelves have
a saline spray corrosion resistance of 600 hours.
Shelves will support 250 pounds each with maximum

cabinet load of 800 lbs. They are supported on stainless
steel pilasters, and are adjustable on 1 inch centers. All
three shelves are interchangeable and can be adjusted
without tools or special parts.

Heating System - Components include a fin strip
heating element, thermostat, circulating fans, on/off
switch, and a pilot light. The entire system is sized and
balanced to maintain temperatures between 140
degrees F and 170 degrees. The convected air
distribution system maintains an even temperature
throughout the cabinet. All components are factory
installed and tested, and supplied with master power
switch and exterior digital thermometer (1000 series)
dial thermometer (2000-4000 series). Cord and plug
provided on 115 volt models, less than 16 amps.

Standard Features

• Cord and plug attached (115V only, less than 16 amps)

• Master power switch

• Unique air distribution system provides an even heat at lower
wattages

• Self-closing cam-lift hinges

• Stainless steel breaker around full door perimeter

• Chrome-plated door handles with security locks

• 6 inch adjustable legs

• Baked epoxy-coated shelves adjustable on 1 inch centers

• Adjustable doorstops at 90˚ and 180˚

Approval :

SPECIFICATIONS

1-1020H

AIA #

ITEM #
MODEL #
PROJECT NAME

SIS #

Model 1-1020H

Stainless steel cabinet interior and exterior front, sides and doors.

Model 2-2020H

Stainless steel cabinet exterior front, sides and doors.
Heavy gauge aluminum cabinet interior with stainless steel floors.

Model 4-4020H

Heavy gauge anodized aluminum cabinet exterior sides.
Stainless steel Front and doors cabinet exterior.
Polished aluminum cabinet interior with stainless steel floors.

Models are available with full doors, as shown, or with
half doors.

McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

One Section

Voltage (60 cycle single phase): 115 208/240
Heater Wattage: 1,750 1315/1750
Total Amperage (fans & heaters): 15.7 7.4/8.4

POWER CONNECTION

27.5

78.5

84.5

6

34.81

57.81

POWER CONNECTION

34.81

57.81

McCall Heated Holding Cabinets shall have:

Stainless steel front, doors and floor. Self-closing all metal doors with welded and
polished corners. Cam-lift hinges with concealed light switches. Adjustable
doorstops. Exterior digital thermometer (1000 series) dial thermometer (2000­4000 series). Sized and balanced systems maintains temperature range of
140˚F-170˚F. Chrome-plated door handles with security lock. stainless steel
pilasters (1000 series) & aluminum pilasters (2000-4000 series) adjustable on
1" centers. Three epoxy coated shelves per section. 6" adjustable legs. Master
Power Switch. Cord and plug attached on 115V models less than 16 amps. 22.4
cubic ft. capacity. Dimensions:Width = 27.5"/Height = 84.5"

Bidding Specifications

 Pass Thru

(see Pass-Thru Heated Holding Cabinet spec sheet)

 Hinged glass doors
 Half height doors.

 Heavy-duty 6 inch casters

(cord connected models only).

 Finished back.
 Tray slides
 Alarm systems.

 300 series stainless steel shelves.


extra epoxy coated shelves.

 Dial Thermometer
 Sliding glass doors

OPTIONS

DIMENSIONS

One

Section

Net Capacity: 22.4 cu.ft.
Width: 27.5"
Depth: cabinet only 31.19"
Depth: over hardware - reach-in 34.81"
Depth: over hardware - pass-thru 38.44"
Depth: door open 90° - reach-in 57.81"
Depth: door open 90° - pass-thru 84.19"
Height: including 6" legs 84.5"
Net Door Opening: width 21.25"
Net Door Opening:

height - half doors 27"

Net Door Opening:

height - full doors 58"
Adjustable Shelves: 3
Shipping Weight

Model 1020-H

4020-H

2020-H

375 lbs.
375 lbs.
330 lbs.

Model 1-1020H

Model 2-2020H

Model 4-4020H

Certain options and accessories may affect UL/NSF
listing and electrical requirements.

Specifications subject to change without notice.

ELECTRICAL

HEATED HOLDING CABINETS
(1 SECTION)

FRONT VIEW

TOP VIEW

TOP VIEW

(PASS-THRU)

Description

AIA #

16031
