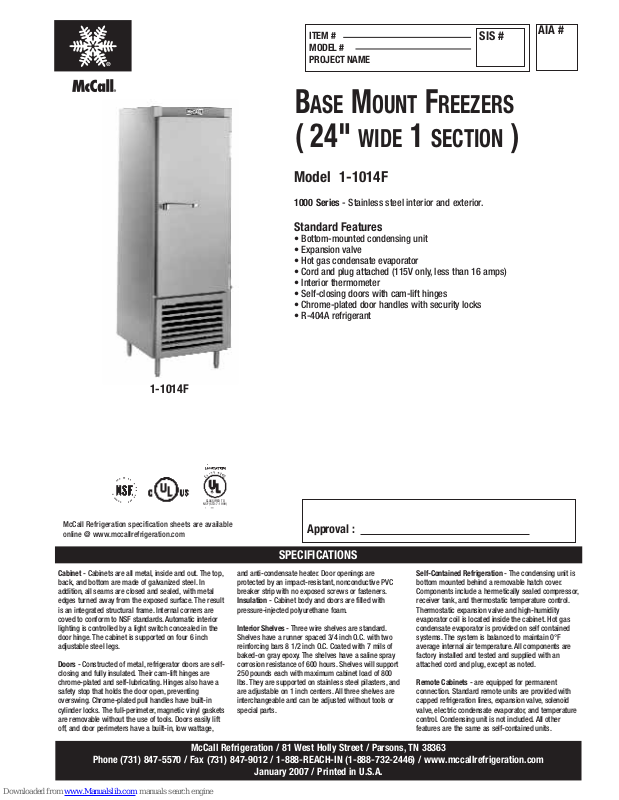

McCall 1-1014F, 1-1014 Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

B

ASE

M

OUNTFREEZERS

( 24"

WIDE

1

SECTION

)

Cabinet - Cabinets are all metal, inside and out. The top,

back, and bottom are made of galvanized steel. In
addition, all seams are closed and sealed, with metal
edges turned away from the exposed surface. The result
is an integrated structural frame. Internal corners are
coved to conform to NSF standards. Automatic interior
lighting is controlled by a light switch concealed in the
door hinge. The cabinet is supported on four 6 inch
adjustable steel legs.

Doors - Constructed of metal, refrigerator doors are self­closing and fully insulated. Their cam-lift hinges are
chrome-plated and self-lubricating. Hinges also have a
safety stop that holds the door open, preventing
overswing. Chrome-plated pull handles have built-in
cylinder locks. The full-perimeter, magnetic vinyl gaskets
are removable without the use of tools. Doors easily lift
off, and door perimeters have a built-in, low wattage,

and anti-condensate heater. Door openings are
protected by an impact-resistant, nonconductive PVC
breaker strip with no exposed screws or fasteners.
Insulation - Cabinet body and doors are filled with
pressure-injected polyurethane foam.

Interior Shelves - Three wire shelves are standard.
Shelves have a runner spaced 3/4 inch O.C. with two
reinforcing bars 8 1/2 inch O.C. Coated with 7 mils of
baked-on gray epoxy. The shelves have a saline spray
corrosion resistance of 600 hours. Shelves will support
250 pounds each with maximum cabinet load of 800
lbs. They are supported on stainless steel pilasters, and
are adjustable on 1 inch centers. All three shelves are
interchangeable and can be adjusted without tools or
special parts.

Self-Contained Refrigeration - The condensing unit is
bottom mounted behind a removable hatch cover.
Components include a hermetically sealed compressor,
receiver tank, and thermostatic temperature control.
Thermostatic expansion valve and high-humidity
evaporator coil is located inside the cabinet. Hot gas
condensate evaporator is provided on self contained
systems. The system is balanced to maintain 0°F
average internal air temperature. All components are
factory installed and tested and supplied with an
attached cord and plug, except as noted.

Remote Cabinets - are equipped for permanent
connection. Standard remote units are provided with
capped refrigeration lines, expansion valve, solenoid
valve, electric condensate evaporator, and temperature
control. Condensing unit is not included. All other
features are the same as self-contained units.

Model 1-1014F

1000 Series - Stainless steel interior and exterior.

Standard Features

• Bottom-mounted condensing unit

• Expansion valve

• Hot gas condensate evaporator

• Cord and plug attached (115V only, less than 16 amps)

• Interior thermometer

• Self-closing doors with cam-lift hinges

• Chrome-plated door handles with security locks

• R-404A refrigerant

Approval :

AIA #

ITEM #
MODEL #
PROJECT NAME

SIS #

SPECIFICATIONS

1-1014F

CLASSIFIED TO

NSF (STD-7-1999)

McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

DIMENSIONS

Model

14F

Net Capacity: 15.6 cu.ft.
Width: 24"
Height: with legs or casters 71"
Depth: cabinet only 31.2"
Depth: over hardware 35"
Depth: door open 90° 59.69"
Net Door Opening: width 17.8"
Net Door Opening: height 42.7"
Adjustable Shelves 3
Shipping Weight

ELECTRICAL

Model Number* 14F
Compressor HP 1/3
Voltage

(60 hz, 1 ph) 115
Total Amperage: 12
BTU/HR** 1590
Cord connection

- ANSI 5-15P

Notes: *Prefix designations omitted.
**Freezer capacity based on -20°F, evaporating
temperature. 90°F AMB
certain options and accessories may affect
UL/NSF listing and electrical requirements.

Specifications subject to change without notice.

Note: Pass thru cabinets and half height glass door cabinets are not available.

BASE MOUNT FREEZERS
( 24" WIDE 1 SECTION )

McCall Base Mount Freezer Cabinets shall have:

Bottom mounted condensing unit. Expansion Valve. Hot gas
condensate evaporator. Interior thermometer. Stainless steel front, doors,
and floor. Self-closing all metal doors with welded and polished corners.
Cam-lift hinges with concealed light switches. Adjustable doorstops.
Chrome-plated door handles with security lock. Stainless steel pilasters (1000
series) & aluminum pilasters (2000-4000 series) adjustable on 1" centers. Three
epoxy coated shelves per section. 6" adjustable legs. Cord and plug attached.
R-404A refrigerant. Dimensions: 15.6 cu.ft. capacity Width=24"/Height=71"

Bidding Specifications

GD  Hinged glass doors

(with fluorescent lighting).

C  Heavy-duty 6 inch casters

(cord connected models only).

R  Remote.
E  Electric condensate evaporator.

 Finished back.
 BAS-13 tray slides
 Stainless steel shelves.


extra epoxy coated shelves

Model Suffix Description

Model Suffix Description

OPTIONS

Model 1-1014F

24

37.25
65

71

6

59.69

*Rear line cover adds 2

5

/16" to this dimension

Model: 1-1014F

480 lbs.

FRONT VIEW

TOP VIEW

AIA #

16045
