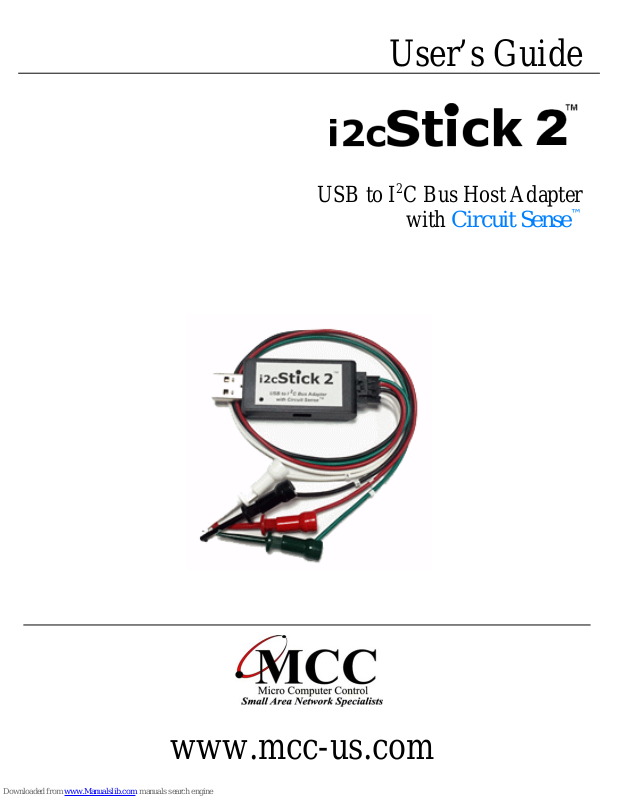

User’s Guide

USB to I2C Bus Host Adapter

with Circuit Sense

™

www.mcc-us.com

Introduction

The MCC i2cStick 2™ USB to I2C Bus host adapter with Circuit Sense allows any Windows, Linux, or Mac OS X host computer to become an I device, transmitting or receiving I or more I

C devices across an I2C Bus.

C messages between the host computer and one

C Master or Slave

This user’s guide describes the installation and operation of the i2cStick 2 host adapter, including the Virtual Communication Port (VCP) driver, and the USB and

C Bus interconnects. Also described are the iPort Utility Pack software for quick

C Bus communication, MS.Net and LabVIEW libraries for custom software

development, and other tools and applications.

A complete set of resources for the i2cStick 2 is available at:

www.mcc-us.com/i2cStick-2

This product conforms to the I²C Bus specifications defined by NXP/Philips Semiconductors.

To find out more about I

C, we suggest you review our white paper “I2C Bus

Technical Overview” at:

www.mcc-us.com/I2CBusTechnicalOverview.pdf.

I²C is a trademark of NXP (Philips) Corporation. All trademarks acknowledged as the property of their owners.

13-OCT-2018

Copyright© 2018 by Micro Computer Control Corporation. All rights are reserved. No part of this publication may be reproduced by any means without the prior written permission of Micro Computer Control Corporation, PO Box 275, Hopewell, New Jersey 08525 USA.

DISCLAIMER: Micro Computer Control Corporation makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Micro Computer Control Corporation reserves the right to revise the product described in this publication and to make changes from time to time in the content hereof without the obligation to notify any person of such revisions or changes.

WARNING - Life Support Applications: MCC products are not designed for use in life support appliances, devices, or systems where the malfunction of the product can reasonably be expected to result in a personal injury.

WARNING - Radio Frequency Emissions: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules, and the CE General Emissions Standard EN55032 and General Immunity Standard EN55035. These limits are designed to provide reasonable protection against interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user will be required to correct the interference at his own expense.

WARNING - Electrostatic Discharge (ESD) Precautions: Any damage caused by Electrostatic Discharge (ESD) through inadequate earth grounding is NOT covered under the warranty of this product. See the “Electrostatic (ESD) Precautions” section of this guide for more information.

Electronic Waste Notice - This product must NOT be thrown into general waste, but should be collected separately and properly recycled under local regulations.

Created in the United States of America

Table of Contents

1 Overview .......................................................1

i2cStick 2 Product Features .........................................2

i2cStick 2 Package Contents ........................................3

System Requirements .............................................4

2.Interconnects ....................................................4

USB Connector ..................................................4

Virtual Communications Port (VCP) ...............................4

C Mini Interface Connector .......................................5

3.Hardware Configuration ...........................................6

Circuit Sense™ ..................................................6

Power Source Mode ............................................6

Voltage Sense Mode ............................................7

C Bus Pull-up Resistors ..........................................7

Connecting to an SMBus Target System...............................7

4. ESD (Electrostatic Discharge) Precautions .............................8

Host Computer Grounding .........................................8

Grounding Solutions ..............................................8

5.Driver Software Set-Up............................................9

Driver Install (Windows) ...........................................9

Driver Update (Windows) .........................................10

Driver Uninstall (Windows) .......................................10

6.Hardware Set-Up................................................10

USB Connection ................................................10

C Bus Connection ..............................................11

7. Software Support ................................................11

C Bus Communication Utilities ...................................11

iPort Utility Pack for Windows ...................................11

iPort Message Center ........................................11

iPort Message Manager ......................................12

iBurner I

C Bus Software Development Tools................................12

C Bus EEPROM Programmer............................12

MS.NET Class Library .........................................12

LabVIEW VI Library ..........................................12

ASCII Command Interface ......................................12

i2cStick 2 Revision Report...........................................14

Additional Information..............................................14

Appendix A - I

C Connector Information ...............................15

FCC Compliance Statement..........................................16

CE Declaration of Conformity ........................................16

1 Overview

The i2cStick 2 USB to I

C Bus host adapter with Circuit Sense allows any

Windows, Linux, or Mac OS X host computer to become an I

Slave device, transmitting or receiving I

more I

C devices across an I2C Bus. Circuit Sense, our I2C Bus voltage sensing

C messages between the PC and one or

C Bus Master or

technology, allows the i2cStick 2 to work with the latest I as low as 0.5 volts.

C Bus devices at voltages

The i2cStick 2 uses a Virtual Communications Port (VCP) interface to communicate with a host computer via USB. A virtual serial port is created on the host computer when the driver is installed. Drivers are available for several operating systems, and can be installed stand-alone, or while installing the iPort Utility Pack.

i2cStick 2 Product Features

• OS Support: Windows, Linux, Mac OS X

• High Performance Processor Increases Throughput (2x to 200x).

• USB Bus Powered with USB 2.0 Type A Plug.

• Built-in ESD, Over-voltage, and Reverse-voltage Protection.

• Switch Controlled Properties:

C Bus Power Source (3.3v or 5v @100ma).

•I

C Bus Voltage Sense (0.5v to 5v, Enable or Disable).

•I

C Bus Pull-Ups (1.8K ohm, Enable or Disable).

•I

• Software Controlled Properties:

C Bus Master Clock Rates: 23KHz, 86KHz, 100KHz Std, 400KHz Fast

•I

C Bus General Call Enable

•I

C Bus Time-Out (0-32K ms)

•I

• Host Communication Flow Control (XON/XOFF or RTS/CTS)

• User Interface Echo/Prompt Enable

• User Data Format (HEX or ASCII/HEX)

• Supported I

C Bus Activities:

• Master and Slave Functions

• Transmit, Receive, and Tx/Rx Data Functions

• Multi-Master Arbitration Loss Detection

• Clock-stretch Detection

• Bus Time-Out Detection

• 7-bit Slave Address Generation and Detection

• Up to 32K data bytes in a single message

• SMBus Packet Error Detection

• eXtended Commands for 2-Wire, "I

C-Like" Low-level SCL/SDA Signal

Control

• Software Support:

• Virtual ComPort Drivers (Windows, Linux, Mac OS X)

• Free Application Software (Master, Slave, EEPROM Programming)

• Software Development Tools (MS.NET, LabVIEW, and ASCII Commands)

• Compatible with existing iPort/AI, iPort/AFM, iPort/USB, iPort/LAN, i2cStick, iPort/USB 2, iPort/AFM 2, and iPort/LAN 2 applications.

• USB-IF (Full-Speed) and MS WHQL Certified.

• US-FCC and EUR-CE EMC Compliant.

• RoHS/Lead-Free Compliant.

i2cStick 2 Package Contents

The i2cStick 2 package includes the following items:

• i2cStick 2, USB to I

C Bus Host Adapter.

• i2cStick 2 Mini Clip-lead Cable.

• i2cStick 2 Quick Start Guide.

• i2cStick 2 Travel Case.

• Online Items*

• i2cStick 2 Datasheet

• i2cStick 2 User’s Guide (this document)

• i2cStick 2 Virtual ComPort Drivers

• iPort Utility Pack Software

• Application Software.

• Software Development Tools

(* www.mcc-us.com/i2cStick-2)

The i2cStick 2 is also available in 5 and 10 packs excluding the Mini Clip-lead Cable and Travel Case.

OEM and customization is available. Contact sales@mcc-us.com requirements.

with your

System Requirements

a. A host computer with one free USB port or self-powered USB hub. b. Windows XP (x86), Vista (x86/x64), 7 (x86/x64), 8, 10.

• Windows XP+

• Linux 2.6+

• Mac OSX 10.5+

2. Interconnects

The i2cStick 2 includes two interconnections:

USB Connector

The USB Type A connector provides connection from the I

C adapter to a USB port

on the host computer or self-powered USB hub.

The i2cStick 2 operates as a high-power (>100 mA) bus-powered USB device, with

up to 100 mA of (user optional) switch-selectable 3.3v or 5v for I

C Bus target

system power.

Virtual Communications Port (VCP)

The i2cStick 2 uses a Virtual Communications Port (VCP) interface to communicate with a host computer via USB. A virtual serial port is created on the host computer when the driver is installed. Drivers are available for several operating systems, and can be installed separately, or while installing the iPort Utility Pack.

The drivers and installation instructions are available online at the following web address:

www.mcc-us.com/i2cStick-2

After the driver software is installed, plug the i2cStick 2 into a host computer USB port, or self-powered USB hub. Upon detecting the device, the operating system will automatically load the driver and create a new “virtual” serial port for communicating with the i2cStick 2. Once installed, application programs running on the host computer can communicate with the i2cStick 2 via the operating system serial port Application Program Interface (API).

The i2cStick 2 uses the following VCP serial port signals:

• TX - Transmit Data from the Host Computer to the i2cStick 2.

• RX - Receive Data from the i2cStick 2 to the Host Computer.

• RTS - Request to Send from the Host Computer to i2cStick 2.

• CTS - Clear to Send from the i2cStick 2 to the Host Computer.

Serial communications flow-control options include X-ON/X-OFF (default) or RTS/CTS. The flow-control method used by a host computer application should match the flow-control method selected for use by the i2cStick 2 host adapter.

C Mini Interface Connector

The i2cStick 2 includes a five wire (1x5) 2.54 mm (.100"), positive locking,

shrouded header connector (see Appendix A) for interfacing to an external I

C Bus.

Interface lines provided include:

C Clock (SCL)

•I

C Data (SDA)

•I

• Shield (optional)

• Ground

• +V (optional)

Minimum wiring for I

C Bus communications include I2C Bus Clock, Data, and Ground. Use of the +V and Shield wires in the I optional.

NOTE: See the Hardware Configuration section below for additional information

C Interface connector are user

on configuring the I2C Bus interface.

I2C Bus Mini Interface Receptacle

C Bus Mini-Clip-Lead cables are available to connect the i2cStick 2 adapter to a

Mini Interface Receptacle Pinout

target system. Each clip-lead is identified (White=C=SCL, Red=V=+V, Green=D=SDA, Black=G=Ground).

C Bus Mini-Interface cables with two Mini Interface plugs are also available to

connect the I

C adapter to an external I2C Bus.

3. Hardware Configuration

Circuit Sense

™

The i2cStick 2 includes MCC’s Circuit Sense technology. Circuit Sense allows the

C interface +V wire to operate in two modes, Power Source Mode and Voltage

I Sense Mode. Mode selection is controlled by the MODE slide switch on the side of the unit enclosure.

• Power Source Mode - The +V wire can supply power (3.3v or 5v @ 100 mA)

Vcc to an external I

C Bus system. Voltage selection is controlled by the SOURCE slide switch on the side of the unit enclosure. In Power Source Mode, the voltage of the i2cStick 2 SCL and SDA internal pull-ups, if enabled, and Voltage Sense circuit (0.3Vcc Low SOURCE switch. (Use of the +V wire in Power Source Mode is user optional).

Power Source Mode is similar to the standard mode of operation on earlier

versions of MCC I

C Bus host adapters.

, 0.7Vcc High

MAX

) is selected by the

MIN

• Voltage Sense Mode - The +V wire must be connected to the external I2C Bus

pull-up supply reference voltage (0.5v to 5v) Vcc. In this mode, the i2cStick 2 SCL and SDA voltage sense circuits automatically adjust to match (0.3Vcc Low

, 0.7Vcc High

MAX

) the external reference voltage. In Voltage Sense Mode,

MIN

the voltage of the i2cStick 2 SCL and SDA internal pull-ups, if enabled, is supplied by the external voltage (Vcc) applied to the +V wire. (Use of the +V wire in Voltage Sense Mode is required).

C Bus Pull-up Resistors

C Bus systems are based on open-collector technology requiring pull-up devices

I on each signal wire (SCL and SDA). These pull-up devices usually take the form of pull-up resistors connected to bus power.

The i2cStick 2 adapter includes a PULL-UPS slide switch used to enable or disable

internal 1.8K ohm pull-up resistors attached to the SCL and SDA lines. Every I

Bus system must have at least one pull-up on the signal lines. In some cases, the

pull-ups may be present in the external I

C Bus circuit. Use this switch to configure

the pull-up resistors for your system.

See the Power Source Mode and Voltage Sense Mode sections for applied pull-up voltage.

Connecting to an SMBus Target System

If you are connecting the I

C adapter to a SMBus target system, you should follow

these steps BEFORE applying power:

• Shut off the I

C adapter’s internal pull-ups (See Pull-up Resistor section).

• Use external SMBus rated (appoximately15k ohms) pull-up resistors. These pull-ups may already be present in the target system.

• Visit our I

C versus SMBus FAQ page (www.mcc-us.com/I2CSMBusFAQ.htm).

• See the SMBus Specification for additional details.

Special Note for SMBus Users: MCC’s I compatible, not SMBus compatible. Some features of the SMBus protocol not supported include time-outs, device reset, and Packet Error Check byte processing. The non-supported SMBus features may, or may not, permit the use of the I

C adapters are designed to be I2C Bus

adapter in your SMBus application. Consult the MCC FAQ web page and SMBus Specification for details.

4. ESD (Electrostatic Discharge) Precautions

Electrostatic discharge is defined as the transfer of charge between bodies at different electrical potentials. Electrostatic discharge can change the electrical characteristics of a semiconductor device, degrading or destroying it. Electrostatic discharge also may upset the normal operation of an electronic system, causing equipment malfunction or failure.

When connecting the I

C adapter to a host computer and a target system, extreme

care must be taken to avoid electrostatic discharge. Failure to follow ESD protection

procedures when using the I

C adapter could damage the host computer, I2C

adapter, or the target system, and void product warranty coverage.

Host Computer Grounding

Case 1 - Desktop and Single-board Computers. The chassis on a desktop or single-board host computer must be connected to earth ground to comply with safety regulations. If the computer chassis is NOT connected to earth ground for some reason (i.e., use of a two-prong power mains plug), the host computer power supply ground will float to some unknown voltage potential.

Case 2 - Laptop Computers. Laptop computers present special ESD problems. Most laptop computers use an external double-insulated mains power supply which is NOT connected to the mains earth ground. This means that the laptop chassis is floating at some unknown voltage potential.

In either case, upon connection to the I computer will discharge energy through its serial port to the I the target system. This discharge could damage the host computer, I

C adapter and the target system, the host

C adapter, and on to

C adapter, and

the target system.

Grounding Solutions

To avoid damage to the host computer, I instructions:

• Wear an earth grounded wrist strap, or discharge any static charge build-up,

C adapter, or target system, follow these

when handling the I2C adapter or any target system devices.

• Ensure that both the host computer and target system are connected to a common earth ground point.

• Make sure that all interconnections are made BEFORE applying power to the

host computer, I

C adapter, and target system.

• If you are using a laptop computer or host computer that is NOT connected to mains earth ground, make a hard-wired connection from the host computer (i.e., port connector shell) and the target system ground connector to a common earth ground point.

• Avoid plugging and unplugging system components while the host computer or target system is powered.

• Ensure that any devices connected to the target system are properly grounded to the common earth ground point.

• If unsure how to properly ground system components, seek electrical expert help.

WARNING: Any damage caused by Electrostatic Discharge (ESD) through inadequate earth grounding is NOT covered under the warranty of this product.

5. Driver Software Set-Up

The i2cStick 2 uses a Virtual Communications Port (VCP) interface to communicate with a host computer via USB. A virtual serial port is created on the host computer when the driver is installed, and the i2cStick 2 is plugged in. Drivers are available for several operating systems, and can be installed separately, or while installing the iPort Utility Pack.

The stand-alone driver and iPort Utility Pack are available at the following link:

www.mcc-us.com/i2cStick-2

This section provides information on how to install, update, and uninstall the i2cStick 2 software driver on a Windows-based host computer.

Driver Install (Windows)

Download, extract, and install the stand-alone VCP driver or iPort Utility Pack using the i2cStick 2 resource link above. Pre-installation (before plug-in) places the VCP driver into the Windows Driver Store, ready for installation when the i2cStick 2 is first plugged into the host computer.

After plug-in, you can find the ComPort number assigned to the i2cStick 2 by running the iPort Utility Pack Message Center or Message Manager software, and selecting the i2cStick 2 device, use Windows Device Manager (Start | Settings | Control Panel | System | Device Manager | Ports (COM & LPT)), or use the OS X or Linux ls /dev command to find the communications port address assigned to the i2cStick 2.

Driver Update (Windows)

i2cStick 2 VCP drivers are posted on the MCC website (www.mccus.com/i2cStick-2). Use Windows Device Manager (Start | Settings | Control Panel | System | Device Manager | Ports (COM & LPT)) to see the current version of the i2cStick 2 driver installed on your computer, and determine if newer driver is available. If a newer VCP driver is available, follow website instructions to download and install a driver update on your computer.

Driver Uninstall (Windows)

6. Hardware Set-Up

This section provides information on connecting the i2cStick 2 to your host

computer and I

C Bus target system.

USB Connection

After completing the Driver Installation instructions above, plug the i2cStick 2 adapter into a free USB port on your host computer or self-powered USB hub. If this is the first time the i2cStick 2 is connected to the host computer, the operating system will automatically install the VCP driver and assign the i2cStick 2 a communications port address (COMn, /dev).

use the OS X or Linux ls /dev command to find the communications port address assigned to the i2cStick 2.

C Bus Connection

Connect the I

C Bus cable to the I2C adapter and your I2C device. You can make this connection with the I Cable.

The I

C Bus interconnect includes 5 wires, Clock (SCL), Data (SDA), Ground (GND), Shield (SHD), and +V. The minimum connection for I communication is Clock, Data, and Ground. You may not need to, or want to, connect the additional wires to your target system. Refer to the “Hardware Configuration” sections for details.

If you have any questions on I

C Mini Clip-Lead cable or I2C Mini Interface

C Bus

C adapter setup and configuration, please visit our FAQ page (http://www.mcc-us.com/faq.htm), or contact our technical support team (support@mcc-us.com).

7. Software Support

MCC offers the following categories of I

C Bus Communication Utilities

C Bus software support:

iPort Utility Pack for Windows

The iPort Utility Pack for Windows provides a quick-start to I

C Bus

communications. The Utility Pack includes two Windows-based application

that will help you get started sending and receiving I

C Bus messages quickly

and easily.

iPort Message Center

iPort Message Center is a bus master application with a spreadsheet-like user interface. Each row in the spreadsheet represents a single I message. A message can transmit data to a specified slave device, or read data from a specified slave device. Received data is automatically displayed in the spreadsheet.

C Bus

Message options include repeated-start, and a time delay after each message. One or more messages in the spreadsheet are transmitted in sequence, and can auto-repeat at the completion of the last message.

iPort Message Manager

iPort Message Manager is a bus master/slave application that can master

transmit, master receive, slave transmit, and slave receive I

C Bus messages. Message options include master transmit and transmit/receive, and auto-repeat

iBurner I

iBurner is our I

C Bus EEPROM Programmer

C Bus EEPROM Programmer software package for Windows.

With iBurner, you can quickly and easily blank-check, program, read, and

verify a wide variety of I

C Bus EEPROMs. iBurner also supports scripting,

allowing EEPROM programing serialization and automation.

C Bus Software Development Tools

MCC provides three methods for creating custom application software for ASCII Interface I

C Bus Adapters:

MS.NET Class Library

The MS.NET Class Library provides a comprehensive set of tools for the

creation of robust I

C Bus applications. Included are Constructors, Methods, Properties, Events, Enumerations, and SampleCode for Visual Basic.NET, Visual C#, Visual C++, Visual J#, and LabVIEW.

LabVIEW VI Library

The LabVIEW VI Library provides a complete set of low-level, mid-level, and high-level Virtual Instruments (Vis) for the LabVIEW developer. Included are VIs for establishing a connection to the Adapter, performing I Bus Master and Slave operations, and Sample LabVIEW applications.

ASCII Command Interface

The ASCII Command Interface provides a direct low-level ASCII command

application program interface to the I2C Bus Adapter. ASCII commands can be accessed from a terminal emulation program running on the host computer, or from an application program using host computer operating system serial port functions.

i2cStick 2 software support and more is available at:

www.mcc-us.com/i2cStick-2

i2cStick 2 Revision Report

This section defines revisions and changes made to the i2cStick 2 interface:

Revision: 1.00

1. Initial Release

Additional Information

For additional information on the I

“What is I

C?”

C Bus, please refer to the following:

www.mcc-us.com/I2CBusTechnicalOverview.pdf

“Frequently Asked Questions (FAQ)” www.mcc-us.com/faq.htm

"The I

C and How to Use It"

www.mcc-us.com/i2chowto.htm

Appendix A - I2C Connector Information

C Bus Interface Connector and Plug Information

The i2cStic 2k uses the following 1x5 2.54 mm (.100") pitch, 0.64 mm (.025")

square pin, header and plug assemblies for the I

C Header

C Bus interface.

Molex C-Grid® SL™ 70553 Header

Molex Part # 70553-0004

C Plug Housing

Molex C-Grid® SL™ 70066 Crimp Housing

Molex C-Grid® SL™ 70058 Crimp Terminal

The following I

MCC Part # I2CMIC I MCC Part # I2CMCL I MCC Part # I2CMCAB I

C Cables are available from MCC

C Mini Interface Cable 0.6 m (2')

C Mini Clip Lead Cable 0.3 m (1')

C Mini CAB Cable 0.6 m (2')

Molex Part # 50-57-9405

Molex Part # 16-02-0102

Compliance Information

FCC Compliance Statement

Supplier’s Declaration of Conformity

We, Micro Computer Control Corporation, of 83 Princeton Avenue #1D / PO Box 275, Hopewell, New Jersey 08525 USA, declare under our sole responsibility that the product:

i2cStick 2 (#MIIC-209)

to which this declaration relates:

Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE Declaration of Conformity

We, Micro Computer Control Corporation, of 83 Princeton Avenue #1D / PO Box 275, Hopewell, New Jersey 08525 USA, declare under our sole responsibility that the i2cStick 2 (#MIIC-209), to which this declaration relates, is in conformity with General Emissions Standard EN55032 (CISPR 32:2015) Class A, and General Immunity Standard EN 55035:2017.

Test Laboratory Information:

CASS Industries Ltd.. Test Report Number: CI07805 Test Report Date: September 5, 2018 Technical file held by: Micro Computer Control Corporation, 83 Princeton Avenue #1D / PO Box 275, Hopewell, New Jersey 08525 USA, or its applicable authorized distributor or representative.

www.mcc-us.com

MCC i2cStick 2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
