McAfee ATD-3000, ATD-6000, ATD-3100, ATD-6100 User Manual

McAfee Advanced Threat Defense 4.6.0 Hardware

Setting up the Advanced Threat Defense Appliance

Prepare the Advanced Threat Defense Appliance for installation and integration in the network.

Advanced Threat Defense Appliances

Depending on the model, the Advanced Threat Defense Appliance is a 1-U or 2-U rack dense chassis with Intel Xeon® E5-2600 product family processor.

The Advanced Threat Defense Appliance runs on a pre-installed, hardened Linux kernel 3.6.0 and comes preloaded with the Advanced Threat Defense software.

Guide

The Advanced Threat Defense Appliance is available in the following models:

• ATD-3000 — Standard model is a 1U chassis

• ATD-6000 — High-end model is a 2U chassis

• ATD-3100 — Standard model is a 1U chassis

• ATD-6100 — High-end model is a 1U chassis

The Advanced Threat Defense Appliances are purpose-built, scalable, and exible high-performance servers designed to analyze suspicious les for malware.

The following are the primary functions of the Advanced Threat Defense Appliance:

• Host the Advanced Threat Defense software that analyzes les for malware.

• Host the Advanced Threat Defense web interface.

• Host the virtual machines used for dynamic analysis of suspicious les.

For the performance values related to the appliances, contact Support.

Functions of a Advanced Threat Defense Appliance

The Advanced Threat Defense Appliances are purpose-built, scalable, and exible high-performance servers designed to analyze suspicious les for malware.

The following are the primary functions of the Advanced Threat Defense Appliance:

• Host the Advanced Threat Defense software that analyzes les for malware.

• Host the Advanced Threat Defense web application.

• Host the virtual machines used for dynamic analysis of suspicious les.

For the performance values related to Advanced Threat Defense Appliances, contact McAfee support.

Before you install the Advanced Threat Defense Appliance

This section describes the tasks that you must complete before you begin to install a Advanced Threat Defense.

• Read all the provided documentation before installation.

• Make sure that you have selected a suitable location for installing the Advanced Threat Defense Appliance.

• Check that you have all the necessary equipment and components outlined in this document.

• Familiarize yourself with the McAfee Advanced Threat Defense Appliance network access card ports and connectors as described in this document.

• Make sure you have the following information available when you congure the Advanced Threat Defense Appliance:

• IPv4 address that you want to assign to the Appliance.

• Network mask.

• Default gateway address.

Warnings and cautions

Read and follow these safety warnings when you install the Advanced Threat Defense Appliance. Failure to observe these safety warnings could result in serious physical injury.

Advanced Threat Defense Appliance power on/o — the push-button on/o power switch on the front panel of the Advanced Threat Defense Appliance does not turn o the AC power. To remove AC power from the Advanced Threat Defense Appliance, you must unplug the AC power cord from either the power supply or wall outlet for both the power supplies. If you press the push-button on/o power switch on the front panel of the Advanced Threat Defense Appliance while the appliance is running, it reboots. If you want to power o the appliance, use CLI command — shutdown, after the system halts press the power button until the appliance powers o.

The power supplies in your system might produce high voltages and energy hazards, which can cause bodily harm. Only trained service technicians are authorized to remove the covers and access any of the components inside the system.

Hazardous conditions — devices and cables: Hazardous electrical conditions might be present on power, telephone, and communication cables. Turn o the Advanced Threat Defense Appliance and disconnect telecommunications systems, networks, modems, and both the power cords attached to the Advanced Threat Defense Appliance before opening it. Otherwise, personal injury or equipment damage can result.

Avoid injury — lifting the Advanced Threat Defense Appliance and attaching it to the rack is a two-person job.

This equipment is intended to be grounded. Ensure that the host is connected to earth ground during normal use.

Do not remove the outer shell of the Advanced Threat Defense Appliance. Doing so invalidates your warranty.

Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Blank faceplates and cover panels prevent exposure to hazardous voltages and currents inside the chassis, contain electromagnetic interference (EMI) that might disrupt other equipment and direct the ow of cooling air through the chassis.

To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables.

Usage restrictions

The following restrictions apply to the use and operation of Advanced Threat Defense Appliance:

• You should not remove the outer shell of the Advanced Threat Defense Appliance. Doing so invalidates your warranty.

• The Advanced Threat Defense Appliance is not a general purpose server.

• McAfee prohibits the use of Advanced Threat Defense Appliance for anything other than operating the Advanced Threat Defense solution.

• McAfee prohibits the

modication or installation of any hardware or software on the Advanced Threat

Defense Appliance that is not part of the normal operation of Advanced Threat Defense.

Unpack the shipment

Open the crate.

Remove the

Verify you have received all parts as listed in Check your shipment on page 4.

rst accessory box.

Remove the Advanced Threat Defense Appliance.

Place the Advanced Threat Defense Appliance as close to the installation site as possible.

Position the box with the text upright.

Open the top aps of the box.

Remove the accessory box within the Advanced Threat Defense Appliance box.

Remove the slide rail kit.

Pull out the packing material surrounding the Advanced Threat Defense Appliance.

Remove the Advanced Threat Defense Appliance from the anti-static bag.

Save the box and packing materials for later use in case you need to move or ship the Advanced Threat Defense Appliance.

Check your shipment

Each product ships with all the items needed to install the appliance on a network.

To verify that you received all the necessary items, verify that you have received the following:

• Advanced Threat Defense Appliance

• Accessories itemized on the Content Sheet

• Set of tool-less slide rails

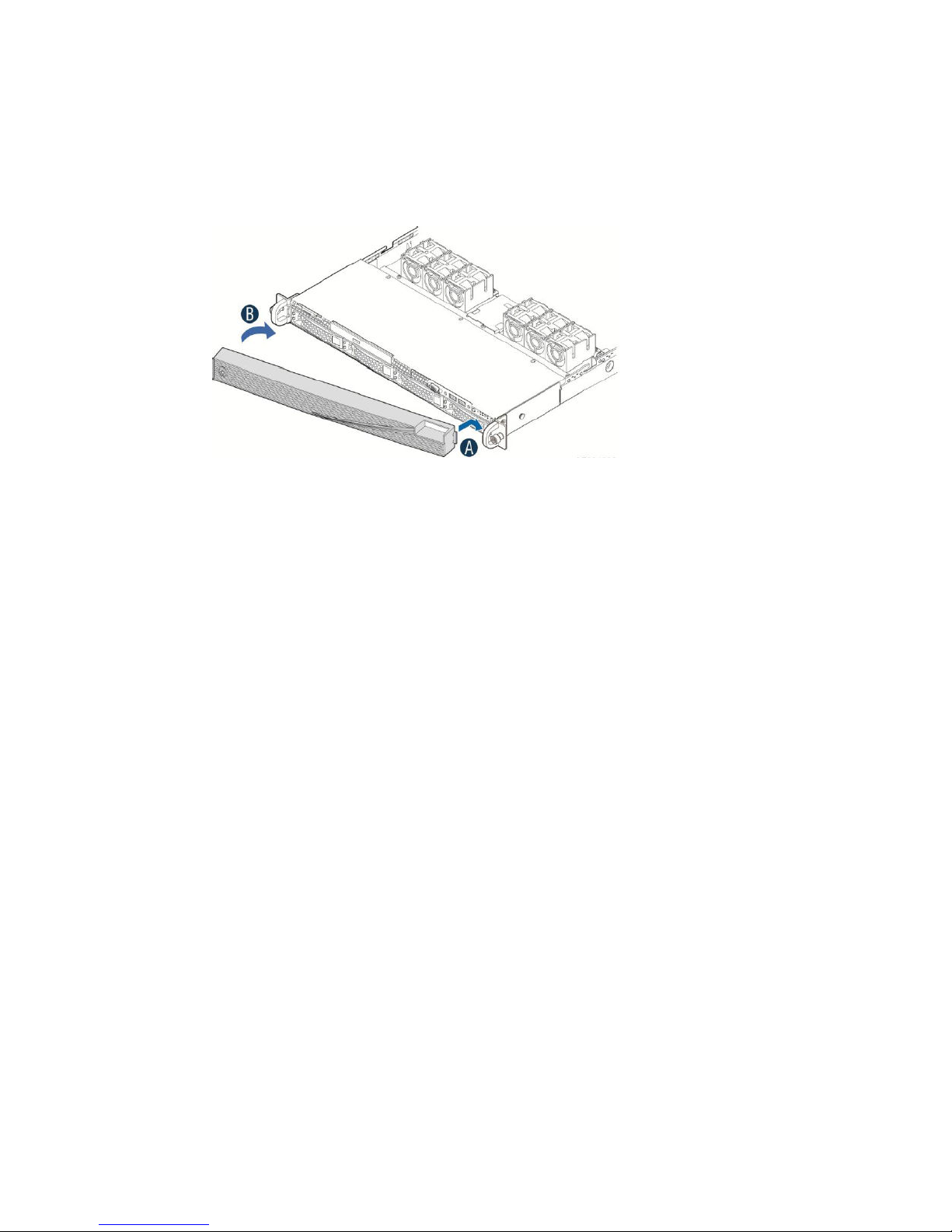

• Front bezel with key

McAfee Advanced Threat Defense Appliance front and back panels

Figure 1 ATD-3000 and ATD-6000 front panel

Label Description

1 System ID button with integrated indicator light

2 NMI button (recessed, tool required for use)

3 NIC 1 activity indicator light

• ATD-3000: NIC 3 activity indicator light

• ATD-6000: Not used

5 System cold reset button

6 System status indicator light

7 Power button with integrated indicator light

8 Hard drive activity indicator light

Label Description

• ATD-3000: NIC 4 activity indicator light

• ATD-6000: Not used

10 NIC 2 activity indicator light

Figure 2 ATD-3000 Appliance back panel

Label Description

1 Power supply module 1

2 Power supply module 2

3 Management port (NIC 1). This is the eth-0 interface. The set appliance and set mgmtport

commands apply to this interface. For example, when you use the set appliance ip command, the corresponding IP address is assigned to this interface.

4 NIC 2. This is the eth-1 interface. This interface is disabled by default.

• To enable or disable this interface, use the set intfport command. For example, set intfport

1 enable

• To assign the IP details to this interface use set intfport <eth 1, 2, or 3> ip <IPv4

address> <subnet mask>

For example, set intfport 1 ip 10.10.10.10 255.255.255.0

• You cannot assign the default gateway to this port. However, you can

congure a route on this

interface to route the trac to the desired gateway. To congure a route, use route add network

<IPv4 subnet> netmask <netmask> gateway <IPv4 address> intfport 1

For example, route add network 10.10.10.0 netmask 255.255.255.0 gateway

10.10.10.1 intfport 1. This command routes all

trac from the 10.10.10.0 command to

10.10.10.1 through NIC 2 (eth-1).

5 NIC 3. This is the eth-2 interface. The note described for NIC 2 applies to this interface as well.

6 NIC 4. This is the eth-3 interface. The note described for NIC 2 applies to this interface as well.

7 Video connector

8 RJ45 serial-A port

9 USB ports

10 RMM4 NIC port

Label Description

11 I/O module ports/connectors (not used)

12 Add-in adapter slots from riser card 1 and riser card 2

Figure 3 ATD-6000 Appliance back panel

Label Description

1 USB ports

2 USB ports

3 Management port. This is the eth-0 interface. The set appliance and set mgmtport commands

apply to this interface. For example, when you use the set appliance ip command, the corresponding IP address is assigned to this interface.

4 Additional I/O module ports/connectors. These are the eth-1, eth-2, and eth-3 interfaces respectively.

These interfaces are disabled by default.

• To enable or disable an interface, use the set intfport command. For example, set intfport 1 enable to enable eth-1.

• To assign the IP details to an interface use set intfport <eth 1, 2, or 3> ip <IPv4

address> <subnet mask>

For example, set intfport 1 ip 10.10.10.10 255.255.255.0

• You cannot assign the default gateway to this port. However, you can interface to route the trac to the desired gateway. To congure a route, use route add network

<IPv4 subnet> netmask <netmask> gateway <IPv4 address> intfport 1

For example, route add network 10.10.10.0 netmask 255.255.255.0 gateway

10.10.10.1 intfport 1. This command routes all

10.10.10.1 through eth-1.

5 Video connector

6 NIC 1 (currently not used)

7 NIC 2 (currently not used)

8 RJ45 serial-A port

9 I/O module ports/connectors (not used)

10 Add-in adapter slots from riser card

11 RMM4 NIC port

12 Power supply module 2

congure a route on this

trac from the 10.10.10.0 command to

Label Description

13 Power supply module 1

14 Add-in adapter slots from riser card

Figure 4 ATD-3100 and ATD-6100 front panel

Table 1 The following table will be updated as soon as the front panel image arrives.

Label Description

A System ID button with integrated indicator light

B NMI button (recessed, tool required for use)

C NIC 1 activity indicator light

D System status indicator light

E Power button with integrated indicator light

F Hard drive activity indicator light

G System cold reset button

H NIC 2 activity indicator light

Figure 5 ATD-3100 and ATD-6100 Appliance back panel

Label Interface port

A Power connector A

B Power connector B

C Ethernet interface 2 (intf2)

D Ethernet interface 3 (intf3)

E VGA connector

F Serial console interface

G USB 3.0 ports

H BMC port (RMM)

I Ethernet interface 0 (ATD Management Interface)

J Ethernet interface 1 (intf1)

If an item is missing or damaged, contact your supplier.

Hardware specications

Before you set up the Advanced Threat Defense Appliance, review the hardware specications.

Specication ATD-3100 ATD-6100 ATD-3000 ATD-6000

Packaging Dimension

Chassis Intel R1208WTTGSR

Chassis Dimension

Weight 22.7 Kg (50 lbs) 22.7 Kg (50 lbs) 15 Kg (33 lbs) 22.7 Kg (50 lbs.)

Form Factor 1U rack mountable;

Motherboard S2600WTT S2600WTT S2600GZ4 S4600LH2

CPU 2 x E5-2609v4, 1.7GHz,

Storage

Length = 38", Width = 24", Height = 7"

(Wildcat Pass)

Length = 28", Width =

17.3", Height = 1.7"

ts 19-inch rack

20M cache, 8 Cores

• Disk space HDD: 4 x

1.2TB, SAS, 12GB/s, 10K RPM, 2.5", Raid-5

Length = 38", Width = 24", Height = 7"

Intel R1208WTTGSR (Wildcat Pass)

Length = 28", Width =

17.3", Height = 1.7"

1U rack mountable; ts 19-inch rack

2 x E5-2695v4, 2.1GHz, 45M cache, 18 Cores

• Disk space HDD: 6 x

1.2TB, SAS, 12GB/s, 10K RPM, 2.5", Raid-5

Length = 38", Width = 24", Height = 7"

R1304GZ4GC R2304LH2HKC

Length = 29", Width = 17.25", Height =

1.7"

1U rack mountable; ts 19-inch rack

2 x E5-2658,

2.10GHz, 20M Cache, 8 Cores

• Disk space HDD: 2 x 4TB

• SSD: 2 x 400 GB

Length = 36", Width = 24", Height = 7"

Length = 29", Width =

17.25", Height =

3.43"

2U rack mountable; ts 19-inch rack

4 x E5-4640,

2.40GHz, 20M Cache, 8 Cores

• Disk space HDD: 4 x 4TB

• SSD: 2 x 800 GB

• SSD: 2 x Intel Enterprise grade 400GB, 2.5", Raid-0

Memory 16 x 16 GB DDR4

2400MHz ECC

Remote Management

RMM4LITE2 RMM4LITE2 RMM4R RMM4

• SSD: 2 x Intel Enterprise grade 800 GB, 2.5", Raid-0

16 x 32 GB DDR4 2400MHz ECC

192 GB 256 GB

Specication ATD-3100 ATD-6100 ATD-3000 ATD-6000

Power Supply 750 W redundant 750 W redundant 2x 750W, AC

redundant, hot swappable

Network Interfaces (Copper)

Dual Integrated 10 GB/1 GB/100 MB and Dual 10 GB/1 GB/100 MB Module

2x 1600W, AC redundant, hot swappable

Dual Integrated 10 GB/1 GB/100 MB and Dual 10 GB/1 GB/100 MB Module

Default ports used in Advanced Threat Defense communication

The Advanced Threat Defense Appliance uses many ports for network communications.

Client Server Default

port

Any (desktop) Advanced Threat Defense TCP 443

(HTTPS)

Any (desktop) Advanced Threat Defense TCP 6080

(HTTPS)

Any (FTP client)

Any (SFTP client)

Sensor Advanced Threat Defense TCP 8505 No Communication channel

Manager Advanced Threat Defense TCP 443

Advanced Threat Defense

Any (SSH client)

Advanced Threat Defense TCP 21 (FTP) No Access the FTP servers on

Advanced Threat Defense TCP 22

(SFTP)

(HTTPS)

McAfee ePO TCP 8443 Yes Host information queries.

tunnel.web.trustedsource.org

List.smartfilter.com

Advanced Threat Defense TCP 2222

TCP 443 (HTTPS)

TCP 80 (HTTP)

(SSH)

Congurable Description

No Access the Advanced

Threat Defense web interface.

No For VM activation process

and X-mode.

Advanced Threat Defense.

No Access the SFTP servers

on Advanced Threat Defense.

between a Sensor and Advanced Threat Defense.

No Communication between

the Manager and Advanced Threat Defense through the RESTful APIs.

No File Reputation queries.

No URL updates.

No CLI access.

Client Server Default

port

Advanced Threat Defense (DAT updates)

wpm.webwasher.com

wpm1‑2.webwasher.com

wpm1‑3.webwasher.com

TCP 443 (HTTPS)

wpm1‑4.webwasher.com

wpm‑usa.webwasher.com

wpm‑usa1.webwasher.com

wpm‑usa2.webwasher.com

wpm‑asia.webwasher.com

tau.mcafee.com

tau1‑2.mcafee.com

tau1‑3.mcafee.com

tau1‑4.mcafee.com

tau‑usa.mcafee.com

tau‑usa1.mcafee.com

tau‑usa2.mcafee.com

tau‑manual.mcafee.com

tau‑ldv1.securelabs .webwasher.com

tau‑ldv2.securelabs .webwasher.com

tau‑ldv3.securelabs .webwasher.com

tau‑europe.mcafee.com

tau‑dnv1.securelabs .webwasher.com

tau‑dnv2.securelabs .webwasher.com

tau‑dnv3.securelabs .webwasher.com

tau‑asia.mcafee.com

rpns.mcafee.com

mwg‑update.mcafee.com

Congurable Description

No Updates for McAfee

Gateway Anti-Malware Engine and McAfee Anti-Malware Engine.

Advanced

atdupdate.mcafee.com

Threat Defense (Software updates)

TCP 443 (HTTPS)

No Updates for the Advanced

Threat Defense software. The update includes new detection and application package.

Set up the hardware

Install and integrate the hardware in your network.

Install or remove rack handles

• To install a rack handle, align it with the two holes on the side of the Advanced Threat Defense Appliance and attach the rack handle to the Appliance with two screws as shown.

Figure 6 Installing the rack handle

• To remove a rack handle, remove the two screws holding the rack handle in place, and remove the rack handle from the server system as shown.

Figure 7 Removing the rack handle

Rack mount the appliance

To install the Advanced Threat Defense Appliance on the four-post 19-inch rack, use the rack-mounting kit. You can use the kit with most industry-standard rack cabinets.

Task

For each mounting rail, use the following steps.

At the front of the rack, position the right or left mounting rail on the corresponding side so that the

mounting bracket aligns with the rack holes.

Always load the rack from the bottom up. If you are installing multiple appliances, start with the lowest available position.

Figure 8 Slide rail installation

At the back of the rack, pull the back mounting-bracket (extending the mounting rail) so that it aligns with

the rack holes.

On each side of the rack, ensure that the mounting rails are the same level.

Figure 9 Install rail to rack

Clip the rail to the rack and secure it with the tie wraps.

Slide both rails so they are fully extended.

Figure 10 Full extend slide

With help from another person, lift the Advanced Threat Defense Appliance and install the chassis to the rail

on both the sides.

Drop in the rear spool rst, then the middle, then the front.

Figure 11 Install the Appliance to rail

At least two people are required to lift and attach the Advanced Threat Defense Appliance to the rack.

If required, attach the lockable bezel to protect the front panel.

Lift the release tab and push the Advanced Threat Defense Appliance into the rack.

Figure 12 Lift release tab and push Appliance into rack

To remove the Advanced Threat Defense Appliance from the rack, lift the release tab next to the chassis front spool, then lift it out of the rails.

Turn on the Advanced Threat Defense Appliance

The Advanced Threat Defense Appliance has redundant power supplies pre-installed.

The Advanced Threat Defense Appliance ships with two AC power cords

Task

Plug one end of the AC power cord into the rst power supply module in the back panel, then plug the other

end into the power source.

Plug one end of the other AC power cord into the second power supply module in the back panel, then plug

the other end into the power source.

Advanced Threat Defense powers up without pressing the on/o button on the front panel.

To turn o the Advanced Threat Defense Appliance AC power, you must unplug both AC power cords from the back panel or power source.

The on/o button on the front panel does not turn on/o the AC power.

To restart the Advanced Threat Defense Appliance, you must press the on/o power switch on the front panel while the appliance is turned on.

To turn o the Advanced Threat Defense Appliance, use the shutdown CLI command, then press the on/o power switch.

specic to your country or region.

Handling the front bezel

You can remove the front bezel if required, and then re-install it. However, before you install the bezel, you must install the rack handles.

Task

Remove the front bezel.

Unlock the bezel if it is locked.

Remove the left end of front bezel from rack handle.

Rotate the front bezel anticlockwise to release the latches on the right end from the rack handle.

Install the front bezel.

Lock the right end of the front bezel to the rack handle

Rotate the front bezel clockwise until the left end clicks into place

Lock the bezel if needed.

Enable RMM

Enable Intel RMM on your Advanced Threat Defense Appliance.

Task

Restart the Advanced Threat Defense Appliance.

2 During the reboot process, press F2.

3 On the BIOS Setup Utility page, select the Server Management tab.

4 Select BMC LAN Configuration.

5 Locate Intel (R) RMM4 LAN configuration and

a Highlight IP Source, press Enter, then select Static.

b Highlight IP Address, then enter the IP address.

c Highlight Subnet Mask, then enter the subnet mask address.

d Highlight Gateway IP, then enter the gateway IP address.

6 Locate User configuration and

a Highlight User status, press Enter, then select Enabled.

b Highlight User password, press Enter, then enter the root account password.

c Press Enter,

7 Press F10, then press Enter.

Log on to the RMM interface.

conrm the password, then press Enter again.

congure the settings.

Connect the management port

When you connect your network device to the Advanced Threat Defense Appliance, you can appliance IP address and other parameters for integration in your network.

Task

On the rear panel, plug the Category 5e or 6 Ethernet cable in the Ethernet port 1

The Ethernet port 1 is the ATD Management port.

Plug the other end of the cable into the network device.

congure the

Congure the Advanced Threat Defense Appliance network information

Manage the Advanced Threat Defense Appliance from a remote computer or terminal server.

Task

On the Advanced Threat Defense Appliance back panel, plug the console cable (RJ45 to DB9 serial) into the

console port (RJ45 serial-A port).

Locate the computer or port of the terminal server you are using to

Appliance, then connect the other end of the cable into the COM port.

From your Microsoft Windows-based computer, run the HyperTerminal using the following settings.

• Baud rate — 9600

• Number of Bits — 8

• Parity — None

• Stop Bits — 1

• Control Flow — None

To log on to the Advanced Threat Defense Appliance, use the following credentials.

• User name — cliadmin

• Password — atdadmin

To access all the built-in command syntax instructions, enter help or ?. For a list of all commands, enter list.

Open the command prompt and

Enter the Advanced Threat Defense Appliance name.

For example, set appliance name matd_appliance_1.

Best Practice: Use an alphanumeric character string up to 25 characters. The string must begin with a letter and can include hyphens, underscores, and periods, but not spaces.

congure the Advanced Threat Defense Appliance.

congure the Advanced Threat Defense

Enter the Advanced Threat Defense Appliance management port IP address and subnet mask.

For example, set appliance ip 10.34.2.8 255.255.255.0.

Do not assign this class C network IP address: 192.168.55.0/24.

Enter the default gateway IP address.

For example, set appliance gateway 12.34.2.1.

Restart the Advanced Threat Defense Appliance.

Enter the management port speed and duplex settings using one of the following commands:

• set mgmtport auto — Sets the management port in auto mode for speed and duplex.

• set mgmtport speed (10|100) duplex (full|half) — Sets the speed to 10 or 100 Mbps at full or half duplex.

To change the Advanced Threat Defense Appliance password, enter passwd.

Passwords are case sensitive, must not include spaces, and must contain the following:

• Between 8 and 25 characters

• At least one uppercase letter

• At least one lowercase letter

• At least one digit

• At least one alphanumeric character or symbol

Best Practice: Enter a password with a combination of characters that is easy for you to remember, but dicult for someone else to guess.

Verify the conguration.

• To view the conguration details, enter show.

• To check the network connectivity, enter ping <IP address>.

The success message host <ip address> is alive appears. If the host is not reachable, failed to talk to <ip address> appears.

McAfee and the McAfee logo are trademarks or registered trademarks of McAfee, LLC or its subsidiaries in the US and other countries. Other marks and brands may be claimed as the property of others.

0-00

Appendix

These additional information can be used to learn more about your appliance.

Grantley Platform

The McAfee Advance Threat Defense appliances are built on the Grantley platform. Equipped with the CPUs from the Xenon® E5-2600 v3 and Xenon® E5-2600 v4 product families, DDR4 memory, and 10 GB Ethernet modules, your appliances are fast and ecient. For more information about the Grantley platform, visit:

http://www.intel.com/content/www/us/en/embedded/products/grantley-refresh/overview.html

https://software.intel.com/en-us/articles/intel-xeon-processor-e5-2600-v3-product-family-technical-overview

Boradwell-EP

The CPUs from the Xenon® E5-2600 v3 and Xenon® E5-2600 v4 product families on the McAfee Advance Threat Defense appliances are manufactured in Intel's 14 Nm process technology. The ATD-3100 with two Xenon E5-2609v4 CPUs have eight cores and threads with 20 MB of Intel's Smart Cache. The ATD-6100 with two Xenon E5-2695v4 has 18 cores and 36 threads with 45 MB of Intel's Smart Cache. The ATD-3000 and ATD-6000 with two E5-2658 and four E5-4640 respectively has eight cores and 16 threads with 20 MB of Intel's Smart Cache. For more information about the Broadwell-EP, visit ark.intel.com.

Chassis

The ATD-3100 and ATD-6100 appliances are built on Intel's Wildcat Pass 1U rack system. The ATD-3000 is built on Intel's Grizzly Pass 1U and ATD-6000 is built on Intel's Lizard Head Pass 2U rack system. For more information about Wildcat Pass, Grizzly Pass, and Lizard Head Pass, visit ark.intel.com.

Storage

The McAfee Advance Threat Defense appliances use both HDDs and SSDs for storage. The HDDs are set in 3+1 RAID 5 conguration and the SSDs are set in 1+1 RAID 0 conguration.

Remote management module (RMM)

The ATD-3100 and ATD-6100 appliances are equipped with Intel's RMM4LITE2 modules. The ATD-3000 and ATD-6000 are equipped with Intel's RMM4R and RMM4 modules. The RMM4 modules have the following features which allow administrators to:

• Redirect KVM from RMM4 NIC or the baseboard NIC used for management trac.

• Redirect media, that is, to mount a CD-ROM, Floppy disk, or a USB storage device to a server.

• Remotely troubleshoot system through all system level event logs, sensors reading, power statistics, and debug messages that are readily available in RMM UI console.

For more information about Intel's RMM, visit:

http://www.intel.com/content/www/us/en/server-management/intel-remote-management-module.html

McAfee and the McAfee logo are trademarks or registered trademarks of McAfee, LLC or its subsidiaries in the US and other countries. Other marks and brands may be claimed as the property of others.

0-00

McAfee ATD-3000, ATD-6000, ATD-3100, ATD-6100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
