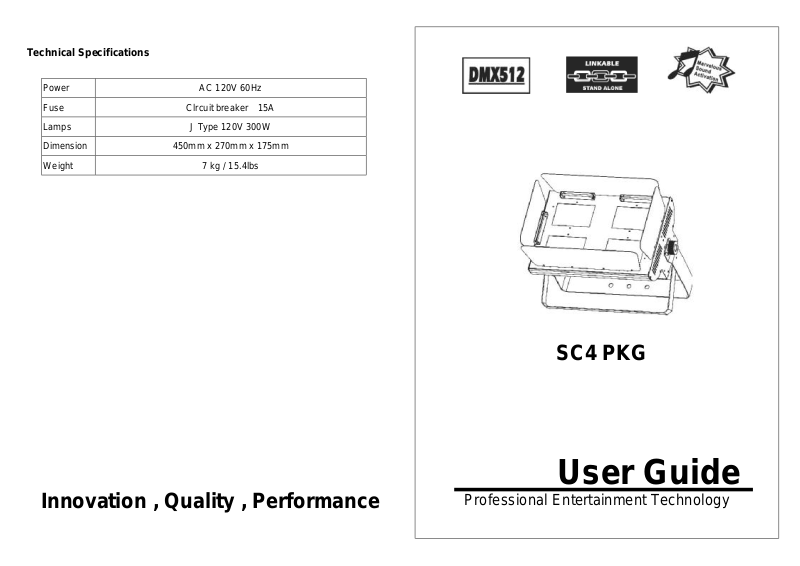

Technical Specifications
Power AC 120V 60Hz
Fuse Clrcuit breaker 15A
Lamps J Type 120V 300W
Dimension
Weight 7 kg / 15.4lbs
450mm x 270mm x 175mm
SC4 PKG
Innovation , Quality , Performance
User Guide
Professional Entertainment Technology
7. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimize light output. Cleaning frequency depends on the environment in which
the fixture operates: damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the unit’s optics.
＊ Clean with soft cloth using normal glass cleaning products.
＊ Always dry the parts carefully.
＊ Clean the external optics at least once every 20 days. Clean the internal optics at least
every 30/60 days.
EC Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
2-
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55014-2: 1997 A1:2001, EN61000-4-2: 1995; EN61000-4-3:2002;
EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6:1996,
EN61000-4-11: 1994.
&
Harmonized Standard
EN 60598-1: 2004
IEC 60598-1:2003+ corrigendum 2004
Part 1:General requirements and test
Following the provisions of the low voltage directive 73/23/EEC and 93/68/EEC
6. Troubleshooting
Following are a few common problems that may occur and suggestions as to how to solve
them.
A. No light
1. Check the power on LED and fuse
2. Check the lamp if it is ok? (The lamp may turn off, when the unit is in blackout).
B. Not responding to DMX
1. Check red LED is on, if not, check DMX connectors, cables and linking correctly.
2. If the red LED is on and no response to the channel, check the dipswitch settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may
caused damage or interference to DMX interface circuit.
INDEX
1. General Instructions
2. Main Features
3. Lamp
4. DMX Linking & Controls
3-
5. How To Control The Unit
A. By master/slave preprogrammed function
B. By easy controller
C. Some units don’t respond to the controller
You may have a break in the DMX cabling. The unit receiving no DMX signal will begin
its own light show. Check the red LED for the response of the DMX signal.
D. No response to the sound
1. Check the unit that is not receiving DMX signal (red LED should be off)
2. Check the unit that is not set to display mode
3. Check microphone to see if it is good by tapping the microphone
C. By Colormix controller
D. By universal DMX controller
6. Troubleshooting
7. Fixture Cleaning
1. Getting Instructions
D. By universal DMX controller
The following points are important for safety as well as for the smooth installation and
performance of the unit.
Ÿ Unpack carefully and be sure that no damage has occurred during shipping.
Ÿ It is very important to ground the yellow/green conductor in order to meet regulations for
safety.
Ÿ Do not connect the device to any dimmer pack or power pack.
Ÿ The electrical work that is necessary for installation must do by qualified personnel.
Ÿ Be sure to locate the unit in a place with adequate ventilation at least 15 cm from the walls
and at least 100 cm from adjacent surfaces. Be sure than no ventilation slots are blocked.
Ÿ Be careful that no liquids or other objects can enter the unit. If this ever happens,
disconnect the main power immediately.
Ÿ In the event of serious operating problems, turn off the unit immediately. Never try to repair
the unit yourself. Repairs carried out by non-qualified personnel can lead to serious
damage or malfunction. Please contact your dealer about authorized technical assistance.
Always use genuine spare parts.
Ÿ Occasional breaks are necessary to prevent breakdowns. This unit is not designed to be
If you use a universal DMX controller to control the units, you have to set dip switches
from 1 to 9 of the channel so that all the units will receive its DMX signal. Please refer to the
following diagram to know how to address your DMX512 system in the binary code.

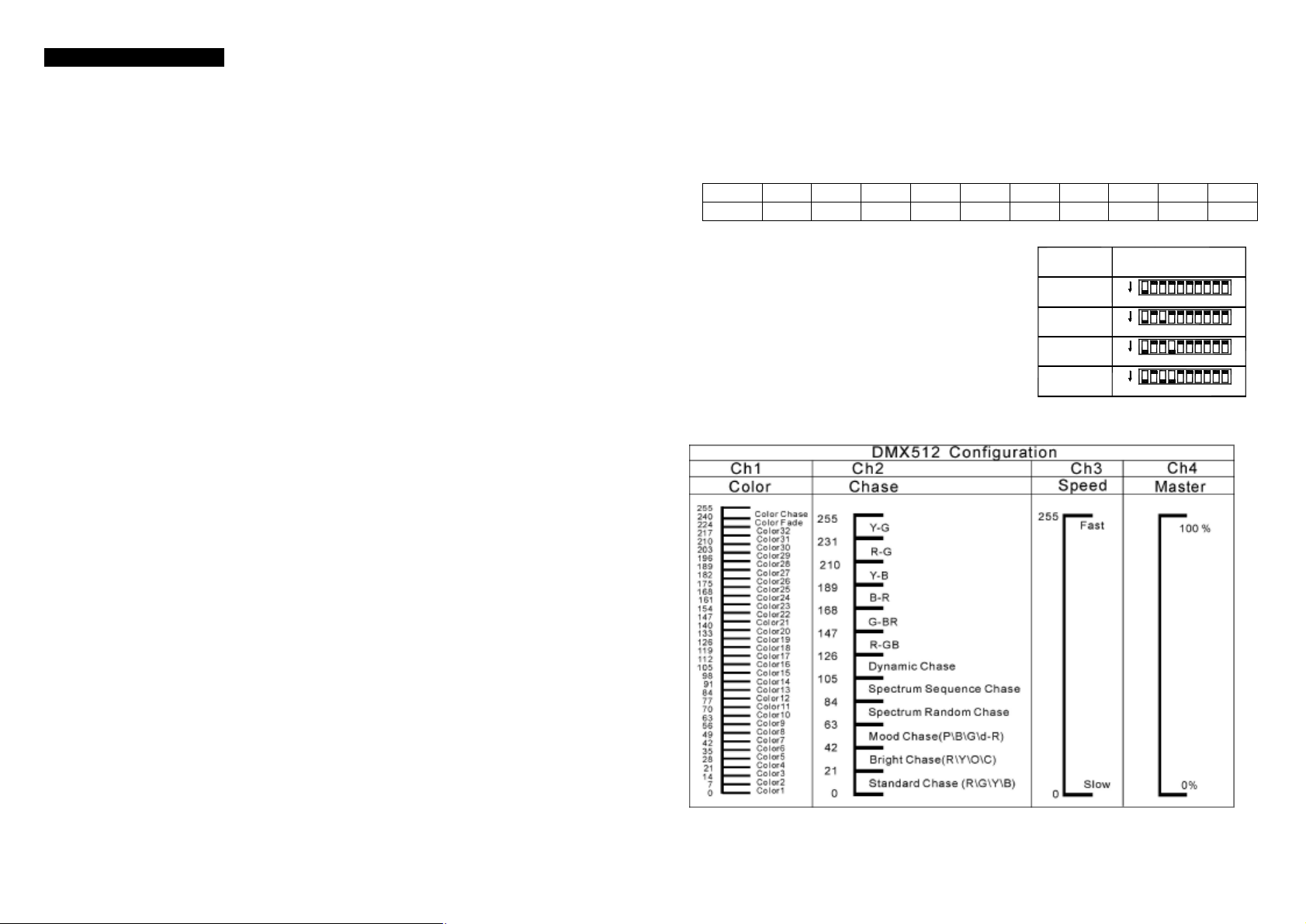

DMX512 Address Chart
Dip #1 #2 #3 #4 #5 #6 #7 #8 #9 #10
Value
• Examples:
Channel 1 : dip / on : #1 ( 1 )
Channel 5 : dip / on : #1, #3 ( 1 + 4 = 5)
Channel 9 : dip / on : #1, #4 ( 1 + 8 = 9 )
Channel 13 : dip / on : #1, #3, #4 ( 1 + 4 + 8 = 13 )
• DMX512 Configuration
4-
1 2 4 8 16 32 64 128 256 M/S
Dipswitches settingChannel
1
5
9
13
ON
ON
ON
4ON 2135768910
10987654321
10987654321
10987654321
used non-stop.
Ÿ Always remember to unplug the unit from the power mains before any service is done.
Ÿ Please recycle the packaging.

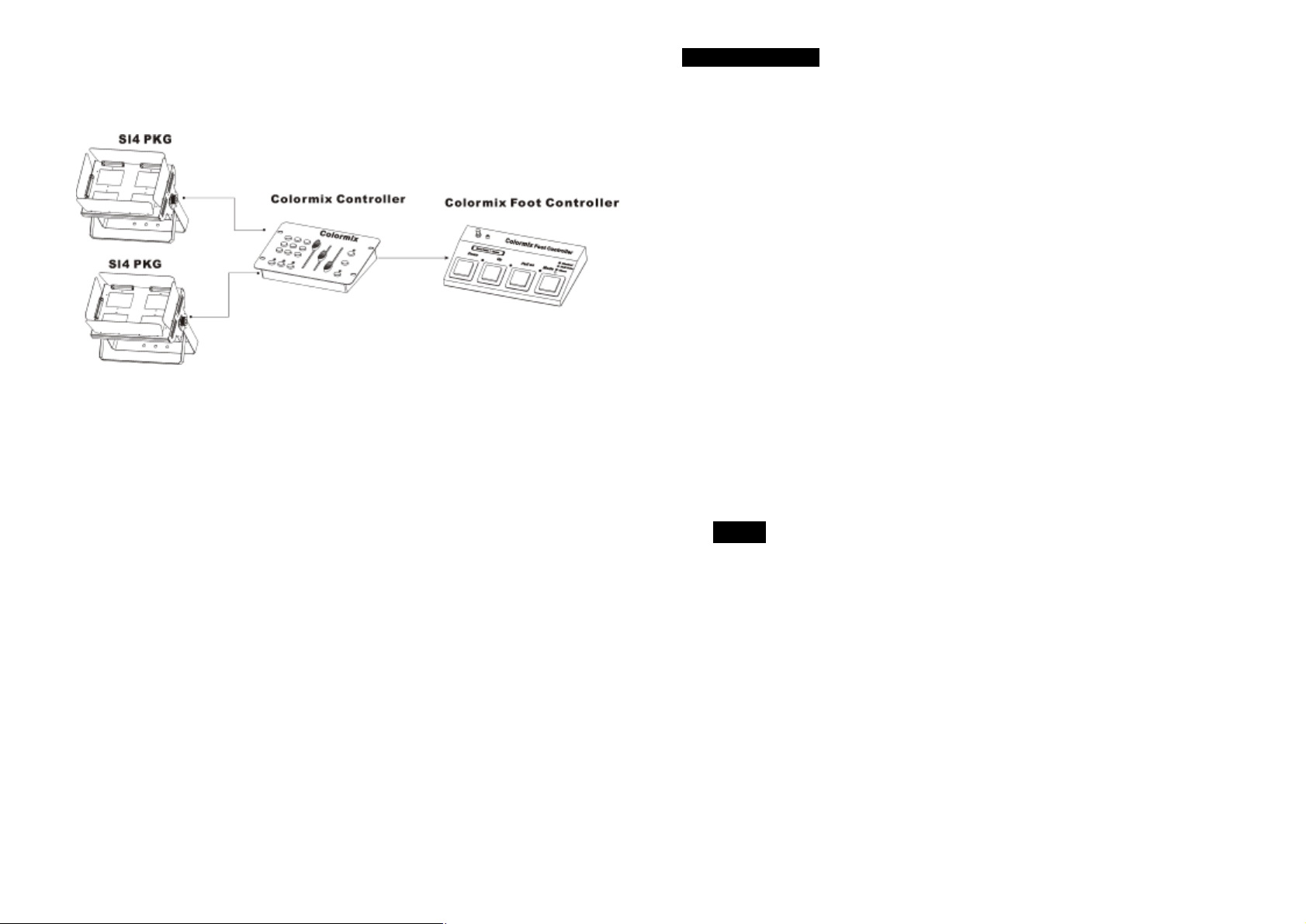

C. By Colormix controller
By link the Colormix controler to the unit , you have to use 3 pin XLR cable and use 5
2. Main Features
Voltage：AC 120V 60 Hz
pin XLR cable between Colormix controller and Colormix foot controller.
Colormix Controller
• A professional, user friendly DMX 4ch.controller for colorimixing.
• Equipped with 9 different hold-color buttons for instant access of colors.
• Comes with 32 spectrum mix colors, color fade, and 12 different chase patterns,
• Providing the richest changing colors for the show.
• Speed and dimmer adjustable for both color fade and chase.
• Sound activated function is available.
• Full on and Blackout functions .
Colormix Foot Controller
• Colormix Foot controller is a extended controller of Colormix.
• To be liked with Colormix. Add a switch to change the control between Colormix and
Colormix Foot Controller.
• Mode i.) Blackout (LED on)
• Bulb： J Type 120V 300W
• 3 dichroic mirrors red, blue, and green or 4 dichroic mirrors red, yellow, blue, and
green.
With lamp saving switch-off function. When the unit receives stand by signal from a
•
easy controller or an universal DMX controller, it will switch off the lamp extending the
lamp’s lifetime.
Ÿ Easy door to bulb change lamp.
Ÿ Standard DMX-512 control and address. By DMX linking and XLR cable.
Ÿ This units can be linked together in a master/slave combination and run by built-in
programs.
Ÿ Compatible with easy controller or universal DMX controller.
Ÿ DMX signal / sound activation indication LED.
Ÿ Efficient axial fan cooling.
5-
Dimension :
•
Weight:
450 x 270 x 175mm
7 kg
3. Lamp
J Type 120V 300W
• Always switch off the mains supply and never handle the lamp or luminaire when
it is hot.
• Do not touch the bulb with bare hands. If this does happen, clean the lamp with denatured
alcohol and wipe with a lint free cloth before installing.
ii.) Hold Color(LED off)
iii.) Chase (LED blinking)-Stamp on the button over 2 seconds for chase
• Up and Down buttons:To select the hold colors and chase patterns.
• Full on:Stamp the button for full on.
4. DMX Link & Controls
Master
ON10987654321
ON10987654321
5. How To Control The Unit
You can operate the unit in four ways:
A. By master/slave preprogrammed function
Channel Dip switches setting
1. DMX output: pin 1: Comm., pin 2: DMX－, pin 3: DMX＋.
2. DMX input: pin 1: comm., pin 2: DMX－, pin 3: DMX＋. If you are using a controller with
5 pins DMX output, you will need to use a 5 to 3 pin adapter.
3. Dipswitch: Dipswitch 1-9 set the DMX channel that the unit will respond to. Channel 1 is
the start address. Switch 10 sets the master/slave in ‘group’ of all the units. Please
refer to the diagram on setting the dipswitches.
4. Red LED: DMX signal / Sound activation. This LED will flash when DMX signal is
being received or sound activation is working.
5. Built-in microphone for sound activation.
Connect the unit together in a ‘daisy chain’ by XLR plug from the output of the unit to the
By linking the units in master/slave connection,
the first unit will control the other units to give an
automatic activated synchronized light show. In this
mode, the first unit（master）dipswitch 10 must be on.
This function is good when you want an instant show. You will know which unit is the master
because its DMX input jack will have nothing plugged into it and its red LED will flash to the
music. The other units (slaves) will have DMX cables plugged into the DMX input jacks
(daisy chain) and the red LED lights will be constantly flashing. Please refer to the diagram
on setting the dipswitches.
Slave 1
Slave 2
Slave 3
4ON 2135768910
B. By easy controller(CA-8)
6-
The easy remote control is used only in master/slave mode. By connecting to the 1/4”
microphone jack of the first unit, you will find that the remote control on the first unit will
control all the other units for Stand by, Function/Mode.
input of the next unit. The cable can not be branched or split to a ‘Y’ cable. DMX512 is
a very high-speed signal. Inadequate or damaged cables solder joints or corroded
connectors can easily distort the signal and shut down the system.
Stand By Blackout the unit
Function 1. Synchronous Strobe
2. 2-light Show Strobe
Mode Sound Manual Latch
Full on/Color select
Dimmer
