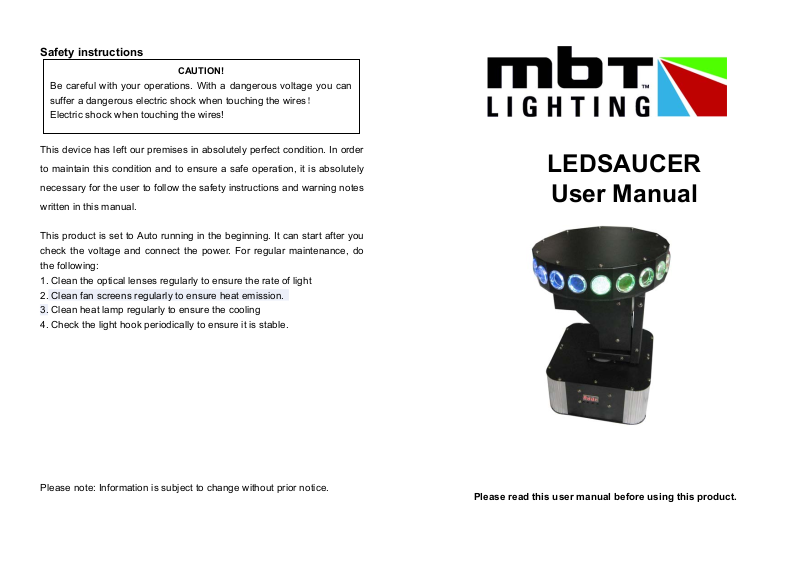

MBT Lighting LEDSAUCER User Manual

Safety instructions

This device has left our premises in absolutely perfect condition. In order

to maintain this condition and to ensure a safe operation, it is absolutely

necessary for the user to follow the safety instructions and warning notes

written in this manual.

This product is set to Auto running in the beginning. It can start after you

check the voltage and connect the power. For regular maintenance, do

the following:

1. Clean the optical lenses regularly to ensure the rate of light

2. Clean fan screens regularly to ensure heat emission.

3. Clean heat lamp regularly to ensure the cooling

4. Check the light hook periodically to ensure it is stable.

Please note: Information is subject to change without prior notice.

LEDSAUCER

User Manual

Please read this user manual before using this product.

CAUTION!

Be careful with your operations. With a dangerous voltage you can

suffer a dangerous electric shock when touching the wires！
Electric shock when touching the wires!

Features

Voltage: AC100-240V 50Hz/60Hz

Power: 50W

Light source: 3pcs 3*3W tricolor LED

Control modes: Auto running, Sound active, DMX 512, Master and slave.

Channels: 8 channels DMX512

4-button LED DMX display

Package size: 28cm*28cm*39cm

Weight: 6.5KG

Display instruction

MODE/ESC

UP

DOWN

ENTER

Function

Aut1

Auto

Single mode invalid

Single mode invalid

Display Auto

after enter

Auto mode

Sound

Sound

Single mode invalid

Single mode invalid

Display

Sound after

enter

Sound active

A001-A512

Addr

Display secondary

menu when press

this button +1

Display secondary

menu when press

this button +1

Display

Address

after enter

DMX512

Sla

Stau

Single mode invalid

Single mode invalid

Display Stau
after enter

Slave mode

DMX control

Channel

Data

Control

0-254

X stalk (0º-360º)
CH1
255

Sound control

CH 2

0-255

X stalk speed (0-255 quick to slow)

CH 3

0-255

Y stalk (0º-180º)

CH 4

0-255

Y stalk speed (0-255 quick to slow)

0-99

Z stalk turn clockwise

100-154

Stop

CH 5

250-255

Z stalk turn reverse

CH 6

0-255

Z stalk speed (0 quick -255 slow)

0-41

Black out

42-83

Color R R R

84-125

Color G G G

126-167

Color B B B

168-209

Color R G B

210-241

Color G B R

CH 7

242-255

Color B R G

CH 8

0-255

Strobe speed (0 quick -255 slow)

Notice:

When gobos programming, do not turn on all the LED lights for a long

time to ensure the stability and lengthen the lifetime of the products.

Please make sure disconnect the power when do not use
