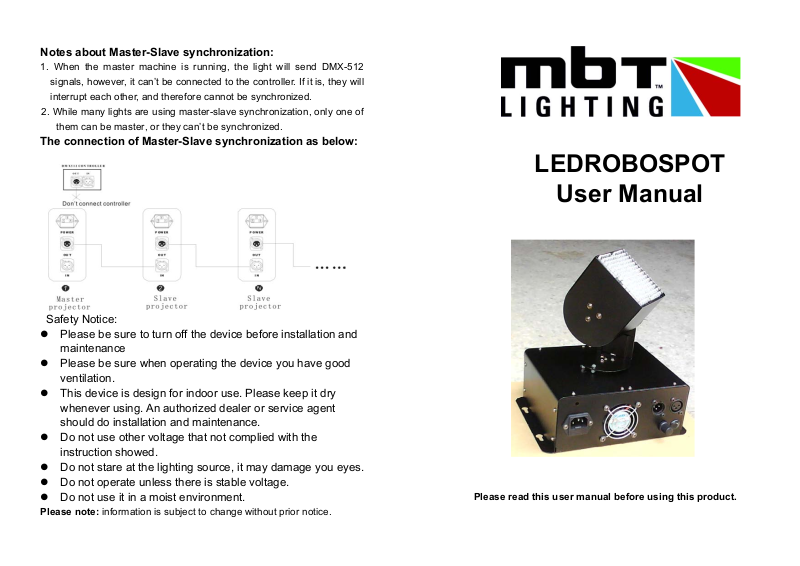

MBT Lighting LEDROBOSPOT User Manual

Notes about Master-Slave synchronization:

1. When the master machine is running, the light will send DMX-512

signals, however, it can’t be connected to the controller. If it is, they will

interrupt each other, and therefore cannot be synchronized.

2. While many lights are using master-slave synchronization, only one of

them can be master, or they can’t be synchronized.

The connection of Master-Slave synchronization as below:

Safety Notice:

 Please be sure to turn off the device before installation and

maintenance

 Please be sure when operating the device you have good

ventilation.

 This device is design for indoor use. Please keep it dry

whenever using. An authorized dealer or service agent
should do installation and maintenance.

 Do not use other voltage that not complied with the

instruction showed.

 Do not stare at the lighting source, it may damage you eyes.
 Do not operate unless there is stable voltage.
 Do not use it in a moist environment.

Please note: information is subject to change without prior notice.

LEDROBOSPOT

User Manual

Please read this user manual before using this product.

Features

Voltage/Frequency: 120/230V,50Hz/60Hz

Power Consumption: 50W

LED:162PCS 5mm intensive brightness LED(56pcs RED, 52pcs

GREEN,54pcs BLUE)

Control：Auto、Sound Active, DMX, Master/Slave

4 DMX channels

Pan 270º, Tilt 360º

Strobe speed 0-255 adjustable

RGB color mixation

Working environment：Indoor use

FUNCTION MODEL SETTING:

This unit applies to Switch-address code, which is the choice of the

mode of the performing control and the address-code, the 10th

address-code is the switch of the transferring of the DMX-512 signal

control, music control and automatic control. The mode set, details as

following:

Mode

Binary code（ON）

1

DMX-512signal control mode

1-9 setting address, 10--on

2

Music activation

9--ON、1,2,3,4,5,6,7,8,10--OFF

3

Automatic

1—10--OFF

4

Music control for master unit

9 __ON, 10—OFF, 1-8 for

adjusting flash frequency

5

Automatic for master unit

9, 10 OFF, the rest for changing

colors

6

Slave mode

1-9—NO SETTING, 10—ON

(Don’t connect to controller)

DMX-512 Function:

The device adopts international standard DMX-512 signal, with totally 4

channels, details as below:

DMX-512 address code set:

This unit is equipped with 4 channels, while the address code of the first

light is 0, the second is 0+1=1, the third 1+1=2, and so on.

Detailed DMX-512 address code set as following:

Channel

DMX-512 Value

Controlled effect

CH1

0-255

Vertical movement (270º)

CH2

0-255

Horizontal movement(360
degree)

0-36

Dark

37-71

Blue

72-107

Green

108-142

Red

143-179

Blue and green

180-215

Red and blue

216-251

Breen and red

CH3

252-255

Blue, red and green
CH4

0-255

Speed of strobe ( quick get
to slow gradually)

Lighting NO.

Original address （ ID
Value）

Binary Code Dialing（ON）

1 0 10

2 1 10.5

3 2 10.6

4 3 10.5.6

5 4 10.7

6 5 10.5.7

7 6 10.6.7

8 7 10.5.6.7

9 8 10.8

10

9

10.5.8

···

······

······
