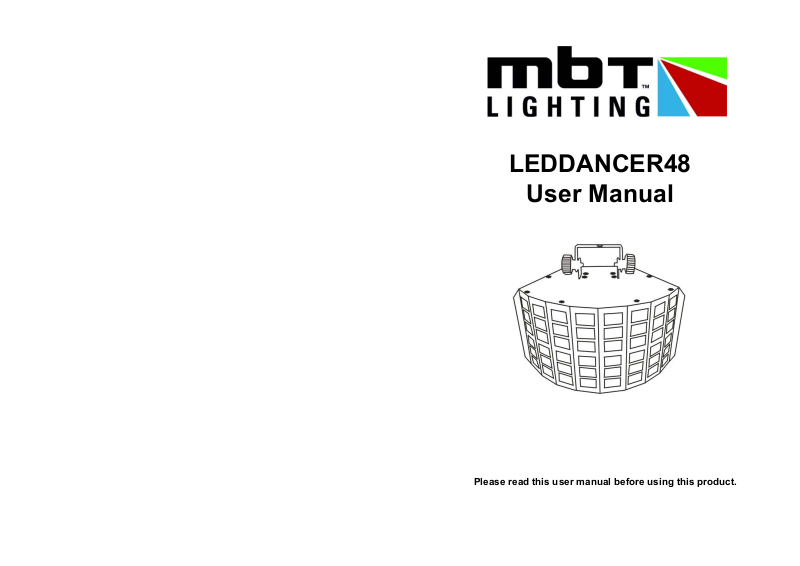

MBT Lighting LEDDANCER48 User Manual

LEDDANCER48

User Manual

Please read this user manual before using this product.

Features

Voltage: AC100-240V 50Hz/60Hz

Power: 20W

Light source: 1*3W Red, 1*3W Green, 1*3W Blue LEDs

4operation modes: Automatic running, DMX, Sound Active, Master/Slave

Sound controlled via built-in microphone

6 DMX channels

Advantages of LED-technology: extremely long life, low power

consumption minimal heat emission, defacto maintenance free with

brilliant light radiation

INTRODUCTION

Thank you for choosing our LEDDANCER48, you will see you have

acquired a powerful and versatile device.

DMX512 Controller instruction

ON

OFF

Function

CH 1

………….

Red dimmer

CH 2

Green dimmer

CH 3

Blue dimmer

CH 4

Open light

CH 5 Strobe

CH6

…….

Motor

DIP control instruction

Address code

Address code

Function instruction

ON

OFF

1

2.3.4.5.6.7.8.9,10

Sound

active(Master),auto run

when no sound

1,2

3.4.5.6.7.8,9,10

Slow run(when no

sound)

1,3

2.4.5.6.7.8,9,10

Quick run(when no

sound)

9

1.2.3.4.5.6.7.8.10

All bright, motor auto

run

1.2.3.5.6.7.8.9,10

Slave 1(DMX)

10

1.2.3.4.5.6.7.8.9

Slave 2

1,2,3,4,5,6,7,8,9

DMX

Safety instruction

This device has left our premises in absolutely perfect condition. In order

to maintain this condition and to ensure a safe operation, it is absolutely

necessary for the user to follow the safety instructions and warning notes

written in this manual.

Please note: information is subject to change without prior
notice.

CAUTION!

Be careful with your operations. With a dangerous voltage you can

suffer a dangerous electric shock when touching the wires！
Electric shock when touching the wires!
