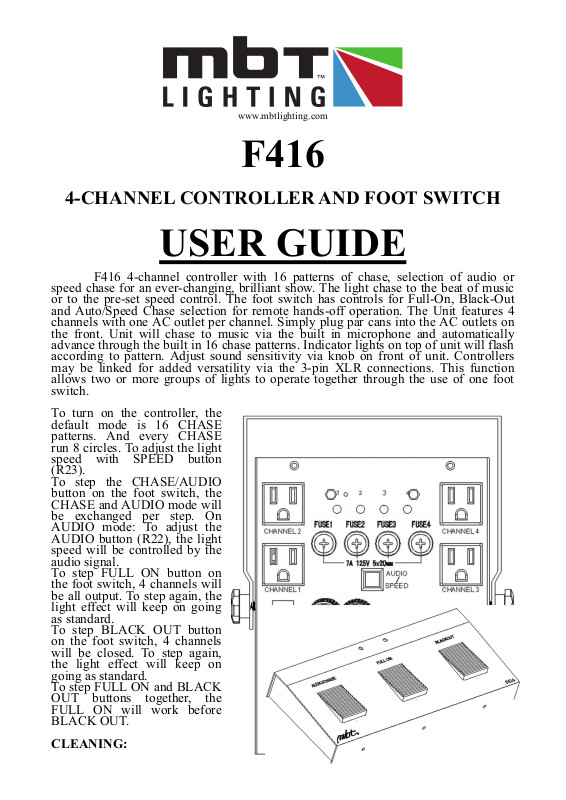

F416

4-CHANNEL CONTROLLER AND FOOT SWITCH

USER GUIDE

F416 4-channel controller with 16 patterns of chase, selection of audio or
speed chase for an ever-changing, brilliant show. The light chase to the beat of music
or to the pre-set speed control. The foot switch has controls for Full-On, Black-Out
and Auto/Speed Chase selection for remote hands-off operation. The Unit features 4
channels with one AC outlet per channel. Simply plug par cans into the AC outlets on
the front. Unit will chase to music via the built in microphone and automatically
advance through the built in 16 chase patterns. Indicator lights on top of unit will flash
according to pattern. Adjust sound sensitivity via knob on front of unit. Controllers
may be linked for added versatility via the 3-pin XLR connections. This function
allows two or more groups of lights to operate together through the use of one foot
switch.

To turn on the controller, the
default mode is 16 CHASE
patterns. And every CHASE
run 8 circles. To adjust the light
speed with SPEED button
(R23).
To step the CHASE/AUDIO
button on the foot switch, the
CHASE and AUDIO mode will
be exchanged per step. On
AUDIO mode: To adjust the
AUDIO button (R22), the light
speed will be controlled by the
audio signal.
To step FULL ON button on
the foot switch, 4 channels will
be all output. To step again, the
light effect will keep on going
as standard.
To step BLACK OUT button
on the foot switch, 4 channels
will be closed. To step again,
the light effect will keep on
going as standard.
To step FULL ON and BLACK
OUT buttons together, the
FULL ON will work before
BLACK OUT.

CLEANING:

To keep clean of the lamp surface is very important since it allows the light output to
transmit. This should be cleaned with a soft damp cloth. The body of the unit may also
be cleaned in the same way. We recommend internal cleaning be carried out by a fully
qualified technician.

REMARK:

1. If the unit is not functional, please check if the main power supply is ‘on’.

2. If the unit is functional but one channel does not light, the channel fuse may require

replacing. Two extra fuses are provided for this purpose. Take care that the unit is
unplugged from AC power while changing fuses.

3. If the unit is functional but no channels light, check if the footswitch is in

BLACKOUT mode

4. If all channels light at the same time and will not chase, check is the footswtich is

in FULL ON mode

5. If the unit is functional but lamp does not light, the lamp may require replacing.
After trying the above solution you still have a problem, please contact your dealer or
our company for service.

WARNING：

Do not obstruct the air vents.
Do not touch unit or lamps while hot.
Never put any objects through the air grill on the top of the unit.

POWER CONNECTIONS

The unit is supplied with a power plug appropriate to its voltage and destination.
Should any other connections be required they must be carried out with the following
configuration.

The F416 controller is supplied with a grounded power plug and intended for use with
110-120 volt AC electrical connections. The unit is grounded for safety; do not attempt
to remove or disable the grounding feature on the plug. There are no user serviceable
parts insde the unit. Please take to a qualified service center for repair.

Earth = Green/Yellow cable
Neutral = Blue cable
Live = Brown cable
